User Manual for Nitecore HC65 USB Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore HC65 USB Rechargeable LED Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
 |
User manual for the Nitecore HC65 USB Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

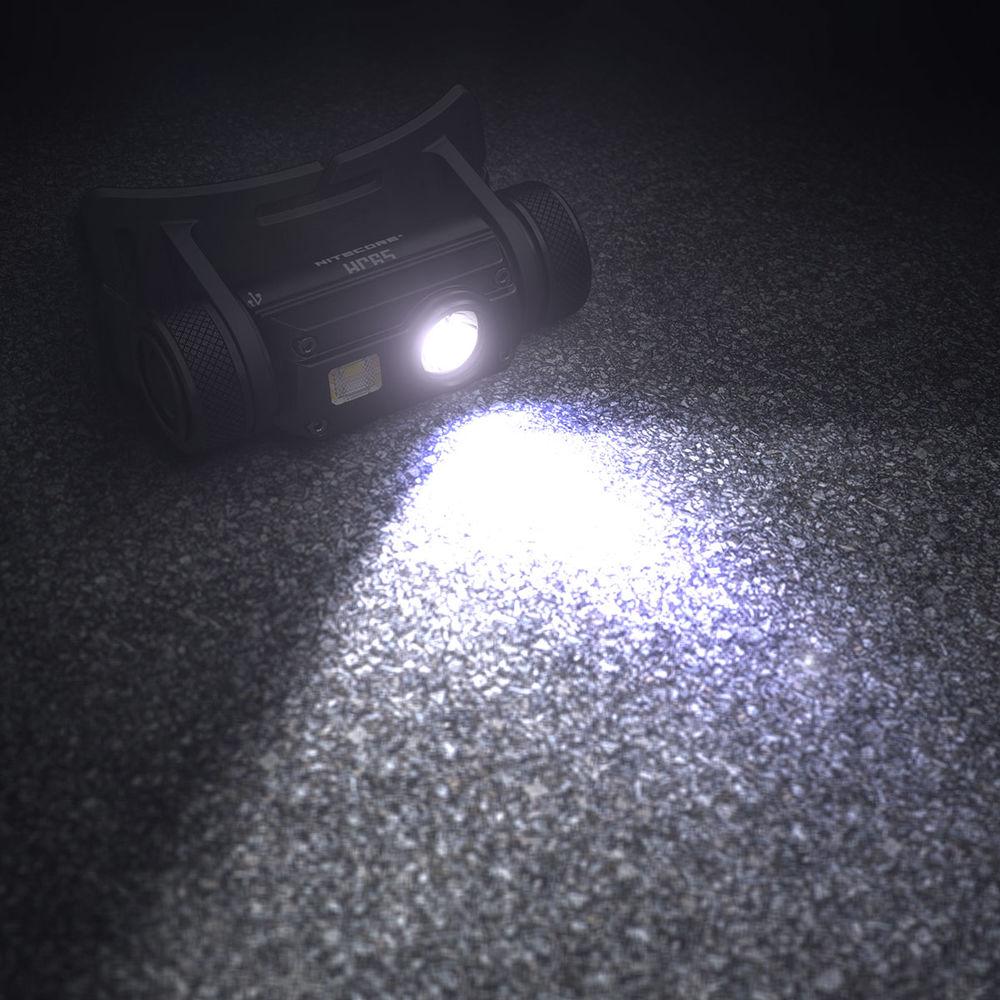

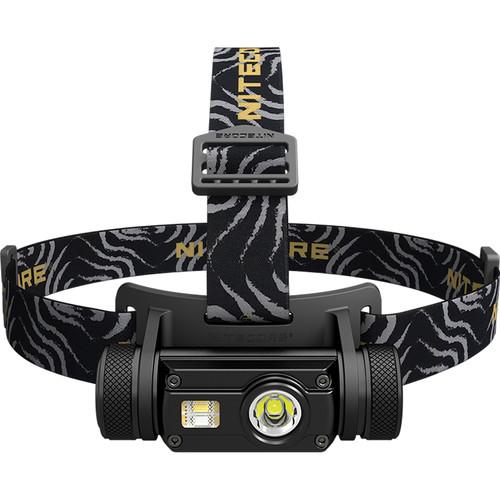

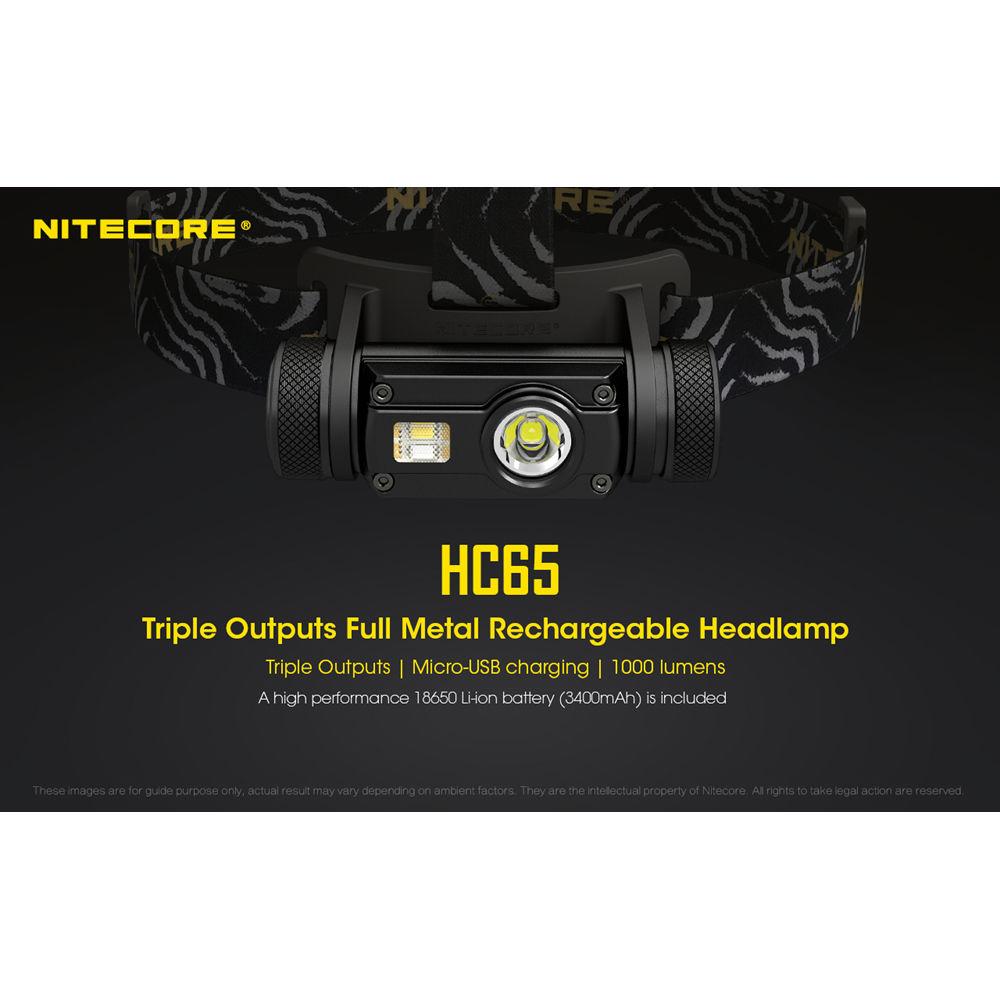

Product description Offering five brightness levels of white light, a red and auxiliary white light, and SOS, beacon and strobe modes, Nitecore's HC65 USB-Rechargeable LED Headlamp is a versatile and powerful illumination tool. Its main emitter is a Cree XP-G2 S3 LED with a maximum output of 1000 lumens and a maximum runtime on low power of 800 hours. It also has a second, 26-lumen white light with a high Color Rendition Index for tasks like reading that don't need as much candlepower, and a red light that preserves night-acclimated vision for night photography, astronomy or wildlife observation. The main light shines in a wide 100° cone, and the lamp can be tilted 180° to put the beam right where you need it. The lighting program features ultra-low, low, medium, high, and turbo white; auxiliary white; steady and flashing red; and 1000-lumen white SOS, beacon and strobe modes.The hard-anodized aluminum housing is IPX8-rated waterproof and submersible to 6.6' and impact-resistant to 5'. A protective cap keeps moisture and dirt of the intelligent micro-USB charging port. The Precision Digital Optics Technology reflector produces a smooth, even beam, and Advanced Temperature Regulation technology offers safety and comfort. Along with a rechargeable 18650 battery, the light can also run on two non-rechargeable CR-123 batteries if need be. A built-in indicator shows how much power is left in your battery to avoid unpleasant surprises. - Light Performance
-
- Cree XM-L2 U2
- 1/80/280/550/1000 lumens

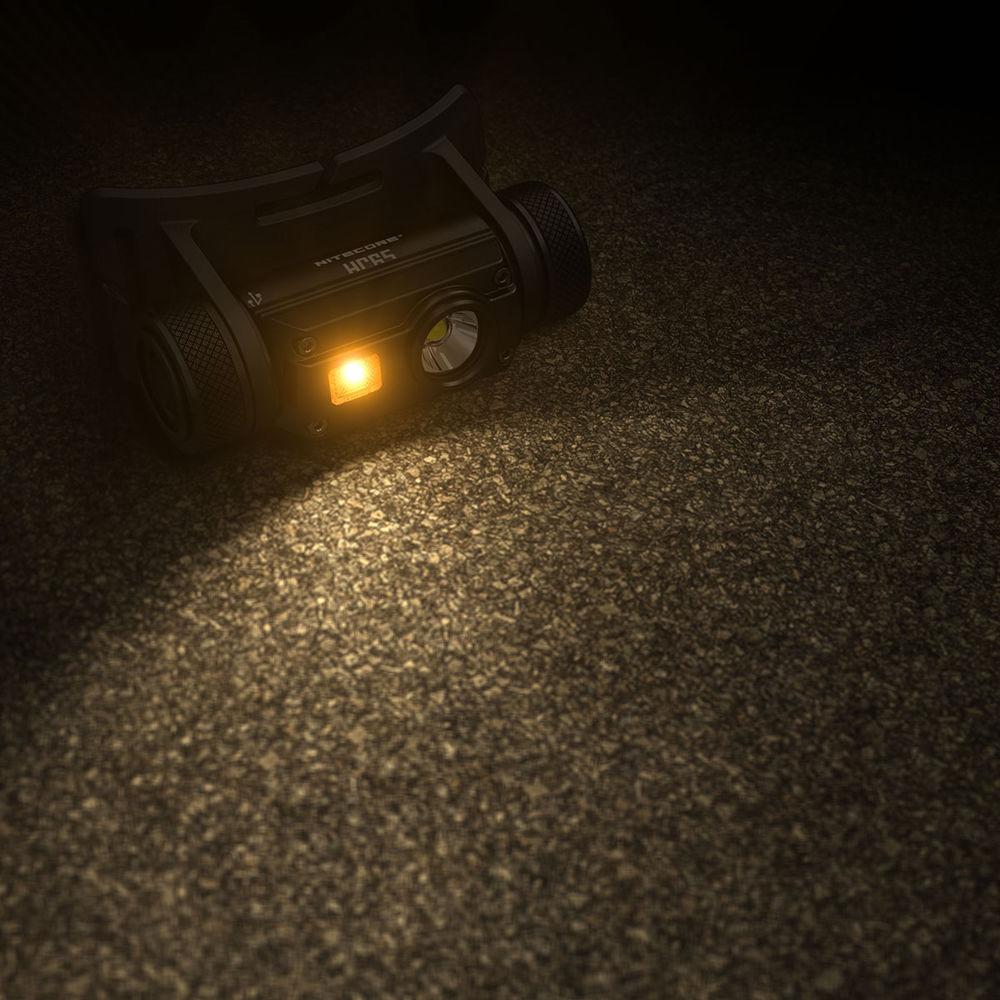

- 11-lumen red light
- 26-lumen high-CRI light mimics morning sunlight for accurate colors and low eye-strain
- PDOT reflector for smooth, even beam
- Use and Handling
-
- Wide 100° flood cone of light
- Constant-on, SOS, location beacon, strobe, flashing red
- Status indicator
- Runtime: 1 to 800 hours
- 180° adjustable lamp tilt
- Construction
-
- Aluminum housing
- Constant circuit (not pulse width modulation) for flicker-free performance
- Advanced Temperature regulation technology
- Intelligent micro-USB charging port

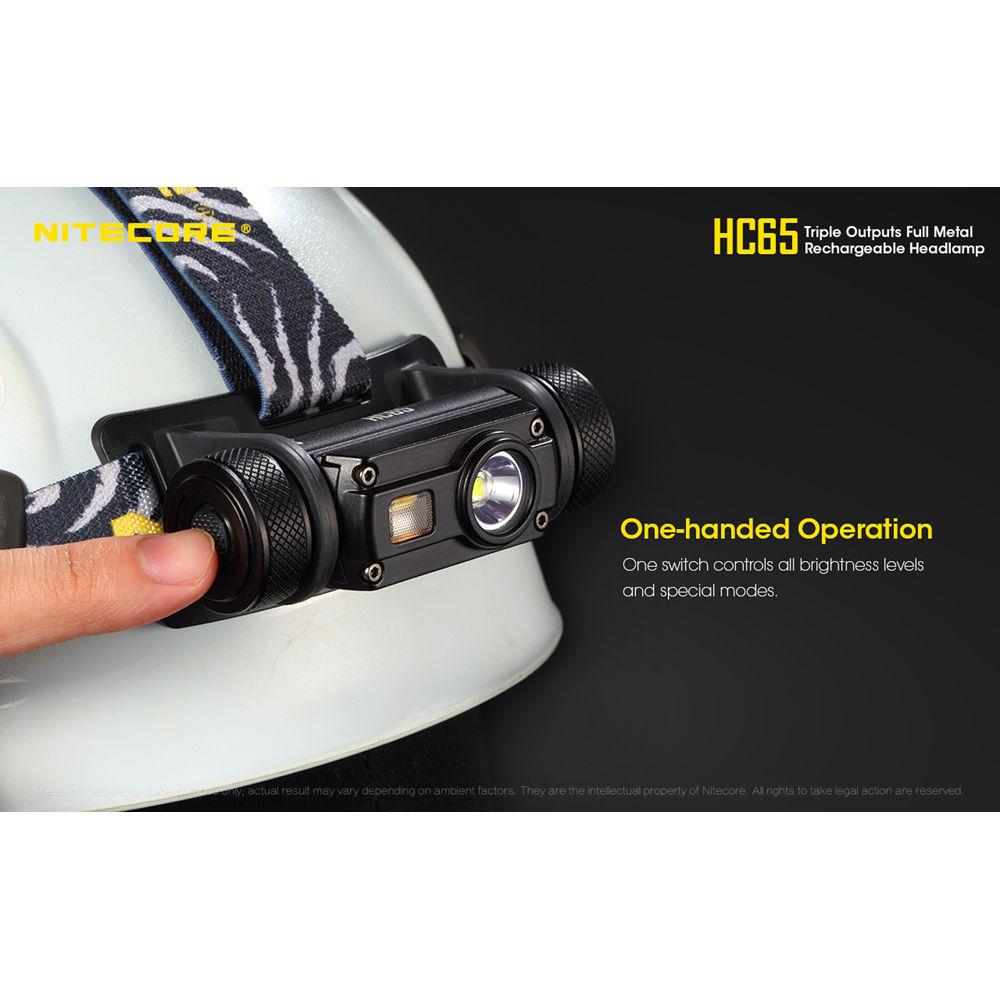

- Single push-button

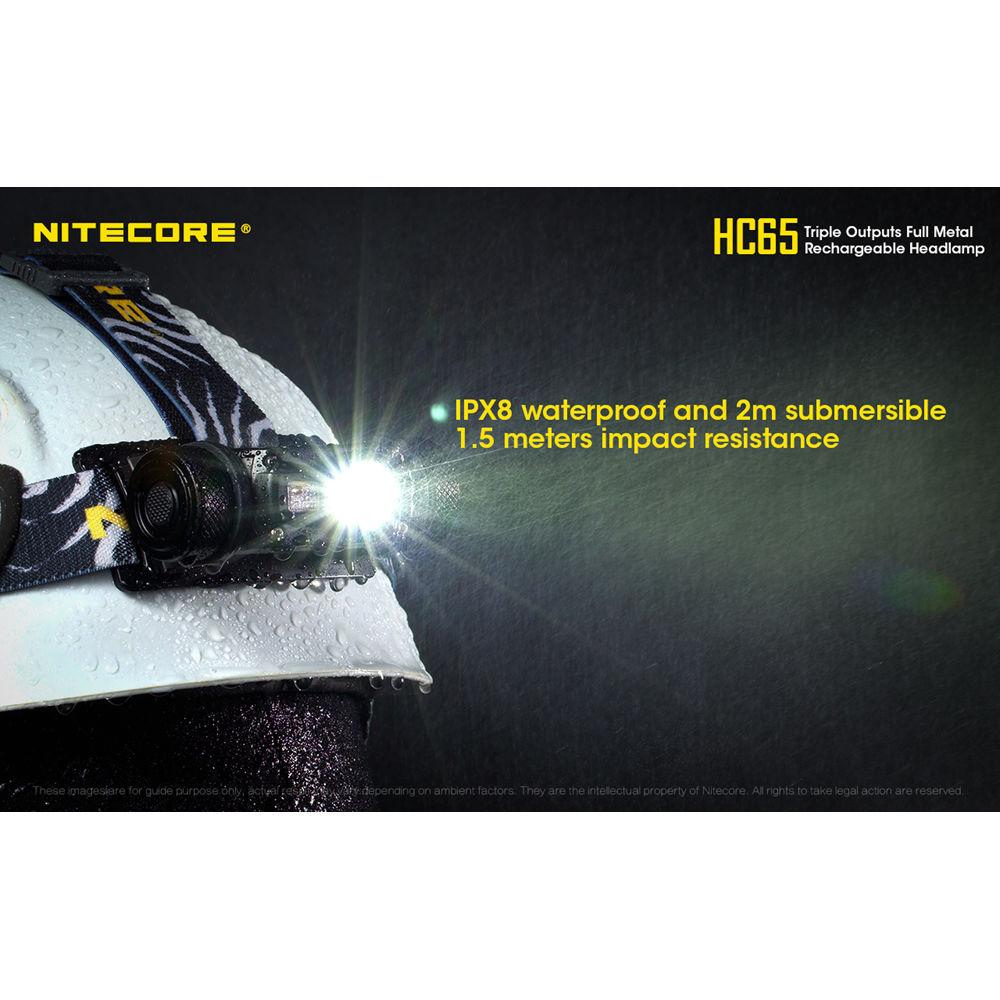

- IPX8-rated waterproof, submersible to 6.6'
- Impact-resistant to 5' drops
In the Box Nitecore HC65 USB Rechargeable LED Headlamp USB Cable 18650 Battery Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore HC65 USB Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

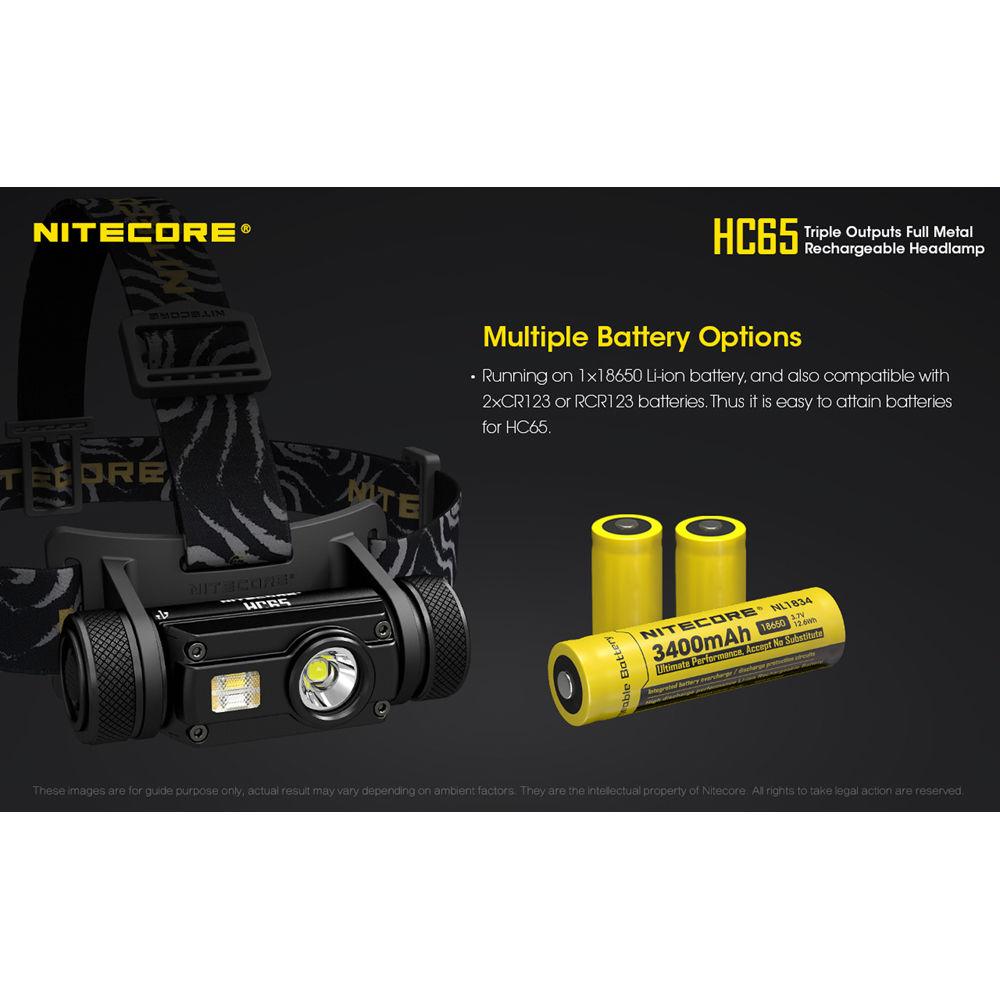

Technical parametersNitecore HC65 Specs | | | Lumen Output | High: 550 Lumens
Medium: 280 Lumens
Low: 80 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen
Red: 11 Lumens
White: 26 Lumens | | Illumination Source | 1 x LED | | Beam Angle | 100° | | Estimated Runtime | High: 2.8 Hours
Medium: 4.8 Hours
Low: 16 Hours
Minimum: 800 Hours
Red: 20 Hours
Strobe (Red): 32 Hours
White: 25 Hours | | Battery Type | 1 x 18650 | | Internal Battery Capacity | 3400 mAh | | Charging Time | 7 Hours | | | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions | W: 3.3 x H: 0.7" / W: 8.4 x H: 1.8 cm | | Weight | 2.2 oz / 63 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 6.15 x 4.0 x 2.15" |
