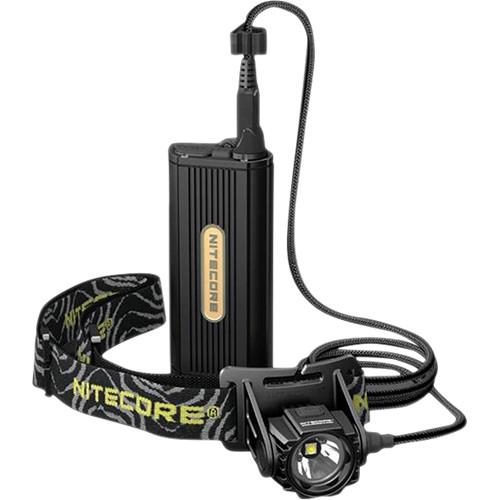

User Manual for Nitecore HC70 USB Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore HC70 USB Rechargeable LED Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
|
User manual for the Nitecore HC70 USB Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Designed for cave exploration and suited to all-around use, the HC70 USB Rechargeable LED Headlamp offers five brightness settings from 1 to 1000 lumens and a rugged, cable-connected battery pack that clips to a pocket or strap. The lamp itself weighs under 4 ounces and casts a wide 90° beam for everything from auto repairs to underground adventures. Constructed of aluminum and IP67-rated (submersible to 3.3 feet), the battery back is fitted with two USB ports for charging other devices. The die-cast unibody lamp employs a Cree XM-L2 U2 LED and features Precision Digital Optics Technology and an anti-reflective coated lens for optimal performance. A temperature sensor and control circuitry combine with a physical design that effectively dissipates heat to safeguard against overheating. At the 1-lumen low-power setting, the headlamp will run as long as 220 hours, with lower runtimes at higher power levels. A battery power indicator makes sure you know your status. The cable from the battery pack to the lamp is coated with durable nylon. - Lamp Performance
-
- Ultra-low: 1 lumen
- Low: 38 lumens
- Med: 210 lumens
- High: 420 lumens
- Turbo: 1000 lumens
- Emergency modes: Location beacon, SOS, caution light
- Maximum runtime 220 hours
- Cree XM-L2 U2 LED
- Switching
-
- Single push-button on lamp
- Starts up at most recently used setting
- Construction
-
- Anodized aluminum alloy battery pack
- USB output ports for charging/powering other devices
- IP67-rated, submersible to 3.3' and dust-proof
- Impact-resistant
- Lightweight lamp (3.5 oz) with die-cast housing
- Anti-reflective coated lens & PDOT reflector
- Rugged nylon-coated cable
- Advanced temperature regulation technology
- Weight: 3.4 oz (without batteries)
In the Box Nitecore HC70 USB Rechargeable LED Headlamp 2 x 18650 Lithium-Ion Rechargeable Batteries Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore HC70 USB Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore HC70 Specs | | | Lumen Output | High: 550 Lumens
Medium: 240 Lumens
Low: 65 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | Estimated Runtime | High: 4 Hours
Medium: 10 Hours
Low: 30 Hours
Turbo: 2.25 Hours
Minimum: 220 Hours | | Battery Type | 2 x 18650 Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Weight | 3.5 oz / 98 g | | | | Package Weight | 0.935 lb | | Box Dimensions (LxWxH) | 8.3 x 3.65 x 3.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
