User Manual for Nitecore LA10 CRI LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore LA10 CRI LED Flashlight
- Product category: Keyring & Mini Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Keyring & Mini Lights
 |
User manual for the Nitecore LA10 CRI LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

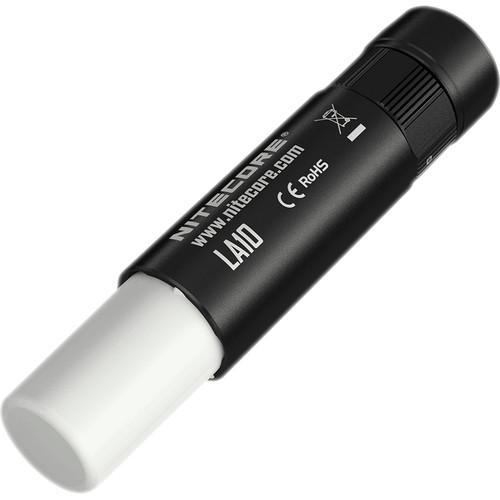

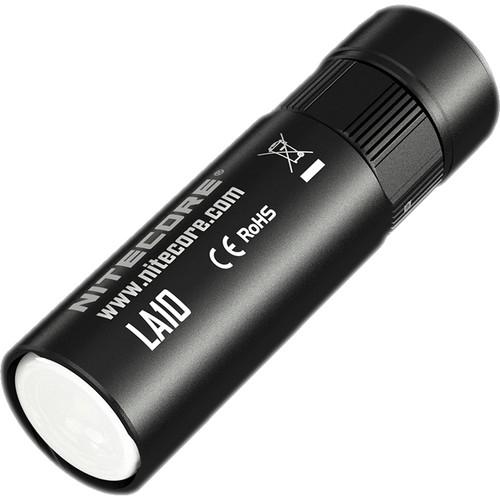

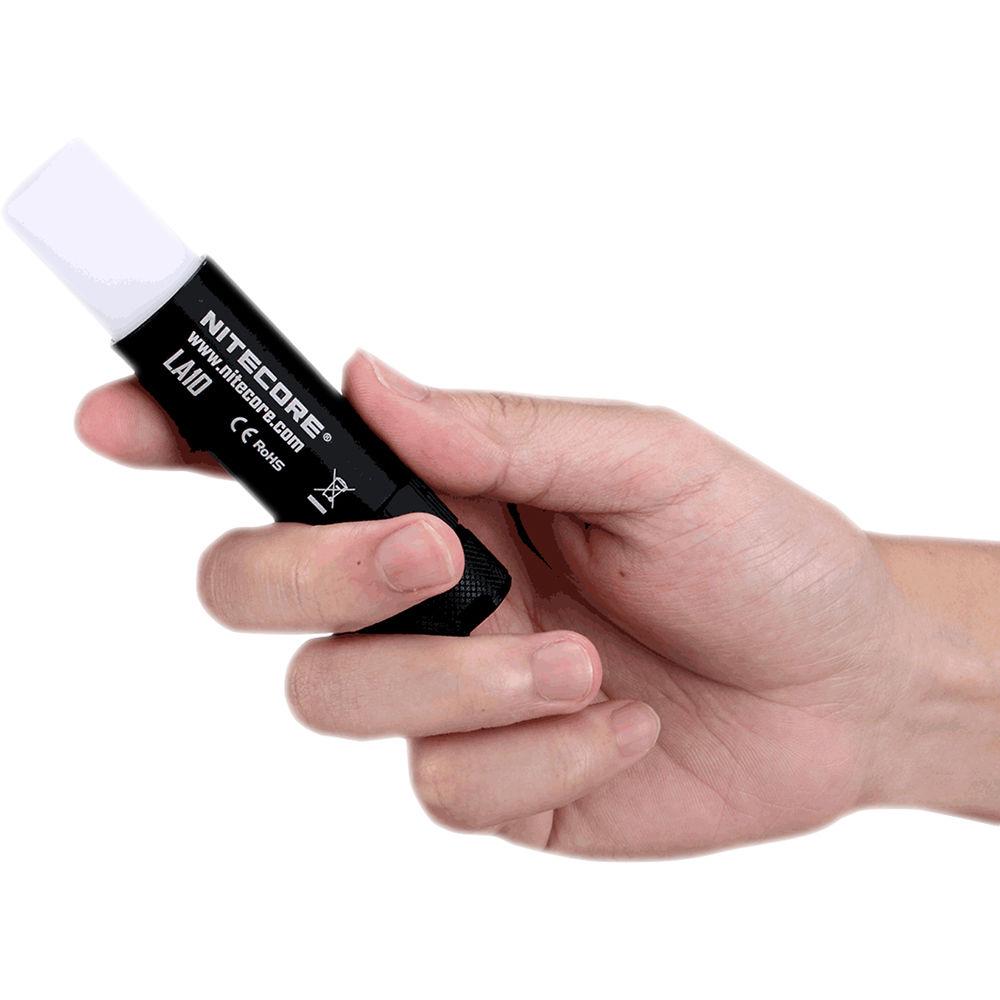

Product description Nitecore's versatile LA10 CRI LED Flashlight is the ideal storm/emergency preparedness or camping companion. Running on a single easy-to-find AA battery, it has three primary outputs from a low of 9 lumens to a high of 85, plus an emergency location beacon that flashes at regular intervals to show its location while conserving battery power. This simple-to-use tool has a retractable diffuser to throw smooth and soft light in a full 360° circle to illuminate tables, tents, or small rooms. This iteration of the LA10 utilizes a Nichia 219B LED that produces light with a CRI of 90. This translates to a beam color that closely resembles natural daylight.Built for convenience and portability, the LA10 is just over 3" long and weighs only 1.5 ounces without the battery so it can fit in a draw, pack or pocket easily. Its housing is made of a lightweight and durable aluminum alloy, with a scratch and corrosion-resistant anodized finish. A built-in magnet in the tailcap allows it to be easily attached to many metallic surfaces and the flat cap design enables it to stand on flat surfaces and act like a flameless candle. - Performance
-
- Low: 9 lumens
- Med: 30 lumens
- High: 85 lumens
- One Nichia 219B LED
- Color Rendering Index (CRI) of 90 which accurately resembles natural sunlight to reveal subtle details lower CRI LEDs can't
- Built-in diffuser extends to provide 360° of smooth and soft illumination for lighting tables, tents, or small rooms
- Location beacon: Flashes light once at a regular interval to mark the location while optimizing battery life
- Switching
-
- Location: Tailcap
- Rotate tailcap to turn on/off
- Rapidly turning on/off changes output intensity and mode
- Defaults to Low output when turned on
- Construction
-
- Diffuser extends and retracts by turning collar near tailcap
- Built-in magnet on base to adhere to metal surfaces such as car hoods
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant anodized finish
- IPX6-rated to be highly water-resistant
- Impact-resistant to 5' (1.5m)
- Lightweight: 1.5-ounces without battery
- Electronics
-
- Runs on one user-supplied AA disposable or rechargeable battery
- Digitally-regulated output ensures consistent beam intensity throughout life of battery
- Reverse polarity protection prevents damage to light if battery is installed incorrectly
In the Box Nitecore LA10 CRI LED Flashlight Lanyard Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore LA10 CRI LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore LA10 Specs | Illumination Source | 1 x LED | | White Light Output | Low: 9 Lumens
Medium: 30 Lumens
High: 85 Lumens | | Battery Type | 1 x AA | | Estimated Runtime | Low: 23 Hours
Medium: 6 Hours
High: 1.5 Hours | | Material of Construction | Aluminum | | IP Rating | IPX6 | | Impact Resistance | , 4.9' / 1.5 m | | Dimensions |
