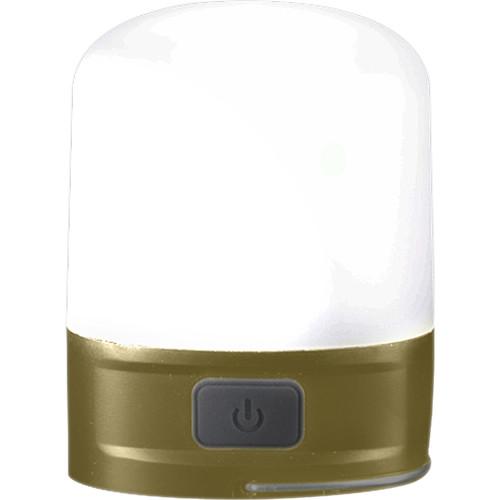

Product description With a compact and lightweight design, and high max output, the olive-based Nitecore LR10 Rechargeable Pocket Camping Lantern is the ideal companion for backpack camping or storm-preparedness.The lantern is outfitted with nine high Color Rendering Index (CRI) LEDs that produce its light at a 4500K color temperature, which closely resembles natural morning sunlight to reduce eye fatigue and cast a pleasing light tone. In addition to the low, medium, and high outputs the light features three specialty modes to accommodate a variety of situations plus a low-output red LED that blinks in standby mode to make it easy to find the light in the dark. The lantern is powered by a factory-installed rechargeable lithium-ion (li-ion) battery that charges via the included Micro-USB cable. All outputs and modes are easy accessible by pressing the single push button so use is easy and intuitive.Complementing the light's performance is a lightweight and durable polycarbonate housing, and a translucent diffuser that evenly distributes the light to produce a consistent glow throughout the surface. The lantern is IP66-rated to be dustproof, and water resistant against driving water and rain to withstand inclement weather; and impact resistant to almost 5 feet. A folding hook allows the light to be hung inside a tent or from a branch, and an integrated magnetic base provides an easy way to precisely place the light on a variety of surfaces. - Light Performance
-
- Low output: 8 lumens
- Medium output: 65 lumens
- High output: 250 lumens
- Nine high Color Rendering Index (CRI) LEDs
- 4500K color temperature resembles natural morning sunlight to reduce eye fatigue and cast a pleasing light tone
- Slow-blink 'Caution' light
- SOS distress signal automatically cycles through the Morse Code sequence
- Location Beacon emits a regular pulse of light at an output that ensures visibility while maximizing battery life
- Switching
-
- Type: Push button
- Location: Front of housing
- Constant-on activation only

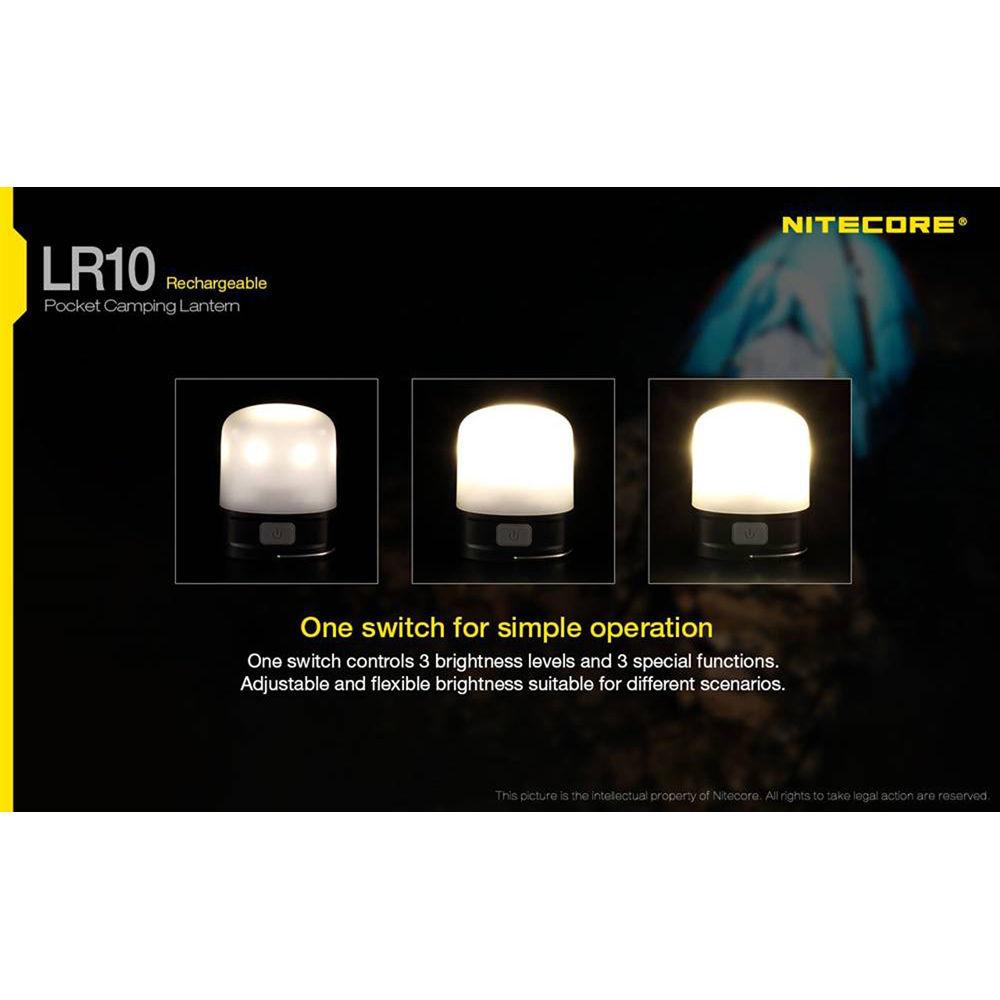

- All outputs and specialty functions are easily accessible by the switch
- Construction Details
-
- Strong and durable polycarbonate housing
- IP66-rated to be dustproof and resistant to driving water and rain
- Impact resistant to 5 feet
- Translucent polycarbonate diffuser lens distributes light evenly for a consistent glow
- Folding hook enables it to hang if required or preferred
- Magnetic base allows it to adhere to most metals for precise placement
- Compact 2.6x2x1" design is easy to pack and carry
- Light 2.1-ounce weight
- Electronics
-
- Advanced Temperature Regulation module regulates output and maximizes battery life based on ambient air temperature
- Integrated intelligent charging circuit prevents overcharging to protect the battery
- Power management system maintains consistent beam intensity throughout battery charge, or while actively charging
- Built-in red LED power indicator displays remaining battery power
- Power indicator will blink once every 2 seconds to more easily find it in the dark; can be disabled to extend battery charge
- Runs on one built-in 1200mAh li-ion battery

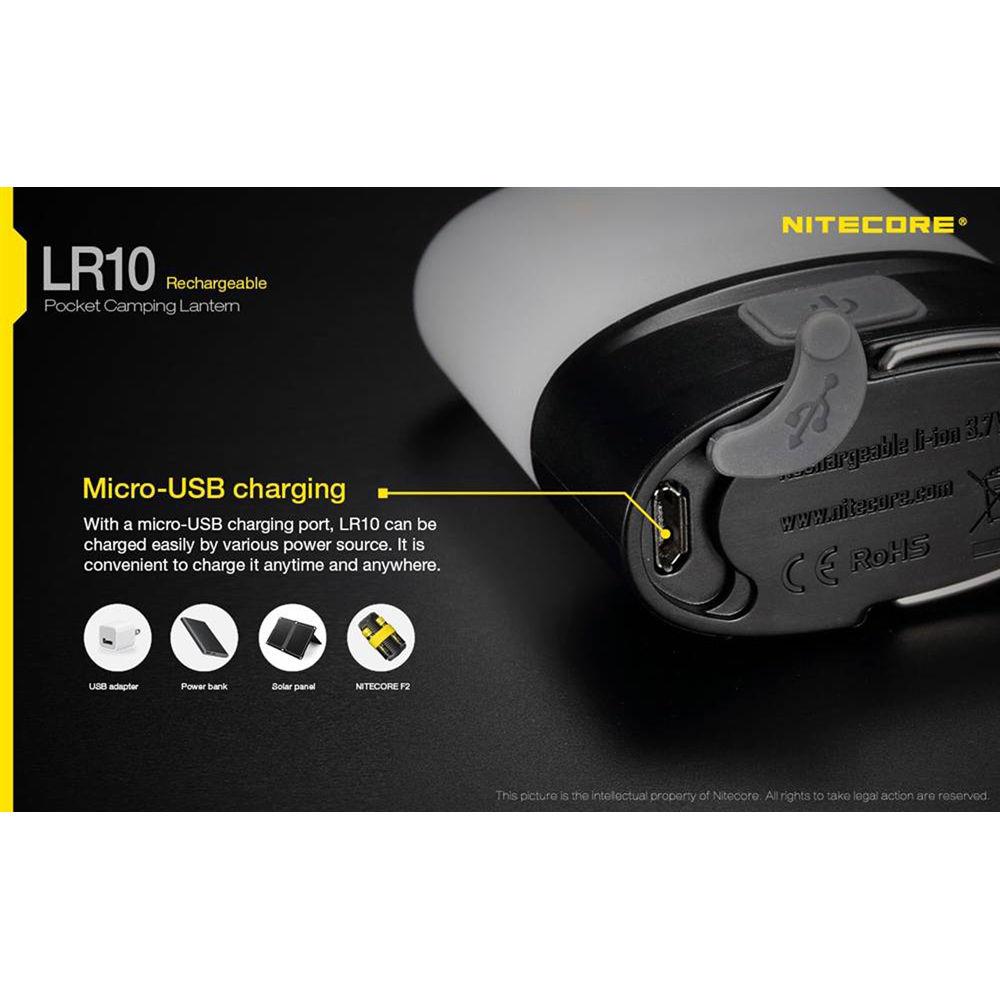

- Micro-USB charging port with cover to maintain IP-rating; charging cable included
In the Box Nitecore LR10 Rechargeable Pocket Camping Lantern (Olive) USB Charging Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore LR10 Rechargeable Pocket Camping Lantern in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore LR10 Specs | Illumination Source | 9 x CRI LEDs
Color Temperature: 4500K (≥90K) | | Output Range | Low: 8 lumens
Med: 65 lumens
High: 250 lumens | | Battery | Built-in 1200mAh Li-ion rechargeable battery | | Runtime | Low: 38.0 h
Med: 5.25 h
High: 1.0 h | | Construction | Polycarbonate | | Waterproofing | IP66-rated, dustproof and water resistant | | Impact Resistance | 4.9' / 1.5 m | | Dimensions | 2.6 x 2.0 x 1.0" / 6.6 x 5.0 x 2.5 cm | | Weight | 2.1 oz / 59.1 g | | | | Package Weight | 0.24 lb | | Box Dimensions (LxWxH) | 4.7 x 3.2 x 1.25" |
