User Manual for Nitecore MH10 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH10 Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MH10 Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

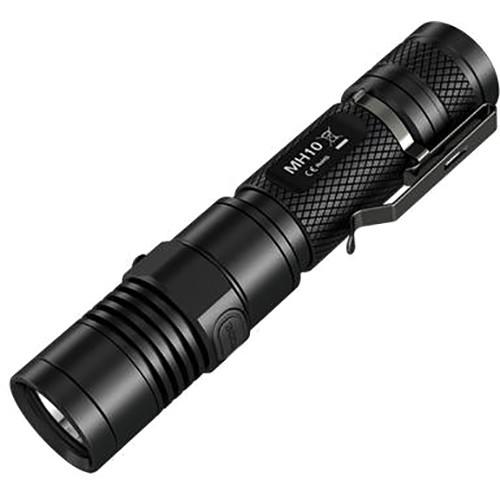

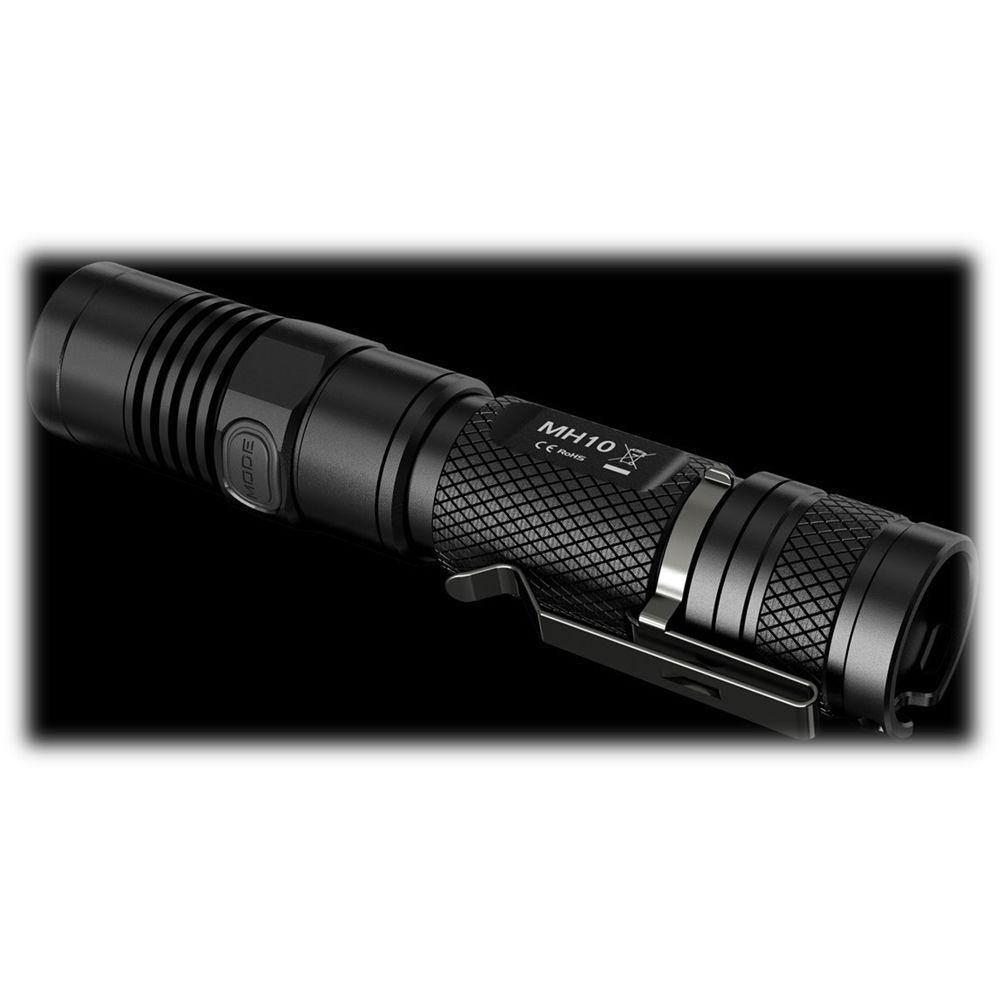

Product description Nitcore's MH10 Rechargeable LED Flashlight is small enough for a backup light, but powerful enough to be used as a professional's primary everyday carry illumination tool. Featuring four output levels from a low of 1-lumen to a piercing 1000-lumen, it also sports a disorientating strobe, SOS signal mode, and emergency location beacon. A single switch on the body gives you access to all the output intensities and specialty strobe modes. The switch remembers the last output selected and automatically goes to that level the next time it's turned on.The MH10's housing is made of light and durable aluminum with a Type III hard anodized finish. It is impact resistant to 6.6' and IPX8-rated to be submersible to 5'. An integrated micro-USB charging port behind the head charges the included 18650 battery in the light, eliminating the need for separate charging cradles. Reverse-polarity protection prevents damage to the light if the battery is put in wrong, and overheat protection automatically drops the output if the light gets too hot. - Performance
-
- Min: 1 lumens
- Low: 70 lumens
- Med: 240 lumens
- High: 1000 lumens
- Cree XM-L2 (U2) LED emitter

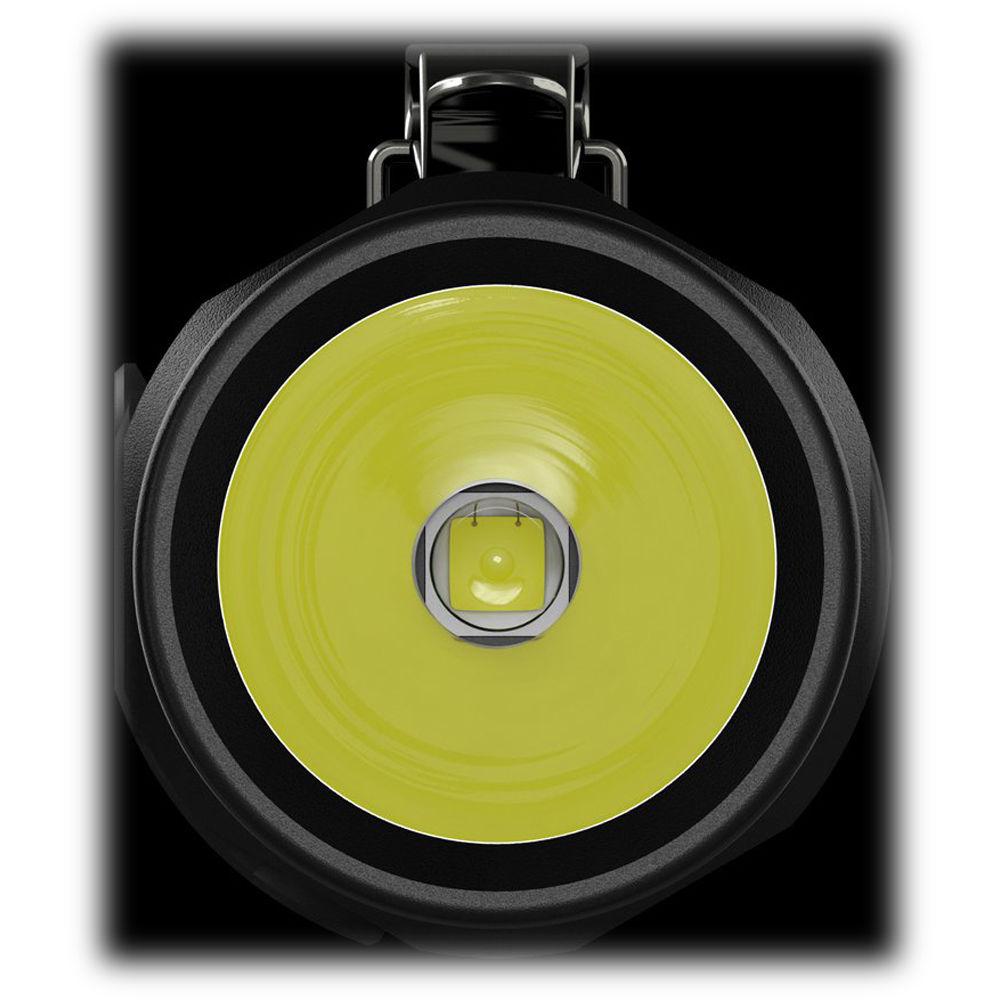

- PDOT (Precision Digital Optics Technology): Custom-engineered reflector controls beam profile for maximum effectiveness and throw
- Disorientating strobe mode
- SOS mode automatically cycles through and repeats the Morse-code sequence
- Location Beacon mode slowly pulses a single strobe flash to mark location while conserving energy
- Digitally regulated output maintains consistent beam intensity throughout life of battery
- Switching
-
- Location: Body
- Type: Pushbutton
- Constant-on mode only
- Intelligent switch remembers last output intensity used
- Instant access to minimum output
- Construction
-
- Lightweight aluminum alloy housing
- Corrosion and scratch-resistant black anodized finish
- Anti-reflection coated tempered emitter window
- Impact resistant to 5', and IPX8-rated submersible to 6.6'
- Textured handle provides a slip-resistant grip
- Head dissipating baffles on head help to prevent overheating
- Power level indicator and low-power indication
- Over-charge, reverse polarity, and overheat protection circuitry prevents damage to light
- Runs on one 18650 rechargeable li-ion or two CR123A lithium batteries
- Batteries charge in light with covered micro-USB port
In the Box Nitecore MH10 Rechargeable LED Flashlight Clip Holster Lanyard Spare O-Ring Spare USB Port Cover USB Charging Cable 18650 Li-Ion Rechargeable Battery (3.7V, 2300mAh) ccwxaadyrbze Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH10 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH10 Specs | | | Lumen Output | High: 1000 Lumens
Medium: 240 Lumens
Low: 70 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1.25 Hours
Medium: 6 Hours
Low: 28 Hours
Minimum: 520 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Dimensions |
