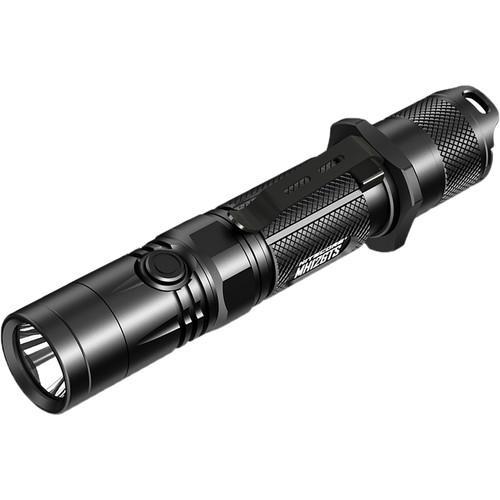

Product description Designed with military and law-enforcement use in mind, the MH12GTS Multitask Hybrid Series Rechargeable LED Flashlight is a powerful pocket-sized light that is as small as most backup lights but powerful enough to use as a primary EDC illuminator. Its output comes from a white Cree XHP35 HD LED with five outputs from 1 to 1800 lumens. Power (constant-on or momentary) is controlled by the tailcap switch, while brightness level and strobe, location beacon, and SOS signal modes are controlled using an intelligent selector switch on the body. The switch remembers the last output intensity used and automatically goes to that output level the next time it is turned on, even with momentary activation.Built for durability, this light features an aluminum housing with a Type III hard-anodized finish that resists scratching and corrosion. It is O-ring sealed with an IPX8 rating for submersion to 6.6' and is impact resistant to 5 feet. The light runs on one 18650 rechargeable battery and has an integrated charging port to enable powering up the battery while it is in the light for additional convenience. In a pinch, the light will run on two CR123A disposable batteries, but with reduced runtimes. Reverse-polarity protection circuitry prevents damage to the light's circuitry if the batteries are put in incorrectly, over-heat protection circuitry automatically steps down the output if the light gets too hot, and fins machined into the head help to dissipate heat. - Performance
-
- Ultra-low: 1 lumen
- Low: 70 lumens
- Medium: 240 lumens
- High: 900 lumens
- Turbo: 1800
- One Cree XHP35 HD LED
- Precision Digital Optics Technology reflector for long throw
- Maximum runtime 250 hours
- Emergency SOS mode automatically cycles through Morse-code sequence
- Location beacon mode emits a slow intermittent flash to signal
- Randomly flashing strobe for self-defense
- Switching
- Power
- Location: Tailcap
- Type: Two-stage push button
Mode- Location: Side

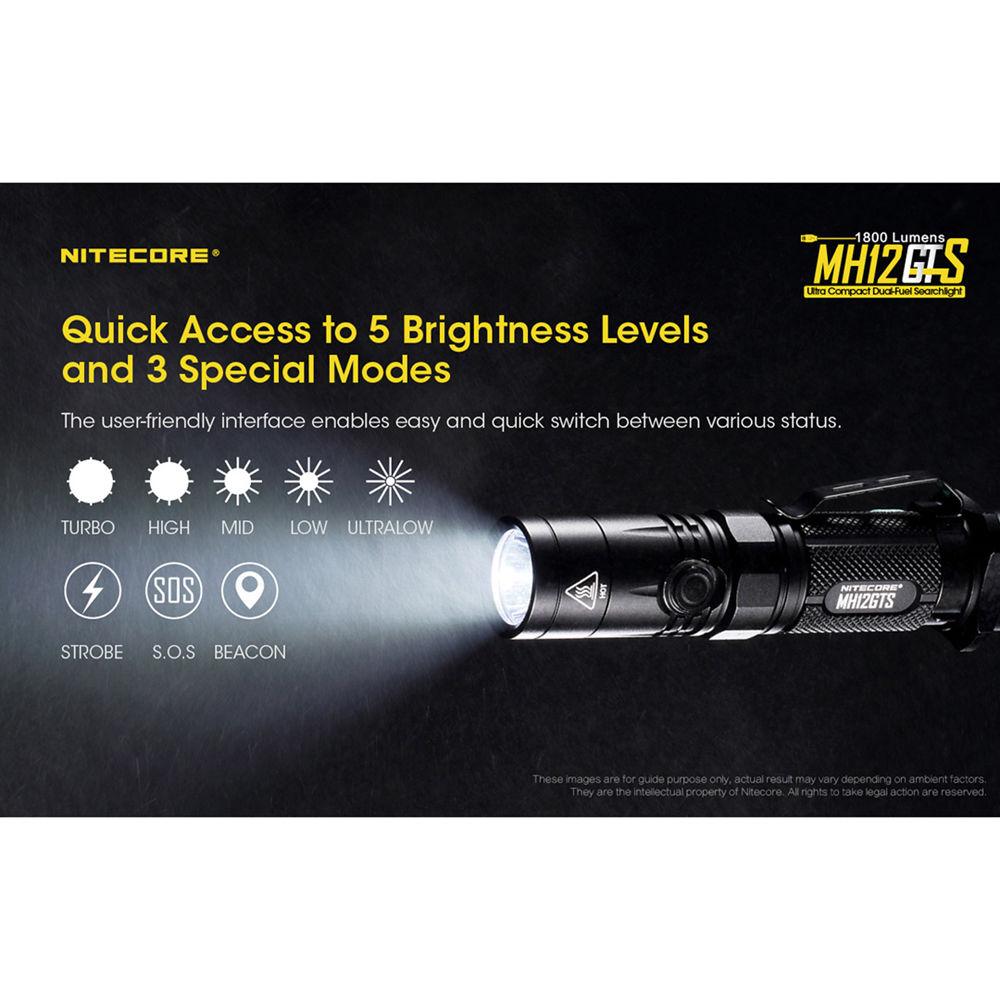

- Controls output intensity, strobe, SOS, and beacon
- Blue power indicator in switch
- When activated, automatically goes to last output used
- Construction
-
- 1" diameter bezel
- Lightweight and durable aluminum-alloy housing
- Corrosion- and scratch-resistant type-III anodized finish
- Double-layer tube design for strength and stability
- Anti-reflection coated impact-resistant tempered glass window
- IPX8-rated, waterproof and submersible to 6.6'
- Shock resistant to 3.3'
- Advanced Temperature Regulation circuitry responds to ambient temperature
- Knurled handle for secure grip
- Includes holster, stainless steel clip, and lanyard
- Removable tactical ring to facilitate multiple tactical light/pistol grips
- Power and Charging
-
- Digitally regulated output maintains consistent beam intensity throughout battery charge

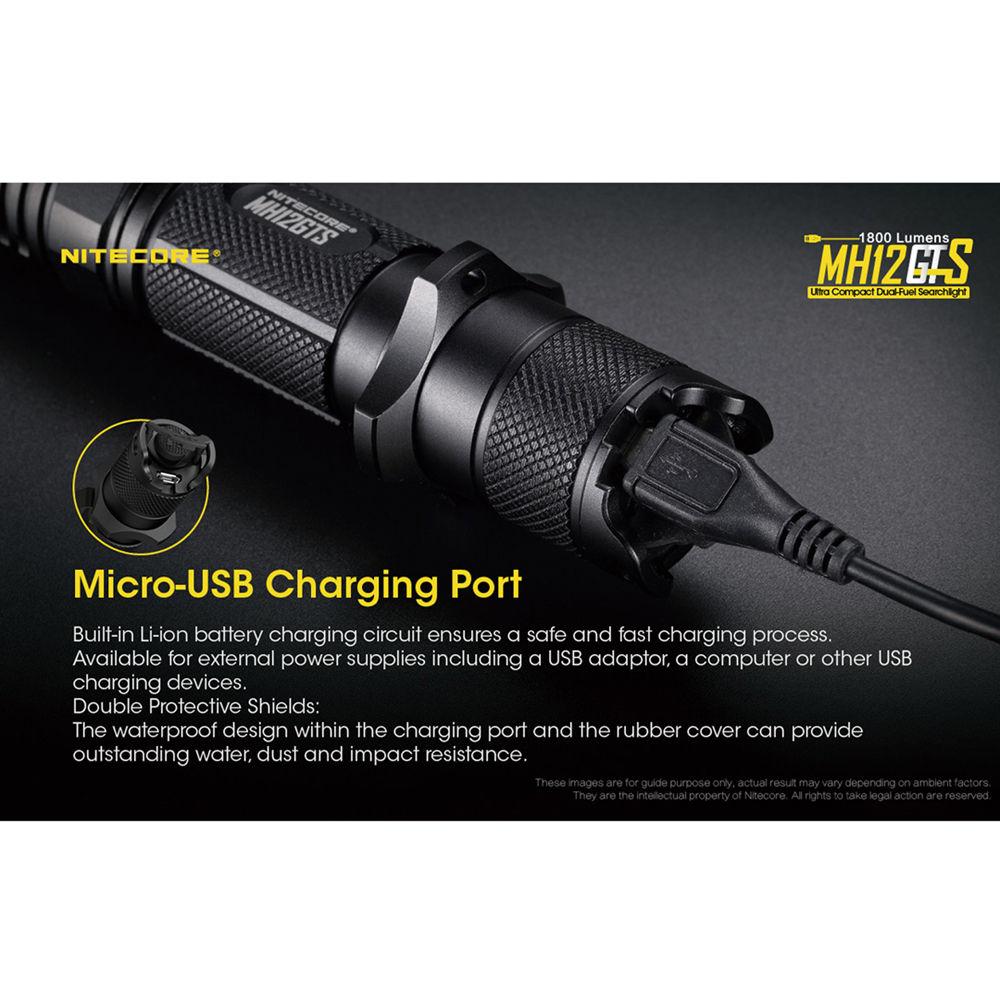

- Integrated micro-USB port to charge battery in light
- Automatically detects battery status and adjusts mode to optimize battery charge
- Power indicator light displays remaining battery power

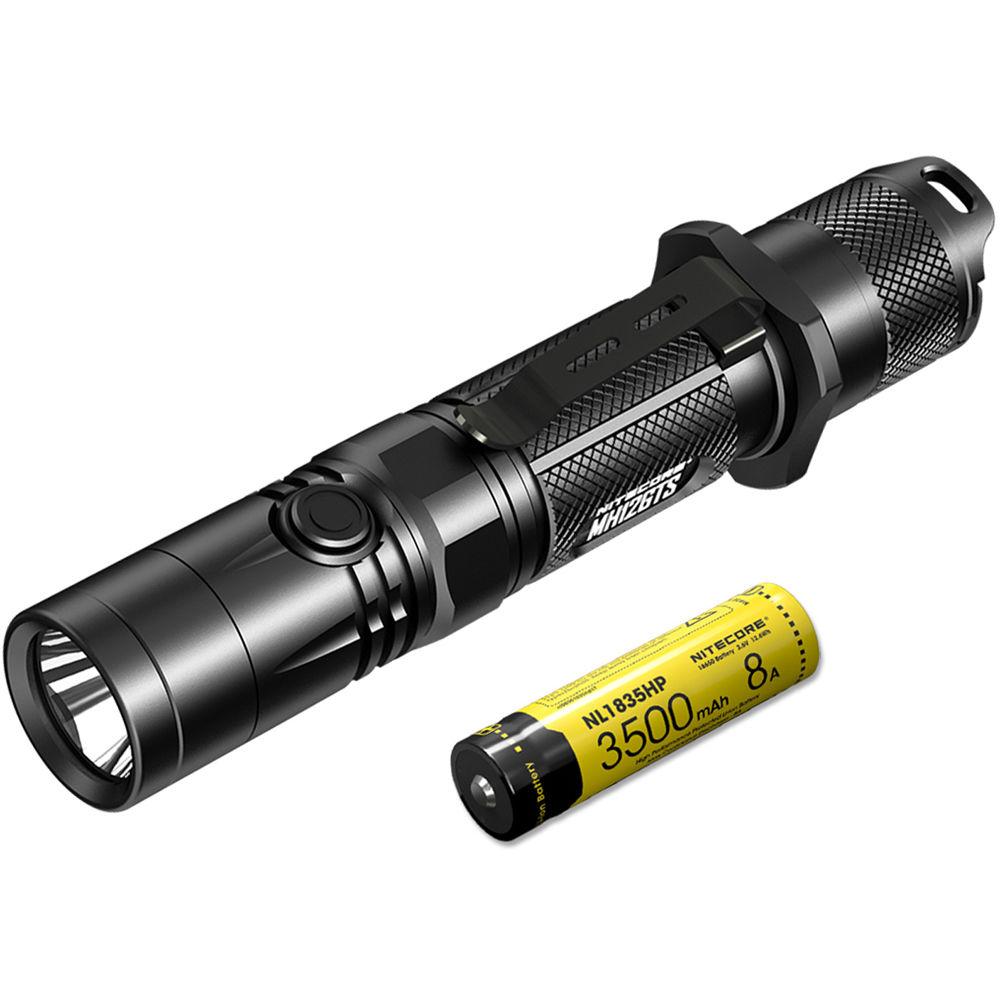

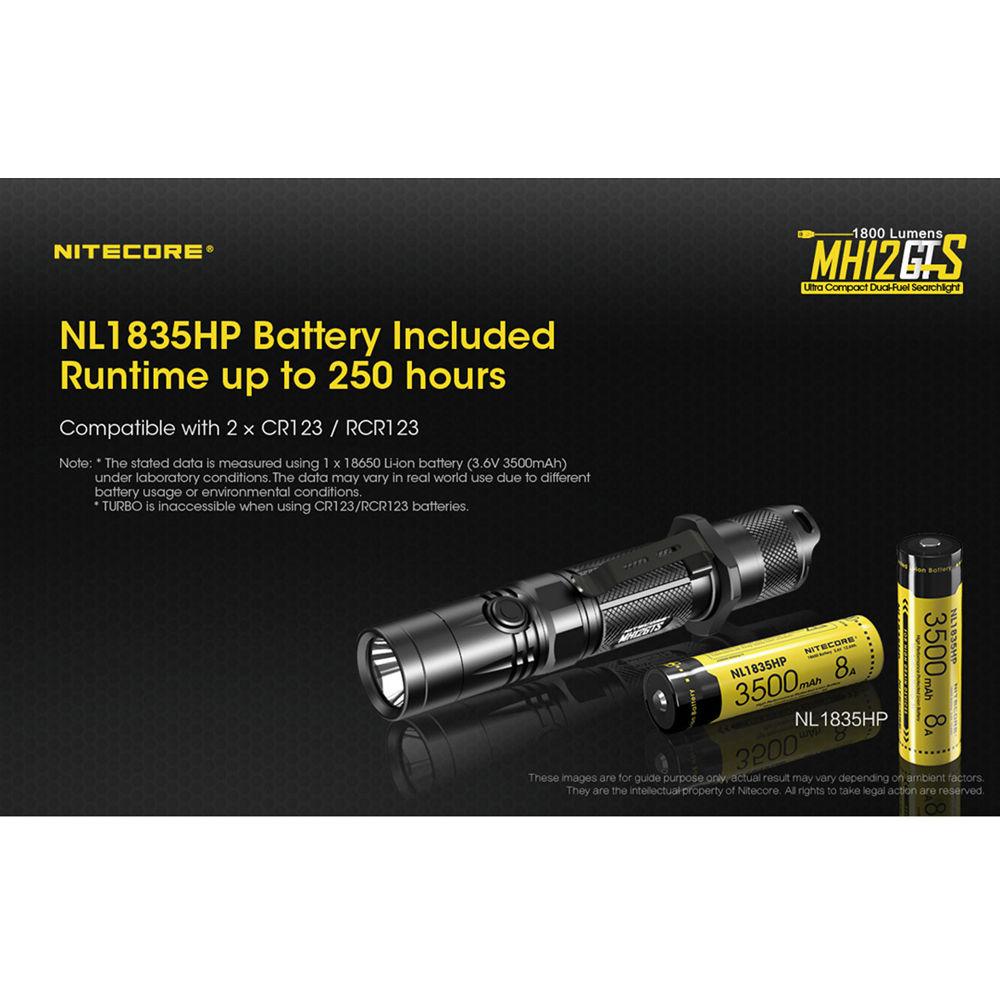

- Runs on one 18650 rechargeable or two CR123A disposable batteries
In the Box Nitecore MH12GTS Multitask Hybrid Series Rechargeable LED Flashlight 18650 Battery USB Charging Cable Holster Stainless Steel Clip Lanyard Tactical Ring Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH12GTS Multitask Hybrid Series Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

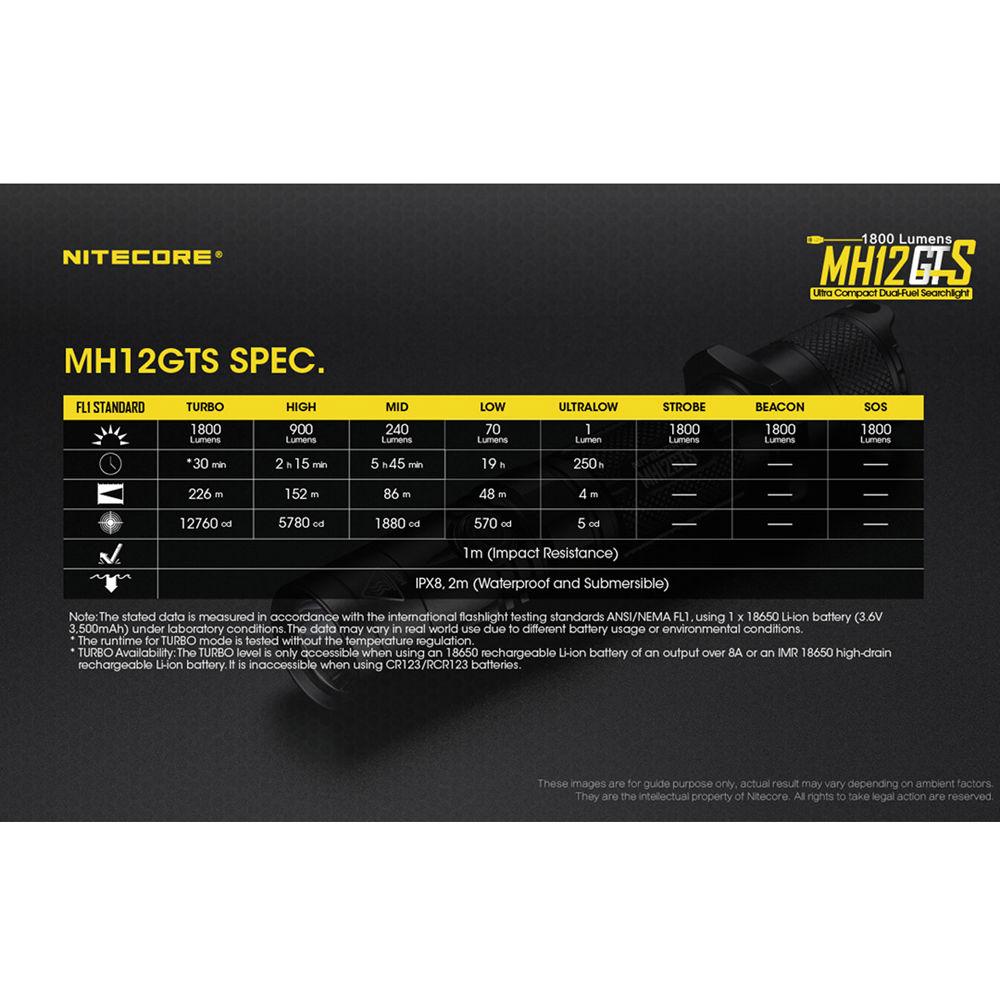

Technical parametersNitecore MH12GTS Specs | | | Lumen Output | Ultra-Low: 1 Lumen
Low: 70 Lumens
Medium: 240 Lumens
High: 900 Lumens
Turbo: 1800 Lumens | | Illumination Source | 1 x White LED | | Input Charging Port | Micro-USB | | | | Estimated Runtime | Ultra-Low: 250 Hours
Low: 19 Hours
Medium: 5.8 Hours
High: 2.3 Hours
Turbo: 30 Minutes | | Battery Type | 1 x 18650 Lithium-Ion | | Internal Battery Capacity | 3500 mAh | | Output Voltage | 3.6 VDC | | Charging Time | 8 Hours | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions | L: 5.7" / L: 14.5 cm | | Weight | 3.53 oz / 100 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 7.0 x 4.0 x 4.0" |
