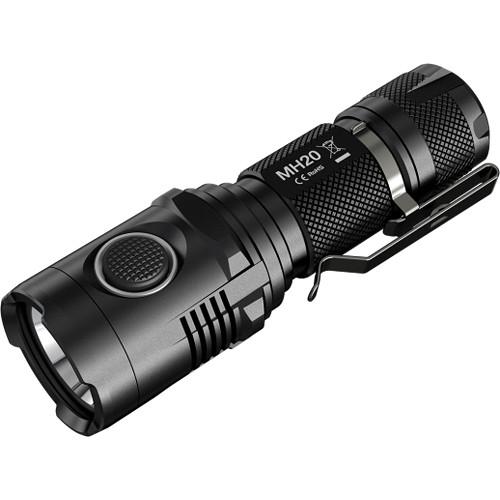

User Manual for Nitecore MH20 Multitask Hybrid Series Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH20 Multitask Hybrid Series Rechargeable
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore MH20 Multitask Hybrid Series Rechargeable contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Designed with military and law-enforcement use in mind, the Nitcore MH20 Multitask Hybrid Series Rechargeable LED Flashlight is a powerful and compact pocket-sized light that is as small as most back-up lights but powerful enough to use as a primary EDC illuminator. Its output comes from a white Cree XM-L2 U2 LED with five outputs from 1 to 1000 lumens. The output intensity, strobe, location beacon, and SOS signal modes are controlled using an intelligent selector switch on the body. The switch remembers the last output intensity used and automatically goes to that output level the next time it is turned on, even with momentary activation.Built for durability, this light features an aluminum housing with a Type III hard-anodized finish that resists scratching and corrosion. It is O-ring sealed with an IPX8 rating for submersion to 6.6', and is impact resistant to 5 feet. The light runs on one 18650 rechargeable battery and has an integrated charging port to enable powering up the battery while it is in the light for additional convenience. In a pinch, the light will run on two CR123A disposable batteries, but with reduced runtimes. Reverse-polarity protection circuitry prevents damage to the light's circuitry if the batteries are put in incorrectly, over-heat protection circuitry automatically steps down the output if the light gets too hot, and fins machined into the head help to dissipate heat. - Performance
-
- Min: 1 lumen
- Low: 50 lumen
- Med: 230 lumen
- High: 410 lumen
- Turbo: 1000 lumen
- One Cree XM-L2 U2 LED
- Emergency SOS mode automatically cycles through Morse-code sequence
- Location beacon mode emits a slow intermittent flash to signal
- Disorientating strobe mode
- Switching
-
- Location: Body
- Type: Pushbutton
- Constant-on mode only
- Single button access to all intensities and strobe functions
- Last-output memory switch automatically goes to last output selected
- Direct access to minimum and turbo modes, even when light is off
- Construction
-
- 1.25" diameter bezel
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type-III anodized finish
- Anti-reflection coated impact-resistant tempered glass window
- IPX8-rated, waterproof and submersible to 6.6'
- Shock resistant to 5'
- Heat dissipating fins machined into head
- Anti-roll collar
- Textured slip-resistant grip
- Includes holster, stainless steel clip, and lanyard
- Power and Charging
-
- After 3 minutes on high, output is stepped-down to prevent overheating and extend battery charge
- Standby mode: Blue indicator light blinks once every three seconds to help find the light in the dark
- Digitally-regulated output maintains consistent beam intensity throughout battery charge
- Integrated micro-USB port to charge battery in light
- Automatically detects battery status and adjusts mode to optimize battery charge
- Power indicator light displays remaining battery power
- Reverse polarity protection prevents damage if battery is installed incorrectly
- Runs on one 18650 rechargeable or two CR123A disposable batteries
In the Box Nitecore MH20 Multitask Hybrid Series Rechargeable LED Flashlight USB Charging Cable Holster Stainless Steel Clip Lanyard Spare USB Port Cover Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH20 Multitask Hybrid Series Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH20 Specs | | | Lumen Output | High: 410 Lumens
Medium: 230 Lumens
Low: 50 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 2.75 Hours
Medium: 5.75 Hours
Low: 15.75 Hours
Turbo: 2 Hours
Minimum: 235 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | Charging Time | 6 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.2" / 3.2 cm | | Dimensions |
