User Manual for Nitecore MH20GT Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH20GT Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MH20GT Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

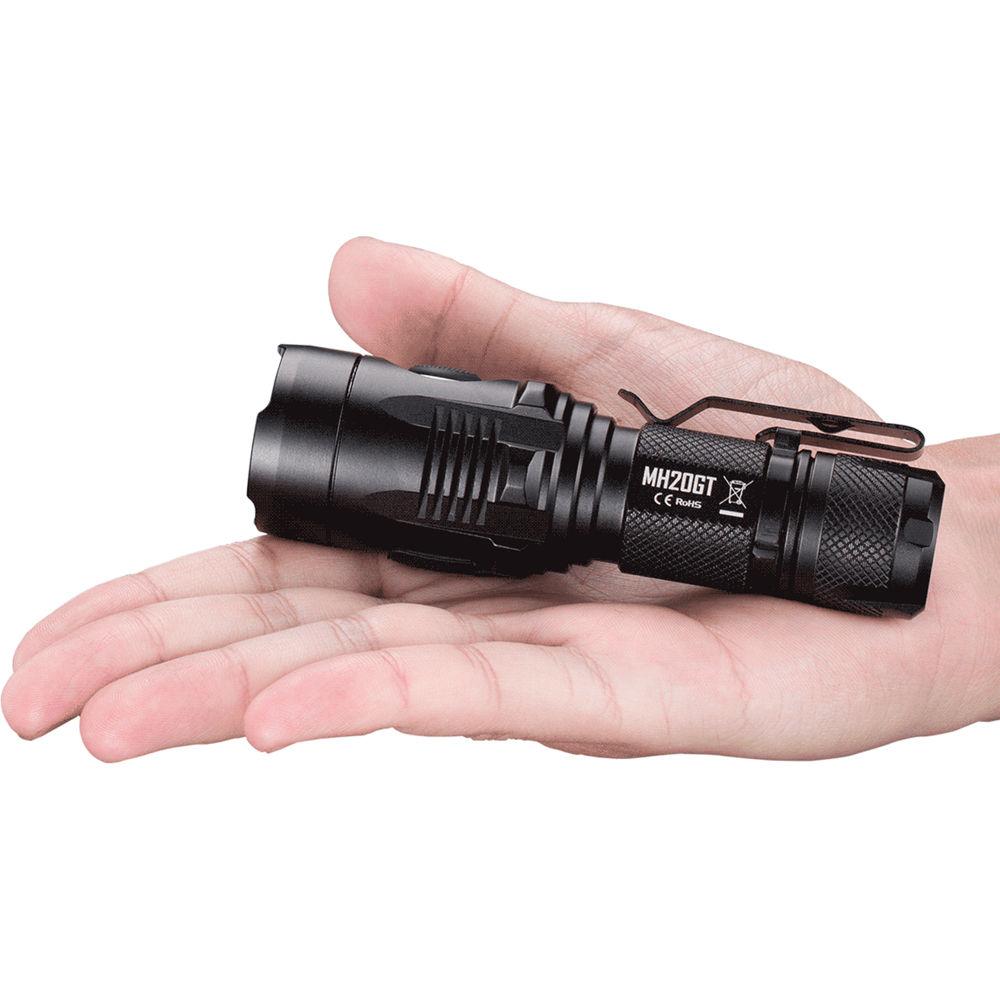

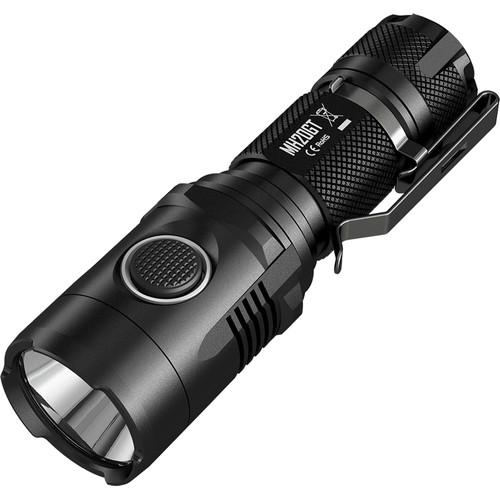

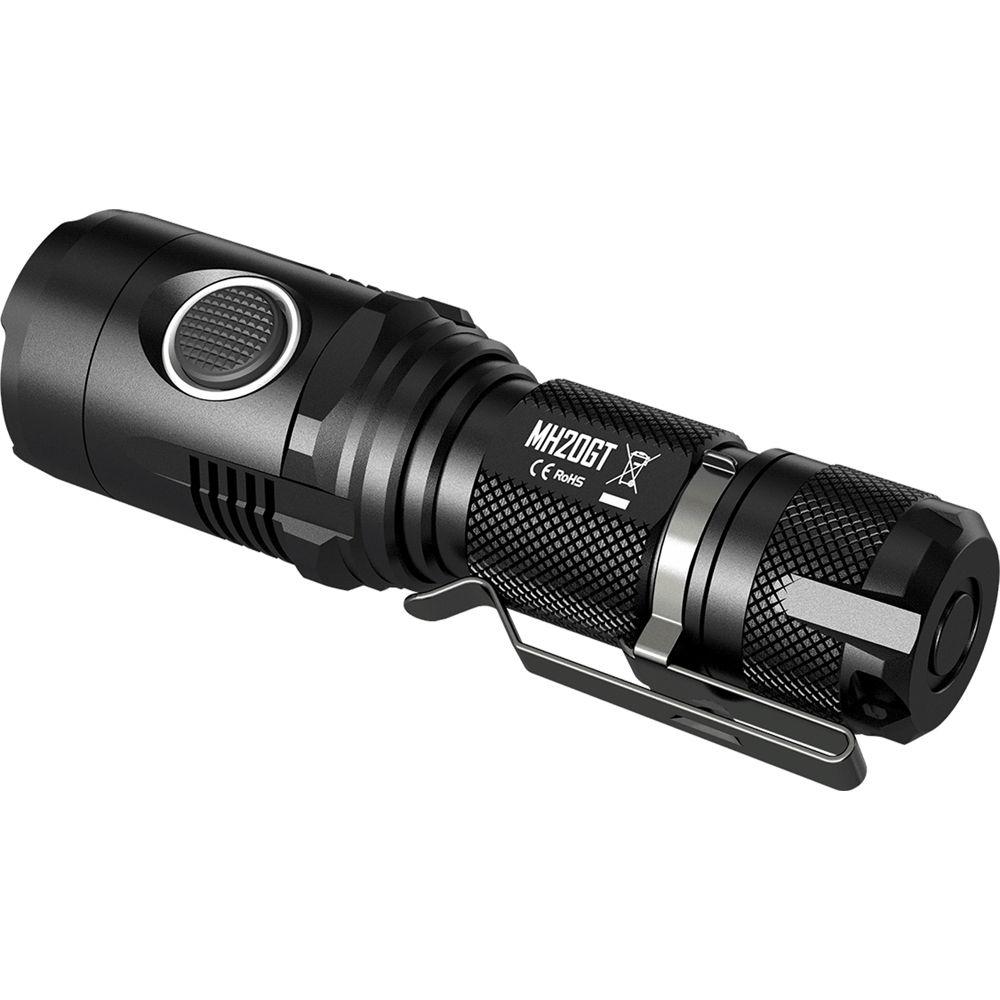

Product description Nitecore's MH20GT Rechargeable LED Flashlight packs a lot of power for such a compact light, boasting five outputs from a minimum of just 1 lumen to a darkness-piercing 1000 lumens and three specialty output modes. The reflector is designed to maximize the throw distance while producing a tight smooth beam without holes or hot-spots - making this an ideal multi-tasker for any job from rummaging through a junk drawer for matches during a power outage to lighting the trail on a dark and stormy night. Its simple and intuitive two-stage pushbutton switch controls all the modes and outputs while giving you instant-access to the minimum and maximum outputs when the light is off.Designed for durability, the housing is made of a lightweight and durable aluminum alloy that is covered in a scratch and corrosion-resistant hard anodized finish. It is O-ring sealed to an IPX8-rating, making it submersible; and it is impact-resistant to 5'. Capable of running on multiple battery chemistries, there is an integrated micro-USB charging port to charge 18650 or RCR123 Li-ion batteries in the light, and specialized circuitry that detects the type of battery installed and its power level and optimizes the runtime based on the output selected. An illuminated ring around pushbutton pulls double duty as a power indicator and, when set in standby mode, flashes every three seconds to help you find the light in the dark. - Performance
-
- Min: 1 lumen
- Low: 50 lumen
- Med: 230 lumen
- High: 410 lumen
- Turbo: 1000 lumen
- One CREE XP-L HI V3 LED

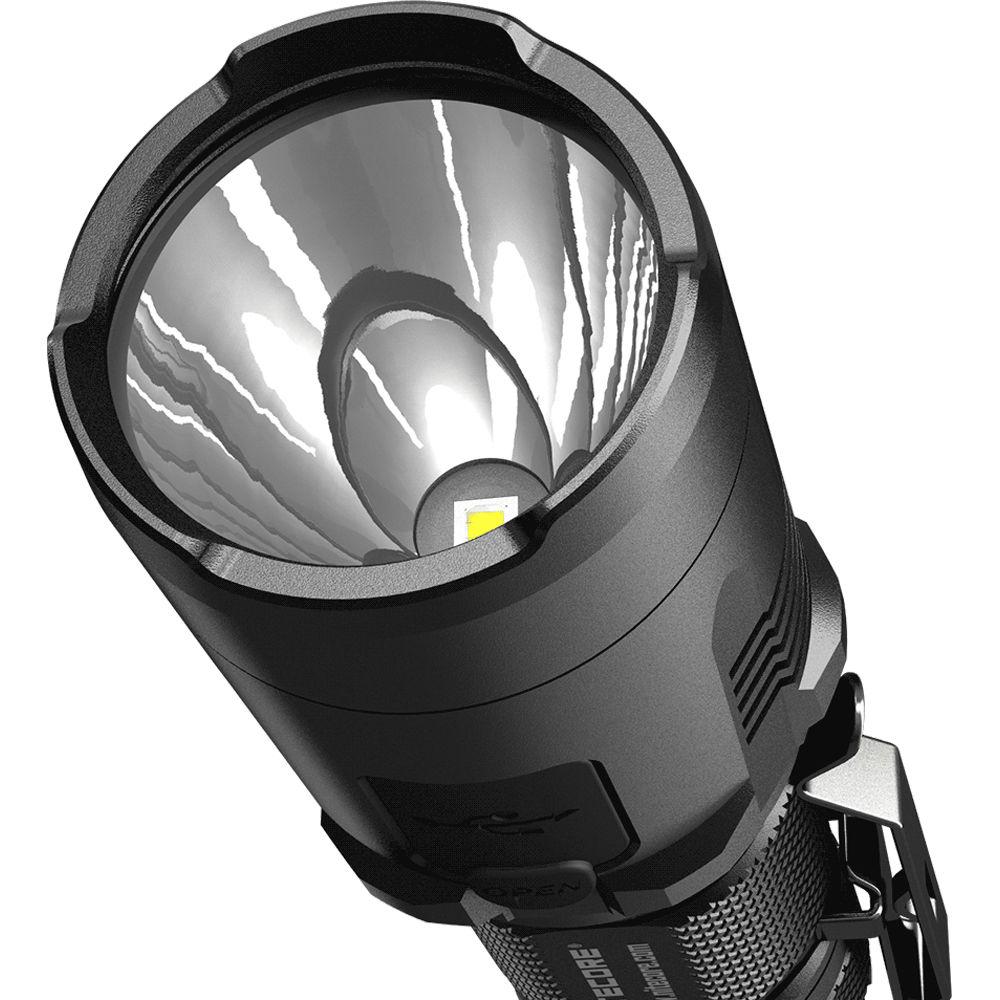

- Deep aluminum reflector designed to maximize throw
- Specialty outputs:
- Strobe mode rapidly flashes LED to disorientate and momentarily blind
- Location beacon pulses a single flash at regular intervals to show location
- SOS signal automatically repeats the Morse Code distress signal
- Switching
-
- Type: 2-stage pushbutton
- Location: Body
- Constant-on activation only
- Direct access to minimum and turbo outputs when light if off
- Last mode memory automatically goes to last selected when turned on
- Standby mode: Light is off, but ring around pushbutton flashes to help find light in the dark
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- Tempered glass emitter window with anti-reflective coatings

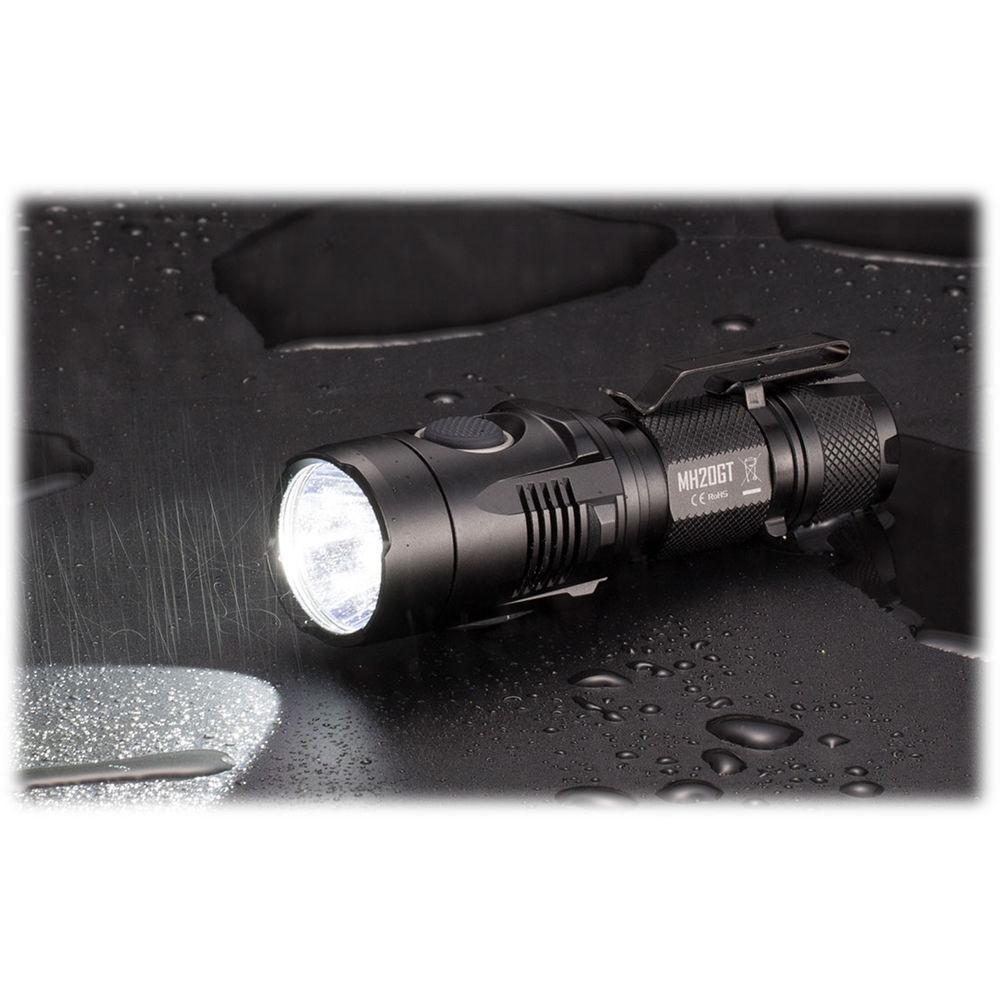

- IPX8-rated, waterproof and submersible to 6.6'
- Impact-resistant to 4.9'
- Machined heat-dissipating fins on head
- Tail-stand capable
- Detachable two-way anti-rolling clip
- Lightweight: 3.1 ounces without battery
- Electronics
-
- Built-in power indicator on pushbutton
- Runs on one 18650 Li-ion, two RCR123 Li-ion, or two CR123 lithium batteries
- High efficiency constant current circuitry maximizes runtime and output
- Advanced Temperature Regulation (ATR) technology automatically steps down output to prevent damage due to overheating
- Integrated micro-USB charging port
- Charging circuitry detects battery type and power level for fast and efficient charge times
- Charges one 18650 battery in about 6 hours
In the Box Nitecore MH20GT Rechargeable LED Flashlight USB Charging Cable Holster Pocket Clip Lanyard Spare USB Port Cover Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH20GT Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH20GT Specs | | | Lumen Output | High: 410 Lumens
Medium: 230 Lumens
Low: 50 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 3 Hours
Medium: 6.75 Hours
Low: 22 Hours
Minimum: 680 Hours
Turbo: 1 Hour | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium or
2 x RCR123A Lithium-Ion | | Charging Time | 6 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
