Nitecore MH25GTS Multitask Hybrid Series Rechargeable

Search your instruction manual in PDF to download

User Manual for Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight

Click to enlarge the picture
Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Contents of the user manual for the Nitecore MH25GTS Multitask Hybrid Series Rechargeable
  • Product category: Handheld Flashlights Nitecore
  • Brand: Nitecore
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Nitecore Handheld Flashlights

Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight
User manual for the Nitecore MH25GTS Multitask Hybrid Series Rechargeable contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Nitecore product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!



Product description

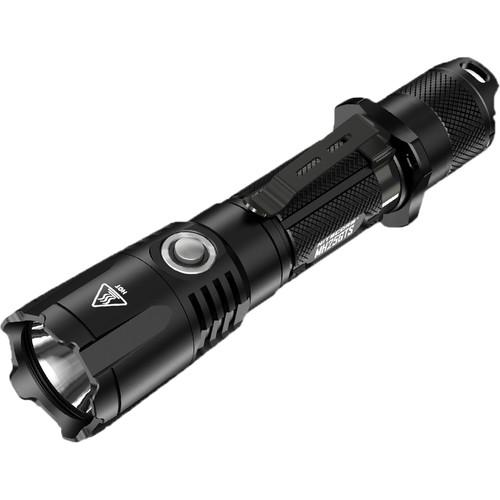

Designed with military and law-enforcement use in mind, the MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight is a bright illuminator with tactical capabilities—a randomly flashing strobe to disorient an adversary and an aggressively crenelated bezel for self-defense or window breaking. Its output comes from a white Cree XHP35 HD LED with five outputs from 1 to 1800 lumens. Power (constant-on or momentary) is controlled by the tailcap switch, while brightness level and strobe, location beacon, and SOS signal modes are controlled using an intelligent selector switch on the body. The switch remembers the last output intensity used and automatically goes to that output level the next time it is turned on, even with momentary activation.Built for durability, this light features an aluminum housing with a Type III hard-anodized finish that resists scratching and corrosion. It is O-ring sealed with an IPX8 rating for submersion to 6.6' and is impact resistant to 5 feet. The light runs on one 18650 rechargeable battery and has an integrated charging port to enable powering up the battery while it is in the light for additional convenience. In a pinch, the light will run on two CR123A disposable batteries, but with reduced runtimes. Reverse-polarity protection circuitry prevents damage to the light's circuitry if the batteries are put in incorrectly, over-heat protection circuitry automatically steps down the output if the light gets too hot, and fins machined into the head help to dissipate heat.
    Performance
    • Ultra-low: 1 lumen
    • Low: 70 lumens
    • Medium: 240 lumens
    • High: 950 lumens
    • Turbo: 1800
    • One Cree XHP35 HD LED
    • Double-sided scratch-resistance coating
    • Precision Digital Optics Technology reflector for long throw
    • Maximum runtime 250 hours
    • Emergency SOS mode automatically cycles through Morse-code sequence
    • Location beacon mode emits a slow intermittent flash to signal
    • Randomly flashing strobe for self-defense
    Switching
  • Power
    • Location: Tailcap
    • Type: Two-stage push button
    Mode
    • Location: Side
    • Controls output intensity, strobe, SOS, and beacon
    • Blue power indicator in switch
    • When activated, automatically goes to last output used
    Construction
    • 1.3" diameter crenelated strike bezel
    • Lightweight and durable aluminum-alloy housing
    • Corrosion- and scratch-resistant type-III anodized finish
    • Double-layer tube design for strength and stability
    • Anti-reflection coated impact-resistant tempered glass window
    • IPX8-rated, waterproof and submersible to 6.6'
    • Shock resistant to 3.3'
    • Advanced Temperature Regulation circuitry responds to ambient temperature
    • Cooling fins for heat dissipation
    • Knurled handle for secure grip
    • Includes holster, stainless steel clip, and lanyard
    • Removable tactical ring to facilitate multiple tactical light/pistol grips
    Power and Charging
    • Digitally regulated output maintains consistent beam intensity throughout battery charge

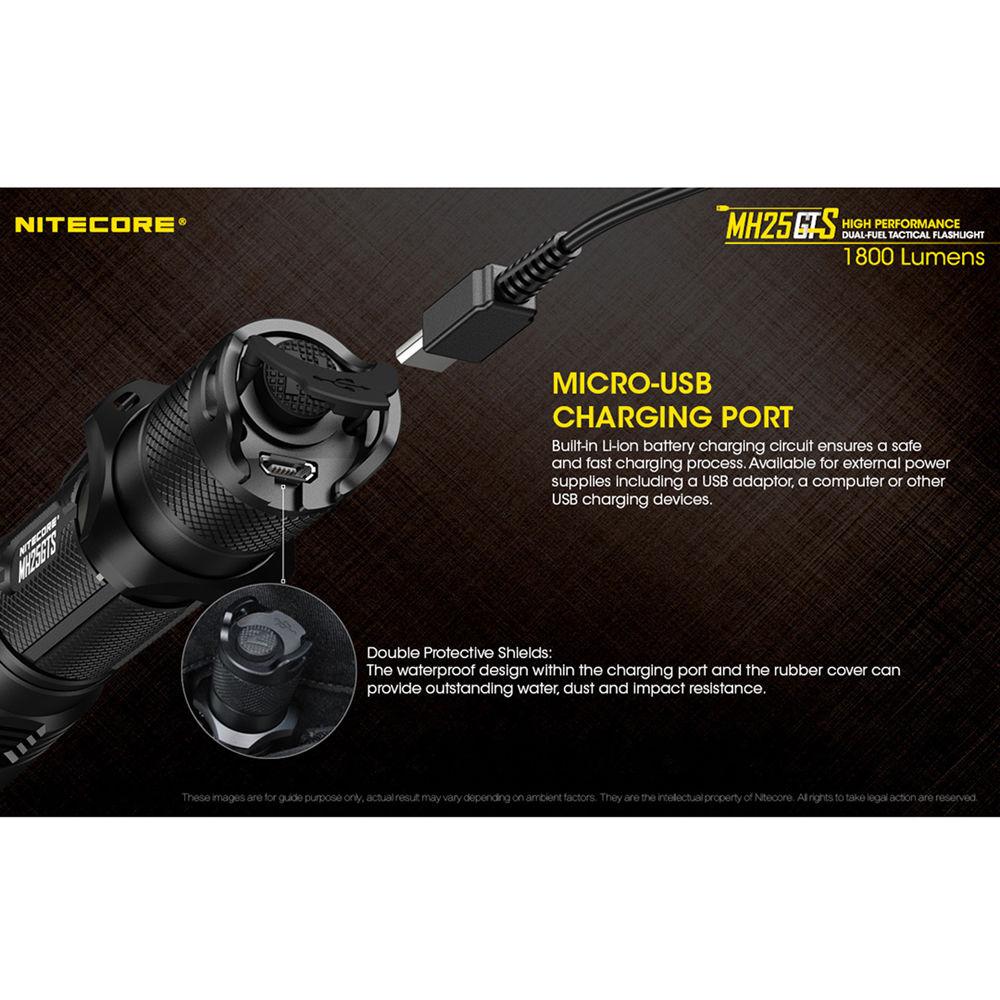

    • Integrated micro-USB port to charge battery in light
    • Automatically detects battery status and adjusts mode to optimize battery charge
    • Power indicator light displays remaining battery power
    • Runs on one 18650 rechargeable or two CR123A disposable batteries

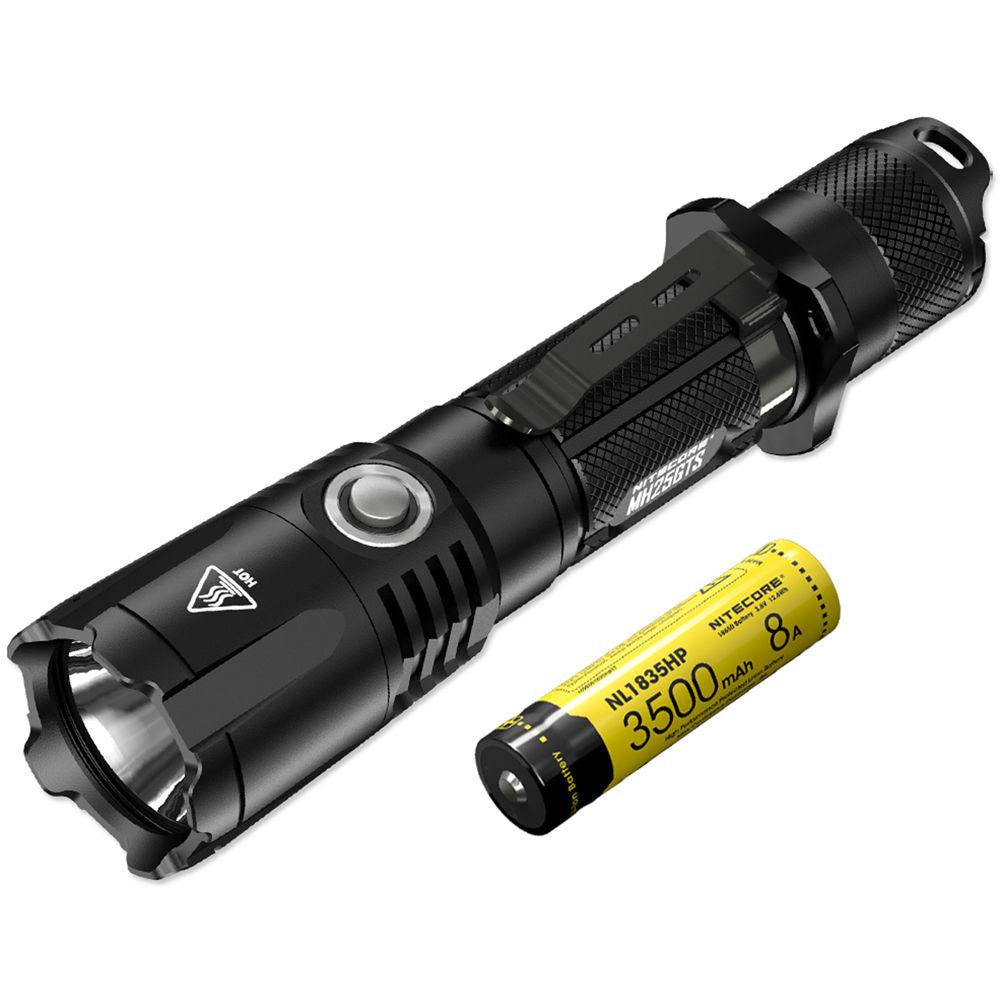

In the Box Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight
  • 18650 Battery
  • USB Charging Cable
  • Holster
  • Stainless Steel Clip
  • Lanyard
  • Tactical Ring
  • Spare O-Ring
  • Limited Lifetime Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Nitecore MH25GTS Multitask Hybrid Series Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

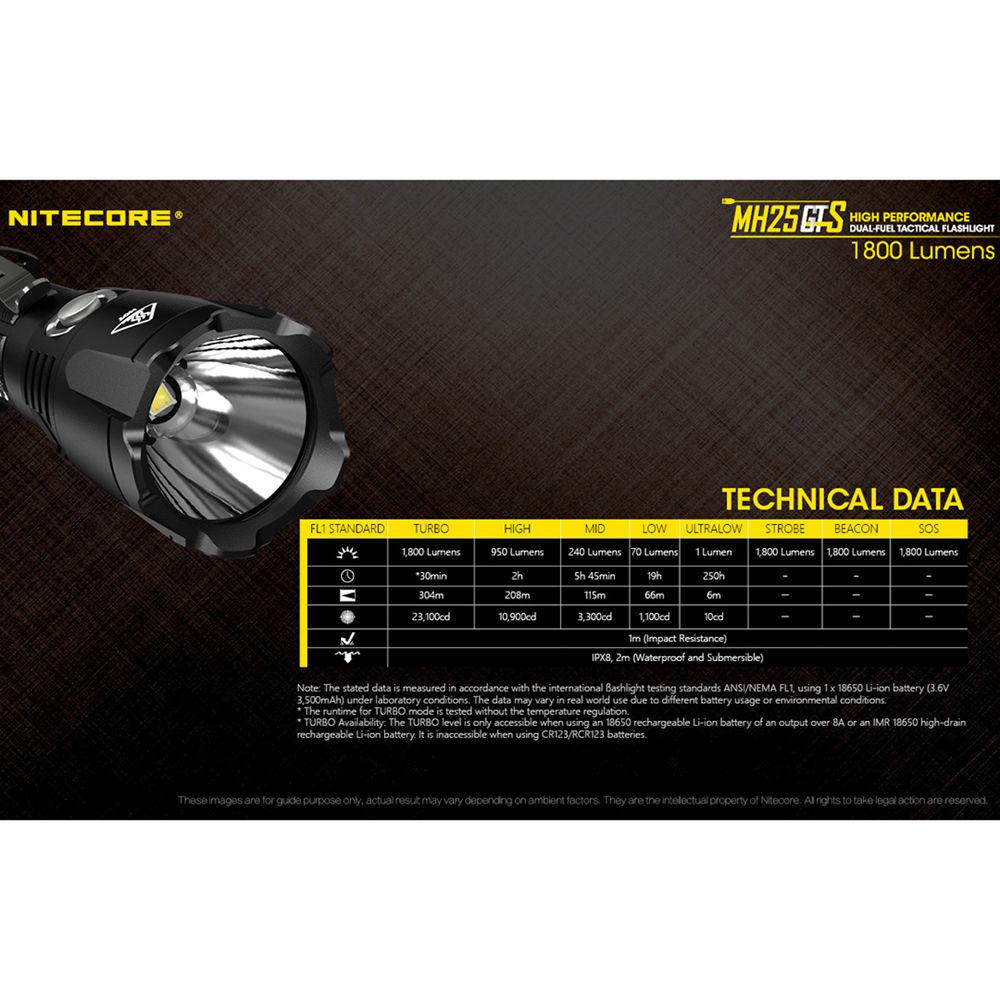

    Technical parameters

    Nitecore MH25GTS Specs

    Lumen Output Ultra-Low: 1 Lumen
    Low: 70 Lumens
    Medium: 240 Lumens
    High: 950 Lumens
    Turbo: 1800 Lumens
    Illumination Source 1 x White LED
    Input Charging Port Micro-USB
    Estimated Runtime Ultra-Low: 250 Hours
    Low: 19 Hours
    Medium: 5.8 Hours
    High: 2 Hours
    Turbo: 30 Minutes
    Battery Type 1 x 18650 Lithium-Ion
    Internal Battery Capacity 3500 mAh
    Output Voltage 3.6 VDC
    Charging Time 8 Hours
    Lens Material Glass
    Material of Construction Aluminum
    Water Resistance Waterproof to 6.6' / 2 m, IPX8
    Bezel Diameter 1.3" / 33.0 mm
    Dimensions L: 5.9" / L: 15.0 cm
    Weight 4.37 oz / 124 g
    Package Weight 0.4 lb
    Box Dimensions (LxWxH) 7.0 x 4.0 x 4.0"
