User Manual for Nitecore MH27 Rechargeable Multi-Spectrum LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH27 Rechargeable Multi-Spectrum LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MH27 Rechargeable Multi-Spectrum LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

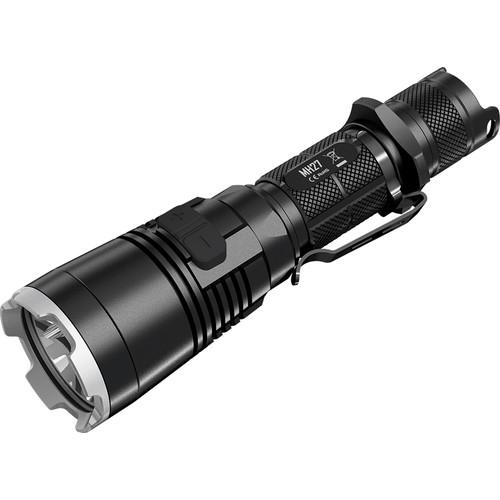

Product description Nitecore's versatile and compact MH27 Rechargeable Multi-Spectrum LED Flashlight is as powerful as larger search lights yet fits comfortably in your hand. This illuminator uses a white Cree XP-L HI V3 primary LED to produce four outputs from an energy-saving 1 lumen minimum output, to a darkness-piercing 1000-lumen turbo. In addition to the white emitter, there is an array of secondary-colored LEDs - blue, red, and green - set around the main reflector that provide colored light to perform tasks without interfering with night-adjusted vision. Adding to the MH27's versatility are three strobe modes and three colored flashing modes that can be used for everything from directing traffic to sending a distress signal. The light is designed with tactical professionals in mind. It has a two-stage pushbutton tailcap switch with momentary and constant-on modes. This switch has last-mode-memory for the primary outputs and strobe mode so you can set the output ahead of time and go right to that intensity or mode immediately. For special situations, users have instant access to both the red LED light and 1000-lumen Turbo output for checking IDs and lighting large areas or to search. An included tactical ring can be installed on the handle to help facilitate various pistol/light grip techniques. Complementing the multiple light outputs is a housing that is built to withstand years of use. Its aluminum alloy body has a scratch and corrosion-resistant Type III hard anodized finish, with a scratch-resistant tempered reflector window that has an anti-reflection coating to maximize light transmission. The light is impact-resistant and IPX8-rated, making it fully submersible to a depth of over 6.5 feet. Heat diffusing fins built into the head provide passive overheat protection, while heat-management circuitry automatically monitors and adjusts the output and performance to prevent damage to the light. - Performance
-
- White light:
- Low: 1 lumen
- Med: 55 lumen
- High: 250 lumen
- Turbo: 1000 lumen
- Colored light:
- Blue: 3 lumen
- Red: 13 lumen
- Green: 19 lumen
- One primary white Cree XP-L HI V3 LED
- One each - Blue/Red/Green - secondary LEDs
- Blue LED: Highlights fluids such as blood for tracking
- Red LED: Illuminates without affecting night adjusted vision to read or perform tasks
- Green LED: Many game animals cannot see green light. Use it to perform tasks or signal
- Smooth aluminum reflector produces a bright center cone of light with large, dimmer peripheral ring
- Special Modes
-
- Disorientating strobe mode
- SOS distress signal: Automatically cycles through Morse code sequence
- Location beacon: Emits a slow steady flash to signal location
- "Police" warning signals:
- Mode 1: Alternates between Red and Blue LEDs to simulate police lights
- Mode 2: Flashing Red LED only
- Mode 3: Flashing Blue LED only
- Switching
-
- Type: Pushbutton
- Location: Tailcap and Body
- Tailcap: Controls on/off with last mode memory for primary outputs and strobe mode

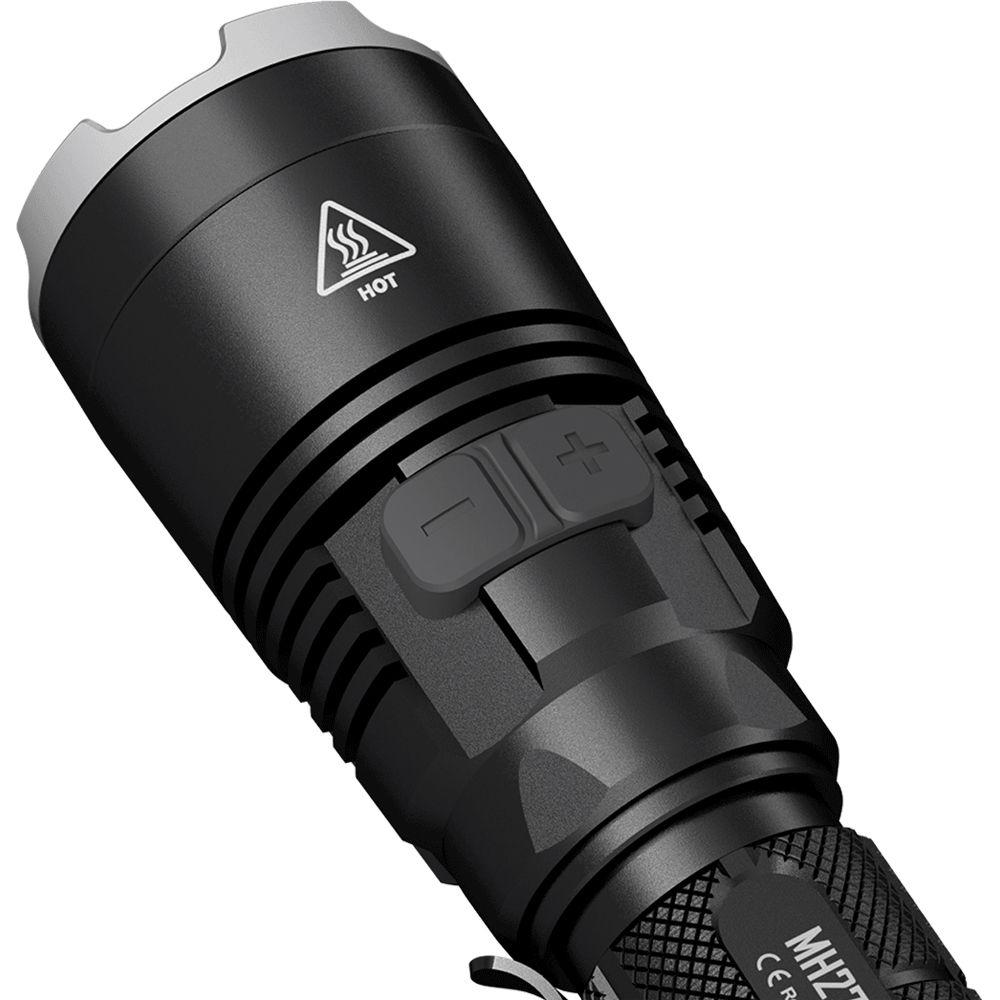

- Body: Dual switches control output intensity and mode selection
- Momentary and constant-on activation
- Instant access to Turbo output and Red LED
- Construction
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type III hard-anodized finish
- Impact-resistant
- IPX8-rated, waterproof and submersible to 6.6'
- Dual-sided, anti-reflective coating and tempered glass emitter lens
- Stainless steel retaining ring protects lens against drops and impacts
- Hardened, heat-diffusion fins help prevent over-heating
- Charging port cover maintains IPX8 rating
- Spring-loaded impact absorption mechanism in battery compartment ensures constant terminal contact under stressful use
- Removable tactical ring helps to facilitate multiple light/pistol hold techniques
- Reverse-polarity protection prevents batteries from being installed backward
- Electronics
-
- Integrated power indicator on body switch
- Runs on one user-supplied 18650 or two CR123 batteries

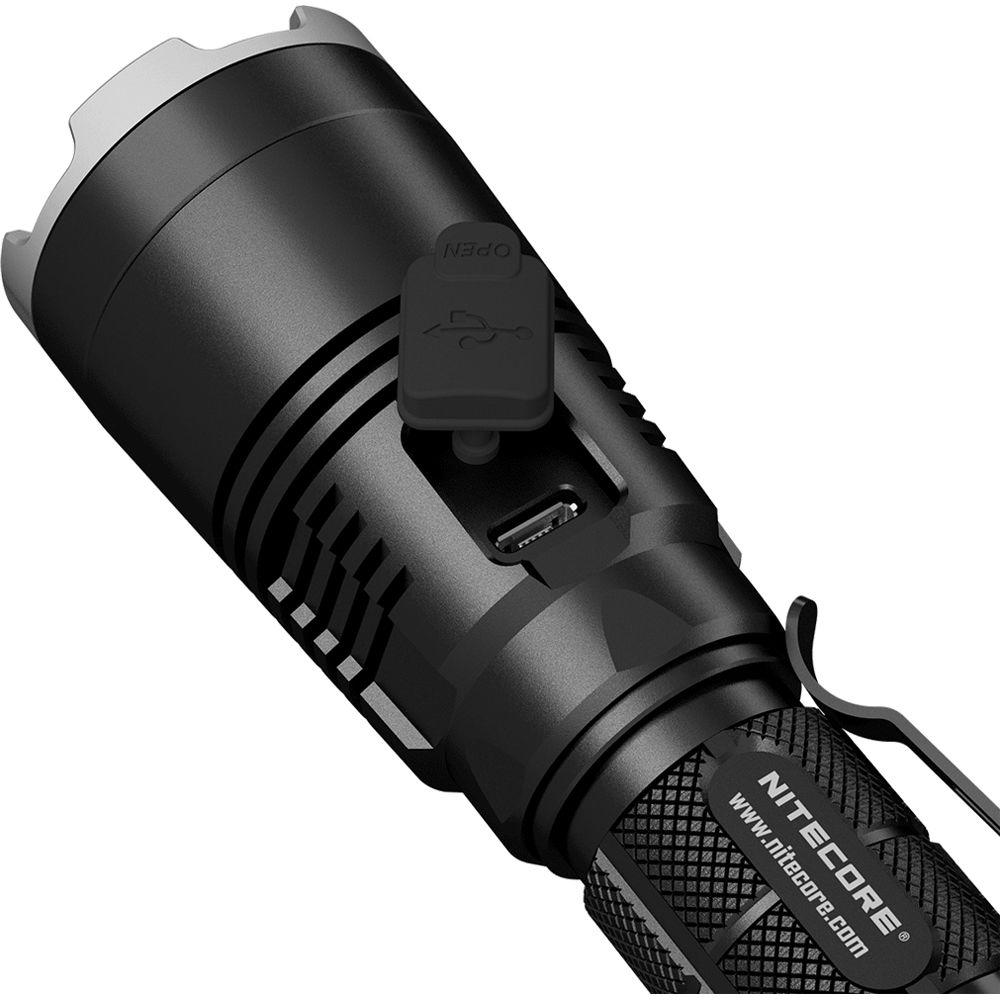

- Integrated Micro-USB charging port charges Li-ion batteries in light
- Circuitry reads the battery and optimizes charging and light performance based on available charge and chemistry
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Advanced Temperature Regulation (ATR) circuitry monitors internal temperature and adjusts performance to prevent heat damage
- Overcharge protection prevents damage to batteries
In the Box Nitecore MH27 Rechargeable Multi-Spectrum LED Flashlight - USB Charger
- Nylon Holster
- Stainless Steel Clip
- Tactical Ring
- Lanyard
- Spare Charging Port Cover
- Spare O-Ring
- Spare Tailcap Switch Boot
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH27 Rechargeable Multi-Spectrum LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH27 Specs | | | Lumen Output | High: 250 Lumens
Medium: 55 Lumens
Low: 1 Lumen
Turbo: 1000 Lumens | | Illumination Source | 1 x White LED
1 x Red LED
1 x Blue LED
1 x Green LED | | | | Estimated Runtime | 18650
High: 6.25 Hours
Medium: 28 Hours
Low: 708 Hours
Turbo: 1 Hour
Blue: 28 Hours
Red: 28 Hours
Green: 28 Hours | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium, Lithium-Ion | | Charging Time | 6 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions |
