User Manual for Nitecore MH40GT Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH40GT Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MH40GT Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

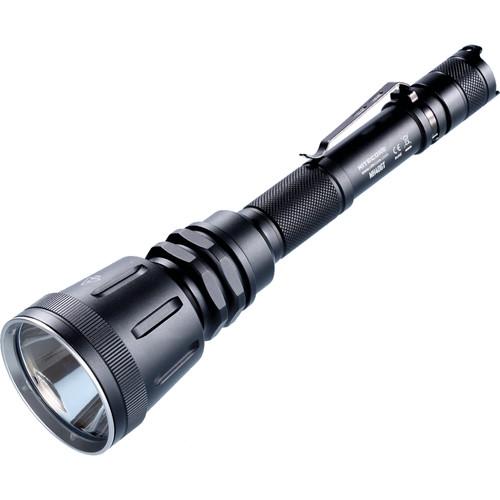

Product description Nitecore updated their MH40GT Rechargeable LED Flashlight with the more energy-efficient Cree XP-L HI V3 LED to produce a newer model with increased runtimes and a brighter maximum output over its predecessor. Designed with a long beam-throw that is ideal for military, law enforcement, and outdoor use, it has three normal outputs from 13 to 325 lumens, with a 1000-lumen turbo mode. An intelligent two-stage tactical pushbutton tailcap switch allows you to cycle through to your desired output intensity, including a disorientating strobe or SOS emergency signal. There are two user modes to choose from: Turbo and User-defined. Turbo mode only gives access to the brightest output, while the user-defined mode allows you to use all the normal outputs plus the specialty strobes.The aluminum housing is built for the rigors of daily use with a stainless steel bezel to protect the head and emitter lens from hits and drops, and a scratch and corrosion-resistant hard-anodized finish. It is also impact-resistant to 5 feet, and IPX8-rated to be submersible to a depth of up to 6.6 feet for up to 30 minutes. Use the light with the included removable tactical ring that installs on the handle to help users securely hold their light and pistol in various tactical hold techniques. A charging adapter and two Li-ion rechargeable 18650 batteries are included, but the light's circuitry enables it to also run on disposable batteries. An integrated charging port charges the batteries while they're inside of the light, and a port cover prevents dust and water from getting into it while preserving its IP rating. - Light Performance
-
- Low: 13 lumen
- Med: 88 lumen
- High: 325 lumen
- Turbo: 1000 lumen
- One Cree XP-L HI V3 LED
- Deep, smooth aluminum reflector is designed to maximize throw and produces a smooth beam without holes or hotspots
- SOS distress signal automatically cycles through Morse code sequence
- Strobe mode causes temporary blindness and disorientation
- Switching
-
- Location: Tailcap
- Type: Two-stage pushbutton
- Momentary and constant-on activation
- Last mode memory stores previously used output
- Two selectable modes for different uses:
- Turbo mode: Access to 1000-lumen Turbo mode
- User-defined: Gives you access to all other outputs and modes except Turbo
- Construction Details
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant Type III hard-anodized finish
- Anti-reflection coated, scratch-resistant tempered glass lens
- Textured diamond grip ensures a secure grip in cold and wet conditions
- IPX8-rated, submersible to 6.6'
- Impact-resistant to 5'
- Removable tactical ring helps to facilitate multiple light/pistol hold techniques
- Stainless steel retaining ring protects the head and lens from drops and impacts
- Electronics
-
- Runs on two 18650 Li-ion, four RCR123 Li-ion, or four CR123 lithium batteries
- Integrated charging port to charge Li-ion batteries in light
- Digitally-regulated output maintains consistent beam intensity throughout battery charge
- Circuitry automatically detects battery type and chemistry and optimizes performance for maximum battery life
- Reverse polarity protection prevents damage to light
In the Box Nitecore MH40GT Rechargeable LED Flashlight Lanyard Nylon Holster Spare O-Ring Stainless Steel Clip 2 x 18650 Li-Ion Rechargeable Battery (3.7V, 2300mAh) dtdvztaatauyzxexfytrewysexutsdwwdwuqye USB Charger Spare Tailcap Switch Boot Tactical Handle Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH40GT Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH40GT Specs | | | Lumen Output | Low: 13 Lumens
Medium: 88 Lumens
High: 325 Lumens
Turbo: 1000 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 6.75 Hours
Medium: 27 Hours
Low: 130 Hours
Turbo: 2.25 Hours | | Battery Type | 2 x 18650 Lithium-Ion or
4 x RCR123A Lithium-Ion or
4 x CR123A Lithium | | Internal Battery Capacity | 3400 mAh | | Charging Time | 5 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 2.4" / 6.1 cm | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 64 owners. Add your rating and experience with the product.
