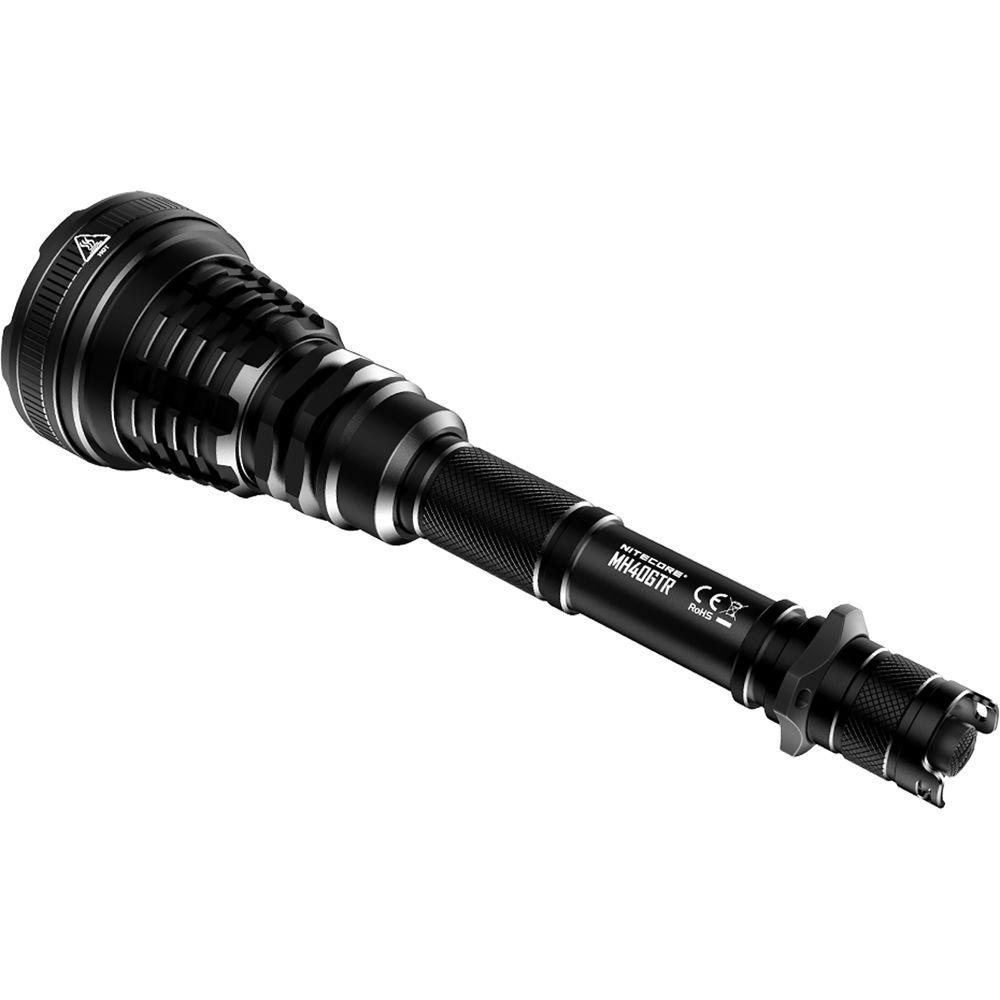

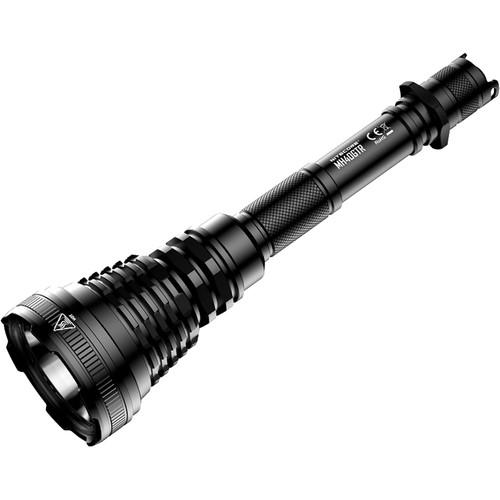

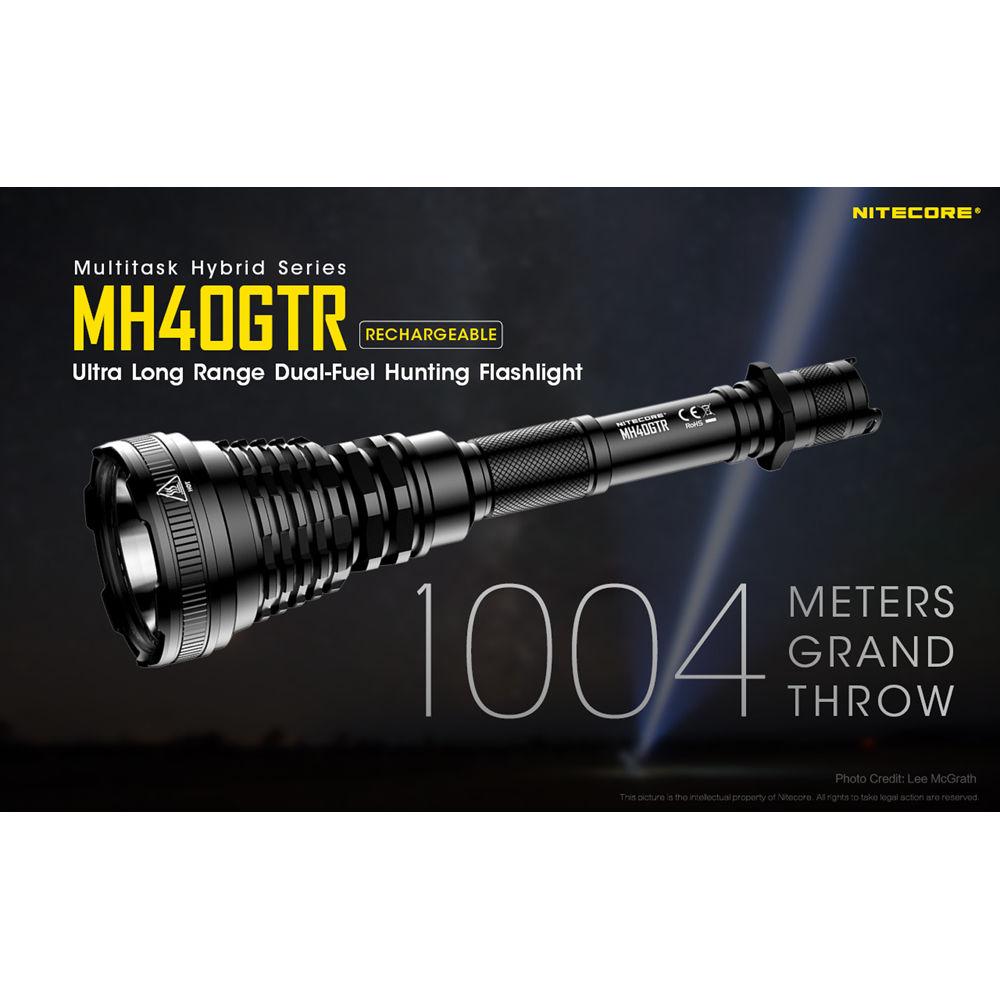

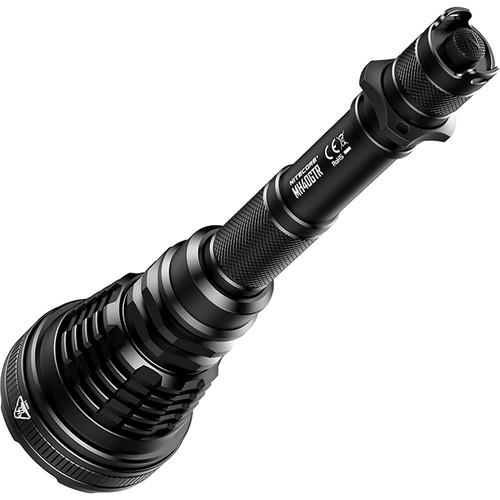

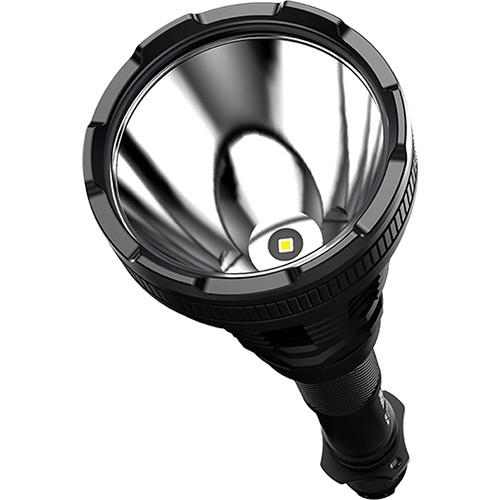

Product description A big, powerful torch with a long throw and onboard charging, the Nitecore MH40GTR Rechargeable LED Flashlight is a solid lighting tool for law enforcement, search and rescue, and outdoor recreation. Outputs range from 15 lumens on low to 1200 lumens on turbo and include 1200-lumen strobe and SOS functions for emergencies. The light uses two 18650 or four CR123 batteries, and it's easy to plug in to the sleeve-protected port for a recharge.

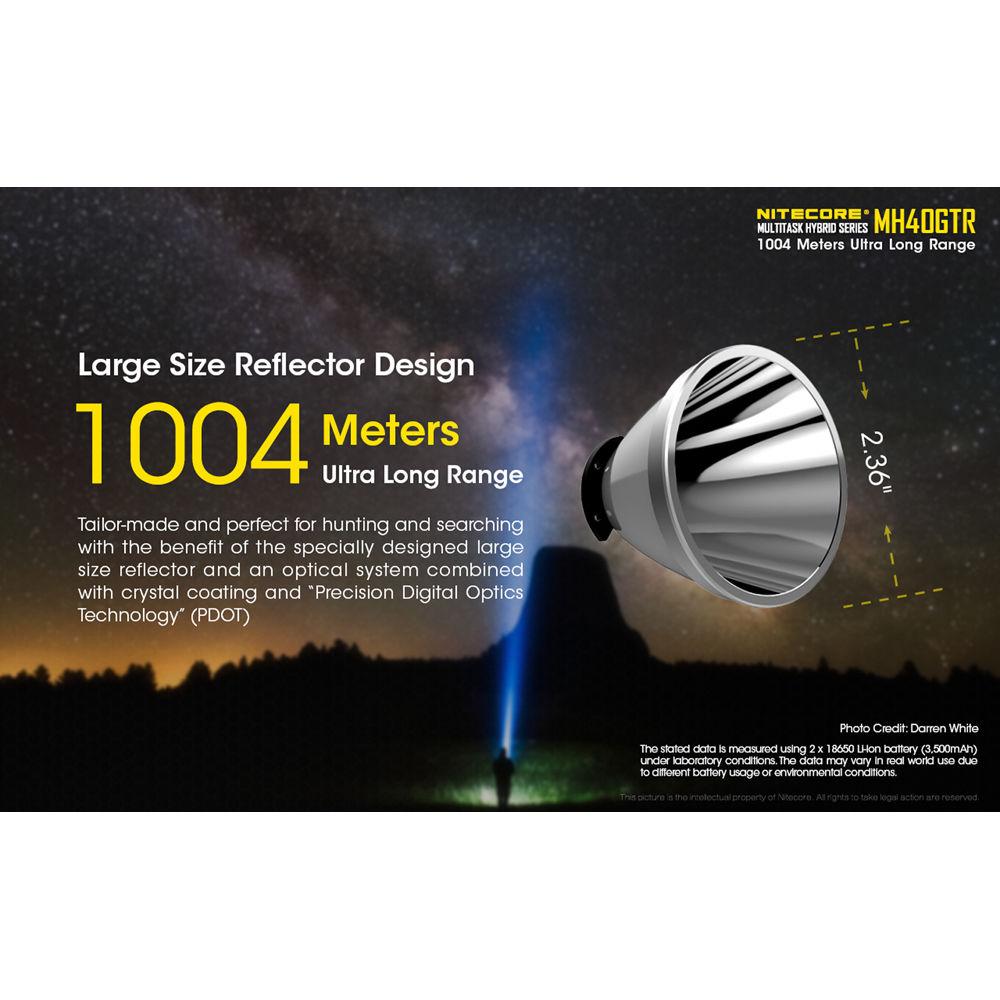

Power and brightness levels are controlled with the push-button tailcap switch—in Turbo mode, click straight to turbo, and in User-Defined mode, customize your click access to high, medium, low, SOS, and strobe. Twist the flashlight's head to change modes. The large head accommodates a 2.4" Precision Digital Optic Technology reflector that throws the beam far downrange. The aluminum housing is built for the rigors of daily use and has a scratch- and corrosion-resistant hard-anodized finish. The MH40GTR is rated impact resistant to 3.3 feet and is IPX8-rated to be submersible to a depth of up to 6.6'. Use the light with the included removable tactical ring that installs on the handle for various tactical hold techniques. A charging adapter and two Li-ion rechargeable 18650 batteries are included, but the light's circuitry enables it to also run on disposable batteries. - Light Performance
-
- Low: 15 lumens
- Medium: 100 lumens
- High: 380 lumens
- Turbo: 1200 lumens
- One Cree XP-L HI V3 LED
- Deep, smooth 2.4" diameter aluminum reflector is designed to maximize throw
- 1200-lumen strobe and SOS signal

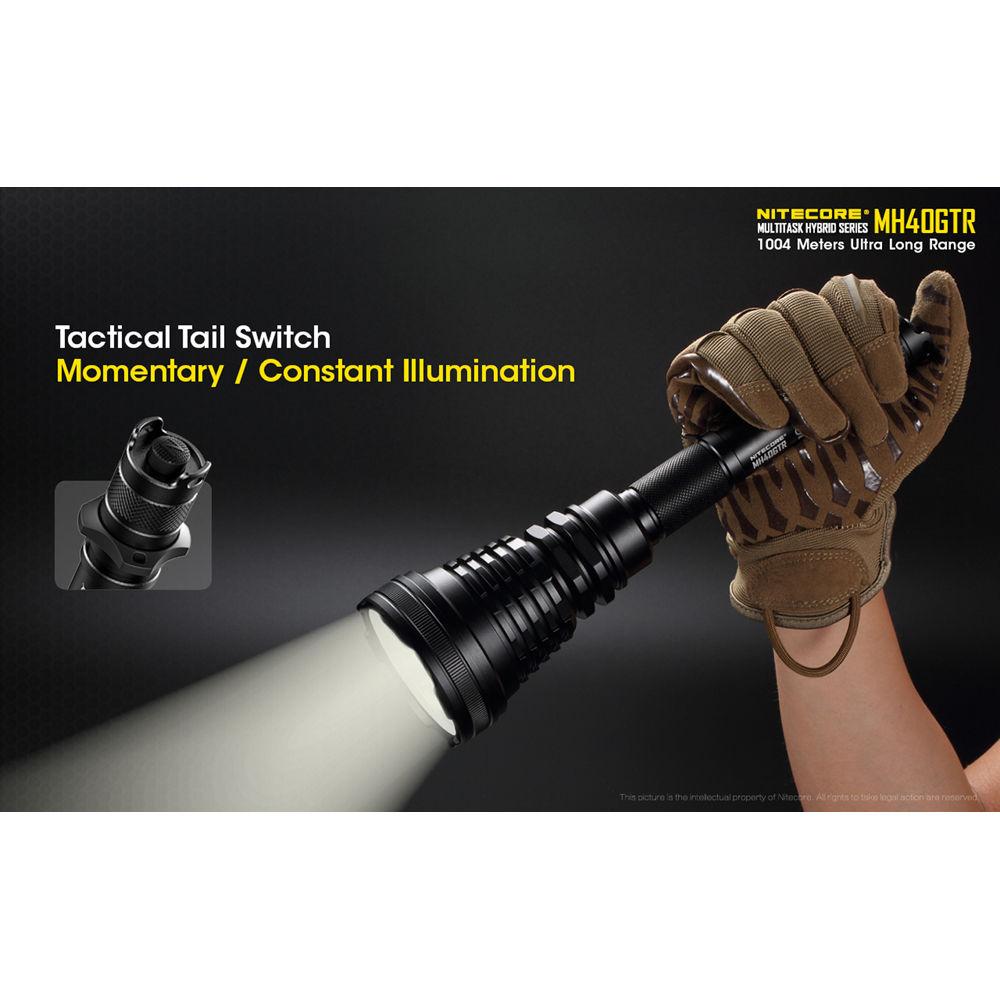

- Switching
-
- Tailcap switch for on/off
- Type: Two-stage push button
- Momentary- and constant-on activation
- Last mode memory stores previously used output
- Twist head to select Turbo or User-Defined modes
- User-Defined mode allows customized access to high, medium, low, SOS, and strobe
- Construction Details
-
- Lightweight and durable aluminum-alloy housing
- Corrosion- and scratch-resistant Type III hard-anodized finish
- Anti-reflection coated, scratch-resistant tempered glass lens
- Textured diamond surface ensures a secure grip in cold and wet conditions
- IPX8-rated, submersible to 6.6'
- Impact resistant to 3.3'
- Removable tactical ring helps to facilitate multiple light/pistol hold techniques
- Electronics
-

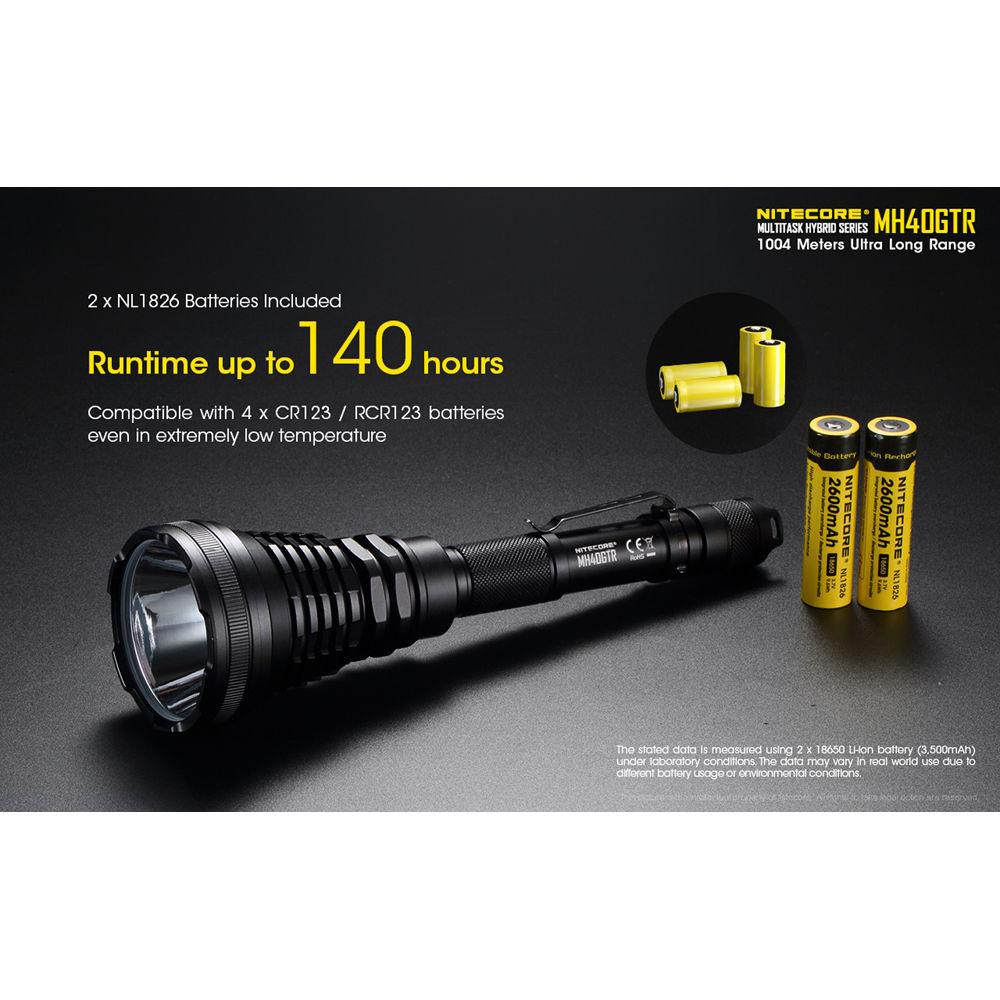

- Runs on two 18650 Li-ion, four RCR123 Li-ion, or four CR123 lithium batteries

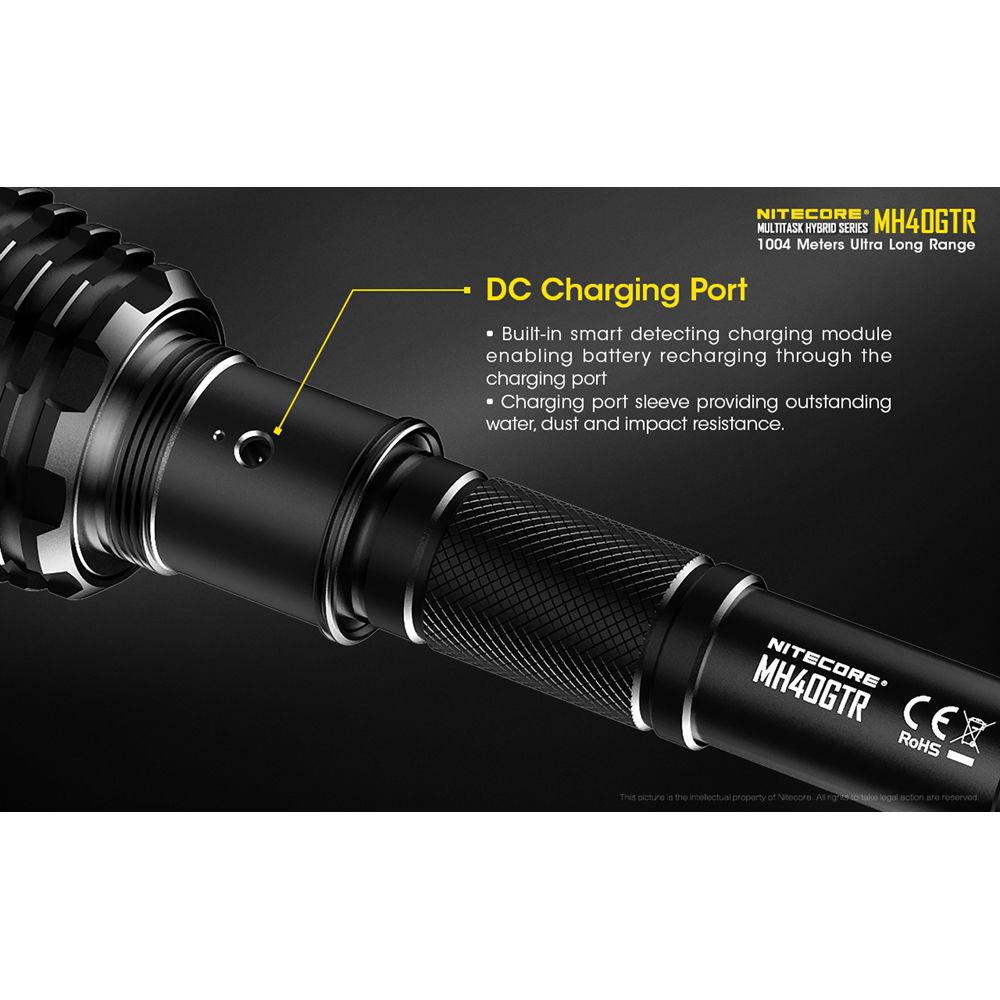

- Integrated charging port to charge Li-ion batteries in light
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Circuitry automatically detects battery type and chemistry and optimizes performance for maximum battery life
- Reverse-polarity protection prevents damage to light
In the Box Nitecore MH40GTR Rechargeable LED Flashlight Lanyard Holster Spare O-Ring Stainless Steel Titanium-Plated Clip 2 x 18650 Rechargeable Batteries Wall Charger Spare Tailcap Switch Boot Tactical Handle Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH40GTR Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH40GTR Specs | | | Lumen Output | Turbo: 1200 Lumens
High: 380 Lumens
Medium: 100 Lumens
Low: 15 Lumens
SOS: 1200 Lumens
Strobe: 1200 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
Turbo: 2 Hours
High: 6.25 Hours
Medium: 27 Hours
Low: 130 Hours | | Battery Type | 2 x 18650 Lithium-Ion or
4 x RCR123A Lithium-Ion or
4 x CR123A Lithium | | Charging Time | 5 Hours | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 3.3' / 100.6 cm | | Bezel Diameter | 2.8" / 7.1 cm | | Dimensions |
