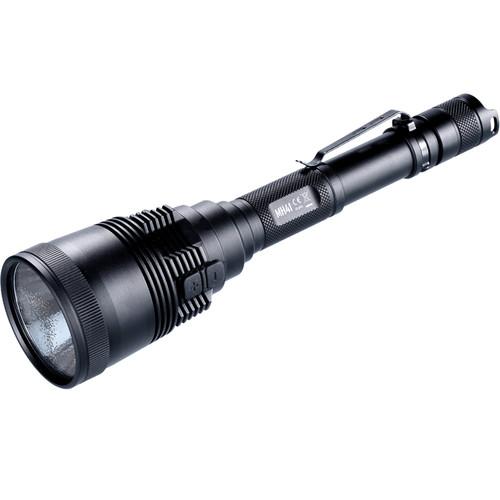

User Manual for Nitecore MH41 Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MH41 Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MH41 Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Nitecore designed and built their MH41 Rechargeable LED Flashlight with the powerful and energy-efficient Cree XHP50 LED to produce a light with impressive runtimes and a wide output range. Designed with a micro-textured 'orange peel' reflector that produces a wide smooth beam without holes or hotspots, this light is ideal for a variety of military, law enforcement, and outdoor uses. It has five primary outputs from a task-orientated 1-lumen minimum to a blinding, darkness-piercing 2150-lumen Turbo mode. An intelligent two-stage tactical pushbutton tailcap switch allows you to cycle through to your desired output intensity, including a disorientating strobe, an SOS emergency signal, and location beacon. Users also have instant-access to both the minimum and Turbo outputs to eliminate the need to cycle through all intensities in high-stress situations or for ease-of-use.The aluminum housing is built for the rigors of daily use with a stainless steel retaining ring to protect the head and emitter lens from impacts and drops, and a scratch and corrosion-resistant hard-anodized finish. It is also impact-resistant to 5 feet, and IPX8-rated to be submersible to a depth of up to 6.6 feet for up to 30 minutes. Use the light with the included removable tactical ring that installs on the handle to help users securely hold their light and pistol in various tactical grip techniques. A charging adapter and two li-ion rechargeable 18650 batteries are included, but the light's circuitry enables it to also run on disposable batteries. An integrated charging port charges the batteries in the light, and a port cover prevents dust and water from getting into it while preserving its IP rating. - Light Performance
-
- Min: 1 lumen
- Low: 90 lumen
- Med: 580 lumen
- High: 1230 lumen
- Turbo: 2150 lumen
- One Cree XHP50 LED

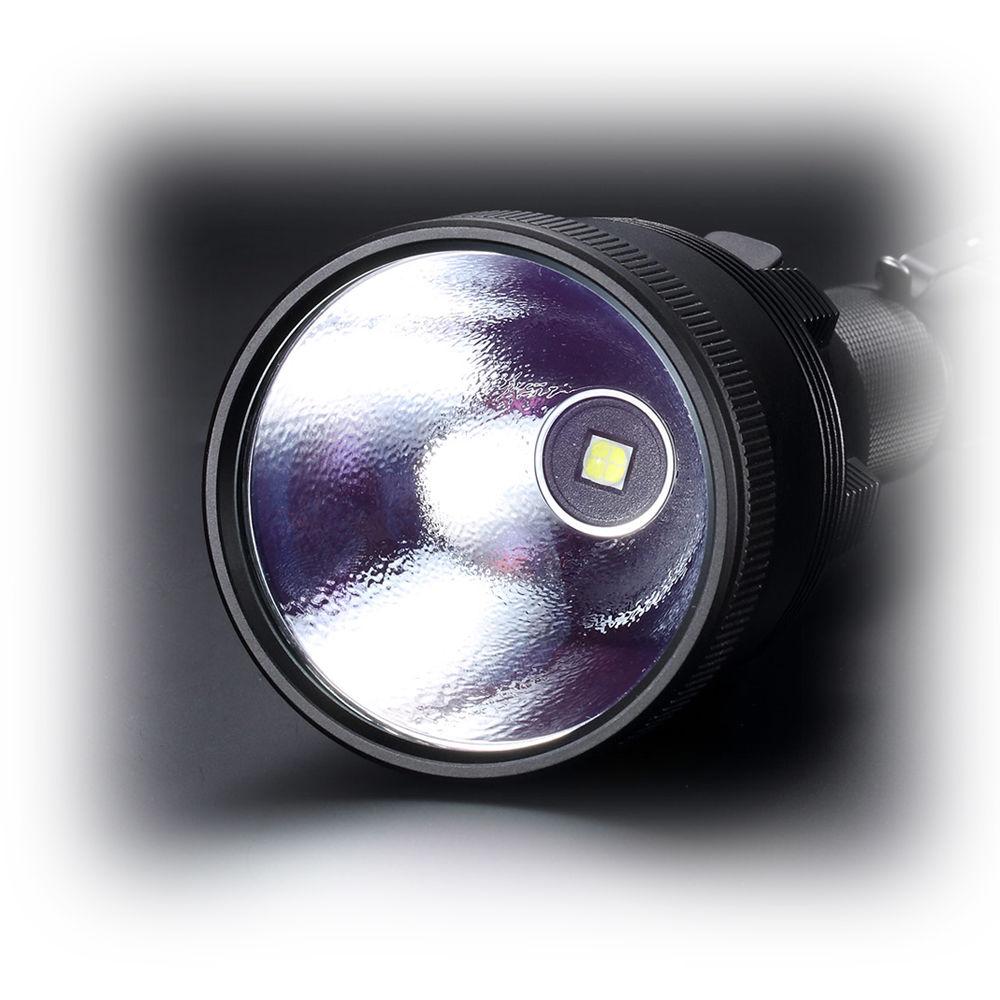

- 'Orange peel' micro-textured aluminum reflector produces a wide, smooth beam without holes or hotspots
- SOS distress signal: Automatically cycles through Morse code sequence
- Strobe-mode causes temporary blindness and disorientation
- Location beacon: Emits a regular pulse of light to mark its location
- Switching
-
- Type: Pushbutton
- Location: Tailcap and Body:
- Tailcap: Controls on/off with last mode memory for primary outputs and strobe-mode

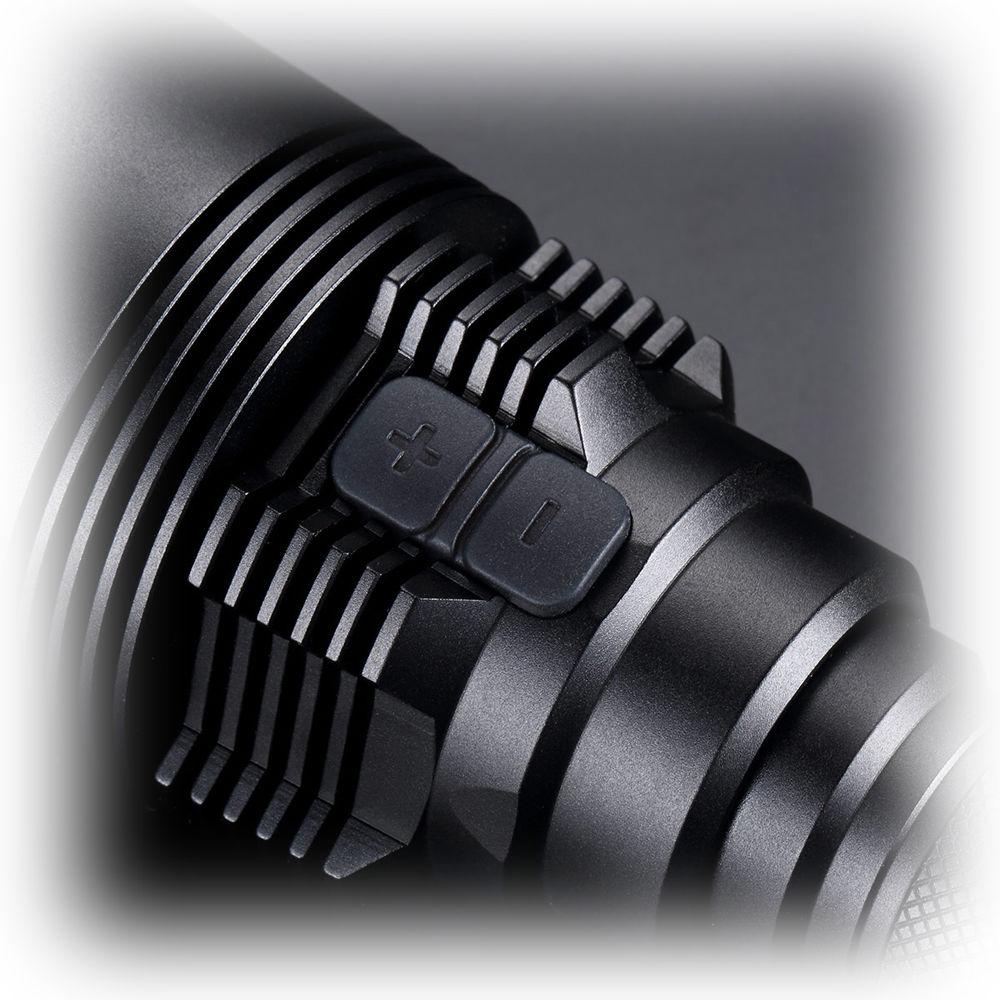

- Body: Dual switches control output intensity and mode selection
- Momentary and constant-on activation
- Instant access to Min and Turbo outputs
- Construction Details
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant Type III hard-anodized finish
- Anti-reflection coated, scratch-resistant tempered glass lens
- Stainless steel retaining ring the head and lens from drops and impacts
- Textured diamond grip ensures a secure grip in cold and wet conditions
- IPX8-rated, submersible to 6.6'
- Impact-resistant to 5'
- Removable tactical ring helps to facilitate multiple light/pistol hold techniques
- Spring-loaded impact absorption mechanism in battery compartment ensures constant terminal contact under stressful use
- Hardened, heat-diffusion fins help prevent over-heating
- Electronics
-
- Integrated power indicator on body switch
- Runs on two 18650 Li-ion, four RCR123 Li-ion, or four CR123 lithium batteries

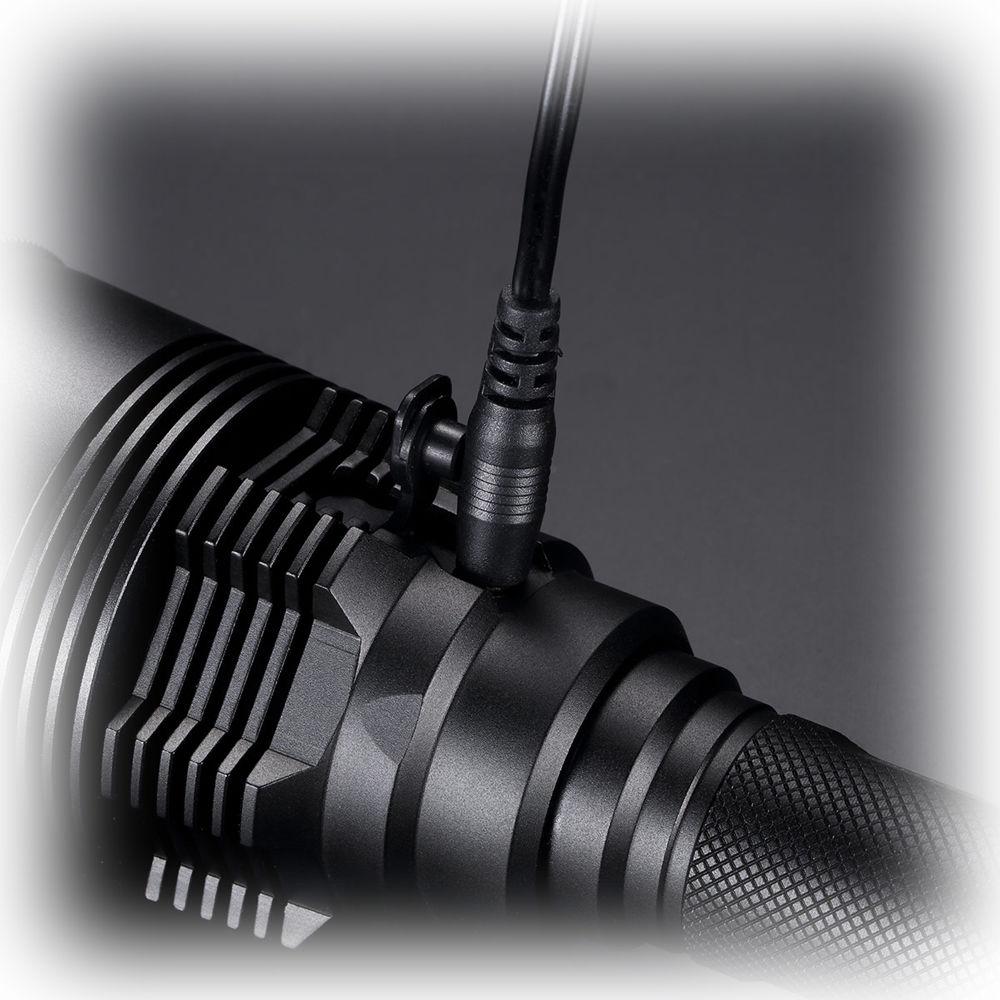

- Integrated charging port to charge Li-ion batteries in light
- Advanced Temperature Regulation (ATR) circuitry monitors internal temperature and adjusts performance to prevent heat damage
- Digitally regulated output maintains consistent beam intensity throughout battery charge
- Circuitry automatically detects battery type and chemistry and optimizes performance for maximum battery life
- Reverse polarity protection prevents damage to light if batteries are installed wrong
In the Box Nitecore MH41 Rechargeable LED Flashlight Lanyard Nylon Holster Spare O-Ring Stainless Steel Clip 2 x 18650 Li-Ion Rechargeable Battery (3.7V, 2300mAh) dtdvztaatauyzxexfytrewysexutsdwwdwuqye Charger Spare Tailcap Switch Boot Tactical Handle Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MH41 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MH41 Specs | | | Lumen Output | High: 1230 Lumens
Medium: 580 Lumens
Low: 90 Lumens
Turbo: 2150 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x White LED | | | | Estimated Runtime | 18650
High: 2.5 Hours
Medium: 5.75 Hours
Low: 32.25 Hours
Minimum: 850 Hours
Turbo: 1 Hour | | Battery Type | 2 x 18650 Lithium-Ion or
4 x RCR123A Lithium-Ion or
4 x CR123A Lithium | | Charging Time | 5 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 2.4" / 6.1 cm | | Dimensions |
Rating94% users recommend this product to others. And what about you?
This product has already been rated by 68 owners. Add your rating and experience with the product.
