User Manual for Nitecore MT1A v.2 LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MT1A v.2 LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MT1A v.2 LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

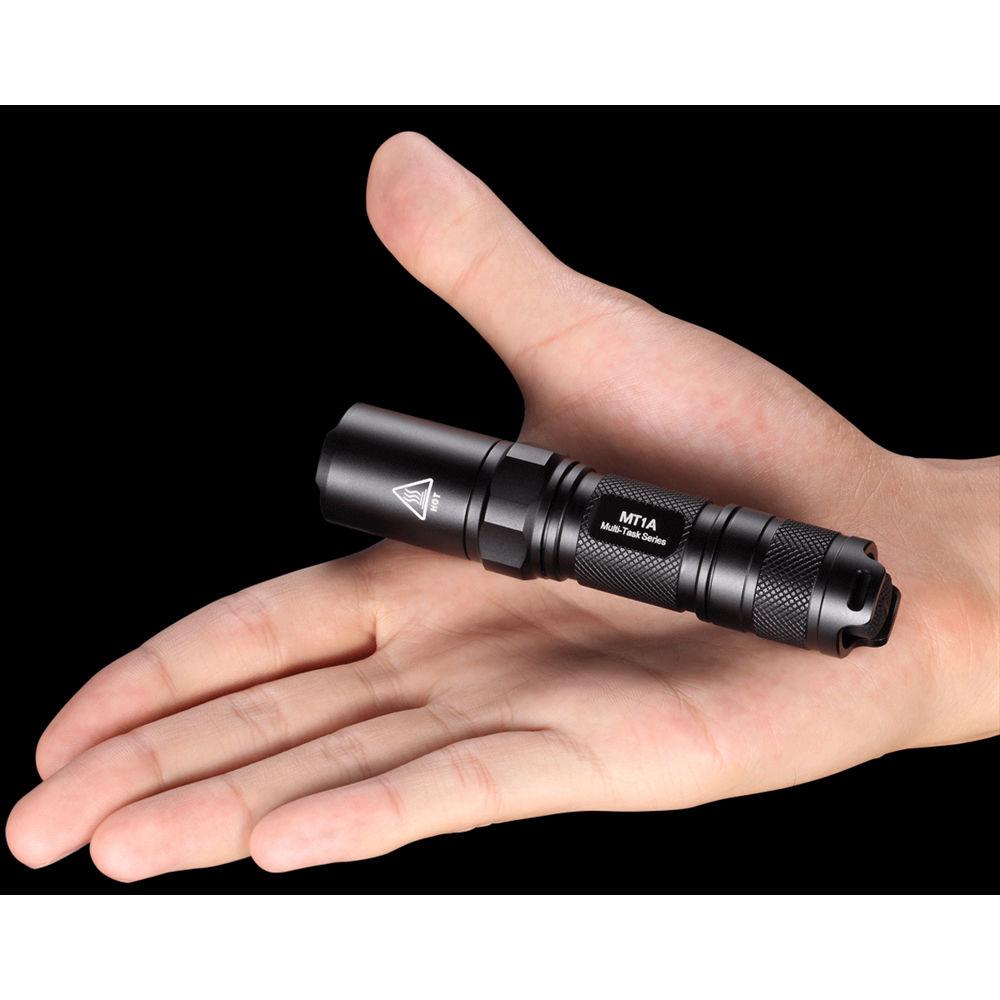

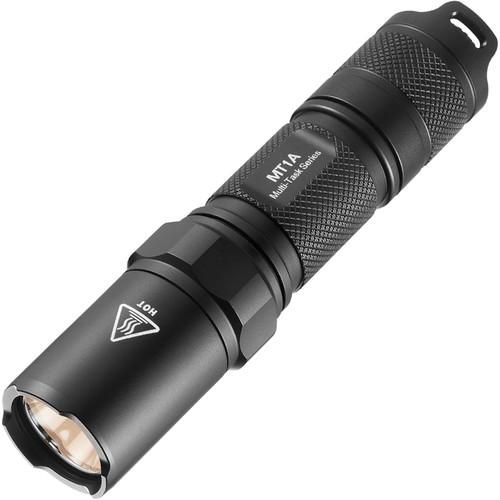

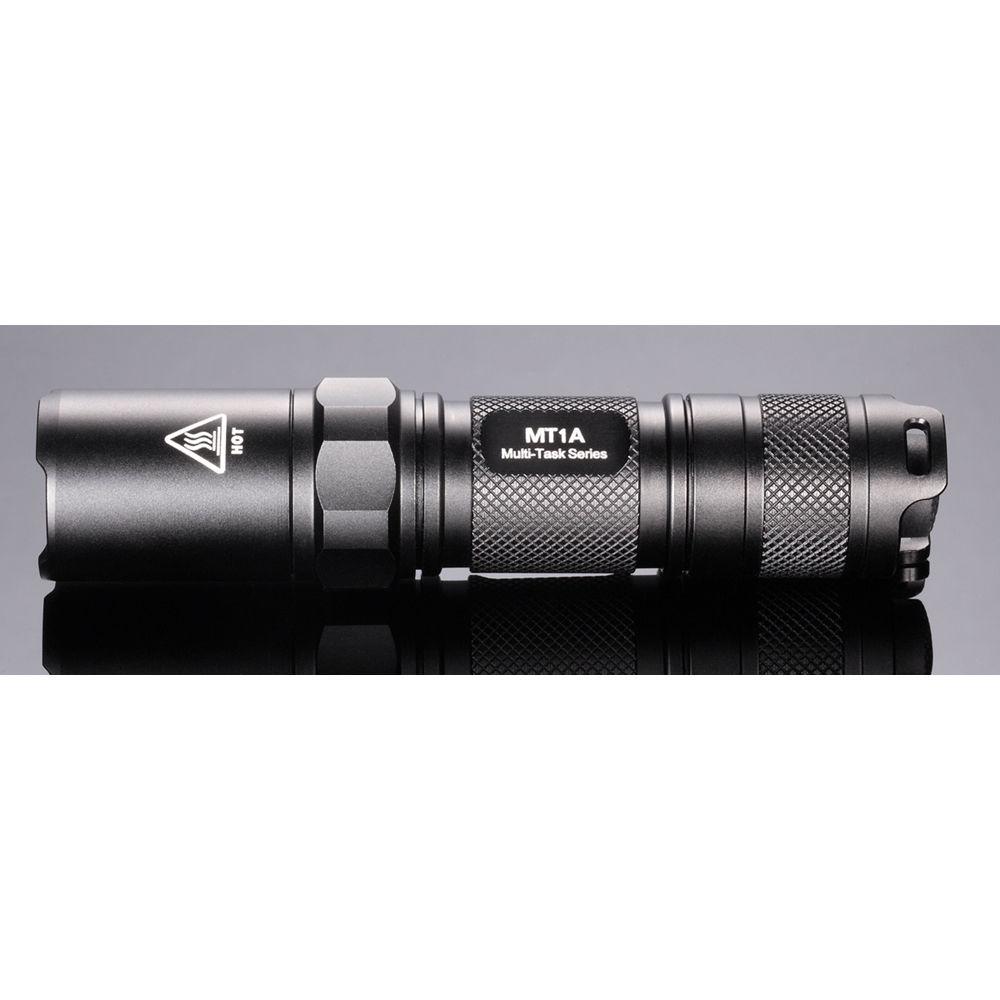

Product description With the addition of the second-generation CREE XP-G2 R5 LED emitter, Nitecore updated the MT1A LED Flashlight so that it now provides a higher maximum output than previous models. The MT1A is a compact light that features three normal outputs from 5 to 55 lumens, with a 180-lumen turbo mode. An intelligent two-stage pushbutton switch allows you to program your desired output, including a disorientating strobe or SOS emergency signal. To activate the turbo mode, just tighten the head slightly. This gives you access to your preferred operating output, while allowing you to quickly change to turbo mode.
Built for daily use, the aluminum housing has a scratch and corrosion-resistant hard-anodized finish, is submersible to 6.6', and impact-resistant to 5'. At just over four inches long and weighing only a few ounces, the MT1A is powerful enough to use as a primary light, yet fits comfortably in a pocket. The light runs on disposable lithium or li-ion rechargeable batteries, and there is a built-in reverse polarity protection that prevents damage to the light if the batteries are put in incorrectly. - Light Performance
-
- 180-lumen turbo mode
- Three outputs from 5 to 55 lumens
- White CREE XP-G2 R5 LED emitter
- Tight center cone of light with large dimmer peripheral ring
- Deep, smooth aluminum reflector produces smooth beam without holes or hotspots
- SOS signal automatically cycles through Morse code sequence
- Strobe mode causes temporary blindness and disorientation
- Switching
-
- Two-stage tailcap switch and rotating body switch
- Partially press to cycle through the outputs, release to set desired output
- Click to turn on programmed output
- Turn rotary switch on the body to select Turbo, then click to activate
- Intelligent switch stores preferred brightness setting
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Corrosion and scratch-resistant
- Anti-reflective coated, tempered lens
- Textured diamond grip for sure handling
- Submersible to 6.6', impact-resistant to 5'
- Removable titanium-plated stainless steel clip
- U-shaped tailcap shroud helps prevent accidental activation
- Lightweight and compact design to fit comfortably in a pocket
- Compatible with lithium disposable, and li-ion rechargeable batteries
- Reverse polarity protection protects light if batteries are installed incorrectly
In the Box Nitecore MT1A v.2 LED Flashlight Lanyard O-Ring Stainless Steel Clip Spare Tailcap Boot Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MT1A v.2 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MT1A Specs | | | Lumen Output | High: 55 Lumens
Medium: 22 Lumens
Low: 5 Lumens
Turbo: 180 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 5.5 Hours
Medium: 18 Hours
Low: 60 Hours
Turbo: 1.5 Hours | | Battery Type | 1 x AA Alkaline | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Dimensions |
