User Manual for Nitecore MT1C Multi-Task LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MT1C Multi-Task LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore MT1C Multi-Task LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

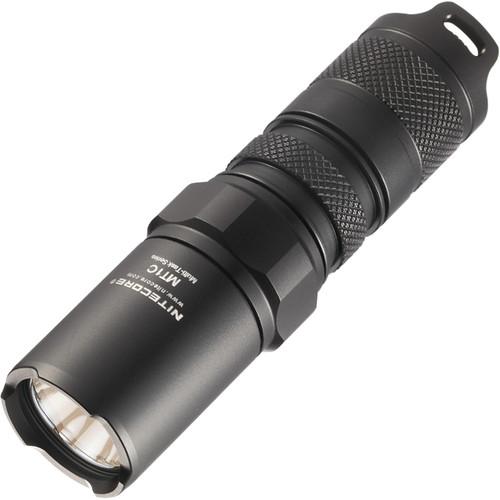

Product description The MT1C Multi-Task LED Flashlight from Nitecore is a powerful and durable illumination tool that easily fits in the palm of your hand or your pocket. It features three normal outputs from 22 to 138 lumens, with a 345-lumen turbo mode. An intelligent two-stage pushbutton switch allows you to program your desired output, including a disorientating strobe or SOS emergency signal. To activate the turbo mode, just tighten the head. This gives you access to your preferred operating output, while allowing you to quickly change to turbo mode.An example of this functionality in real-life situations would be: When used as at home, the head can be loosened and low level selected in custom mode, providing long runtimes at a lower light intensity. The same flashlight could then be taken out and used a law-enforcement duty light, with user-defined mode set in strobe, making it easy to alternate between turbo mode and strobe with a simple twist of the flashlight head.Built to withstand the rigors of daily use, the aluminum housing has a scratch and corrosion-resistant hard-anodized finish, is submersible to 6.6', and impact-resistant to 5'. A diamond-textured handle provides a sure-grip in cold or wet conditions, while the faceted anti-roll collar offers an easy hand-hold for activating the turbo mode. This light runs on a single user-supplied CR123A lithium battery. - Light Performance
-
- Low: 22 lumen
- Med: 66 lumen
- High: 138 lumen
- Turbo: 345 lumen
- White Cree XP-G2 R5 LED emitter
- Tight center cone of light with large dimmer peripheral ring
- Digitally regulated output ensures constant beam intensity throughout battery life
- Deep aluminum reflector produces smooth beam without holes or hotspots and a large ring of dimmer peripheral light
- SOS signal automatically cycles through Morse-code sequence
- Strobe-mode to signal or cause temporary disorientation
- Over-heat protection automatically steps down output to prevent damage
- Switching
-
- Two-stage tailcap switch
- Momentary and constant-on activation in Turbo mode
- Partially press to cycle through the outputs, release to set desired output
- Intelligent last-mode memory switch stores last selected output setting
- Tighten head to choose Turbo, then click to activate
- U-shaped tailcap shroud helps prevent accidental activation
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Corrosion and scratch resistant
- Anti-reflective coated, tempered window
- Textured diamond grip for sure handling, with anti-roll collar
- Submersible to 6.6', impact-resistant to 5'
- Removable titanium-plated stainless steel clip
- Reverse polarity protection protects light if batteries are installed incorrectly
- Runs on one user supplied CR123A battery
In the Box Nitecore MT1C Multi-Task LED Flashlight Lanyard 2-Way Clip Spare O-Ring Spare Tailcap Switch Boot Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MT1C Multi-Task LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MT1C Specs | | | Lumen Output | High: 138 Lumens
Medium: 66 Lumens
Low: 22 Lumens
Turbo: 345 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | High: 3.25 Hours
Medium: 8 Hours
Low: 23 Hours
Turbo: 1.25 Hours | | Battery Type | 1 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 0.9" / 22.9 mm | | Dimensions |
