User Manual for Nitecore MT20C Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MT20C Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MT20C Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

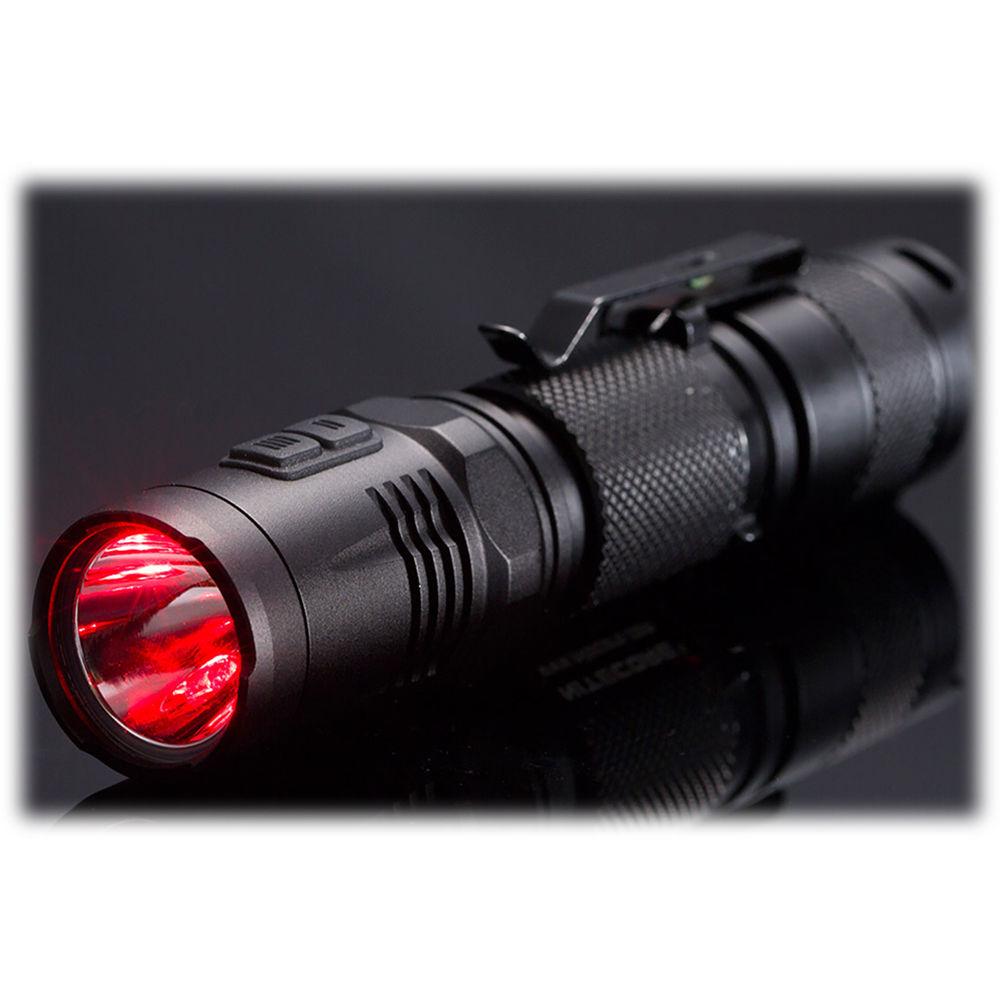

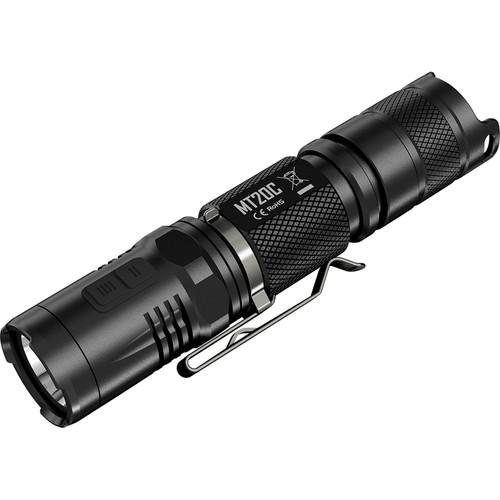

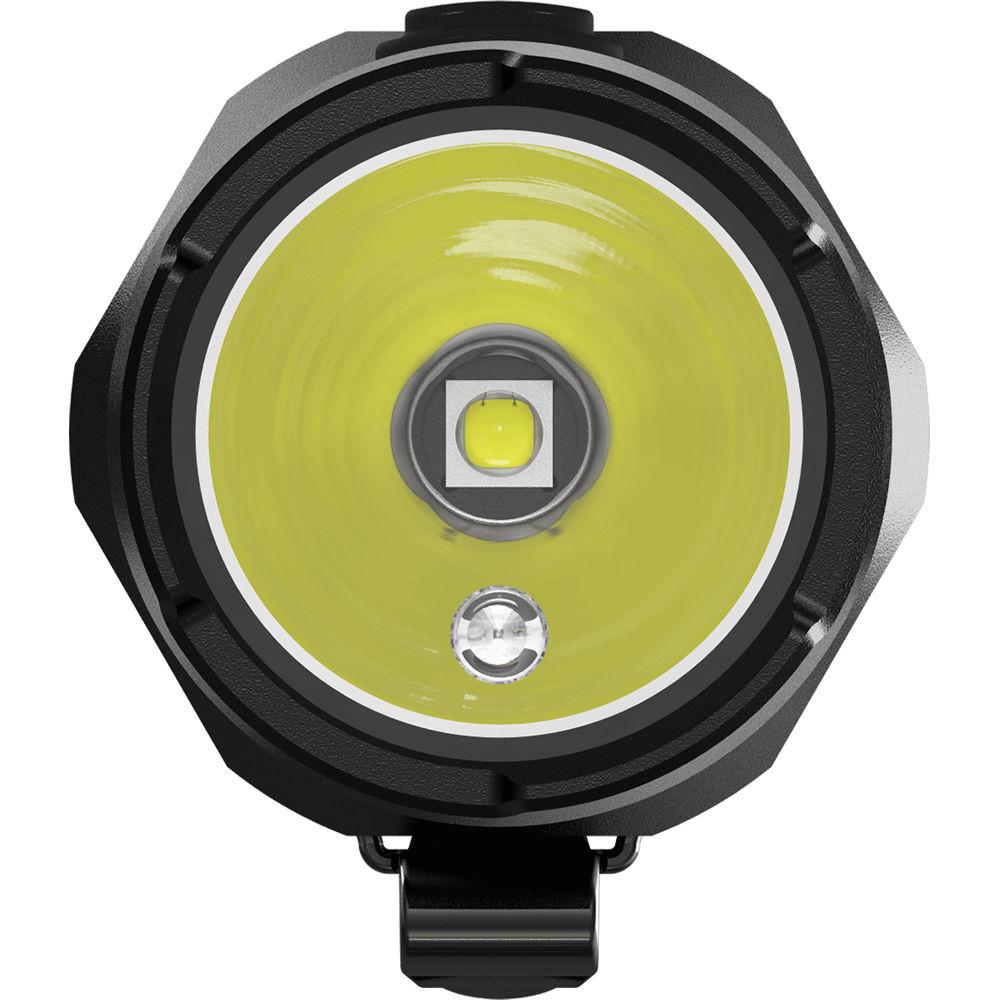

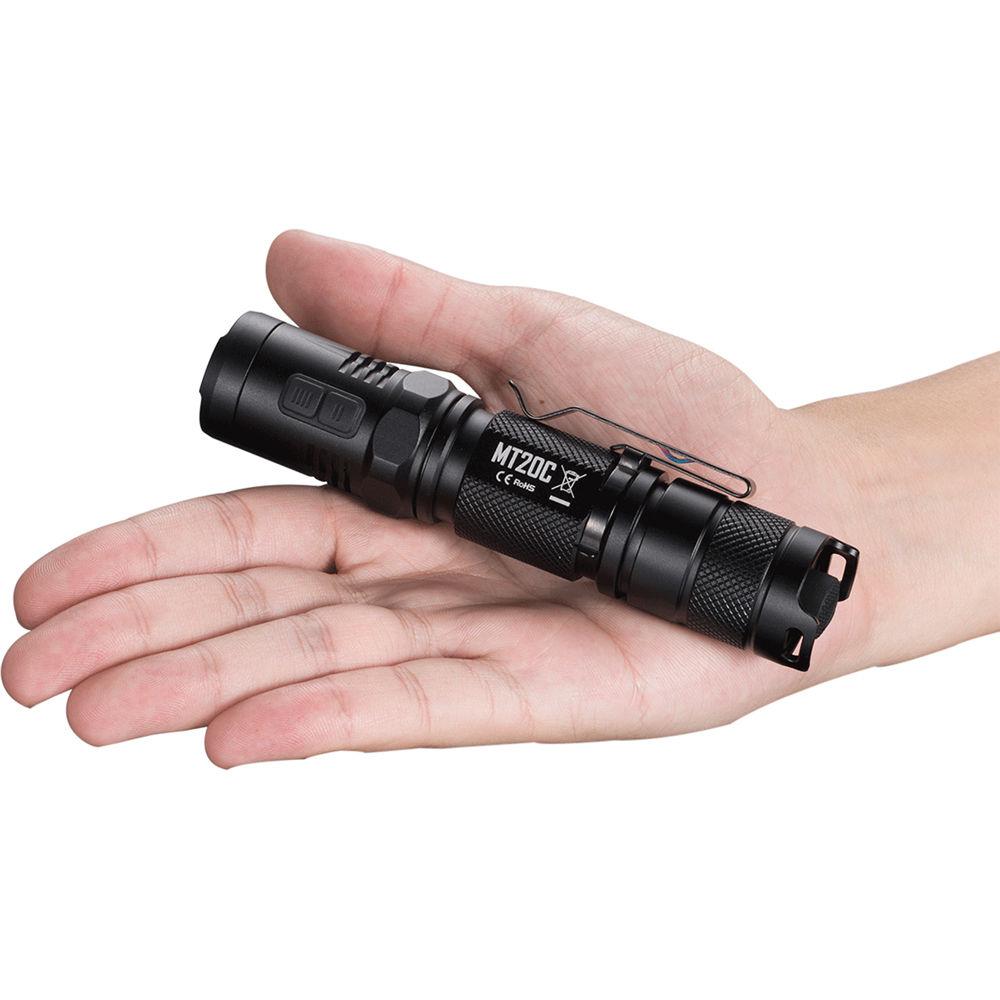

Product description Enjoy multiple levels of light outputs and modes with the MT20C Flashlight from NITECORE. The CREE XP-G2 R5 LED puts out up to 460 lumens on turbo mode. For times when you don't want to alter your night-adjusted vision, there is a secondary red LED that can also flash to act as a location beacon. On and off switching is accomplished via the tail switch while output levels and access to strobe and SOS modes are controlled by the dual body switches. The tail switch also allows for constant on or momentary illumination.
The flashlight's aluminum body has a Mil Spec Type III hard-anodized finish with a 1" diameter bezel. Deep pocket carry is accomplished by use of a removable clip, and a protrusion on the rear protects the switch and functions as a tail stand. The body has a non-slip design and ventilation slots to aid with cooling. Waterproof to 6.5' and impact resistant to 4.9', the M20C is well-suited for harsh conditions. Power is provided by one 18650, or two CR123 batteries. - Light Performance
-
- Turbo: 460 lumens
- High: 210 lumens
- Mid: 100 lumens
- Low: 20 lumens
- Min: 1 lumen
- White Cree XM-L2 U2 LED
- Red LED
- Red Location Beacon
- SOS Signal Mode
- Strobe Mode
- Switching
-
- Location: body and tailcap
- Type: push button
- Momentary and constant on activation
- Tail switch controls on and off functions
- Dual body switch controls modes and intensity
- Body switch controls output, mode, and secondary LED
- Press and hold both buttons to lock and unlock the flashlight
- Switch blinks to indicate power level
- Switch blinks once every two seconds to help locate light in the dark
- Construction Details
-
- 1" diameter bezel
- Aluminum alloy housing
- Mil Spec Type III hard-anodized finish
- Textured body for anti-slip grip
- Ventilation slots
- IPX8 rated: waterproof to 6.5'
- Impact resistant to 4.9'
- Scratch and impact resistant tempered glass lens
- Reverse polarity protection
- Removable clip
- Tail stand
In the Box Nitecore MT20C Flashlight Holster Lanyard Clip Spare O-ring Switch Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MT20C Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MT20C Specs | | | Lumen Output | High: 210 Lumens
Medium: 100 Lumens
Low: 20 Lumens
Turbo: 460 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED
1 x Red LED | | | | Estimated Runtime | 18650
High: 4.75 Hours
Medium: 12 Hours
Low: 60 Hours
Minimum: 480 Hours
Turbo: 1.75 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions |
