User Manual for Nitecore MT25 Multi-Task LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore MT25 Multi-Task LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore MT25 Multi-Task LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

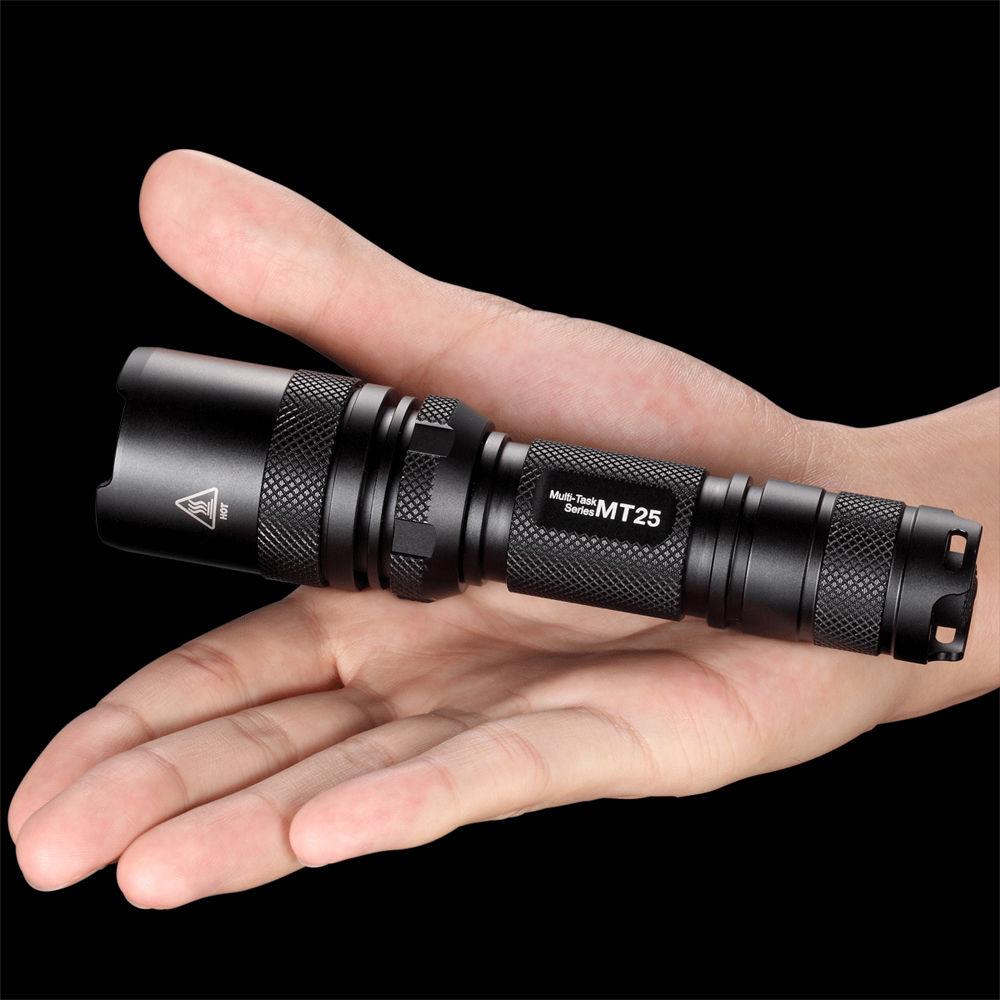

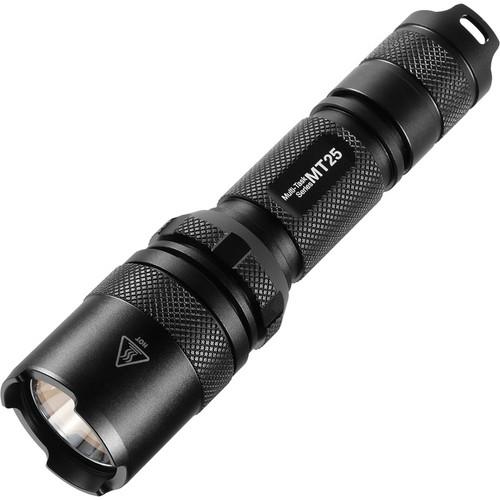

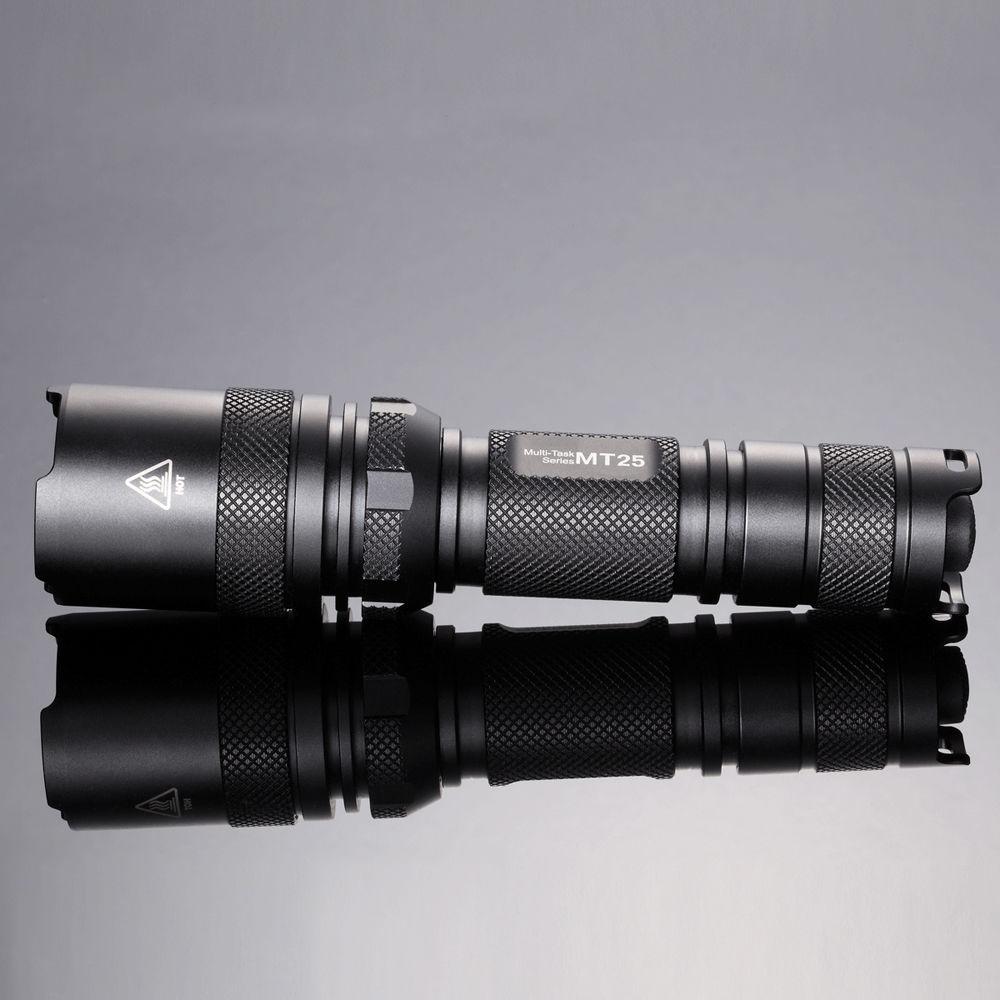

Product description The MT25 Multi-Task LED Flashlight from Nitecore is designed for comfortable and dependable use by law-enforcement and military personnel as a primary tactical light. It features three normal outputs from 20 to 180 lumens, with a 390-lumen turbo mode. An intelligent two-stage pushbutton switch allows you to program your desired output, including a disorientating strobe or SOS emergency signal. To activate the turbo mode, just tighten the head. This gives you access to your preferred operating output, while allowing you to quickly change to turbo mode. For example, if the strobe is programmed, a user can use the turbo to search an area, and if a threat arises, quickly activate the strobe to cause temporarily blindness.Built to stand up to daily use, the light is built with an aluminum housing that is submersible to 6.6', and impact-resistant to 5' with a scratch and corrosion-resistant hard-anodized finish. A diamond-textured handle helps provide a sure-grip in cold or wet conditions, while the faceted anti-roll collar offers a hand-hold for activating the turbo mode. An included removable tactical ring fits on the handle to use the light in a 'cigar-style' two-handed pistol grip. The anti-recoil design enables the light, with optional accessories, to be weapon-mounted. The light's circuitry allows it to run on disposable or rechargeable batteries, and reverse-polarity protection prevents damage to the light if the batteries are put in incorrectly. - Light Performance
-
- 390-lumen Turbo mode
- Three normal outputs from 20 to 180 lumens
- White Cree XP-G R5 LED emitter
- Tight center cone of light with large dimmer peripheral ring
- Deep, smooth aluminum reflector produces smooth beam without holes or hotspots
- SOS signal automatically cycles through Morse-code sequence
- Strobe-mode causes temporary blindness and disorientation
- Switching
-
- Two-stage tailcap switch
- Partially press to cycle through the outputs, release to set desired output
- Intelligent switch stores preferred brightness setting
- Click to turn on programmed output
- Tighten head to choose Turbo, then click to activate
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Corrosion and scratch resistant
- Anti-reflective coated, tempered lens
- Textured diamond grip for sure handling
- Submersible to 6.6', impact-resistant to 5'

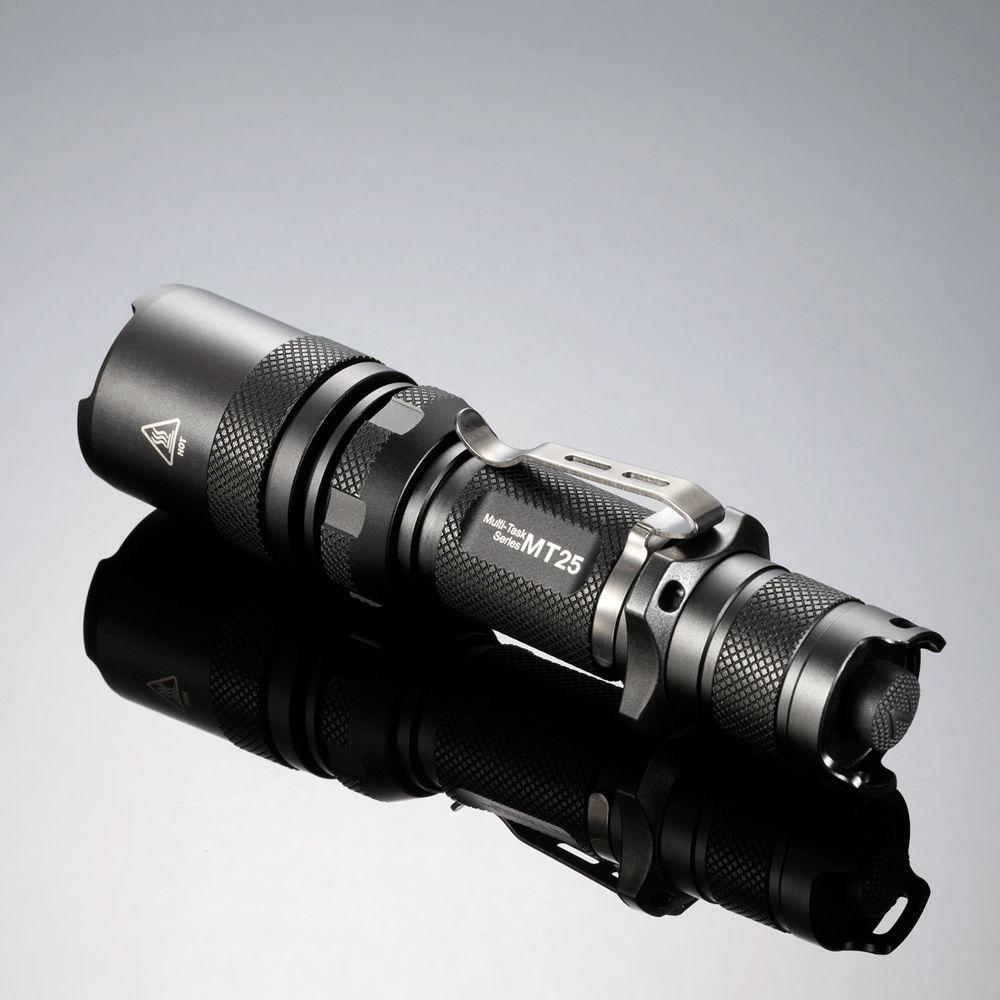

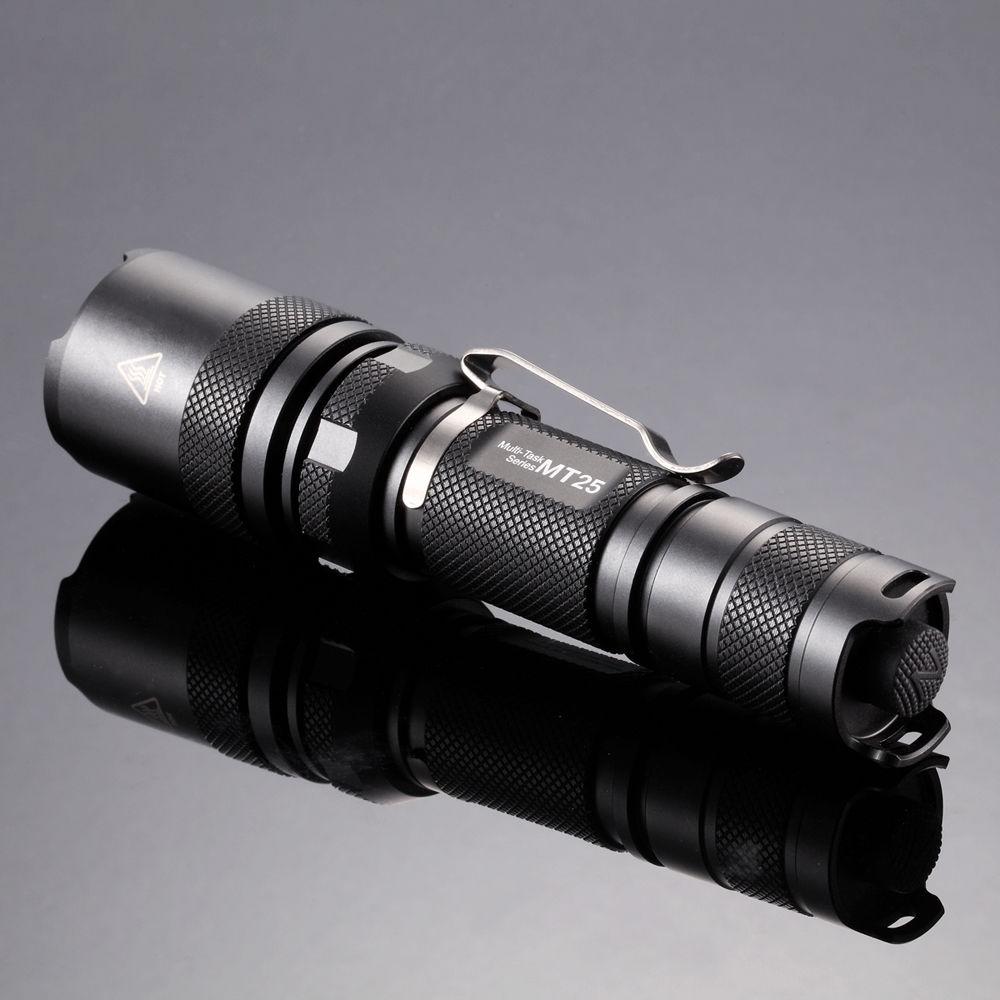

- Removable titanium-plated stainless steel clip
- Removable tactical ring for 'cigar-style' tactical grip
- Shock and recoil-resistant for use as a weapon-light
- U-shaped tailcap shroud helps prevent accidental activation
- Reverse polarity protection protects light if batteries are installed incorrectly
In the Box Nitecore MT25 Multi-Task LED Flashlight Lanyard 2-Way Clip Nylon Holster Tactical Ring Spare O-Ring Spare Tailcap Switch Boot Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore MT25 Multi-Task LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore MT25 Specs | | | Lumen Output | High: 180 Lumens
Medium: 70 Lumens
Low: 20 Lumens
Turbo: 390 Lumens | | Illumination Source | 1 x White LED | | | | Estimated Runtime | 18650
High: 5 Hours
Medium: 15 Hours
Low: 45 Hours
Turbo: 2 Hours | | Battery Type | 1 x 18650 or
2 x CR123A Lithium-Ion | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
