User Manual for Nitecore NU20 USB Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore NU20 USB Rechargeable LED Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
|
User manual for the Nitecore NU20 USB Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

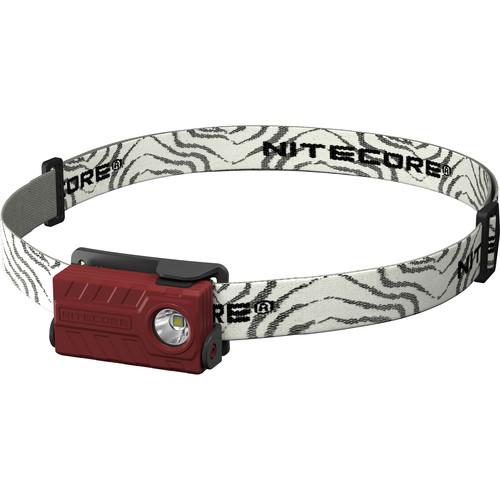

Product description Outfitted with a powerful Cree XP-G2 S3 LED, Nitecore's NU20 USB Rechargeable LED Headlamp is a versatile and easy-to-use headlamp that provides hands-free illumination anywhere: in your backyard, garage, campsite, or out on a trail. Powered by a white LED, paired with a micro-texture diffusing reflector, this headlamp delivers a maximum of 360 lumens in a wide (100°) cone of light. To provide an ideal angle of illumination for any task, the lamp can be tilted up or down 52° or detached from the bracket. The lighting program features four preset constant-on output modes: Ultralow, Mid, High, and Turbo. Two additional flashing modes, SOS and Location Beacon, can be used to send out a distress signal or to mark your whereabouts. To power the lamp On and Off, and to switch between the modes, you can use one universal pushbutton located on the top.
To illuminate your path or workplace anywhere, the waterproof and impact-resistant polycarbonate housing is made to withstand the harshest of the outdoor or work conditions. It also incorporates a covered Micro-USB port for charging a built-in 600 mAh Li-ion battery. The included elastic headband is fully adjustable and will readily stretch over your head, cap, or helmet. - Light Performance
-
- One Cree XP-G2 S3 LED
- 1/40/220/360 lumens
- Micro-textured reflector diffuses light
- Wide 100° flood cone of light
- Constant-on, SOS, Location Beacon
- Status indicator
- Charge time: 2 hours
- Construction
-
- Polycarbonate housing
- Skeletal bracket reduces weight
- Lamp is detachable from the bracket
- 52° adjustable lamp tilt
- Built-in Micro-USB charging port
- Two multi-functional pushbuttons
- Waterproof, rated IP67
- Adjustable headband included
- Impact-resistant to 4.9' drops
In the Box Nitecore NU20 USB Rechargeable LED Headlamp (Red) Adjustable Headband Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore NU20 USB Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore NU20 Specs | | | Lumen Output | High: 220 Lumens
Medium: 40 Lumens
Turbo: 360 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | Beam Angle | 100° | | Estimated Runtime | High: 6 Hours
Medium: 7.75 Hours
Low: 100 Hours
Turbo: 0.5 Hour | | Battery Type | 1 x Built-In Lithium-Ion | | Internal Battery Capacity | 600 mAh | | Charging Time | 2 Hours | | | | Water Resistance | Waterproof to 3.3' / 1 m, IP67 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions | W: 2.2 x H: 1.3 x D: 0.8" / W: 56.0 x H: 33.0 x D: 21.0 mm | | Weight | 1.66 oz / 47.1 g (Without Batteries) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 3.6 x 2.8 x 2.2" |
