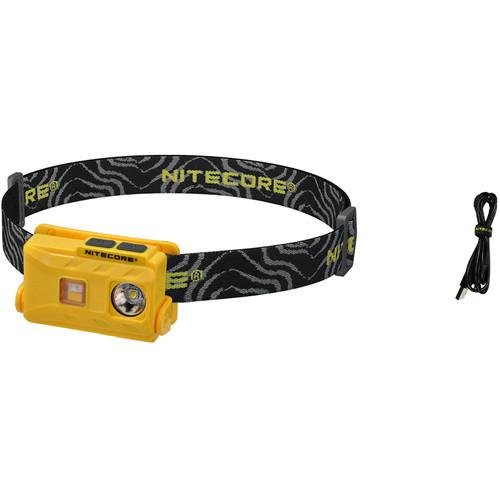

User Manual for Nitecore NU25 USB Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore NU25 USB Rechargeable LED Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
|
User manual for the Nitecore NU25 USB Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Offering three different light outputs, Nitecore's NU25 USB Rechargeable LED Headlamp is useful for a wide range of purposes. Its main emitter is a Cree XP-G2 S3 LED with four output levels from 1 to 360 lumens. It also has a second, 20-lumen white light with a high Color Rendition Index for tasks like reading that don't need as much candlepower, and a red light that preserves night-acclimated vision for night photography, astronomy or wildlife observation. The main light shines in a wide 100° cone, and the lamp can be tilted 60° to put the beam right where you need it. The lighting program features a total of seven preset constant-on output modes: low, medium, high, and turbo white; auxiliary white, and high and low red. There are also white SOS and location beacon and flashing red modes. Two push-button switches atop the unit also serve as battery power level indicators.The waterproof polycarbonate housing is impact-resistant to five feet and is rated IP66 water-resistant. A rubber cover protects the micro-USB charging port. The lamp's battery charges in two hours, and runtimes range from 30 minutes on turbo to 160 hours on low. If the battery becomes fully drained, the light will still operate if plugged into any USB power supply (more likely as a lantern than a headlamp.) The elastic headband is designed to wick perspiration away from your face. - Light Performance
-
- One Cree XP-G2 S3 LED
- 1 / 38 / 190 / 360 lumens
- 1- / 13-lumen red light
- 20-lumen high-CRI light mimics morning sunlight for accurate colors and low eye-strain
- Micro-textured reflector diffuses main light
- Use and Handling
-
- Wide 100° flood cone of light
- Constant-on, SOS, Location Beacon, flashing red
- Status indicator
- Charge time: 2 hours
- Runtime: 30 minutes to 160 hours
- 60° adjustable lamp tilt
- Construction
-
- Polycarbonate housing
- Non-Pulse Width Modulation constant circuit for flicker-free performance
- Heat dissipation system
- Built-in Micro-USB charging port
- Two multi-functional push buttons
- Waterproof, rated IP66
- Adjustable headband included
- Impact resistant to 5' drops
In the Box Nitecore NU25 USB Rechargeable LED Headlamp (Yellow) Adjustable Headband USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore NU25 USB Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore NU25-YELLOW Specs | | | Lumen Output | High: 190 Lumens
Medium: 38 Lumens
Minimum: 1 Lumen
Turbo: 360 Lumens
High (Red): 13 Lumens
Minimum (Red): 1 Lumen
White: 20 Lumens | | Illumination Source | 1 x LED | | Beam Angle | 100° | | Estimated Runtime | High: 5 Hours
Medium: 8 Hours
Low: 160 Hours
Turbo: 0.5 Hour
High (Red): 7.8 Hours
Low (Red): 68 Hours
Strobe (Red): 13 Hours
White: 6.3 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | Charging Time | 2 Hours | | | | Water Resistance | Water Resistant, IP66 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions | W: 2.2 x H: 1.4 x D: 0.9" / W: 5.6 x H: 3.6 x D: 2.3 cm | | Weight | 1 oz / 28 g | | | | Package Weight | 0.21 lb | | Box Dimensions (LxWxH) | 5.15 x 4.6 x 2.1" |
