User Manual for Nitecore NU32 USB Rechargeable LED Headlamp Click to enlarge the picture
Contents of the user manual for the Nitecore NU32 USB Rechargeable LED Headlamp
- Product category: Headlamps Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Headlamps
 |
User manual for the Nitecore NU32 USB Rechargeable LED Headlamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

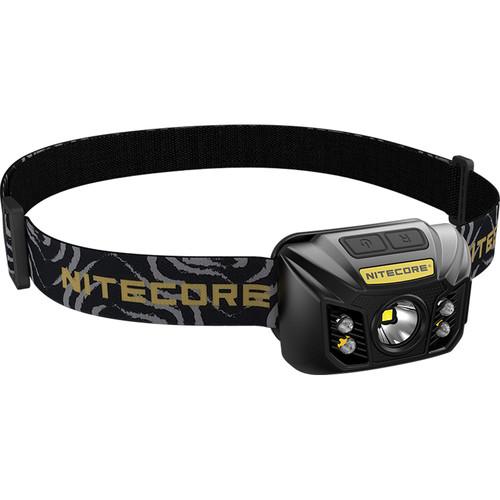

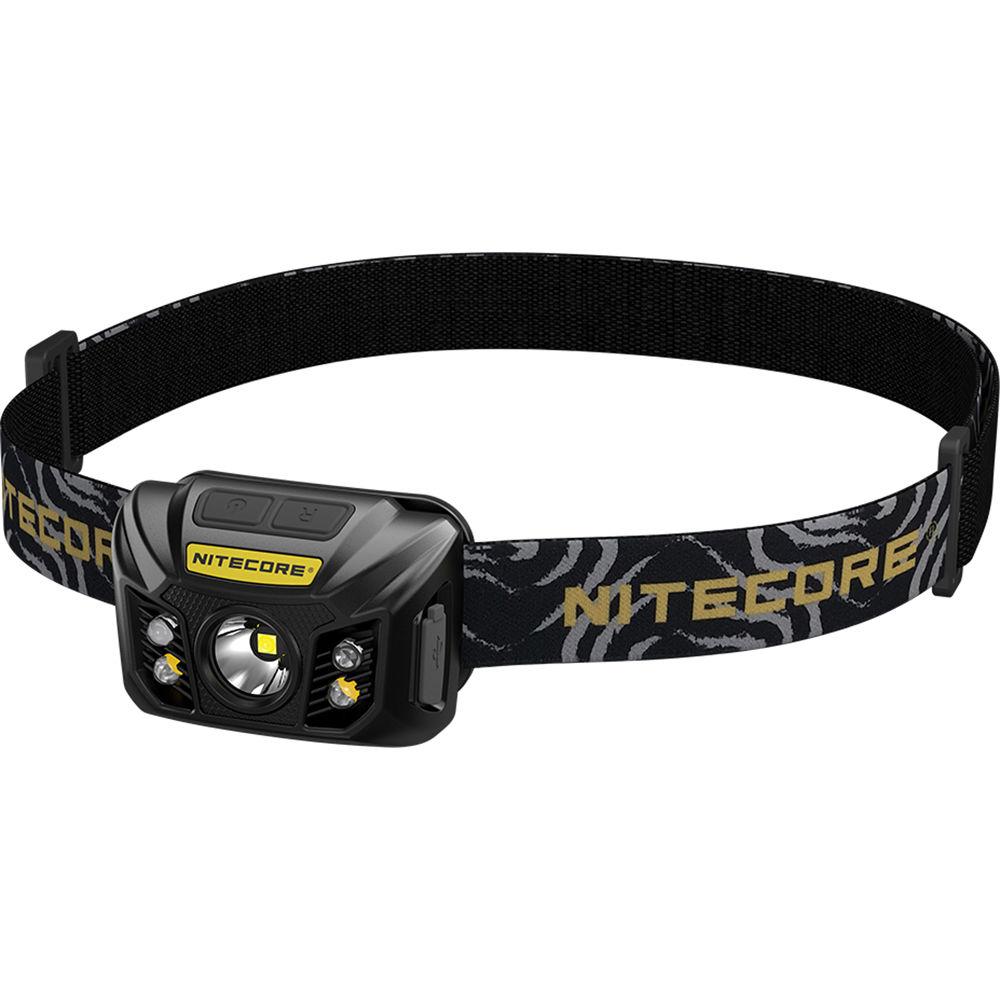

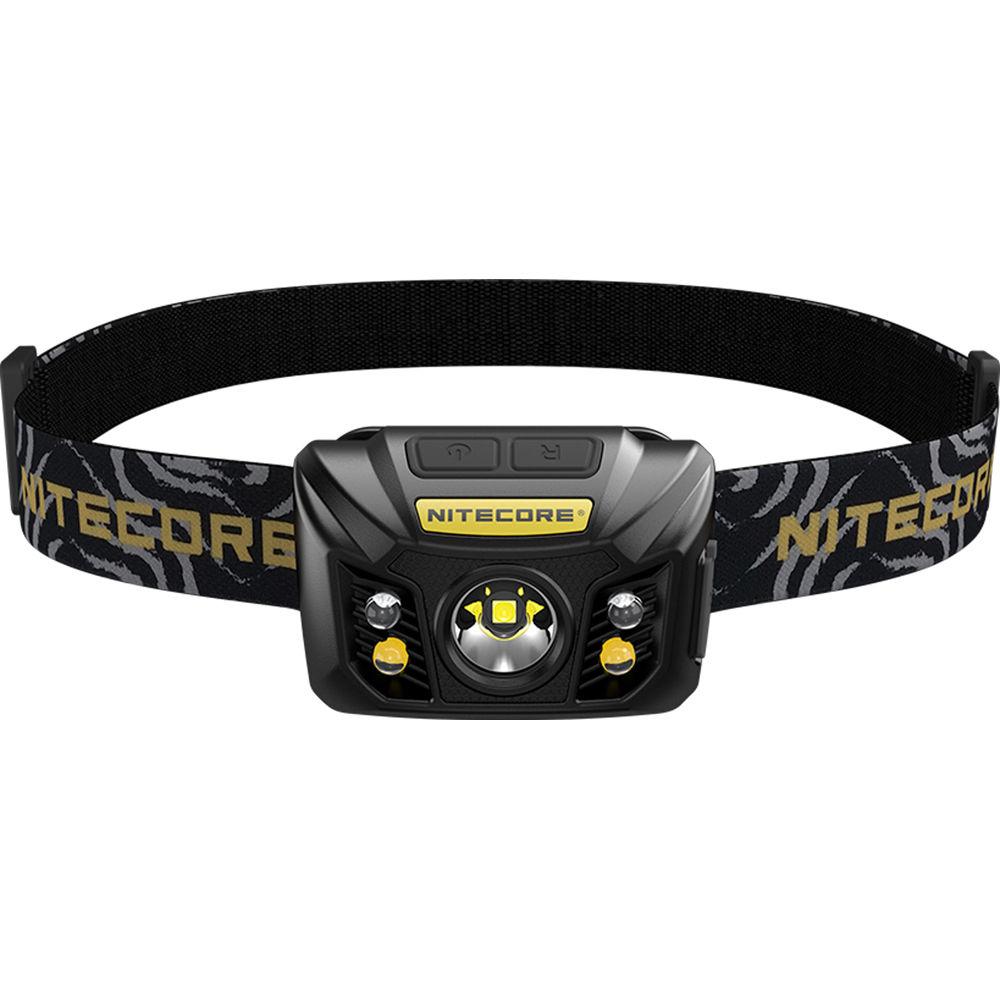

Product description Outfitted with a powerful Cree XP-G3 S3 LED, Nitecore's 550-lumen NU32 USB Rechargeable LED Headlamp is a versatile and easy-to-use headlamp that provides hands-free illumination anywhere—in your backyard, garage, campsite, or out on a trail. It offers four white-light brightness levels, plus a high 19-lumen color-rendering capability (CRI) setting, a red light to preserve night-acclimated vision, an SOS signal, and a location beacon.

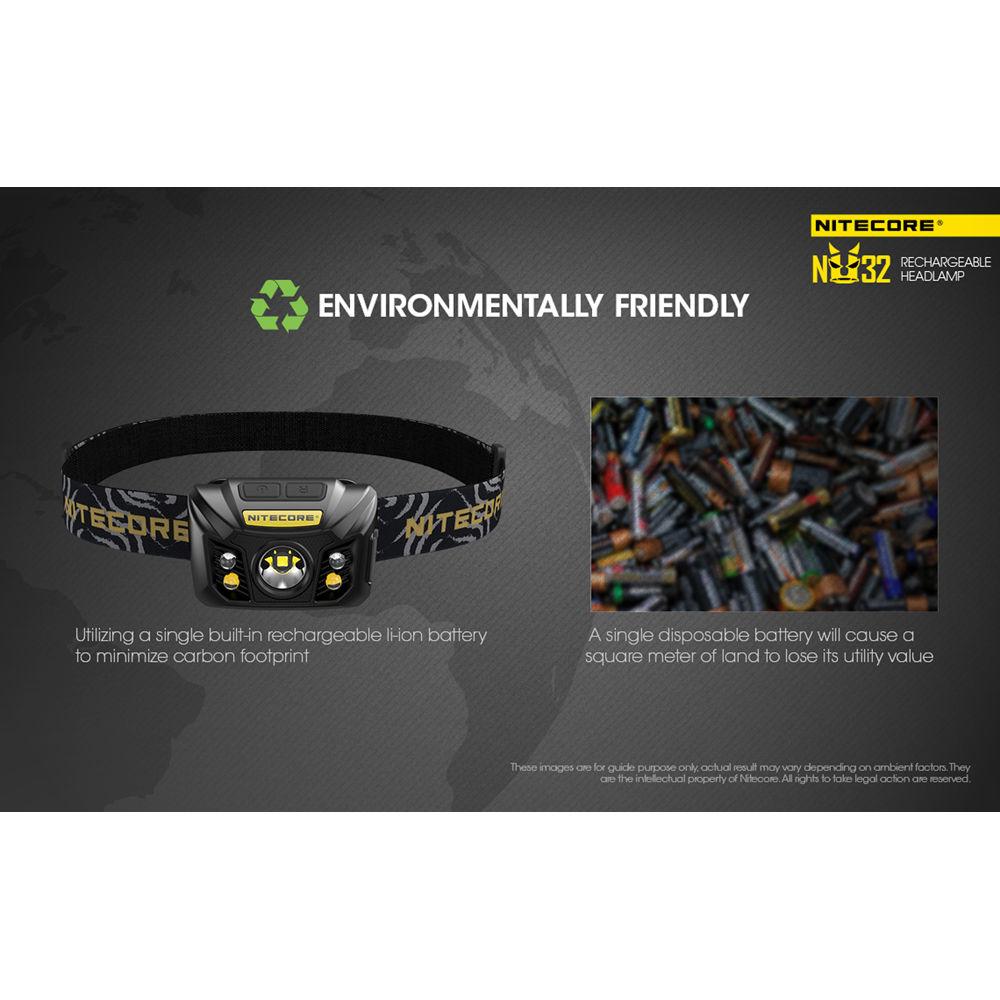

The NU32 is controlled by two push-button switches on the top of the lamp, one for white-light settings and one for red. Charging the headlamp is as simple as plugging in the micro-USB cable; a full charge takes about 3.5 hours and provides runtimes ranging from 1 hour on turbo to 330 hours on ultra-low. A power indicator in the switches keeps you apprised of the battery's status. Designed to withstand the elements, the NU32's housing is made of lightweight but durable polycarbonate, carries an IP67 water-resistance rating, and is rated impact resistant to 3.3'. - Light Performance
-
- One Cree XP-G3 S3 LED
- 1/33/190/550 lumens white light
- Steady and flashing red settings
- Daylight-mimicking 19-lumen High CRI setting
- SOS, location beacon
- Wide 100° flood cone of light
- Status indicator
- Charge time: 3.5 hours
- Runtime: 1-330 hours
- Lockout function prevents accidental activation in transit
- Construction
-
- Polycarbonate housing
- 60° adjustable lamp tilt

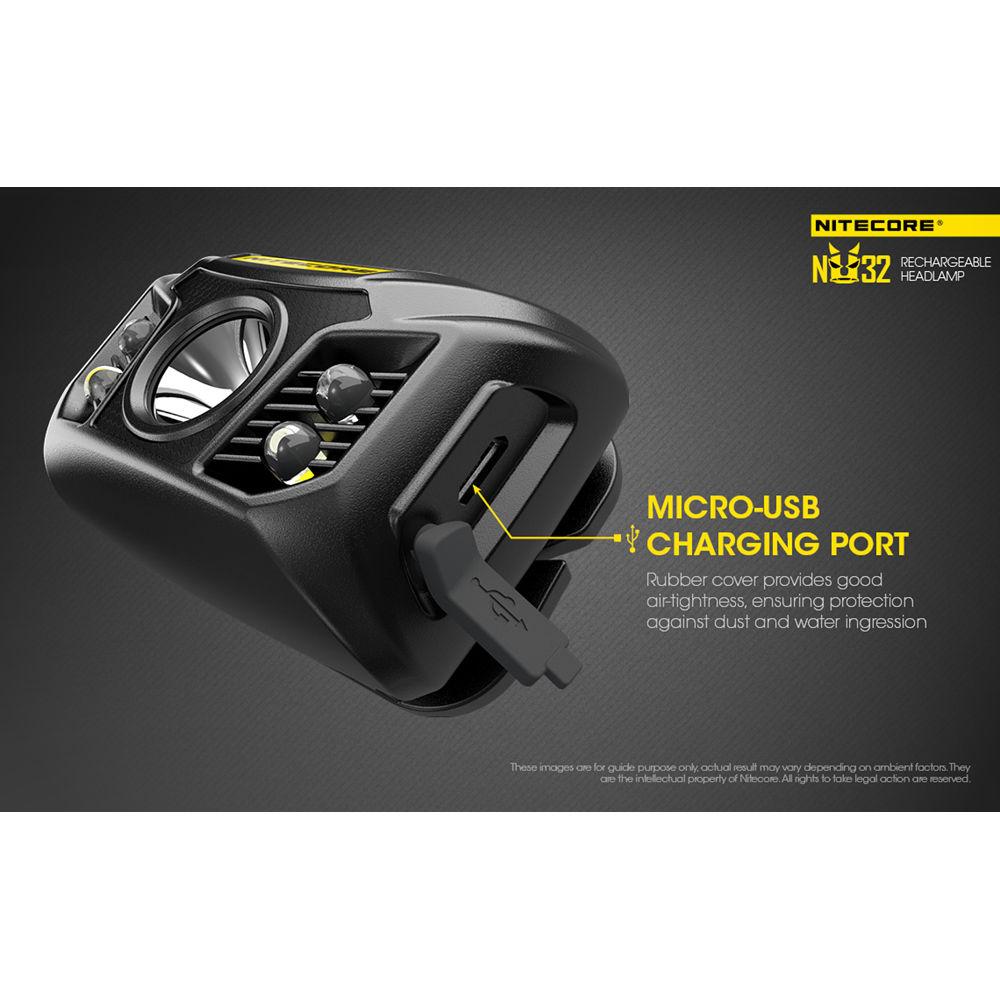

- Built-in micro-USB charging port
- Two multi-functional push-button controls
- Waterproof, rated IP67
- Impact resistant to 3.3' drops
In the Box Nitecore NU32 USB Rechargeable LED Headlamp Adjustable Headband Charging Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore NU32 USB Rechargeable LED Headlamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore NU32 Specs | | | Lumen Output | Turbo (White): 550 Lumens
High (White): 190 Lumens
Medium (White): 33 Lumens
Low (White): 1 Lumen
High CRI: 19 Lumens
Red: 9 Lumens
SOS (White): 550 Lumens
Strobe (White): 550 Lumens | | Illumination Source | 1 x White LED
1 x Red LED | | Beam Angle | 100° | | Estimated Runtime | Low (White): 330 Hours
Medium (White): 50 Hours
High (White): 17 Hours
Turbo (White): 1 Hours
High CRI: 25 Hours
Red: 38 Hours | | Battery Type | 1 x Built-In Lithium-Ion | | Internal Battery Capacity | 1800 mAh | | Charging Time | 3.5 Hours | | | | Material of Construction | Polycarbonate | | Water Resistance | IP67 | | Impact Resistance | Yes, 3.3' / 1.0 m | | Dimensions | W: 2.5 x H: 1.7" / W: 63.5 x H: 43.2 mm | | Weight | 2.7 oz / 77 g (Without Batteries) | | | | Package Weight | 0.255 lb | | Box Dimensions (LxWxH) | 4.1 x 4.0 x 1.7" |
