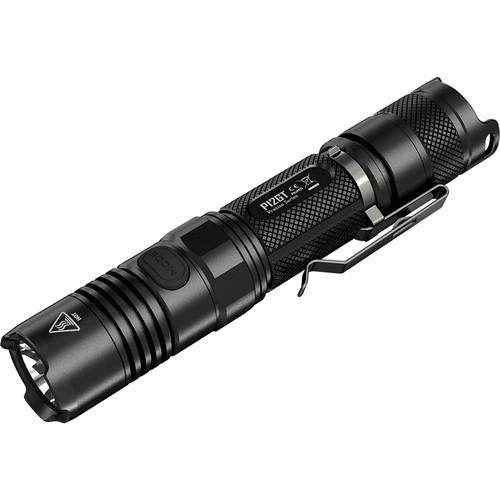

User Manual for Nitecore P12GT LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P12GT LED Flashlight
- Product category: Weapon & Tactical Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Weapon & Tactical Lights
 |
User manual for the Nitecore P12GT LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Nitecore's P12GT LED Flashlight offers users a wide range of outputs and modes that make this light ideal as an EDC duty light, camp light, or general-purpose tool for around the house. The light's performance starts with the powerful and energy efficient CREE XP-L HI V3 LED that produces four primary outputs from an ultra-low of just 1 lumen to a darkness-piercing 1000 lumens for searching large areas. In addition to the five main outputs, there is also a disorientating strobe, an SOS distress signal, and location beacon modes to increase the light's versatility. A dual pushbutton interface is configured with one switch on the tailcap that controls the on/off with momentary and constant-on options, and another on the body for brightness and mode selection. With last-mode-memory on the switch for the primary outputs and strobe, users can set their preference then instantly go to that output by turning the light on.The P12GT housing is made from a lightweight and durable aluminum alloy with a corrosion and scratch-resistant Type III hard anodized finish. O-rings seal the housing to give it an IPX8 rating, making it waterproof and submersible to 6.6' for up to 30 minutes. It comes with a removable tactical ring that installs in one of two locations to help users securely hold their light and pistol in various tactical hold techniques. This light can run on one user-supplied 18650 rechargeable battery, or two CR123 disposable or rechargeable batteries - but while using CR123 batteries maintains outputs, runtimes will be reduced. Nitecore's "Advanced Temperature Regulation" (ATR) circuitry monitors internal temperature and adjusts output to prevent damage, while circuitry digitally regulates the output to ensure consistent beam intensity throughout the life of the battery. - Performance
-
- Min: 1 lumen
- Low: 55 lumen
- Med: 280 lumen
- High: 1000 lumen
- One CREE XP-L HI V3 LED
- SOS distress signal automatically cycles through the Morse code sequence
- Location beacon: Pulse output to mark the light's location
- Strobe mode to disorientate or signal

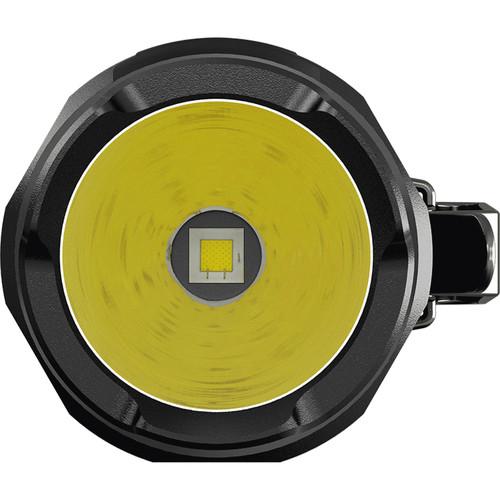

- Reflector produces a smooth beam without holes or hotspots
- Switching
-
- Location: Tailcap and body
- Type: Dual pushbutton
- Tailcap: Controls on/off
- Body: Output and mode selection
- Momentary and constant-on activation
- Power indicator integrated into switch
- Last mode memory automatically goes to last selected output when turned on
- If the light is turned off in strobe mode, strobe will resume when the light is turned on
- Construction
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant Type III hard anodized finish
- Tempered and anti-reflection coated shatter-resistant emitter window
- Heat dissipating fins on head help to prevent overheating
- IPX8-rated, waterproof and submersible to 6.6'
- Impact-resistant to 5'
- Removable tactical ring facilitates multiple light/pistol grip techniques
- Removable stainless steel pocket clip
- Electrionics
-
- Advanced Temperature Regulation (ATR) circuitry monitors internal temperature and adjusts output to prevent damage
- Runs on one user-supplied 18650 rechargeable battery, or two CR123 disposable or rechargeable batteries
- Using CR123 batteries maintains outputs but with reduced runtimes
- Digitally regulated output provides consistent beam intensity throughout battery charge
- Power indicator integrated into body switch
In the Box Nitecore P12GT LED Flashlight Nylon Holster Pocket Clip Tactical Ring Lanyard Spare Tailcap Boot Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P12GT LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P12GT Specs | Illumination Source | CREE XP-L HI V3 LED | | Output Range | Min: 1 lumen
Low: 55 lumen
Med: 280 lumen
High: 1000 lumen | | Battery | 1 x 18650 rechargeable Li-ion
2 x CR123, lithium or Li-ion | | Runtime | 18650 battery:
Min: 520.0 h
Low: 28.0 h
Med: 5.25 h
High: 1.0 hCR123 batteries:
Min: 300.0 h
Low: 20.0 h
Med: 3.5 h
High: 0.75 h | | Construction | Aluminum alloy | | Waterproofing | IPX8-rated, submersible to 6.6' / 2.0 m | | Impact Resistance | 4.9' / 1.5 m | | Dimensions | Head: 1.0" / 2.5 cm
Handle: 1.0" / 2.5 cm
Length: 5.5" / 14.0 cm | | Weight | 3.2 oz / 91.0 g, without battery | | | | Package Weight | 0.395 lb | | Box Dimensions (LxWxH) | 8.4 x 4.05 x 1.25" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
