User Manual for Nitecore P15 Tactical LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P15 Tactical LED Flashlight
- Product category: Weapon & Tactical Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Weapon & Tactical Lights
|
User manual for the Nitecore P15 Tactical LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

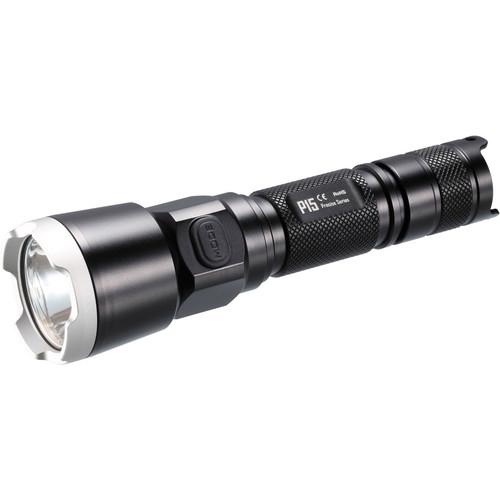

Product description Designed for the military and law enforcement, but equally suited to home and recreational use, the P15 Tactical LED Flashlight from Nitecore is a powerful light with a compact form factor. Its output comes from a white Cree XP-G2 R4 LED with four outputs from 1 to 430 lumens. Momentary and constant-on modes are activated using the two-stage tailcap push-button switch, while the output intensity, strobe, location beacon, and SOS signal are controlled using an intelligent selector switch on the body. The switch remembers the last output intensity used and automatically goes to that output the next time it is turned on. An illuminated battery-status indicator is integrated into the selector switch.Built for durability, the light features an aluminum housing with a Type III hard-anodized black finish that resists scratching and corrosion. IPX8-rated, it is O-ring sealed and submersible to 6.6', and impact resistant to 5'. The light can run on li-ion rechargeable or disposable batteries. There is reverse-polarity protection that prevents damage to the light's circuitry if the batteries are put in incorrectly. - Light Performance
-
- Output Range: 1 lumen, 35 lumens, 150 lumens, 430 lumens
- Deep smooth aluminum reflector produces smooth beam without holes or hotspots
- Tight center cone of light with large dimmer peripheral ring
- Strobe mode causes temporary blindness and disorientation
- SOS signal automatically cycles through Morse-code sequence
- Flashing location beacon
- Switching
-
- Tailcap and body push-button switches
- Press tailcap for momentary activation, click for constant-on
- U-shaped tailcap shroud helps prevent accidental activation
- Intelligent output selector switch remembers last output used
- Construction Details
-
- Aluminum alloy housing
- Type III hard anodized finish
- Corrosion and scratch resistant
- Anti-reflective coated and tempered lens
- Textured diamond grip for sure handling
- Crenellated stainless steel bezel
- Titanium-plated stainless steel clip
- Removable tactical ring for 'cigar-style' tactical grip
- Multi-function battery indicator
- Reverse-polarity protection
In the Box Nitecore P15 Tactical LED Flashlight Clip Holster Lanyard 2 x Spare O-Rings Tactical Handle Ring Spare Tailcap Push-Button Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P15 Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P15 Specs | Illumination Source | 1 x White XP-G2 R4 Cree LED | | Output Range | Min: 1 lumenLow: 35 lumensMed: 150 lumensHigh: 430 lumens | | Battery / Runtime | 1 x 18650 Li-Ion, Rechargeable:
Min: 520.0 hrLow: 37.0 hrMed: 8.25 hrHigh: 2.25 hr
2 x CR123 Lithium, Disposable:
Min: 310.0 hrLow: 31.0 hrMed: 6.5 hrHigh: 1.75 hr | | Construction | Aluminum alloy | | Waterproofing | IPX8, submersible to 6.6' (2 m) | | Dimensions | Head: 1.6" (4.0 cm)
Body: 5.9 x 1.0" (15.1 x 2.5 cm) | | Weight | 3.1 oz (88 g), without batteries | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 7.3 x 3.9 x 1.4" |
