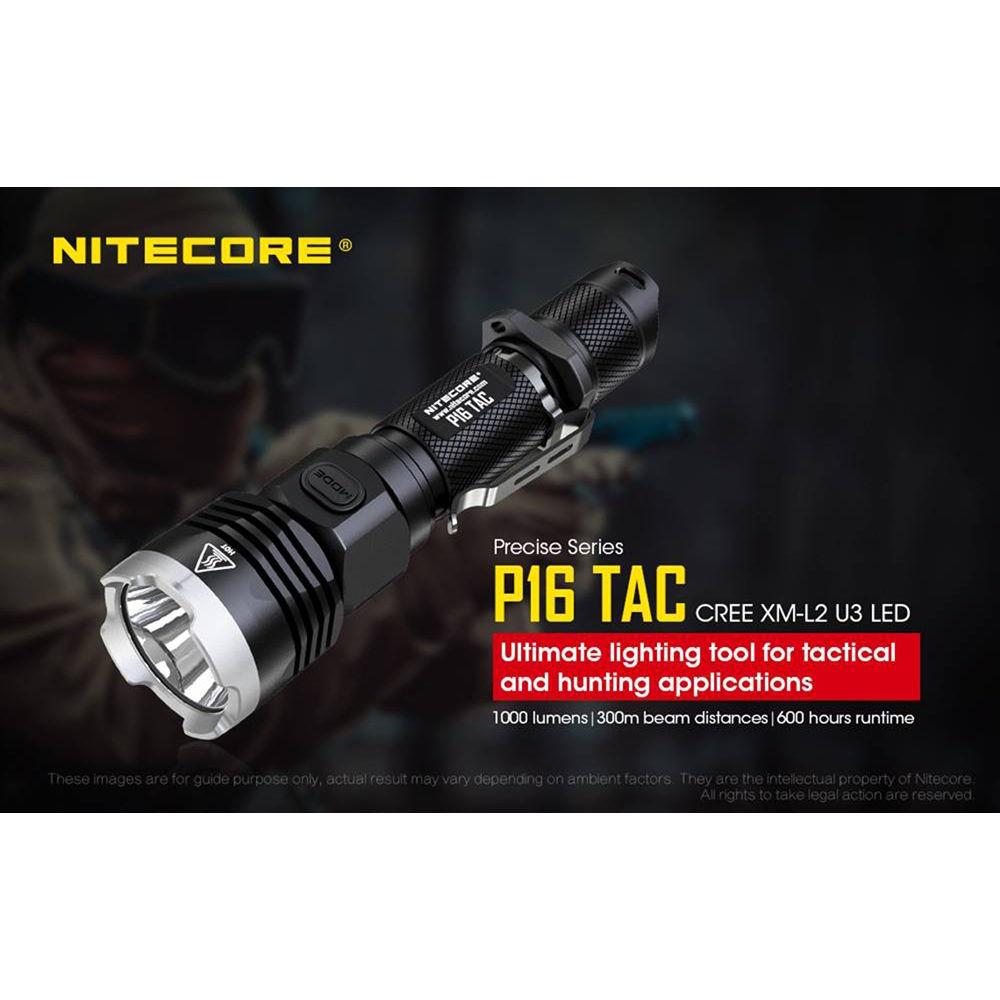

User Manual for Nitecore P16 TAC Compact Tactical LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P16 TAC Compact Tactical LED
- Product category: Weapon & Tactical Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Weapon & Tactical Lights
 |
User manual for the Nitecore P16 TAC Compact Tactical LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

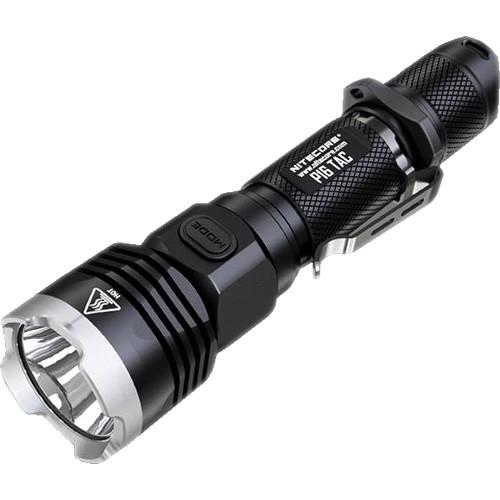

Product description The P16 TAC Tactical LED Flashlight from Nitecore is a powerful and compact light that is built with military, law-enforcement, and hunting uses in mind. It offers four brightness levels and strobe, SOS, and location beacon settings, and is designed to prevent its battery from shaking or displacement due to repeated recoil when used with a firearm. The light source for the torch is a white Cree XM-L2 (U3) LED with outputs from 1 to 1000 lumens. Press the 2-stage push-button tailcap switch for momentary activation, press and click for constant-on. The output intensity, strobe, location beacon, and SOS signals are controlled using an intelligent selector switch on the body. The switch remembers the last output intensity used and automatically goes to that output the next time it is turned on. Built for every-day use, the light features an aluminum housing with a Type III hard-anodized black finish that resists scratching and corrosion. It is o-ring sealed to be IPX8 rated and submersible to 6.6', and impact resistant to 5 feet. Its crenellated stainless steel bezel is designed to be used for self-defense, or as a window-breaker. A textured diamond pattern is machined into the handle to provide a sure grip, and there is a removable tactical ring that fits on the handle for use with a "cigar-style" two-handed pistol grip. Heat-dissipating fins on the head help keep the light from over-heating. The light can run on 1 x 18,650 or 2 x CR123 li-ion rechargeable, or 2 x CR123 disposable batteries. There is reverse-polarity protection that prevents damage to the light's circuitry if the batteries are put in incorrectly. - Light Performance
-

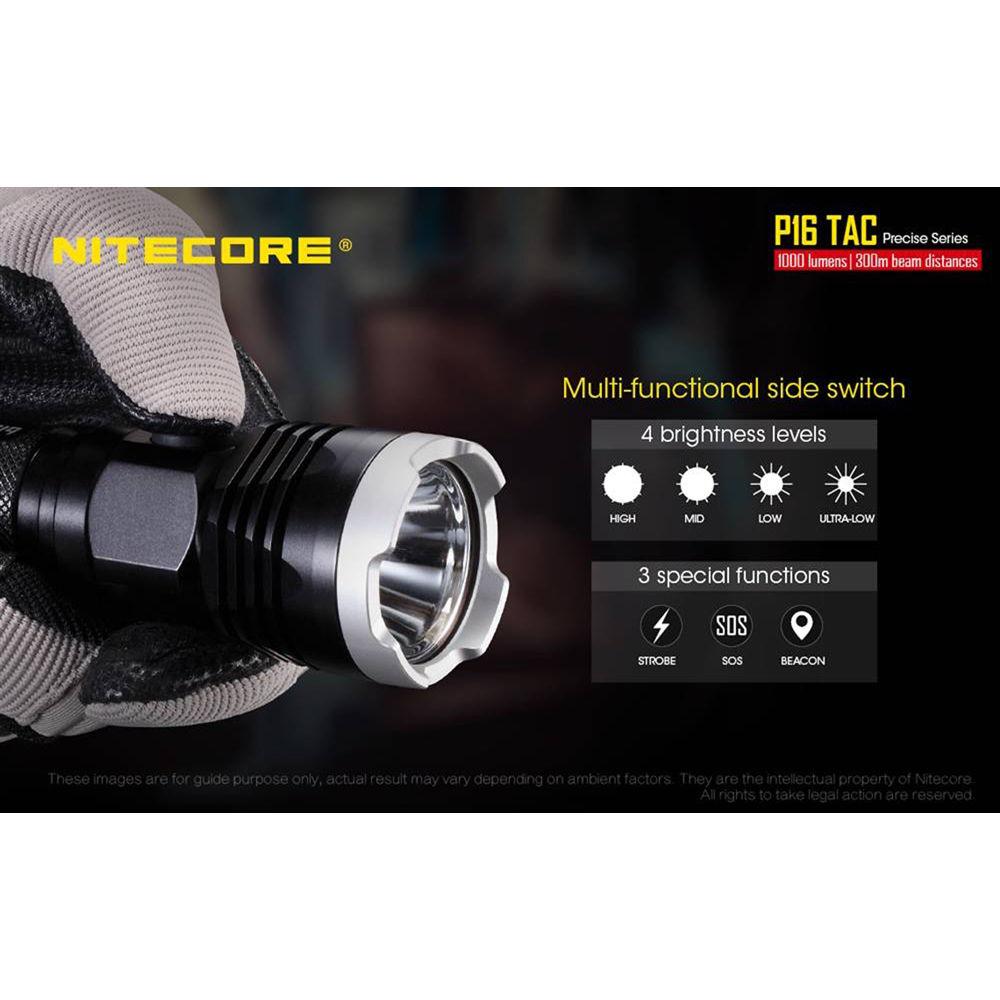

- 1-, 60-, 240-, 1000-lumen output settings
- Disorientating strobe, SOS & location beacon modes
- Cree XM-L2 (U3) LED
- Runtimes: 1 hour (2x CR123 batteries, high setting) to 600 hours (18,650 battery, ultra-low setting)
- Switching
-

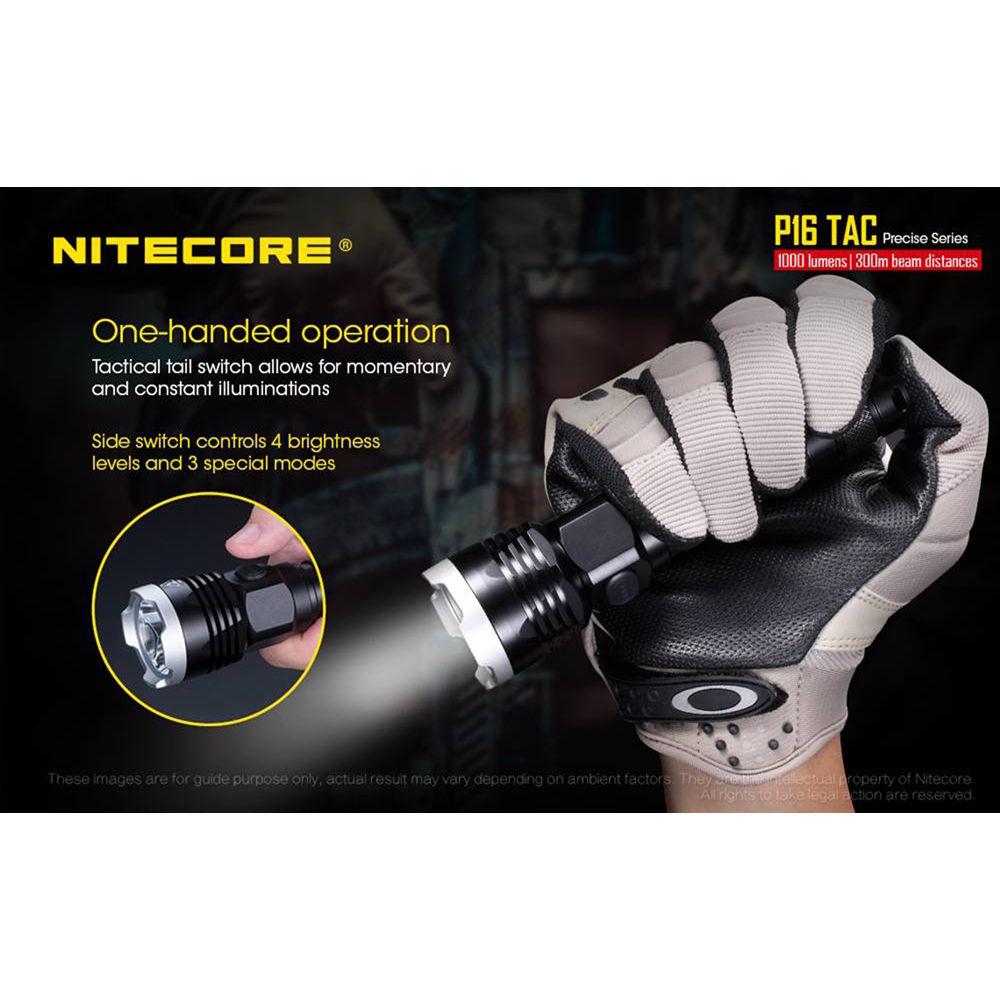

- Dual push-button on tailcap, setting selector on side
- Momentary and constant-on tailcap switching
- Intelligent output selector switch remembers last output used
- Quick access to strobe modes
- Construction Details
-
- Aluminum alloy housing
- Type III hard anodized finish
- IPX8-rated, submersible to 6.6'
- Corrosion and scratch resistant
- Anti-reflective coated and tempered lens
- Textured diamond grip for sure handling

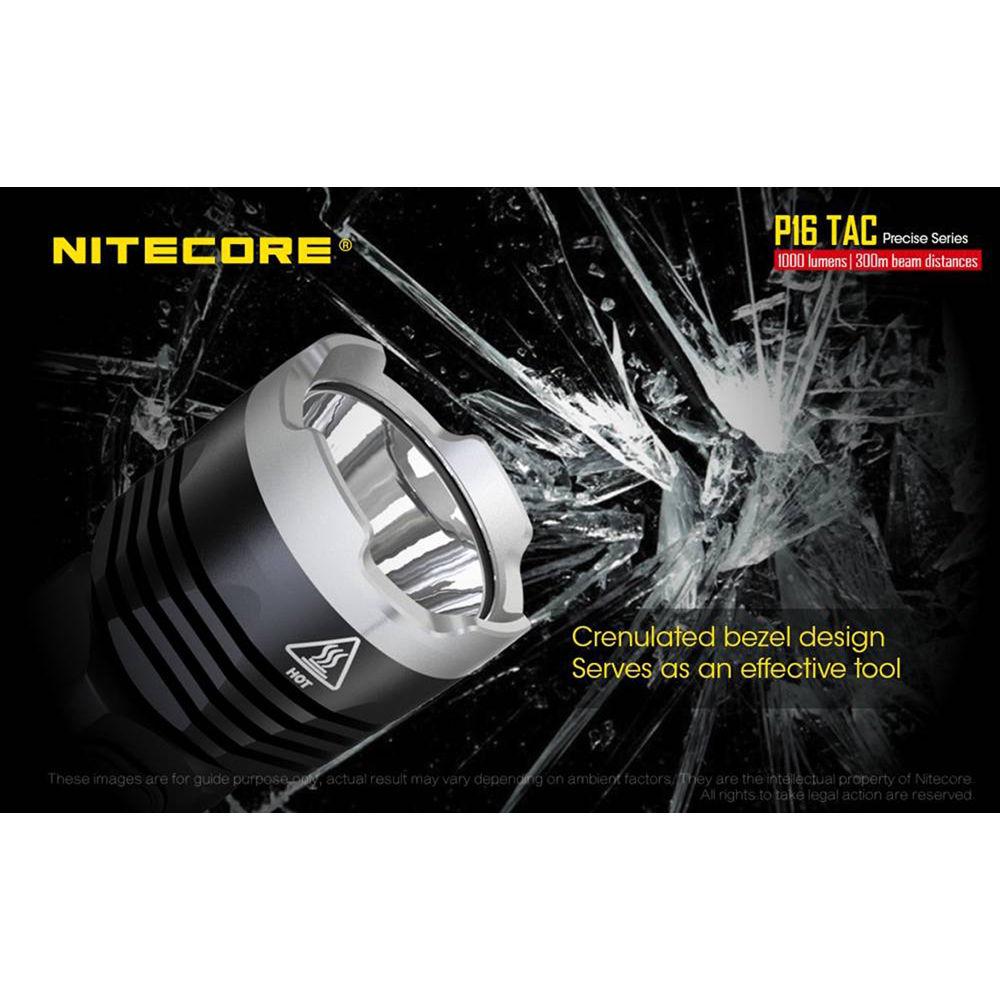

- Crenellated stainless steel bezel can be used for self-defense or as a window-breaker
- Titanium-plated stainless steel clip
- Removable tactical ring for "cigar-style" tactical grip

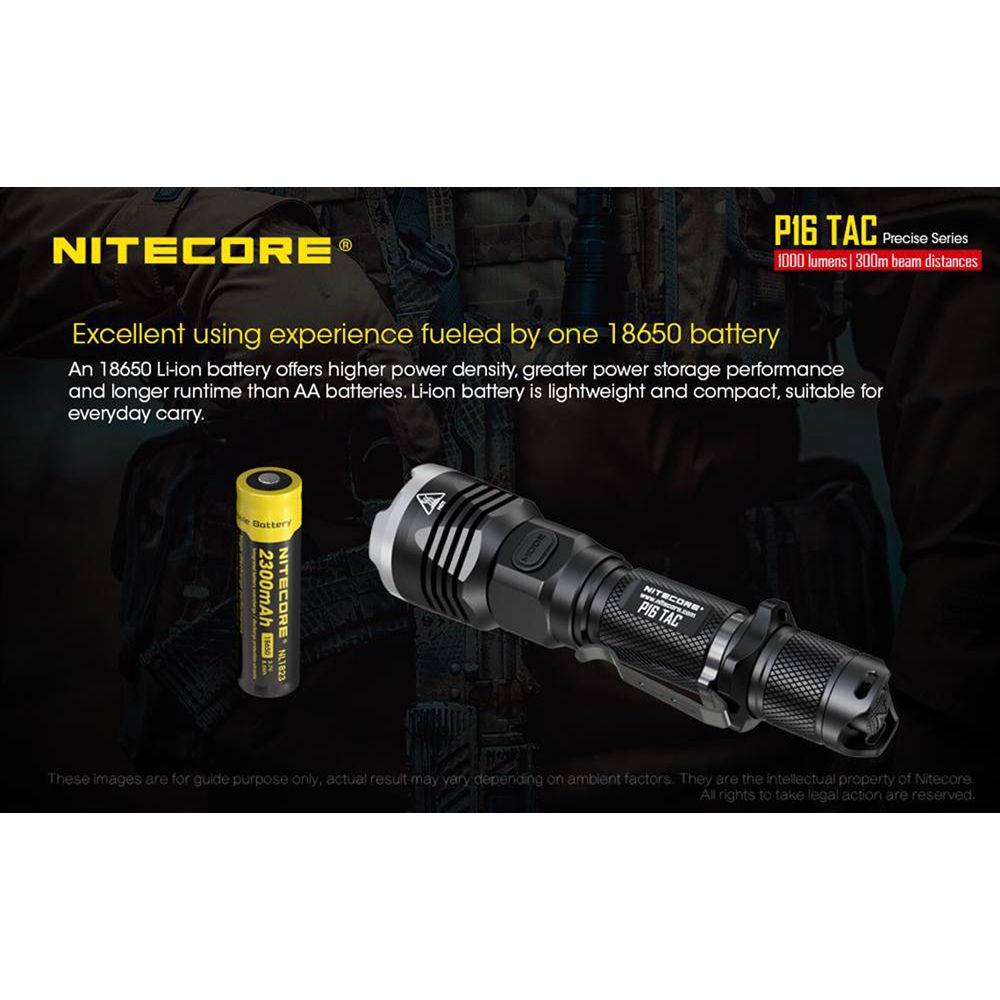

- Can run on 1 x 18,650 or 2 x CR123 li-ion rechargeable, or 2 x CR123 disposable batteries
- Reverse-polarity protection
In the Box Nitecore P16 TAC Compact Tactical LED Flashlight Clip Holster Lanyard 2 x Spare O-Rings Tactical Handle Ring Spare Tailcap Pushbutton Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P16 TAC Compact Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

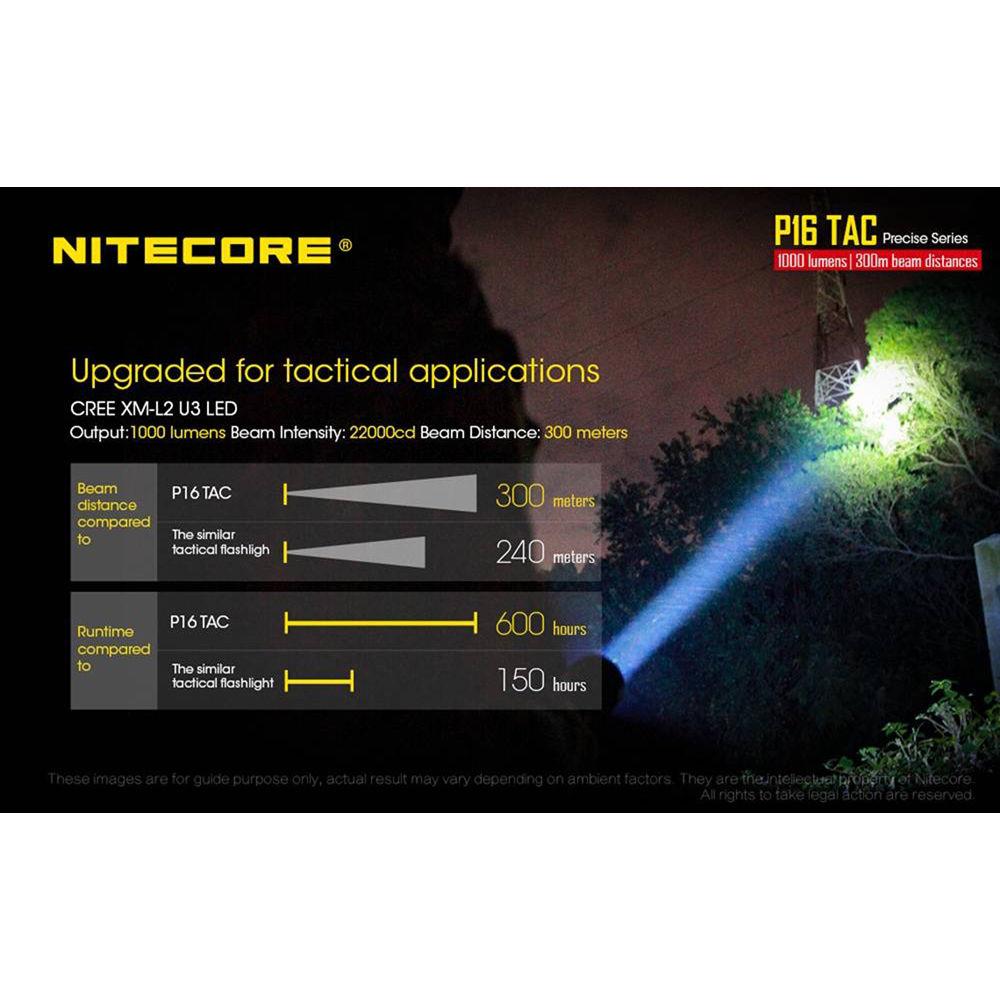

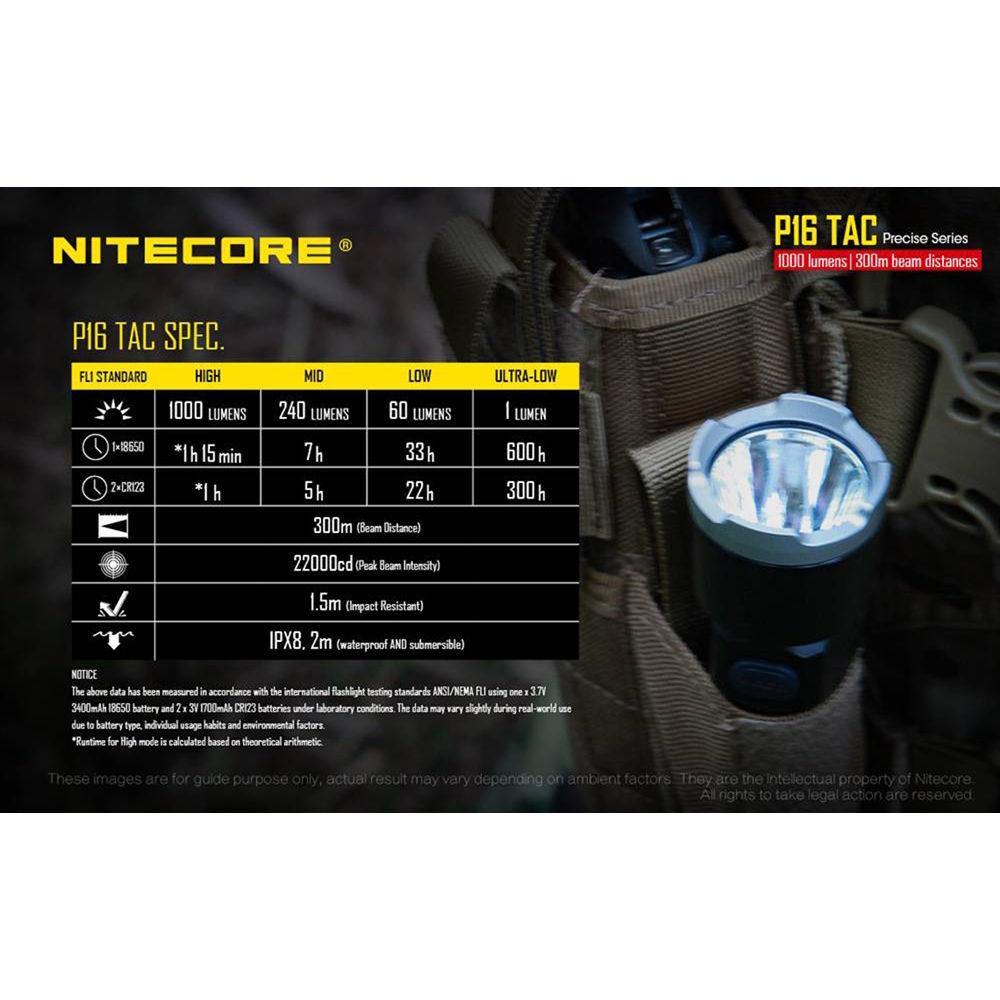

Technical parametersNitecore P16 TAC Specs | Illumination Source | 1 x White Cree XM-L2 (U3) LED | | Output Range | Min: 1 lumenLow: 60 lumenMed: 240 lumenHigh: 1000 lumen | | Battery / Runtime | 1 x 18,650 Li-Ion rechargeable:
Ultra-Low: 600.0 hrLow: 33.0 hrMed: 7.0 hrHigh: 1.25 hr
2 x CR123 Lithium Disposable:

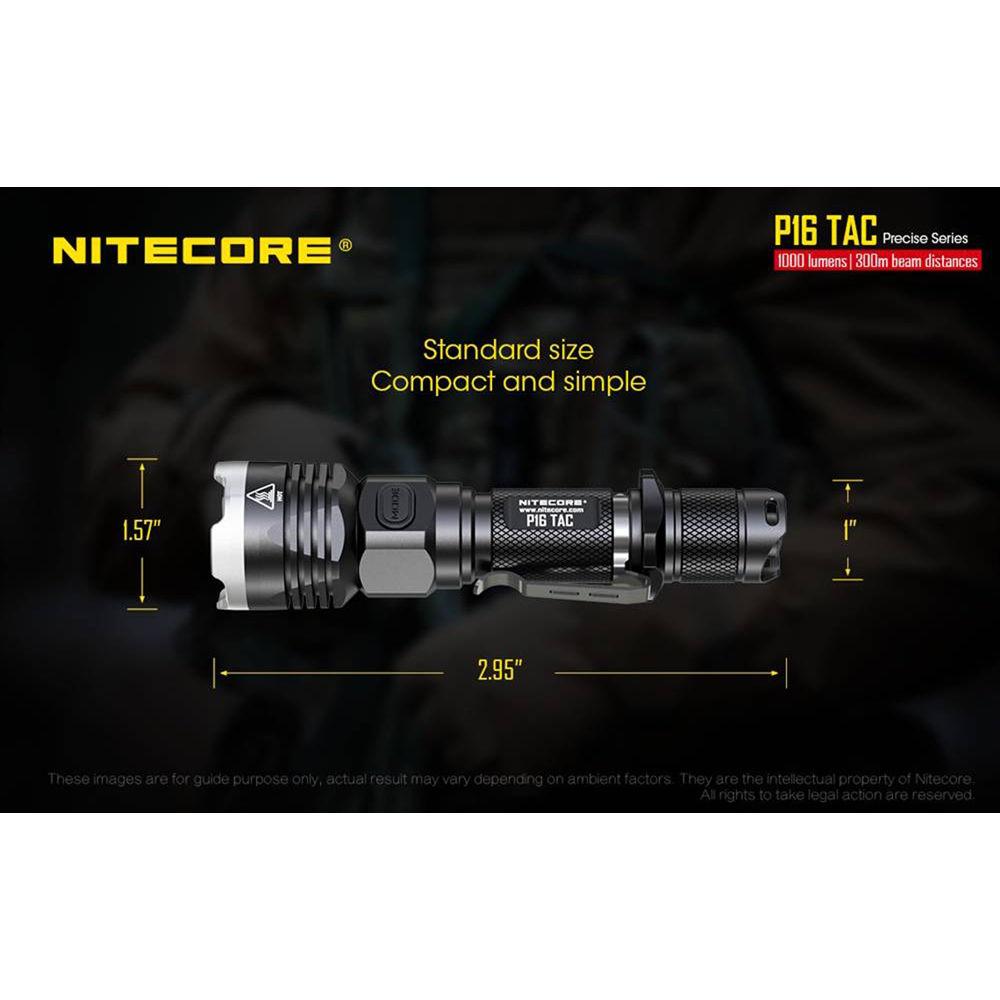

Ultra-Low: 300.0 hrLow: 22.0 hrMed: 5.0 hrHigh: 1.0 hr | | Construction | Aluminum alloy | | Waterproofing | IPX8, submersible to 6.6' (2 m) | | Dimensions | Head: 1.6" (4.0 cm)
Body: 5.9 x 1.0" (15.1 x 2.5 cm) | | Weight | 5.0 oz (141 g), without batteries | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.5 x 4.0 x 2.0" |
