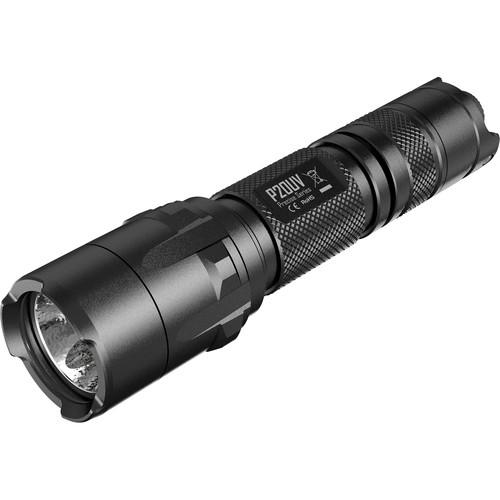

User Manual for Nitecore P20UV LED Tactical Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P20UV LED Tactical Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore P20UV LED Tactical Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description The P20UV LED Tactical Flashlight from Nitecore is a powerful and versatile light that is built with military and law-enforcement use in mind. Its output comes from a Cree XM-L2 (T6) LED with three outputs from 70 to 800 lumens. It also features four smaller secondary ultraviolet LEDs for authentication, forensic and identification applications. The four UV LEDs provide 320mW at 365nm.A dual-switch tail cap design activates the light and controls its settings. The Strobe Ready button immediately activates the strobe function when the light is off and selects output intensity with the light on. The switch remembers the last output intensity used and automatically goes to that output the next time it is turned on, even with momentary activation. An illuminated battery-status LED indicator is integrated into the selector switch.Built for durability, the light features an aluminum housing with a Type III hard-anodized black finish that resists scratching and corrosion. It is o-ring sealed to be IPX8 rated and submersible to 6.6', and impact resistant to 5 feet. A textured diamond pattern is machined into the handle to provide a sure grip, and there is an anti-roll design and a crenellated bezel for emergency situations. Its compact structure and switch location is suitable for one-handed operation. The light can run on 1 x 18650 or 2 x CR123 li-ion rechargeable, or 2 x CR123 disposable batteries. There is reverse-polarity protection that prevents damage to the light's circuitry if the batteries are put in incorrectly. - Light Performance
-
- Low: 70 lumen
- Med: 400 lumen
- High: 800 lumen
- Main LED plus 4 secondary ultraviolet LEDs
- Cree XM-L2 T6 LED emitter
- Integrated PDOT provides bright reflector performance
- Strobe-mode causes temporary blindness and disorientation
- Switching
-
- Type: Dual-switch tail cap design
- Location: Tailcap
- Strobe Ready button for quick strobe activation
- U-shaped tailcap shroud helps prevent accidental activation
- Intelligent output selector switch remembers last output used
- With light clicked-on, use Strobe Ready switch to cycle through output levels
- Construction Details
-
- Aluminum alloy housing
- Type III hard anodized finish
- IPX8 rated, submersible to 6.6'
- Corrosion and scratch resistant
- Anti-reflective coated and tempered lens
- Textured diamond grip for sure handling
- Crenellated bezel design
- Can run on 1 x 18650 or 2 x CR123 batteries
- Multi-function LED battery indicator integrated into selector switch
- Reverse-polarity protection
In the Box Nitecore P20UV LED Tactical Flashlight CR123 Battery Magazine Clip Holster Lanyard Spare O-Rings Tactical Handle Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P20UV LED Tactical Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P20UV Specs | | | Lumen Output | CR123A:
High: 800 Lumens
Medium: 400 Lumens
Low: 80 Lumens | | Illumination Source | 1 x LED
4 x UV LED | | | | Estimated Runtime | 18650
High: 3.5 Hours
Medium: 5.45 Hours
Low: 15.5 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.2" / 3.2 cm | | Dimensions |
