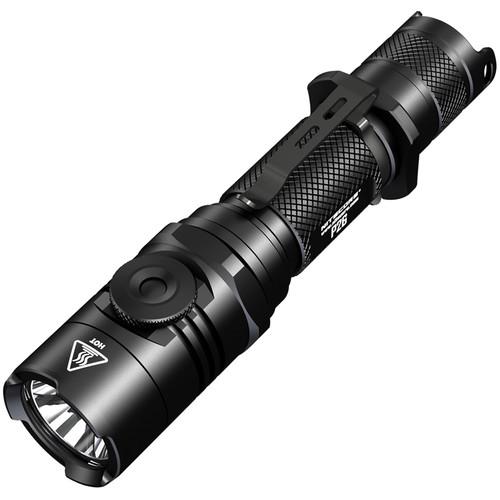

User Manual for Nitecore P26 Tactical LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P26 Tactical LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore P26 Tactical LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Instead of repeatedly clicking buttons, the brightness of the Nitecore P26 Tactical LED Flashlight is controlled by a rotating dial that adjusts the output between 0.5 and 1000 lumens. Located near the head of the 5.9" light, the dial is easy to operate with your thumb. Twist beyond the peak output for a 1000-lumen strobe for self-defense. Turn the light on and off with the tactical-style tailcap push button.Designed with hunting and law enforcement in mind but suited to most professional, recreational and home use, the P26 offers runtime ranging from one hour at high power to 500 hours at the lowest output. An integrated tactical ring facilitates holds and prevents the light from rolling, a partial tailcap shroud allows the light to stand on its base and helps prevent unintentional activation, and the titanium-plated stainless-steel two-way clip allows for head-up or -down carry. The crenelated bezel can be used for emergency window-breaking or self-defense. The single 18650 or two CR123 batteries are protected from firearm recoil by an impact resistance mechanism, and reverse polarity protection prevents damage from improper battery installation. The P26 employs a Precision Digital Optics Technology reflector for a smooth, long-throw beam and non-pulse width management constant circuit for consistent output without flickering. Advanced Temperature Regulation keeps the LED from overheating. - Light Performance
-
- Infinitely variable output from 0.5-1000 lumens
- Cree XP-L HI V3 LED
- Runtimes range from 1-500 hours
- Integrated PDOT provides bright reflector performance
- Disorienting 1000-lumen strobe mode for self-defense and tactical use
- Switching
-
- Two-stage tailcap push button for momentary and constant-on
- Rotary dial controls brightness
- U-shaped tailcap shroud helps prevent accidental activation
- Construction Details
-
- Impact resistance mechanism for recoil protection when used with a firearm
- Aluminum alloy housing with Type III hard anodized finish
- IPX8 rated, submersible to 6.6' and impact-resistant to 3.3'
- Titanium-plated stainless-steel two-way clip
- Crenelated bezel design for emergency glass-breaking or self-defense
- Can run on one 18650 or two CR123 batteries
- Reverse-polarity protection
- Advanced Temperature Regulation module
- Non-PWM digitally regulated output for consistent performance with no flicker
In the Box Nitecore P26 Tactical LED Flashlight Clip Holster Lanyard Spare O-Ring Tactical Handle Ring Spare Tailcap Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P26 Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P26 Specs | | | Lumen Output | High: 1000 Lumens
Minimum: 0.5 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 1 Hours
Low: 500 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 1.3" / 33.0 mm | | Dimensions | L: 5.9" / L: 14.9 cm | | Weight | 4.5 oz / 129 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 8.3 x 4.0 x 1.8" |
