User Manual for Nitecore P30 Compact Long Range LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P30 Compact Long Range LED
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore P30 Compact Long Range LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

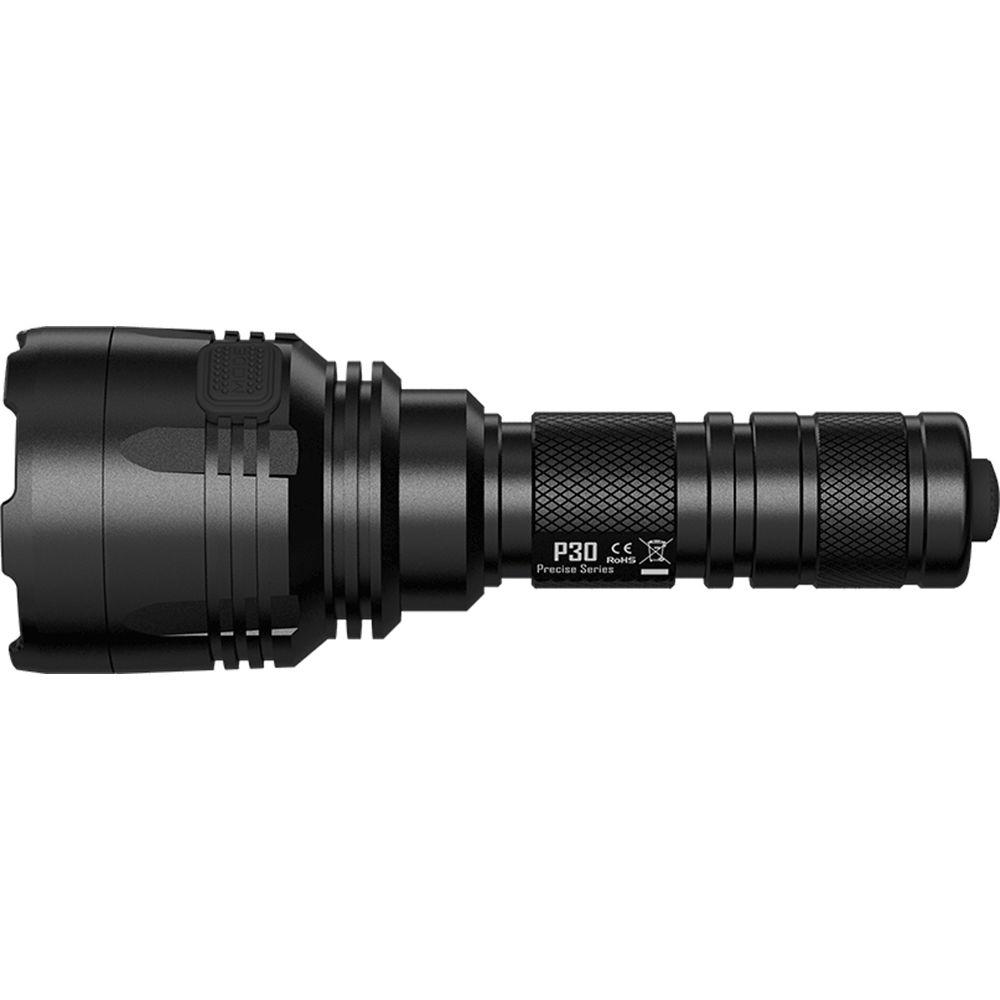

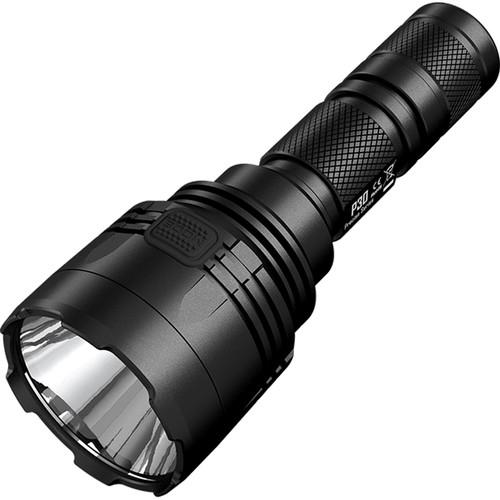

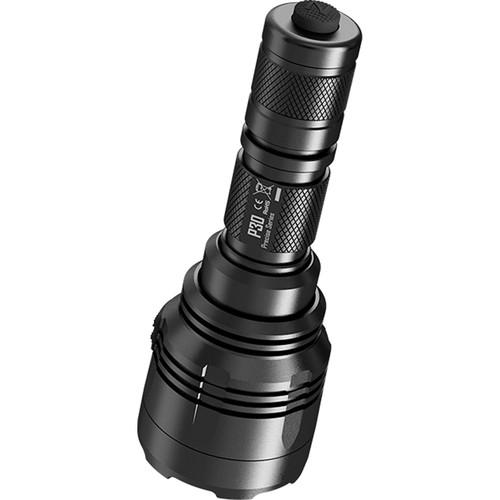

Product description With 1,000 lumens of peak power and a Precision Digital Optics Technology (PDOT) reflector, the Nitecore P30 Compact Long Range LED Flashlight provides the long throw you need for hunting, whether hand-held or weapon-mounted. It's also a versatile, high-performance general purpose light. The P30 features a momentary and constant-on tailcap switch and a side switch for cycling through five brightness settings and three special modes – strobe, SOS, and beacon. At its 1-lumen minimum power setting, the light will run as long as 680 hours on one 18650 lithium ion battery. Two CR123 batteries can also be used, with lower runtimes. The light features an aluminum housing with a Type III hard-anodized black finish that resists scratching and corrosion. It is O-ring sealed to be IPX8-rated and submersible to 6.6', and impact-resistant to 5 feet. Its crenellated bezel is designed to be used for self-defense or as a window-breaker. Knurling on the handle provides a sure grip, and there is a removable tactical ring that fits on the handle for use with a 'cigar-style' two-handed pistol grip. The P30 is compatible with Nitecore's GM02, GM03, and GM04 gun mounts, NFR50 and NFG50 color filters and RSW1 remote pressure switch for mounting on a weapon. - Light Performance
-
- Min: 1 lumen
- Low: 70 lumen
- Med: 220 lumen
- High: 400 lumen
- Turbo: 1000 lumen
- Cree XP-L HI V3 LED

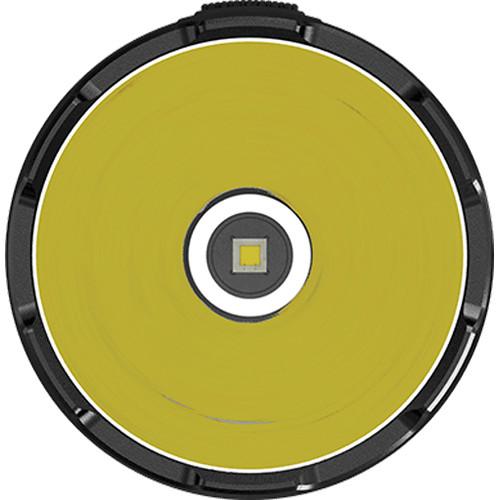

- Precision Digital Optics Technology reflector for long throw
- Strobe-mode causes temporary blindness and disorientation
- SOS signal automatically cycles through Morse code sequence
- Flashing location beacon
- Switching
-
- Type: Dual pushbutton
- Location: Tailcap and body
- Press tailcap for momentary activation, click for constant-on
- Intelligent output selector switch remembers last output used
- With light clicked-on, use body selector switch to cycle through output levels
- With light clicked-on, press and hold selector switch to activate strobe mode
- In strobe-mode, press and hold selector switch to cycle through strobe modes
- Construction Details
-
- Aluminum alloy housing
- Type III hard anodized finish

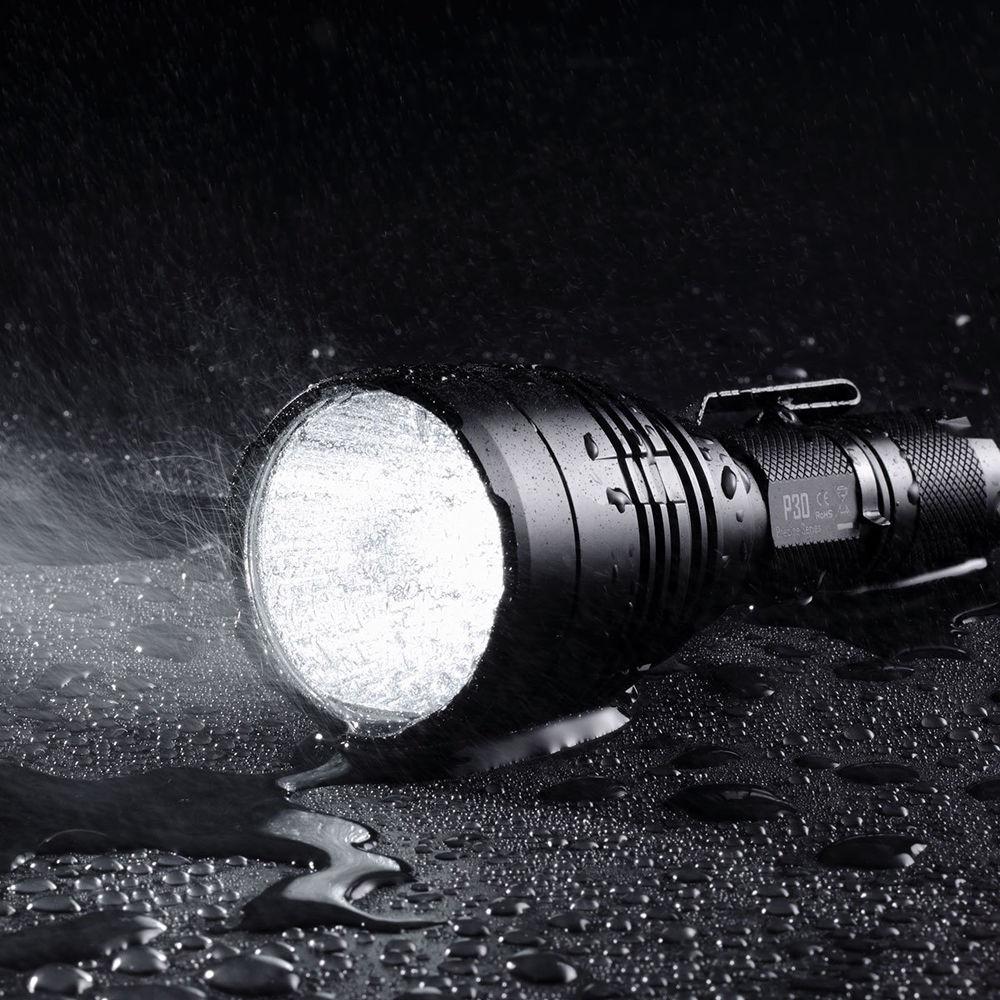

- IPX8-rated, submersible to 6.6'
- Corrosion and scratch-resistant
- Anti-reflective coated and tempered lens

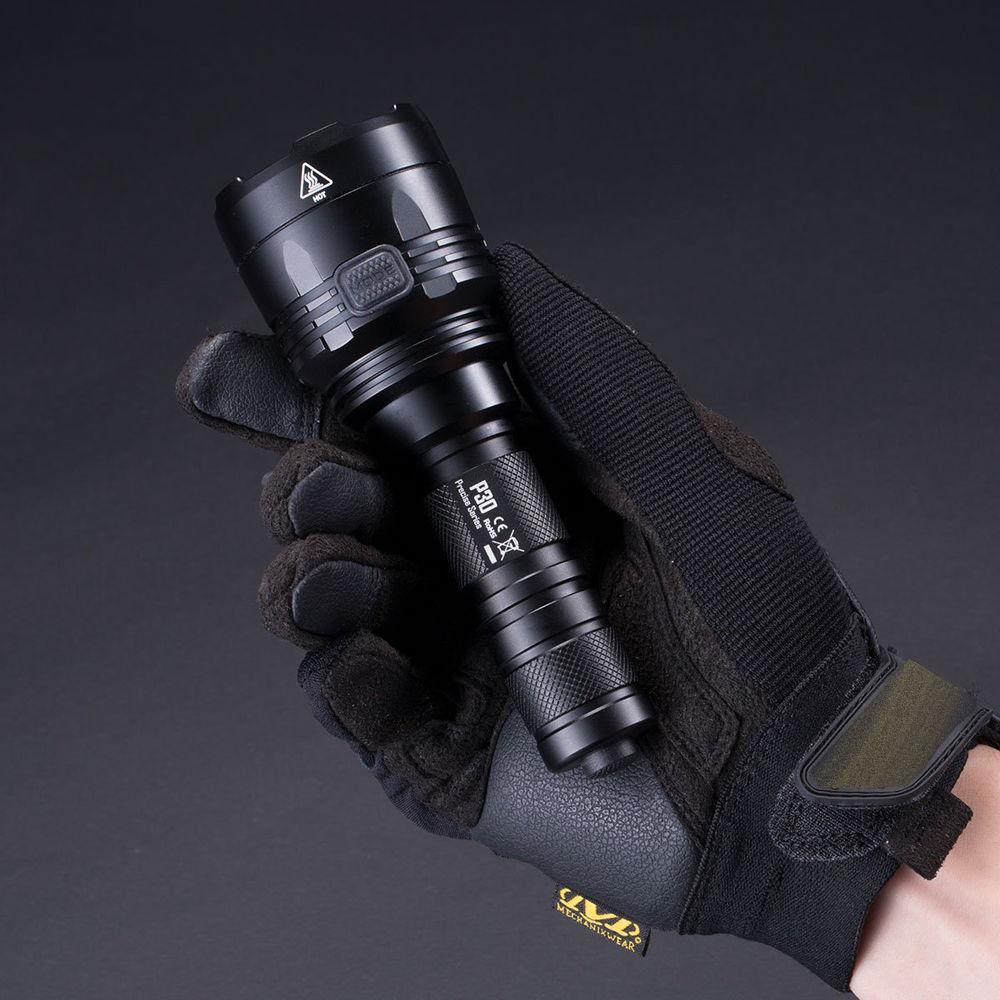

- Knurled grip for sure handling
- Crenellated bezel can be used for self-defense or as a window-breaker
- Titanium-plated stainless steel clip
- Removable tactical ring for 'cigar-style' tactical grip
- Can run on 1 x 18650 or 2 x CR123 li-ion rechargeable, or 2 x CR123 disposable batteries
- Multi-function battery indicator integrated into selector switch
- Reverse-polarity protection
In the Box Nitecore P30 Compact Long Range LED Flashlight CR123 Battery Magazine Clip Holster Lanyard O-Ring Tactical Handle Ring Spare Tailcap Pushbutton Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P30 Compact Long Range LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P30 Specs | | | Lumen Output | High: 400 Lumens
Medium: 220 Lumens
Low: 70 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x White LED | | | | Estimated Runtime | 18650
High: 3 Hours
Medium: 5 Hours
Low: 17 Hours
Minimum: 680 Hours
Turbo: 1 Hour | | Battery Type | 1 x 18650 Lithium-Ion or
2 x CR123A Lithium | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 2.0" / 50.8 mm | | Dimensions | L: 5.6" / L: 14.2 cm | | Weight | 5.8 oz / 164.4 g | | | | Package Weight | 0.605 lb | | Box Dimensions (LxWxH) | 7.65 x 2.8 x 2.75" |
