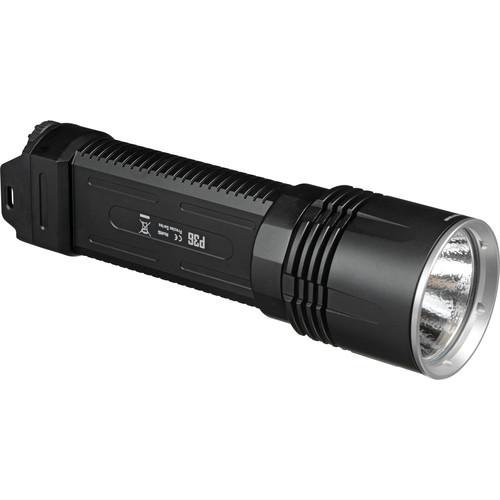

User Manual for Nitecore P36 Explorer LED FLashlight Click to enlarge the picture
Contents of the user manual for the Nitecore P36 Explorer LED FLashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore P36 Explorer LED FLashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Nitecore's P36 Explorer LED FLashlight is a purpose-built illuminator to give law-enforcement professionals, first responders, search & rescue personnel, and outdoor enthusiasts an invaluable tool to add to their kit. A unique switching system on the tailcap features a familiar pushbutton switch to control the momentary and constant-on activation with last-mode memory. Adjacent to the pushbutton is a mode selector dial. Using this dial, users have the ability to quickly select 10 regular output modes from a low 2-lumen to a powerful 2000-lumen turbo. Complementing this wide output range are five strobe modes: a disorientating tactical, slow signal, fast signal, location beacon, and an emergency SOS which automatically cycles through the Morse-code sequence. The output is digitally regulated to ensure consistent beam intensity throughout the life of the batteries, and active and passive overheat protection limits the possibility of damage due to excessive heat.To withstand daily use on the job or on the trail, the housing is made of light and durable T6061 T6 aluminum with a corrosion and scratch-resistant anodized finish. A stainless steel bezel ring protects the head and window from damage, and its hardened and scratch-resistant tempered glass emitter window has an anti-reflection coating to maximize light transmission. The housing is impact resistant to 5' and O-ring sealed for an IPX8 rating, making it submersible to 6.6'. It runs on two 18650 or four CR123 user-supplied batteries. - Performance
-
- Cree MT-G2 neutral white LED
- Dial output selector steps output up or down in ten increments
- Selectable increments: 2 / 20 / 80 / 210 / 380 / 600 / 850 / 1100 / 1500 / 2000 lumens
- Aluminum micro-textured reflector produces smooth beam with a wide peripheral ring without holes or hotspots
- Five strobe modes: Disorientating tactical, slow flashing warning, quick flashing warning, location beacon, SOS distress signal
- Overheating protection circuitry automatically steps down output intensity to prevent damage
- Digitally-regulated output ensures consistent beam intensity throughout life of battery
- Switching
-
- Location: Tailcap
- Type: Pushbutton and rotary dial
- Momentary and constant-on activation
- Press or click pushbutton to turn on/off, press dial to activate strobe modes when light is on
- Rotate dial to gradually step output up and down, or to choose strobe mode
- Intelligent switch remembers last output selected in regular output modes
- Instant access to low and turbo modes from off
- Instant access to strobe modes from any mode, including off
- Partially shrouded tailcap helps to prevent accidental activation
- Construction
-
- CNC machined T6061 T6 aluminum alloy housing
- Corrosion and scratch-resistant anodized finish
- Stainless steel bezel ring protects head and window from drops and impacts
- Anti-reflection coated scratch and shatter-resistant tempered glass window
- Impact-resistant to 5', IPX8-rated waterproof and submersible to 6.6'
- Passive heat dissipating fins on head
- Power level indicators on tailcap
- Runs on two 18650 or four CR123 batteries
In the Box Nitecore P36 Explorer LED FLashlight Lanyard 3-Way Nylon Holser 2-Way Pocket Clip 2 x Spare O-Rings Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore P36 Explorer LED FLashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore P36 Specs | | | Lumen Output | High: 1500 Lumens
Medium: 380 Lumens
Low: 2 Lumens
Turbo: 2000 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1 Hour
Medium: 7.5 Hours
Low: 325 Hours
Turbo: 0.75 Hour | | Battery Type | 2 x 18650 or
4 x CR123A | | Internal Battery Capacity | 2600 mAh
1550 mAh | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 2.0" / 50.8 mm | | Dimensions | H: 1.7 x W: 1.1 x L: 6.8" / H: 4.2 x W: 2.9 x L: 17.3 cm | | Weight | 8.9 oz / 252 g (Without Batteries) | | | | Package Weight | 0.8 lb | | Box Dimensions (LxWxH) | 9.2 x 2.9 x 2.7" |
