User Manual for Nitecore R25 Rechargeable Tactical LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore R25 Rechargeable Tactical LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore R25 Rechargeable Tactical LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

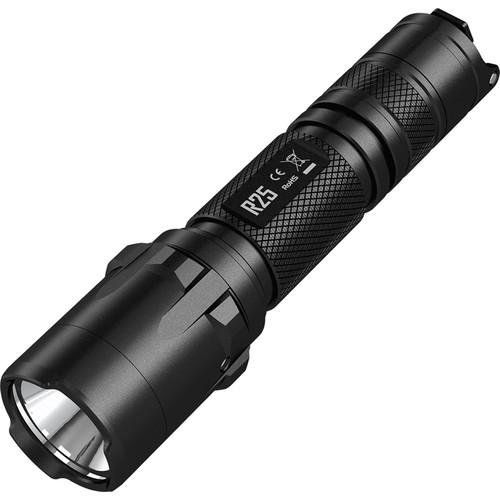

Product description Designed and built for law enforcement and tactical professionals, Nitecore's versatile R25 Rechargeable Tactical LED Flashlight is powered by a purpose-built battery that charges in the light from the dedicated charging dock. Standard 18650 or CR123 batteries can be used, but will not charge inside the light. The battery drives the CREE XP-L HI V3 LED to deliver four primary outputs from 50 to 800 lumens, plus a disorientating strobe mode. The stand-out feature of this light are three pre-programmed modes that are optimized for specific duties - users can choose from Tactical, Law Enforcement, and General-Purpose modes with pre-set outputs specifically chosen for those jobs.Built to withstand the rigors of daily use, the housing is made of a lightweight and durable aluminum alloy covered with a scratch and corrosion-resistant hard anodized finish. It is impact-resistant to a height of 5-feet, and O-rings seal the housing to provide an IPX8-rating - making it waterproof and submersible. A removable tactical ring is included and helps to facilitate various alternative pistol/light tactical holds such as the syringe and cigar. - Performance
-
- Low: 50 lumens
- Med: 120 lumens, in LE mode
- Med: 230 lumens, in General mode
- High: 800 lumens
- One CREE XP-L HI V3 LED

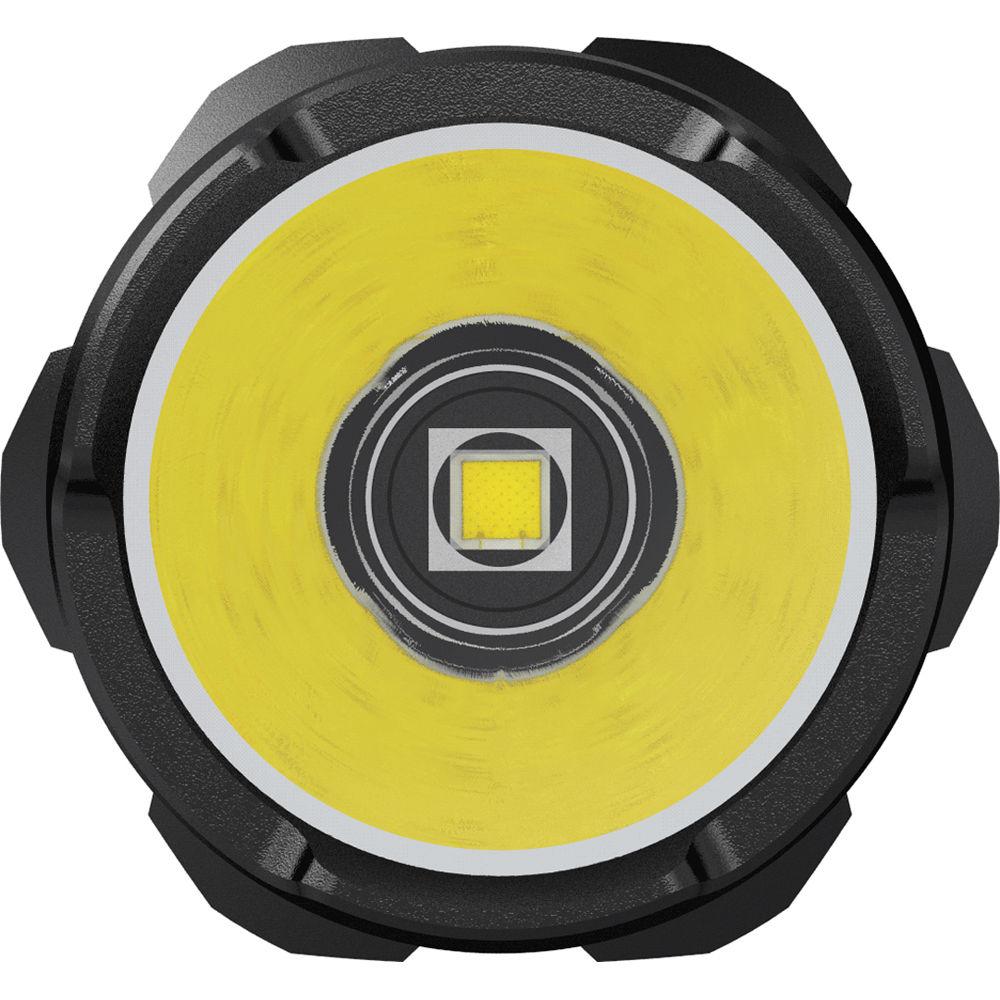

- Lens and reflector produces a smooth beam without holes or hotspots, and optimized for a long wide beam throw
- Disorientating strobe mode
- Switching
-
- Location: Tailcap
- Type: Dual pushbuttons
- Momentary and constant-on modes
- Large center button controls on/off
- Smaller "mode" button selects output intensity
- Instant access to disorientating strobe mode at any selected output or when light is turned off
- Integrated power indicator in main on/off pushbutton
- Selectable Modes
-
- Three pre-programmed modes with outputs for specific needs
- Tactical: Strobe and High output. Defaults to High when turned on in this mode
- Law Enforcement (LE): Strobe, High, Med. Defaults to High when turned on in this mode
- General: Strobe, High, Med, Low. Last mode-memory returns to last selected output when turned on
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- IPX8-rated to be waterproof and submersible to 6.6'
- Impact-resistant to the height of 5-feet
- Anti-reflection coated tempered glass emitter window
- Removable tactical ring facilitates various alternative pistol/light tactical holds
- Crenulated head for emergency and self-defense situations
- Removable two-way titanium steel clip
- Weight: 3.8 ounces, without battery
- Battery and Charging
-
- Runs on one 18650 or two CR123 batteries
- Includes one NL188DW 18650 battery made specifically to charge while in the R25 light
- Can run on any CR123 disposable batteries, or 18650/RCR123 batteries - but will not charge in light

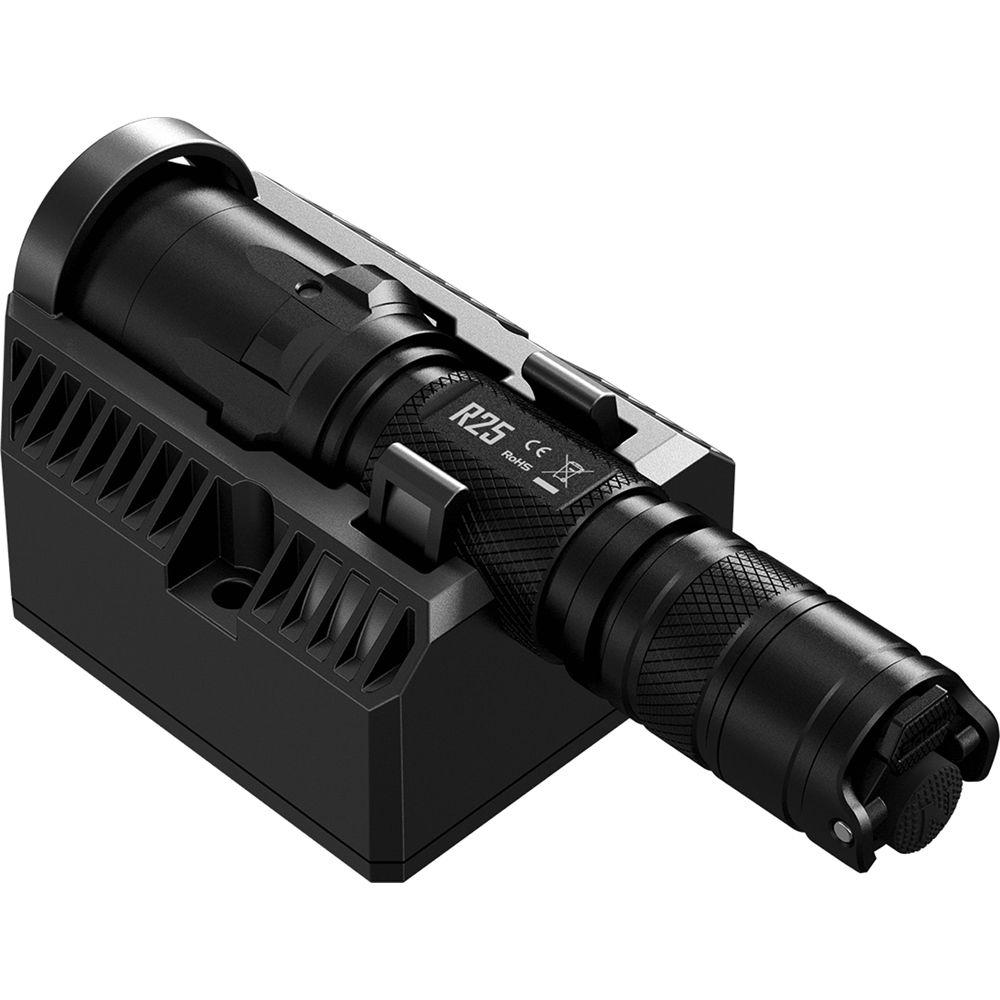

- Included dedicated charger locks light in-place
- Mount charger on a wall or car, or lay it flat on a table
- Charging dock includes 110 VAC wall adapter and 12 VDC car/vehicle plug
In the Box Nitecore R25 Rechargeable Tactical LED Flashlight NL188D Rechargeable Battery R25 Charging Dock Charging Dock Adapter 12 VDC Car Charger Nylon Holster Pocket Clip Tactical Ring Lanyard Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore R25 Rechargeable Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore R25 Specs | | | Lumen Output | High: 800 Lumens
Medium: 230 Lumens
Low: 50 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | 18650
High: 1 Hour
Medium: 9 Hours
Low: 15 Hours | | Battery Type | 1 x 18650 or
2 x CR123A | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 1.2" / 3.2 cm | | Dimensions |
