User Manual for Nitecore R40 Rechargeable Tactical LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore R40 Rechargeable Tactical LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore R40 Rechargeable Tactical LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

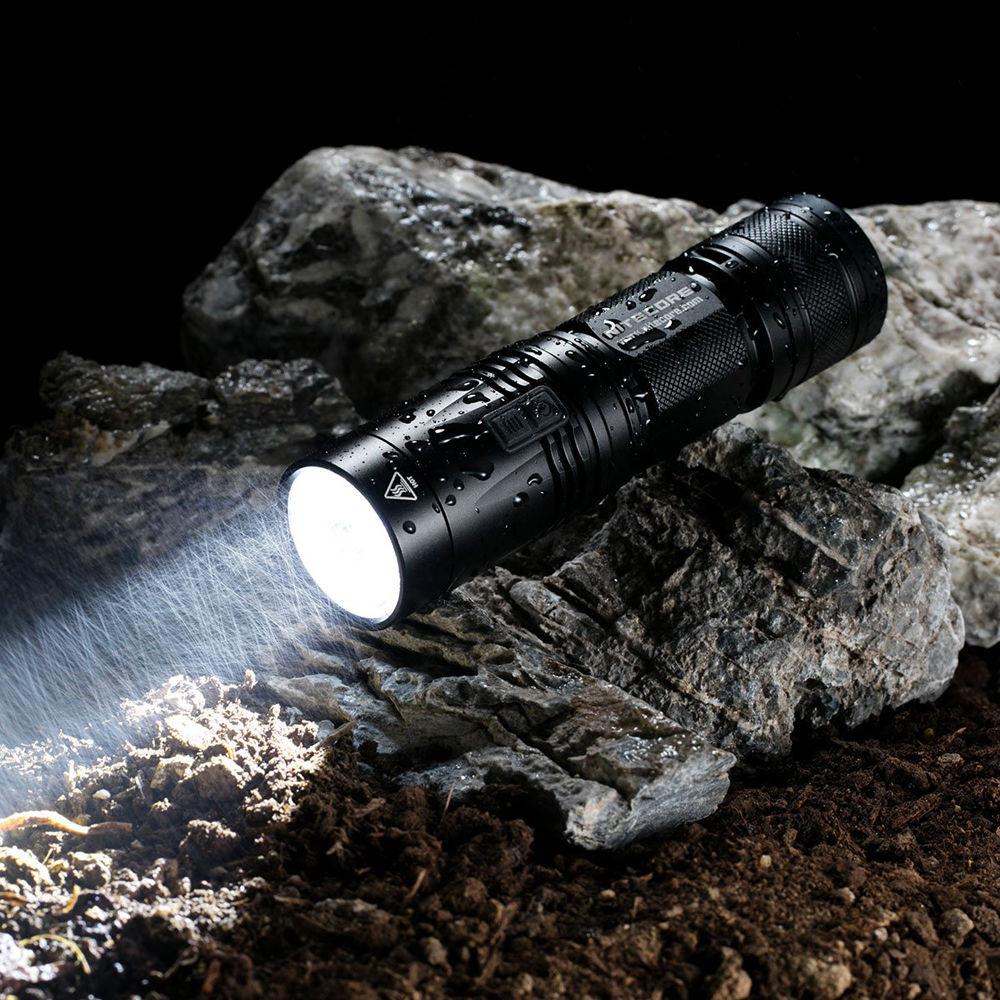

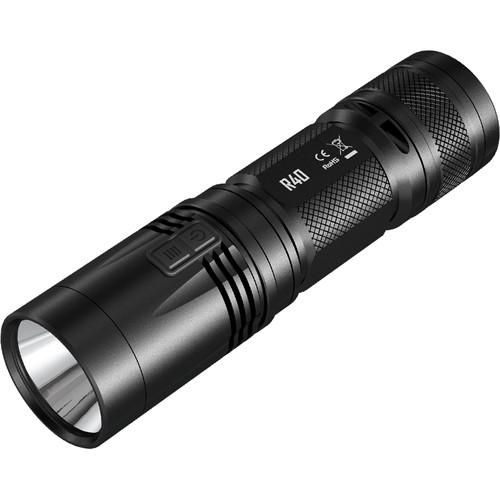

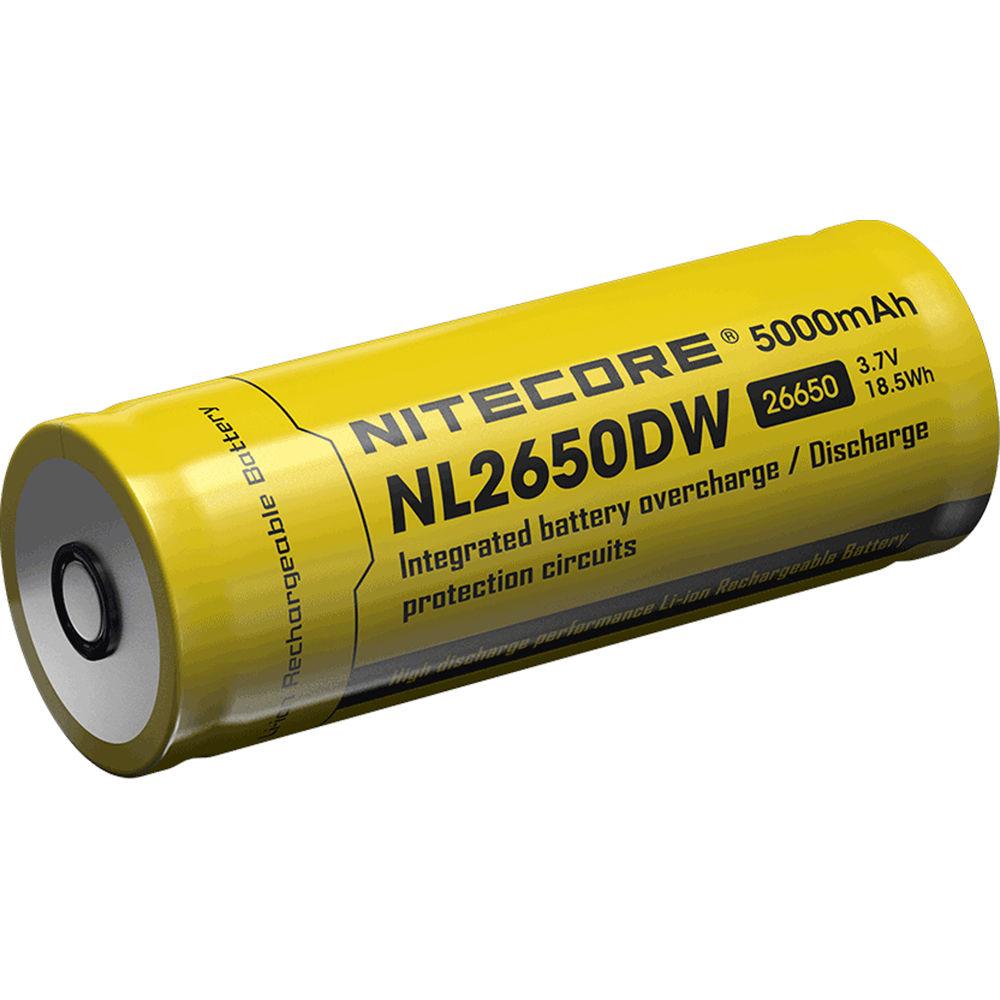

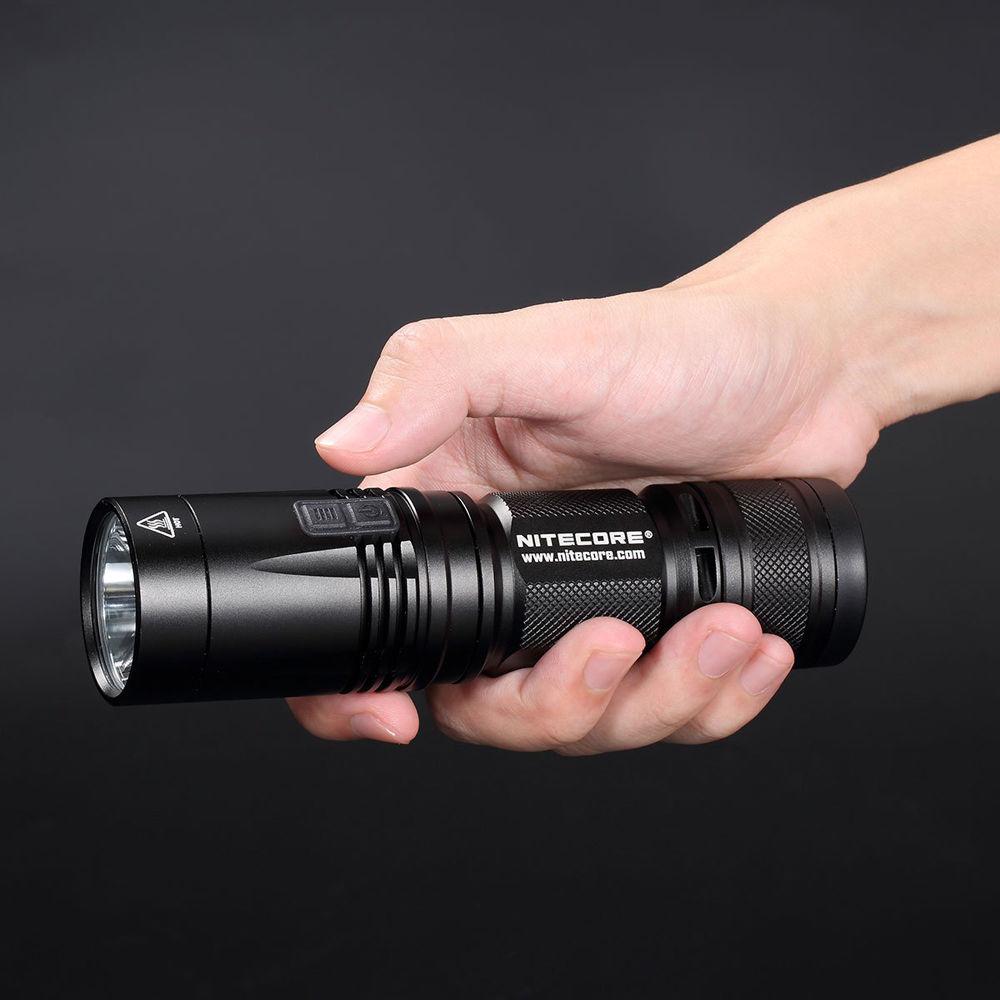

Product description With a powerful output and long runtimes made possible by a dedicated high-capacity battery, the Nitecore R40 Rechargeable Tactical LED Flashlight is designed for tactical or search-and-rescue professionals. It's also a versatile light for home use or outdoor recreation – everything from camping trips to power outages. You can run the R40 for as long as 1,000 hours at its 1-lumen low power setting. When you need maximum illumination, you have instant access to the 1,000-lumen turbo setting by simply holding the mode switch for one second. The light has a total of five brightness settings, along with a disorienting strobe, an SOS signal, and a location beacon. A side-mounted dual switch controls on/off and mode selection. The R40's power plant is a proprietary 3.7V, 5000 mAh 26650 battery, designed for use with this light. The light comes with the battery and three charging options: a wall mount, a desk cradle, and a USB cable. The side switch serves as a battery power indicator so you'll never be caught by surprise with a depleted battery. In use, the light's Cree XP-L HI V3 LED throws a long, bright beam thanks to the Precision Digital Optics Technology (PDOT) reflector. Designed for durability, the housing is made of a lightweight and durable aluminum alloy that is covered in a scratch and corrosion-resistant hard anodized finish. It is O-ring sealed to an IPX8-rating, making it submersible; and it is impact-resistant to 5'. When set in standby mode, the power switch flashes every three seconds to help you find the light in the dark. - Performance
-
- Min: 1 lumen
- Low: 50 lumen
- Med: 200 lumen
- High: 420 lumen
- Turbo: 1000 lumen

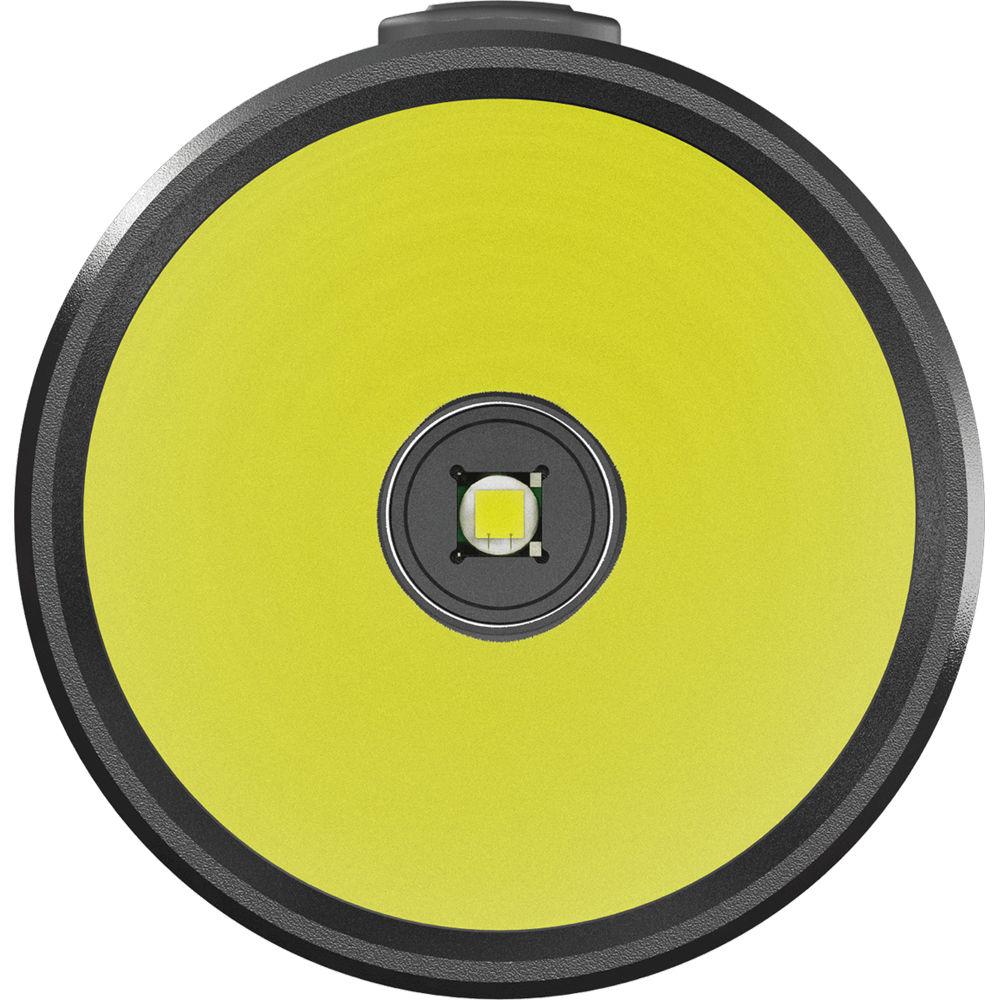

- One Cree XP-L HI V3 LED
- PDOT aluminum reflector designed to maximize throw
- Specialty Outputs:
- Strobe mode rapidly flashes LED to disorientate and momentarily blind
- Location beacon pulses a single flash at regular intervals to show location
- SOS signal automatically repeats the Morse Code distress signal
- Switching
-
- Type: 2-stage pushbutton
- Location: Body
- Constant-on activation only
- Direct access to minimum and turbo outputs when light if off
- Last mode memory automatically goes to last selected when turned on
- Standby mode: Light is off, but power switch flashes to help find light in the dark
- Construction
-
- Lightweight and durable aluminum alloy housing
- Scratch and corrosion-resistant Type III hard anodized finish
- Tempered glass emitter window with anti-reflective coatings
- IPX8-rated, waterproof and submersible to 6.6'
- Impact-resistant to 4.9'
- Machined heat-dissipating fins on head
- Tail-stand capable
- Electronics
-

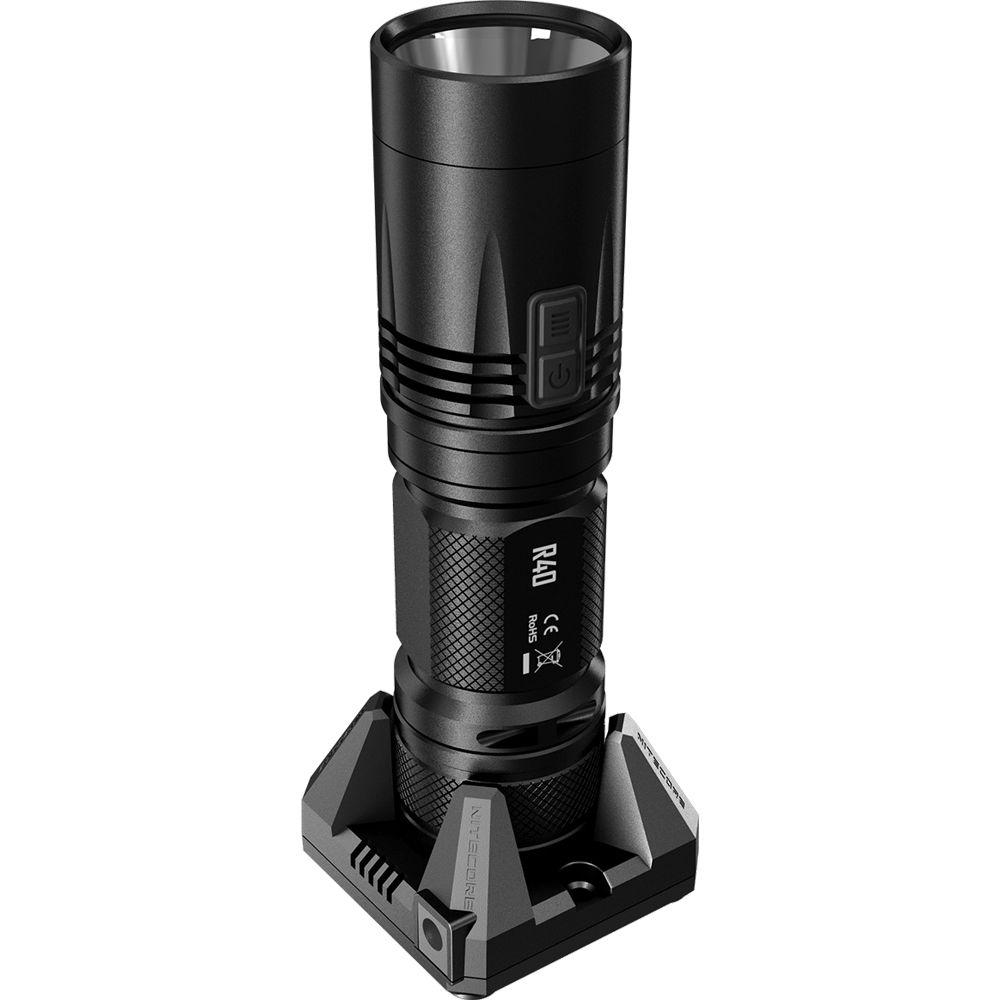

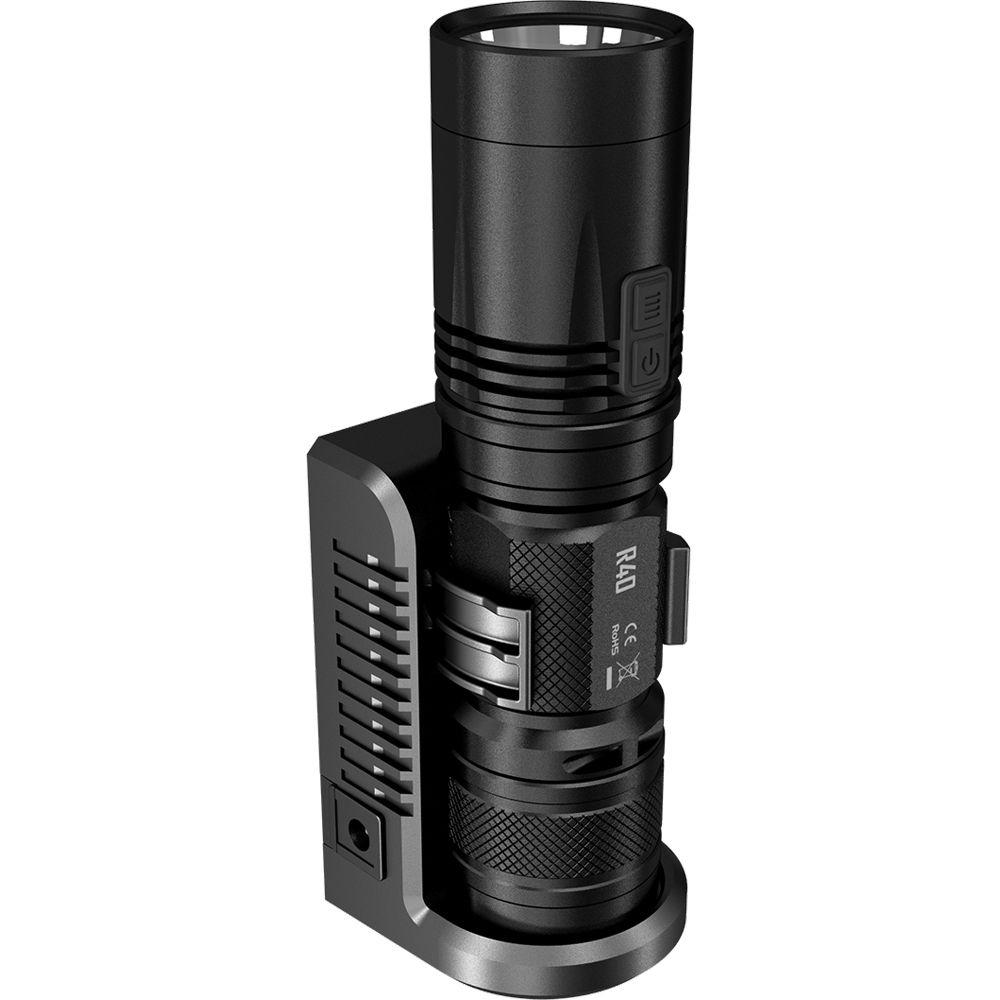

- Comes with one wall charger, one desk cradle, and one USB charging cable
- Runs on one 26650 Li-ion battery
- Lockout mode prevents accidental activation in transport
- Built-in power indicator on pushbutton
- High efficiency constant current circuitry maximizes runtime and output
- Advanced Temperature Regulation (ATR) technology automatically steps down output to prevent damage due to overheating
In the Box Nitecore R40 Rechargeable Tactical LED Flashlight NL2650DW Rechargeable Battery USB Charging Cable Wall Mount Charger Desktop Charging Cradle Vehicle DC Power Adapter Holster Pocket Clip Lanyard Spare USB Port Cover Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore R40 Rechargeable Tactical LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore R40 Specs | | | Lumen Output | High: 420 Lumens
Medium: 200 Lumens
Low: 50 Lumens
Turbo: 1000 Lumens
Minimum: 1 Lumen | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 4.5 Hours
Medium: 10.5 Hours
Low: 32 Hours
Turbo: 1.5 Hours
Minimum: 1000 Hours | | Battery Type | 1 x 26650 Lithium-Ion | | Charging Time | 7 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Dimensions |
