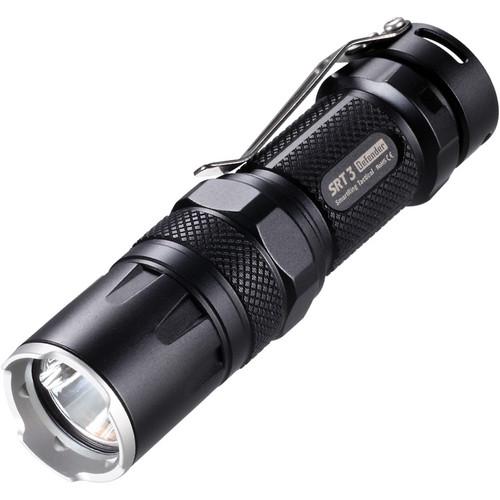

User Manual for Nitecore SRT3 Defender Multi-Color LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore SRT3 Defender Multi-Color LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore SRT3 Defender Multi-Color LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description The black SRT3 Defender Multi-Color LED Flashlight from Nitecore is a powerful and ultra-compact pocket-sized light that is built with military and law-enforcement use in mind. Its primary output comes from a white CREE XM-L2 U2 LED that is infinitely-variable from 0.1 to 550 lumens. A Red/Blue (RB) LED set on the edge of the reflector provides two colored output options for a reduced light signature that preserves night-adjusted vision. Press the 2-stage pushbutton tailcap switch for momentary activation, press and click for constant-on. The output intensity, color outputs, strobe, location beacon, SOS signal, and red/blue strobe, are managed using a magnetically-controlled rotating Smart Selector Ring located at the base of the head.Built for durability, the light features an aluminum housing with a Type III hard-anodized black finish that resists scratching and corrosion. It is O-ring sealed to be IPX8-rated and submersible to 6.6', and impact-resistant to 5 feet. Its crenellated stainless steel bezel is designed to be used for self-defense, or as a window-breaker. A diamond-textured pattern is machined into the handle to provide a sure grip, especially in cold and wet weather. The included extension tube and the specialized circuitry enable the light to run on multiple battery sizes and chemistries. This versatile light has reverse-polarity protection that prevents damage to the light's circuitry if the batteries are installed incorrectly. - Light Performance
-
- Low: 0.1 lumens
- Turbo: 550 lumens max output
- One white CREE XM-L2 U2 primary LED
- One secondary RB LED emitter
- Deep, smooth aluminum reflector produces smooth beam without holes or hot spots
- Tight center cone of light with large dimmer peripheral ring
- Strobe-mode causes temporary blindness and disorientation
- Two colored secondary outputs:
- Provides illumination while preserving night-adjusted vision
- Red provides illumination to read or perform tasks
- Blue highlights fluids, such as blood, for tracking in low-light
- Special strobe functions:
- SOS signal automatically cycles through Morse code sequence
- Alternating red and blue strobe warning-mode
- Flashing location beacon
- Switching
-
- Type: 2-Stage Pushbutton
- Location: Tailcap
- Press for momentary activation, click for constant-on
- Shrouded tailcap helps prevent accidental activation
- Magnetically-controlled variable output Smart Selector Ring at base of head
- Non-incremental intensity for precise variable-output selection
- Incremental function selection
- Construction Details
-
- Aluminum alloy housing
- Corrosion and scratch resistant type III hard anodized finish
- IPX8-rated, submersible to 6.6'
- Crenellated stainless steel bezel can be used for self-defense or as a window-breaker
- Double-sided anti-reflective coated and tempered lens
- Textured diamond grip for sure handling
- Stainless steel clip
- Electronics
-
- Capable of running on different battery sizes and chemistries
- Choose the type and chemistry to optimize use
- RCR123 rechargeable battery provides maximum intensity but lowest runtime
- Disposable CR123 batteries lowers max output but extends runtime
- AA batteries have lowest max output but are easy to find and replace
- Extension tube for handle allows light to accept AA batteries
- Light will run on Li-ion rechargeable and disposable batteries
- Reverse polarity protection
In the Box Nitecore SRT3 Defender Multi-Color LED Flashlight (Black) Clip Holster Lanyard 2 x Spare O-Rings Spare Tailcap Pushbutton Cover Extension tube to accept AA/14500 batteries Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore SRT3 Defender Multi-Color LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore SRT3 Specs | | | Lumen Output | RCR123A:
High: 550 Lumens
Low: 0.1 Lumen | | Illumination Source | 1 x LED
1 x Multi-Color LED | | | | Estimated Runtime | CR123A
High: 1.25 Hours
Low: 200 Hours | | Battery Type | 1 x RCR123A or
1 x CR123A or
1 x AA or
1 x 14500 | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.0" / 25.4 mm | | Dimensions |
