User Manual for Nitecore SRT7GT SmartRing Multi-Color LED Tactical Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore SRT7GT SmartRing Multi-Color LED Tactical
- Product category: Weapon & Tactical Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Weapon & Tactical Lights
 |
User manual for the Nitecore SRT7GT SmartRing Multi-Color LED Tactical contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

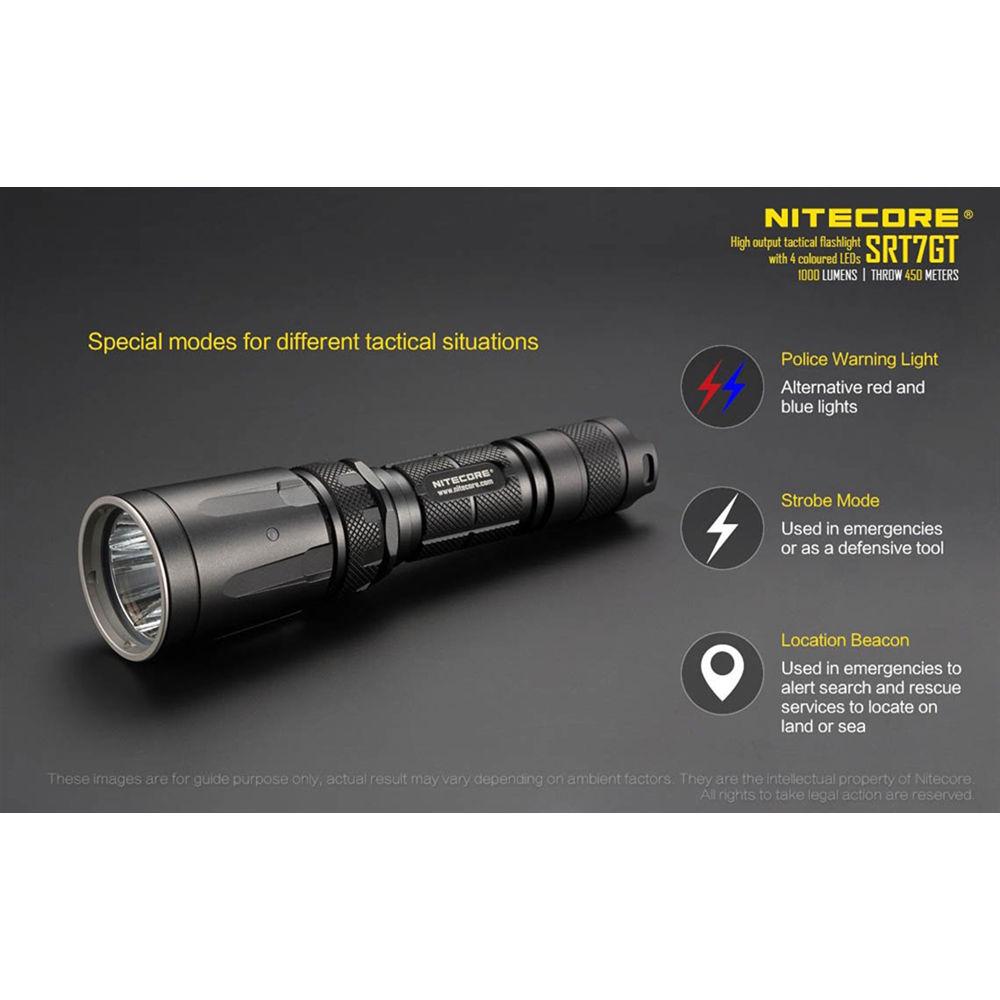

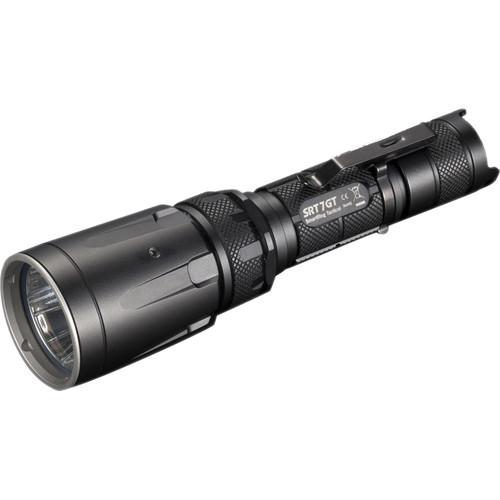

Product description Designed for law enforcement, tactical, and hunting applications, the SRT7GT SmartRing Multi-Color LED Tactical Flashlight offers precise control of an array of functions with a smooth twist of its selector ring, including a brightness level of up to 1000 lumens. The SRT7GT employs a Cree XP-L HI V3 LED and secondary LEDs in blue, green, red, and ultraviolet for a variety of tasks. The red light helps preserve night-acclimated vision and is suited to low-light tactical, hunting, and general outdoor use. The green light is helpful for viewing maps and documents and has some applications in hunting, while the blue light can be used for blood and stain detection. The UV lamp is useful for document inspection, medical investigation, and mining activities. The SRT7GT also offers white strobe, white location beacon, and blue/red police signal modes. The light's housing is aluminum alloy, reinforced with a stainless steel bezel ring. Rated IPX8, it is submersible to 6.6' and is impact-resistant to 5 feet. The multi-functional power indicator light displays battery status, so you won't be caught by surprise with a depleted power source. The mineral glass lens has anti-reflective coating for optimal light transmission, and the reflector is made with crystal coating and precision digital optics technologies for a long throw. A titanium-coated stainless steel clip keeps the light at the ready. - Performance
-
- Infinitely variable brightness level to 1000 lumens

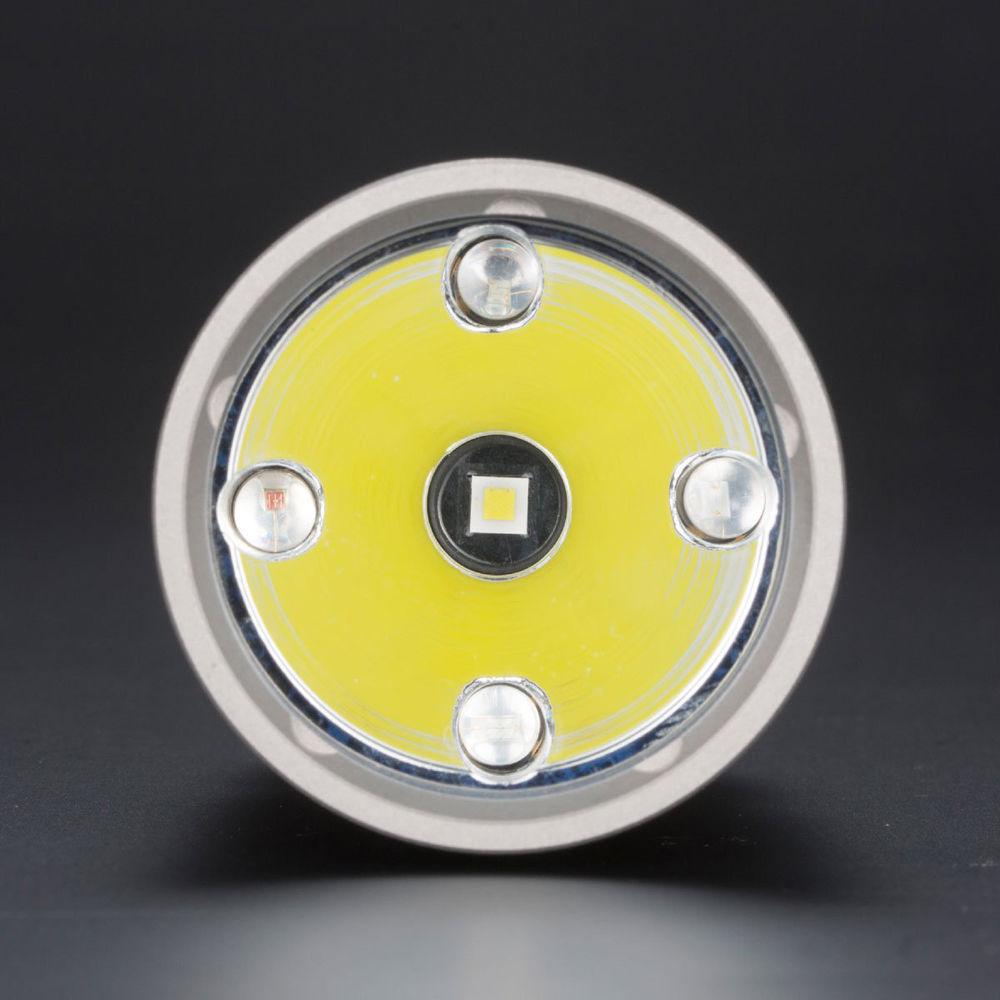

- Uses one Cree XP-L HI V3 LED
- Secondary red, green, blue, and violet lights
- Use color modes for specific applications
- Runtimes: 240 hours to 1.25 hours (18650 battery), 130 hours to 1 hour (2 x CR123 batteries)
- Switching
-
- Access all brightness levels and functions with selector ring
- Tailcap on/off switch for tactical application
- Location beacon
- Disorienting strobe
- Red & blue police warning flash mode
- Construction
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type III hard-anodized finish
- Stainless steel bezel ring
- Impact-resistant
- IPX8-rated, waterproof and submersible to 6.6'
- Toughened mineral glass lens with anti-reflective coating
- Titanium-coated stainless steel clip
In the Box Nitecore SRT7GT SmartRing Multi-Color LED Tactical Flashlight Holster Removable Clip Tactical Ring Lanyard Tailcap Switch Cover Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore SRT7GT SmartRing Multi-Color LED Tactical Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore SRT7GT Specs | Lamp Type | Main Emitter: Cree Cree XP-L HI V3 LED
Secondary Emitters: Blue, green, red, & ultraviolet LEDs | | Maximum Output | 1000 lumens | | Battery / Runtime | 1 x 18650 rechargeable lithium-ion battery: 240 hours to 1.25 h
2 x CR123 batteries: 130 to 1 h | | Construction | Aluminum alloy with stainless steel bezel ring | | Waterproofing | IPX8-rated, submersible to 6.6' / 2.0 m for up to 30 minutes | | Dimensions | Head diameter: 1.6" / 40.6 mm
Tube diameter: 1.0" / 25.4 mm
Length: 6.2" / 157.5 mm | | Weight | 6.1 oz / 172.9 g without batteries | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 8.3 x 4.0 x 1.9" |
