User Manual for Nitecore Thumb Rechargeable LED Key-Chain Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore Thumb Rechargeable LED Key-Chain Flashlight
- Product category: Keyring & Mini Lights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Keyring & Mini Lights
|
User manual for the Nitecore Thumb Rechargeable LED Key-Chain Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

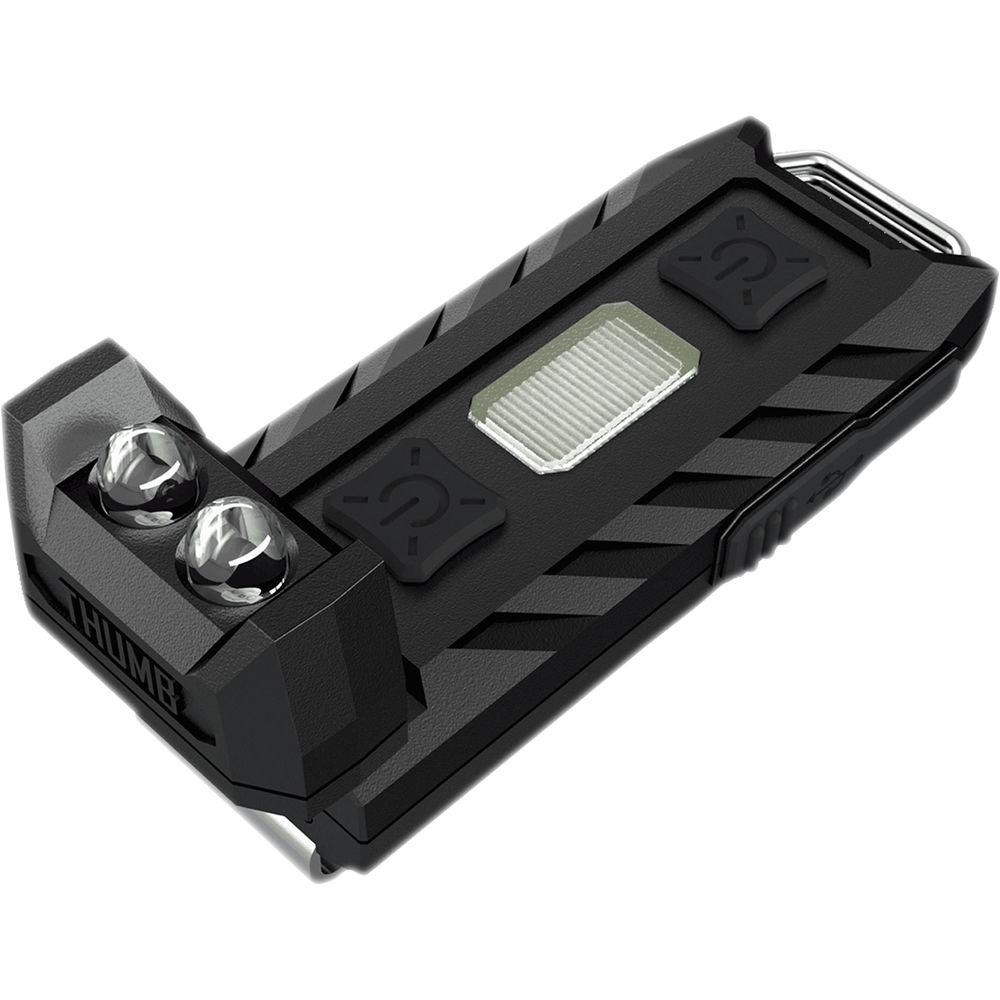

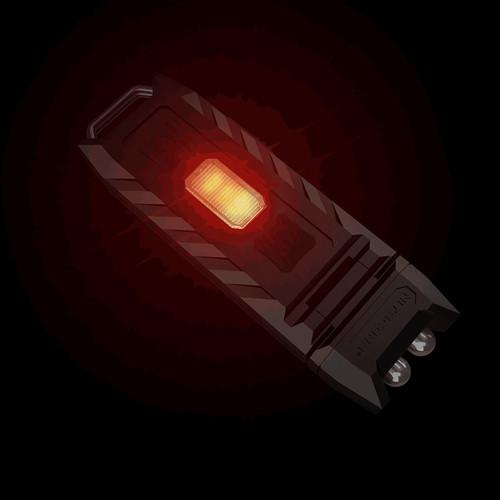

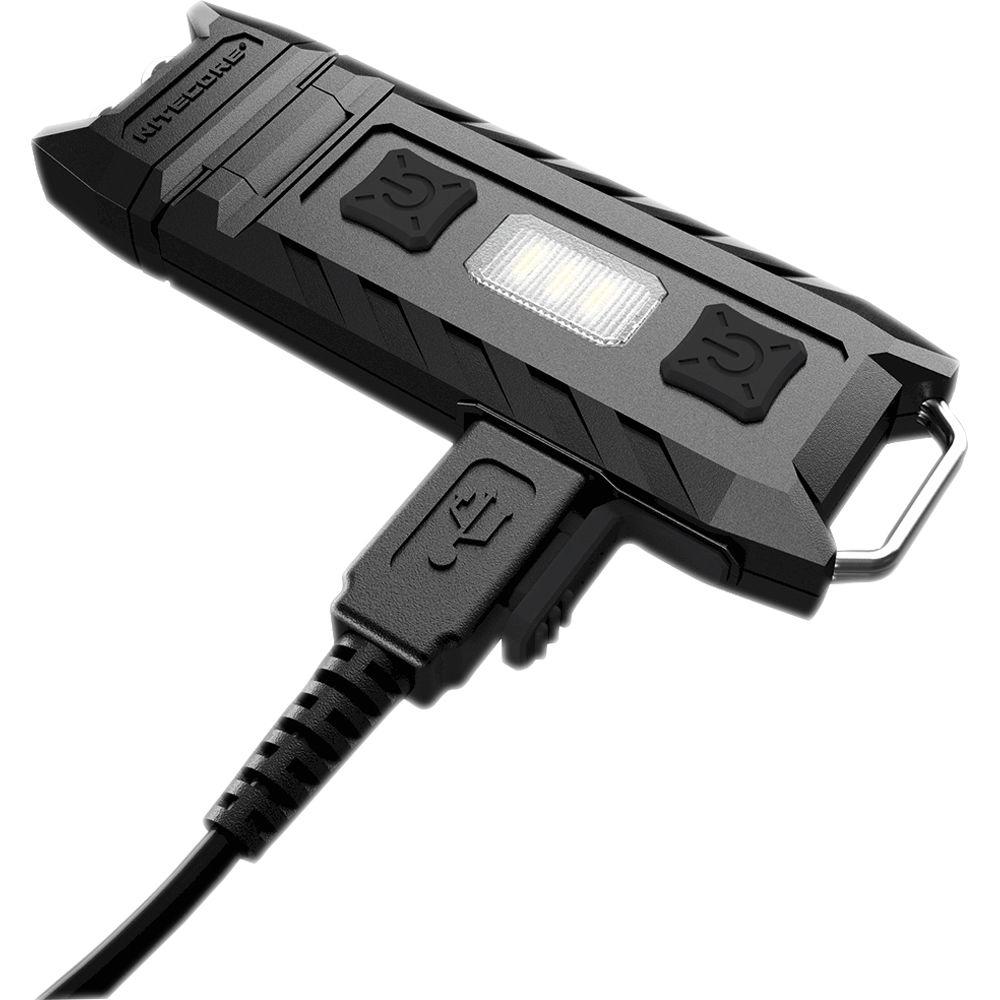

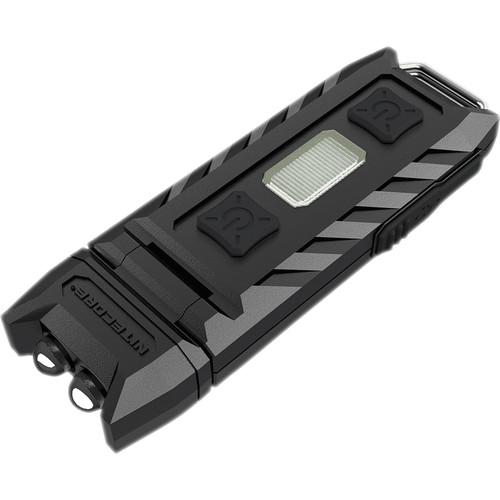

Product description Named for its small size, the Thumb Rechargeable LED Key-Chain Flashlight from Nitecore offers a lot of functionality for a light that weighs less than one ounce. It has both white and red LEDs with a top output of 85 lumens, and a head that tilts 120°. The Thumb will run 45 minutes at high power and 22 hours at low power on a single charge. There's one button for the white LEDs and another for the red. Click the upper switch to activate the white lights and cycle through the high, medium, low and blinking modes: click the lower button to toggle between the red LED's constant-on and blinking. Pressing both buttons at the same time puts the light in lockout mode, so it won't be activated accidentally. To remove lockout mode, press both buttons again. Nitecore has included over-discharge, overcharge, and short-circuit protections in the Thumb, as well as a power indicator that blinks when the light is charging and shines green when it's charged. The housing is made of durable polycarbonate, and the light's clip allows you to wear it on a belt, a pocket, a pack strap, a hat, etc. -
- White and red LEDs
- Dual pushbutton switching
- 120° adjustable head
- Micro-USB rechargeable
In the Box Nitecore Thumb Rechargeable LED Key-Chain Flashlight - Keychain
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore Thumb Rechargeable LED Key-Chain Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore Thumb Specs Illumination Source | 2 x Red LED | White Light Output | Low: 2 Lumens Medium: 30 Lumens High: 85 Lumens | Battery Type | 1 x Built-In Lithium-Ion | Estimated Runtime | Low: 22 Hours Medium: 2.25 Hours High: 45 Minutes | Internal Battery Capacity | 220 mAh | Material of Construction | Polycarbonate | IP Rating | IPX5 | Dimensions | H: 0.6 x W: 0.9 x L: 2.9" / H: 1.5 x W: 2.3 x L: 7.4 cm | Weight | 0.9 oz / 25 g | | Package Weight | 0.1 lb | Box Dimensions (LxWxH) | 3.3 x 2.0 x 0.6" |
