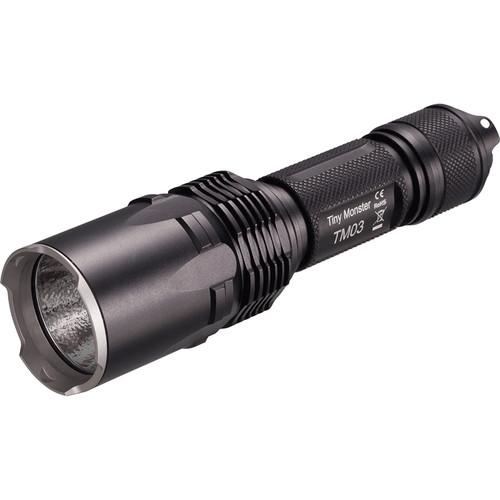

Product description Living up to the standards set by the larger lights in this series, Nitecore's TM03 Tiny Monster LED Flashlight outputs a darkness-destroying 2800 lumens running on a rechargeable IMR 18650 battery that was purpose-built to handle this light's specific power requirements. The four output intensities and disorientating strobe mode are driven by the Cree XHP70 LED and focused by a micro-textured deep reflector that produces a smooth beam without holes and hotspots that is optimized for a far throw. This combination of power and beam shape make this an ideal light for tactical professionals, military personnel, and first responders who need a lot of light in a tiny package that won't weigh them down.A unique dual push button tailcap switching system provides access to the three lower outputs plus instant access to the turbo or disorientating strobe mode. Depending on preference or situation, the instant-access feature can be programmed for either the turbo or strobe. Complementing the performance features of the light are construction details that make this a light that can handle daily duty use. Its body is made of a lightweight and durable aluminum alloy with a scratch and corrosion-resistant hard-anodized finish. Active and passive overheat protection dissipate heat and monitors internal temperature to prevent damage due to excessive heat. O-rings seal the light from water, allowing it to be submerged depths of up to 6.6 feet without damage.Nitecore recommends only using the battery that comes with the light, with spares and replacements available separately. Using standard 18650 batteries will affect the performance of both the light and battery. - Performance
-
- Low: 40 lumens
- Med: 550 lumens
- High: 1350 lumens
- Turbo: 2800 lumens
- One CREE XHP70 LED

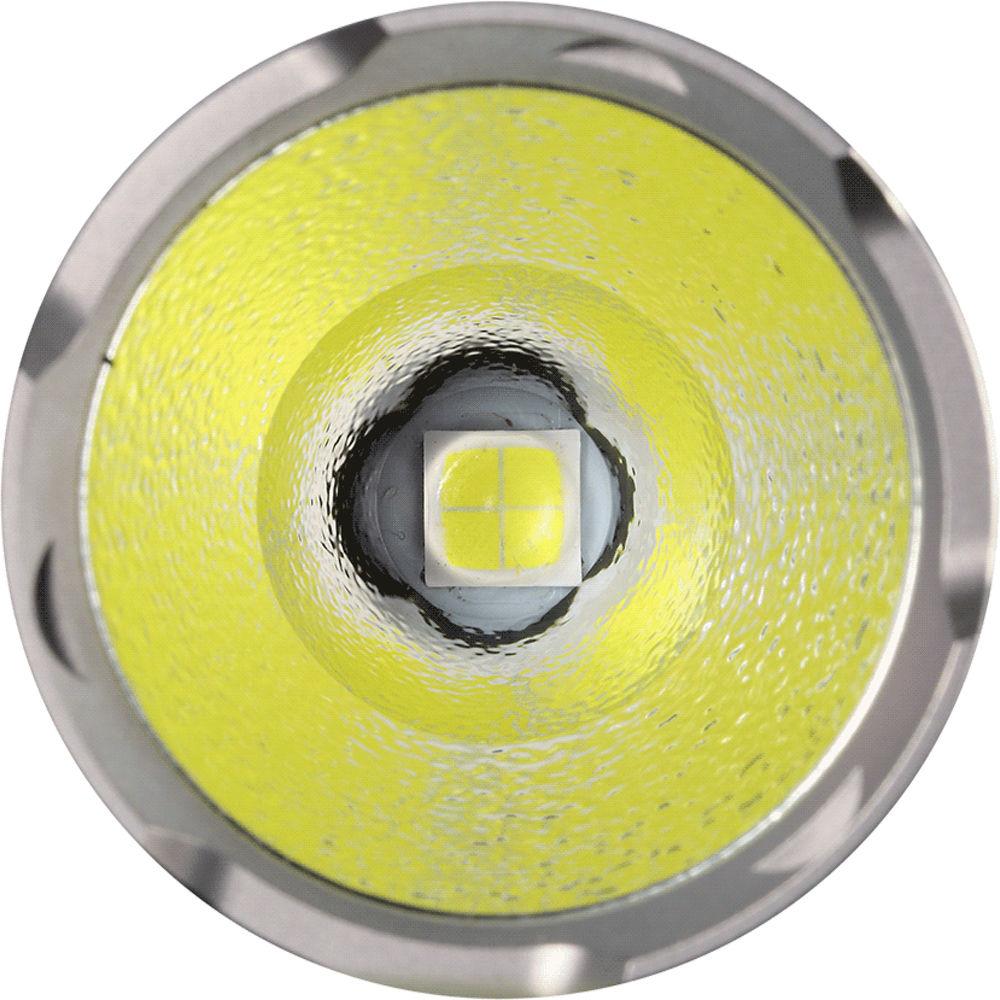

- Reflector
- "Orange Peel" textured to produce smooth beam with tight center cone without holes or hotspots
- Bright center cone of light with dimmer peripheral ring
- Deep reflector optimized for a far throw
- Turbo mode to identify, stop, and temporarily blind
- Disorientating strobe mode

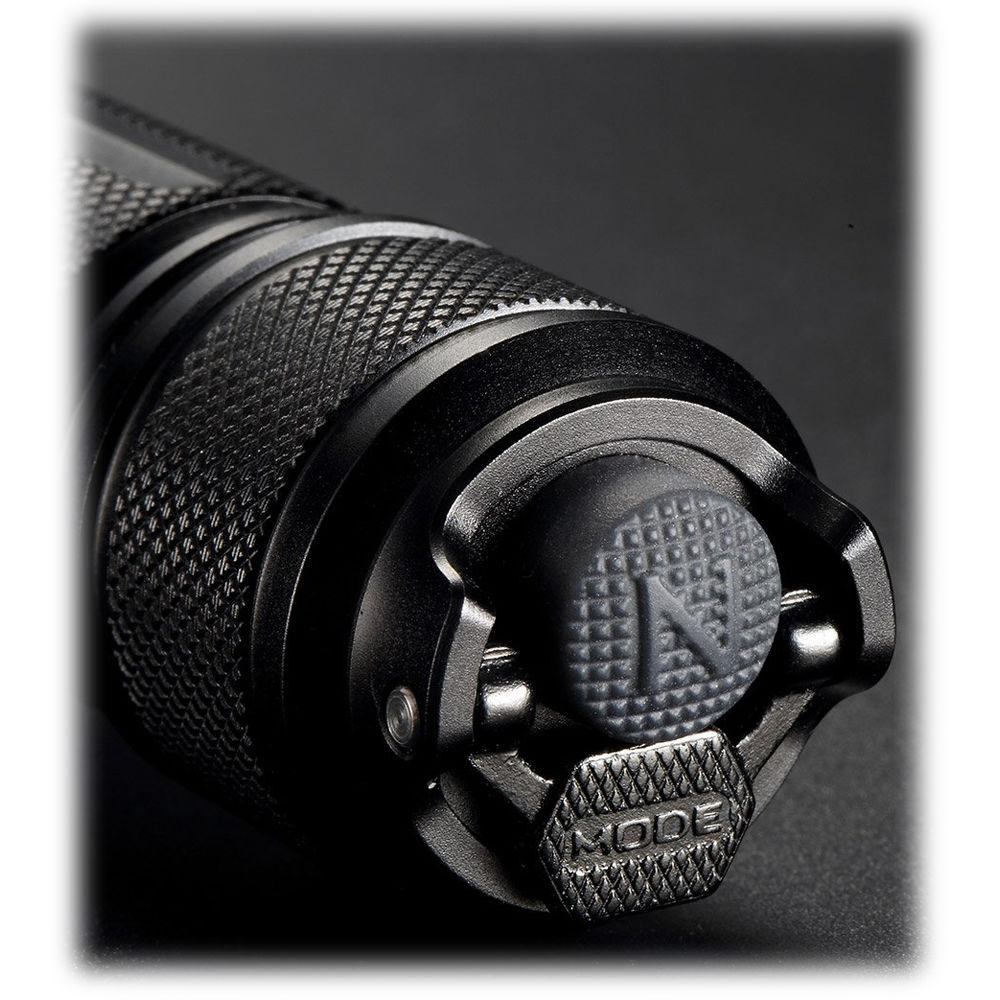

- Switching
-
- Location: Tailcap
- Type: Dual push buttons
- Large on/off button
- Smaller 'mode' button
- With light on press to cycle through outputs
- With light off, press to activate strobe or Turbo mode

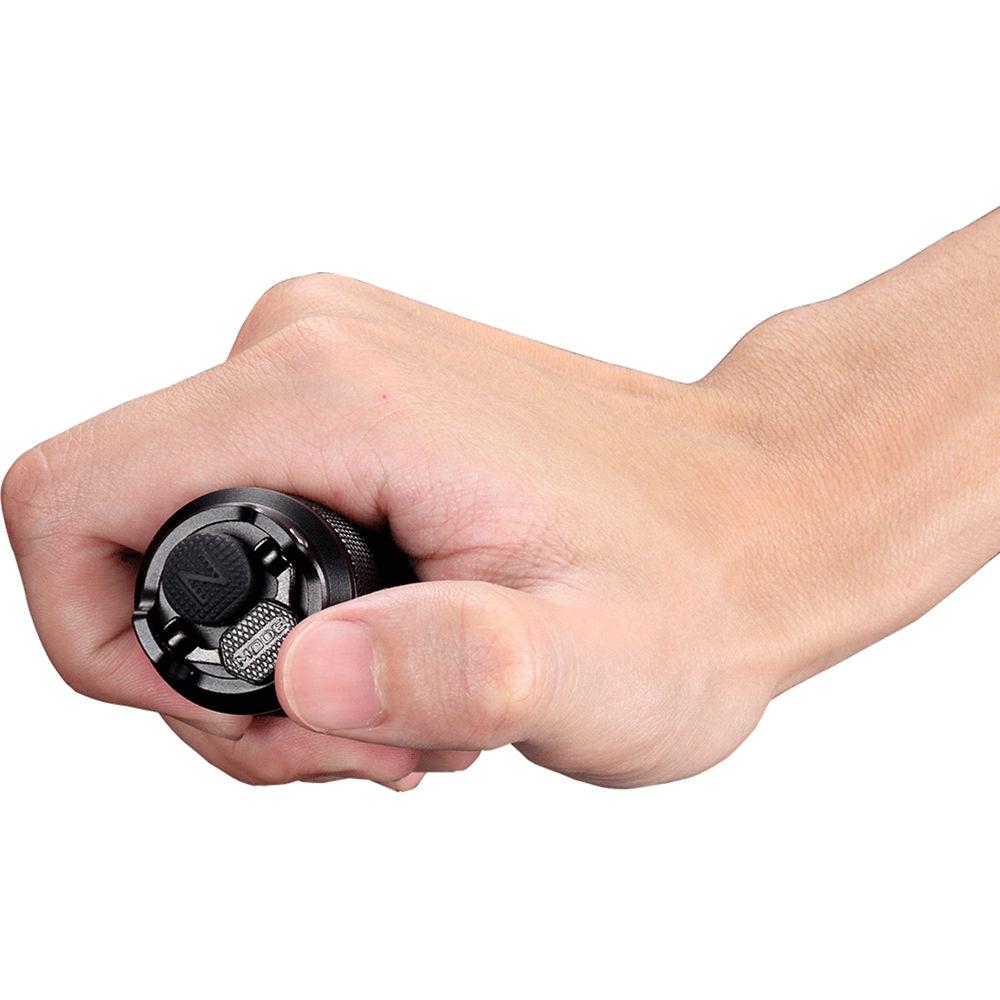

- Both buttons are accessible when using a tactical thumb-activation hold technique
- Momentary and constant-on activation
- Construction
-
- 1.6" (4.0cm) head
- Lightweight and durable aluminum alloy body
- Scratch, chemical, and corrosion-resistant type III hard anodized finish
- Stainless steel bezel ring protects head and window from drops and impacts
- Anti-reflection coated scratch-resistant tempered glass window
- IPX8-rated submersible to 6.6'
- Impact resistant
- Machined heat-dissipating fins on head provide passive overheating protection
- Electronics
-
- Runs on one purpose-built and included IMR 18650 rechargeable battery
- Nitecore recommends only using this battery due to the light's power demands
- Use of standard 18650 batteries will compromise some functions, outputs, and runtimes
- Will charge in most standard battery chargers
- Battery power indicator built into the main tailcap push button
- Overheat protection circuitry
- Monitors internal temperature to prevent damage
- At temperatures over 122°F (50°C) it automatically steps power output down to avoid damage
- When internal temperature falls below 122°F it will automatically increase intensity to the selected output
- Reverse-polarity protection prevents damage to light if batteries are installed incorrectly
In the Box Nitecore TM03 Tiny Monster LED Flashlight 18650 Rechargeable Lithium-Ion Battery for TM03 Tiny Monster LED Flashlight (3.6V, 3100mAh) O-Ring Holster Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM03 Tiny Monster LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM03 Specs | | | Lumen Output | High: 1350 Lumens
Medium: 550 Lumens
Low: 40 Lumens
Turbo: 2800 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 0.75 Hour
Medium: 2.25 Hours
Low: 30 Hours
Turbo: 0.25 Hour | | Battery Type | 1 x 18650 | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 5.0' / 1.5 m | | Bezel Diameter | 1.6" / 40.6 mm | | Dimensions |
