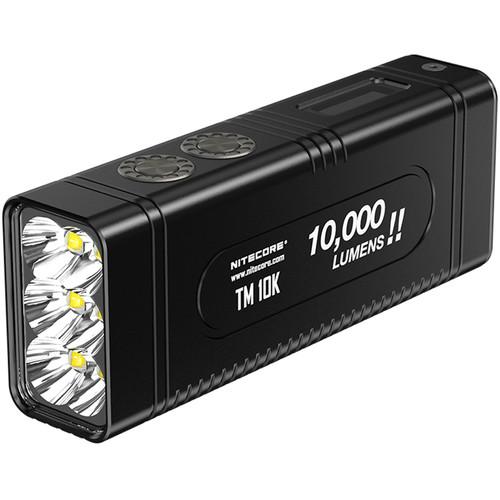

User Manual for Nitecore TM10K Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore TM10K Rechargeable LED Flashlight
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore TM10K Rechargeable LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description Compact size, high-tech features, sleek modern styling, and powerful output—the Nitecore TM10K Rechargeable LED Flashlight checks all the boxes for form and performance. Powered by a built-in 4800mAh 21700 battery, the TM10K runs six Cree XHP35 HD LEDs and is engineered to dissipate their heat via a 4mm copper printed circuit board and a die-cast unibody cooling tube. The light is operated by side push-button switches for power and mode and a tail switch for instant access to turbo. The high power setting can be customized at anywhere from 400 to 2000 lumens in 100-lumen increments.
An OLED display shows battery voltage, remaining runtime, light temperature, and turbo duration (the 10,000-lumen turbo mode is meant for burst-style use and limited to 7 seconds' runtime.) There are two lockout modes: full, for when you're tossing the light in a backpack and don't want it to activate accidentally; and half, which leaves the tail turbo switch operational for pocket or holster transport when the light might be needed quickly. A blinking blue indicator beacon on the tail helps you find the light in the dark. The TM10K measures 4.3 x 1.6 x 1.2" and weighs 8.7 ounces. - Light Performance
-
- Ultra-low: 3 lumens
- Low: 100 lumens
- Medium: 300 lumens
- High: 1000 lumens (customizable-400 to 2000 lumens)
- Turbo: 10,000 lumens (limit 7 seconds)
- Six Cree XHP35 HD LEDs
- Precision Digital Optics Technology
- Switching
-
- Dual power and mode push-button side switches
- Tail switch for instant access to turbo
- Construction Details
-
- OLED display shows lumens, voltage, runtime, temperature, battery power
- Unibody cooling tube and 4mm copper circuit board for heat management
- Advanced Temperature Regulation circuitry
- Built-in 4800mAh 21700 battery with intelligent charging circuit
- Full and partial lockout modes
- Blinking blue location beacon on tailcap
- Pocket clip
- Type III hard anodized aluminum housing
- IP68-rated water resistant, submersible to 6.6'
- Impact resistant to 3.3'
- Measures 4.3 x 1.6 x 1.2", weighs 8.7 ounces
In the Box Nitecore TM10K Rechargeable LED Flashlight Holster Lanyard USB-C Charging Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM10K Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM10K Specs | | | Lumen Output | Ultra-Low: 3 Lumens
Low: 100 Lumens
Medium: 300 Lumens
High: 1000 Lumens
Turbo: 10,000 Lumens | | Illumination Source | 6 x White LED | | Input Charging Port | USB Type-C | | | | Estimated Runtime | Ultra-Low: 200 Hours
Low: 14 Hours
Medium: 7 Hours
High: 2 Hours
Turbo: 0.1 Minute | | Battery Type | 1 x 21700 Lithium-Ion | | Internal Battery Capacity | 4800 mAh | | Output Voltage | 3.6 VDC | | Charging Time | 4 Hours | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IP68 | | Bezel Diameter | 1.6" / 4.1 cm | | Dimensions | H: 1.6 x W: 1.2 x L: 4.3" / H: 4.1 x W: 3.0 x L: 10.9 cm | | Weight | 8.7 oz / 247 g | | | | Package Weight | 1.1 lb | | Box Dimensions (LxWxH) | 6.0 x 6.0 x 5.0" |
