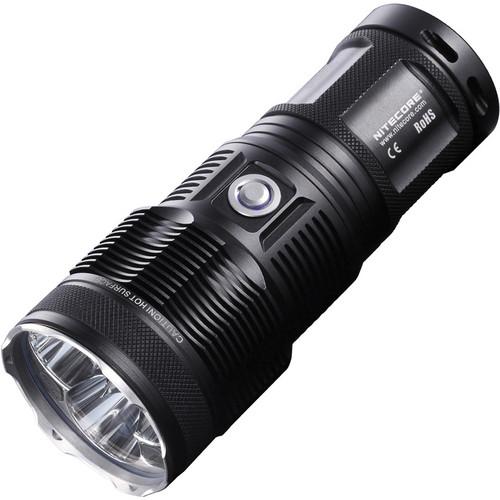

User Manual for Nitecore TM15 Tiny Monster Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore TM15 Tiny Monster Rechargeable LED
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore TM15 Tiny Monster Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description The TM15 Tiny Monster Rechargeable LED Flashlight from Nitecore has the power and features of a full-size light packed into a compact package. Its head has three Cree XM-L U2 LED emitters that drive the five output levels from 110 lumens to 2650. Its strobe can be used to temporarily disorientate or use as an emergency signal. A single, intelligent two-stage pushbutton switch controls all the output and mode functions in an easy-to-use interface. An illuminated ring around the switch blinks to give you feedback on the status of the light.The aluminum alloy housing has a hard anodized black finish to resist corrosion and scratches. The emitter lens has anti-reflective coatings on both sides to maximize light transmission, and is tempered to be resistant to breaking and scratching. This durable light is impact resistant to 5' and submersible to 6.6'. On the underside of the handle, is a 1/4"-20 adapter to mount the light onto a tripod for hands-free operation. To help prevent over-heating, hardened heat-dissipating fins cover the head.Protection circuitry also prevents over-heat damage by stepping down the output, or shutting the light off, if it gets too hot. An over-charge system cuts the charging current when the batteries are fully charged. For full functionality, the light runs on four user-supplied 18650 rechargeable, eight CR123 rechargeable, or eight CR123 disposable batteries. To add to its versatility it will also run on as few as 1 x 18650 or 2 x CR123 batteries, but at reduced performance. When using a reduced number of batteries, not all of the LEDs will activate; and running on fewer batteries is only intended for emergency situations, and is not recommended for long periods. - Light Performance
-
- Min: 110 lumens
- Low: 330 lumens
- Med: 600 lumens
- High: 1400 lumens
- Turbo: 2650 lumens
- 3 x Cree XM-L U2 LEDs
- Peak beam intensity: 54100 cd
- Maximum beam distance: 1525'
- Smooth, deep aluminum reflector optimizes available light and minimizes light loss
- Bright center cone of light with large, dimmer peripheral ring
- Strobe-mode to signal or disorientate
- Switching
-
- Location: On handle
- Type: Two-stage pushbutton
- Momentary and Constant-on modes
- Illuminated LED ring blinks for light and battery status feedback
- Click switch to activate Turbo mode
- Press switch half-way to select output level
- Click while on any output to turn off
- At any output, half-press and hold to activate turbo output, half-press again to return to previous output
- Intelligent switch remembers last output selected
- Rapid double-click to activate strobe
- Dual lock-out functions prohibit accidental activation
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Impact resistant to 5'
- IPX8 rated, waterproof and submersible to 6.6'
- Dual-sided anti-reflective coated and tempered glass emitter lens
- Crenulated stainless steel bezel protects lens against drops and impacts
- 1/4"-20 adapter to mount on tripod to use as hands-free area lighting
- Flat tailcap allows light to be stood with head facing up
- Hardened, heat-diffusion fins help prevent over-heating
- Covered charging port maintains IPX8 rating
- Electronics Details
-
- Gold-plated circuitry contacts
- Integrated power indicator on switch
- Over-charge protection prevents damage to batteries
- Over-heat circuitry steps output down to prevent damage
- Charge batteries without removing from flashlight
- Runs on four user-supplied 18650 or eight CR123 batteries
- Compatible with rechargeable and disposable batteries
- Able to run on as little as 1 x 18650 li-ion or 2 x CR123 batteries, but at reduced performance. Recommended only for short periods
In the Box Nitecore TM15 Tiny Monster Rechargeable LED Flashlight Holster Lanyard 2 x Spare O-Rings Charging Cable and Adapter Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM15 Tiny Monster Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM15 Specs | | | Lumen Output | High: 1400 Lumens
Medium: 600 Lumens
Low: 330 Lumens
Turbo: 2650 Lumens
Minimum: 110 Lumens | | Illumination Source | 3 x LED | | | | Estimated Runtime | High: 3.2 Hours
Medium: 8.3 Hours
Low: 16.5 Hours
Minimum: 52 Hours
Turbo: 1 Hour | | Battery Type | 4 x 18650 or
8 x CR123A | | Charging Time | 7 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 2.0" / 50.8 mm | | Dimensions |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 61 owners. Add your rating and experience with the product.
