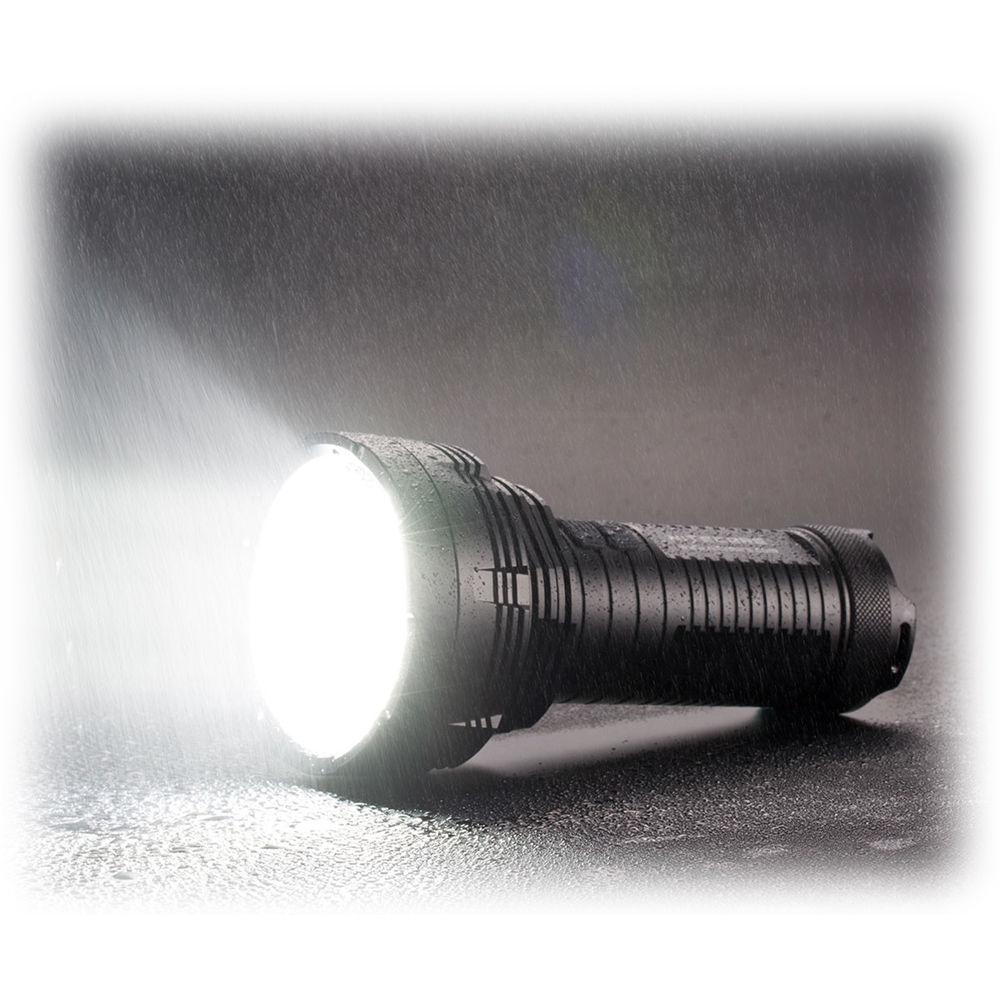

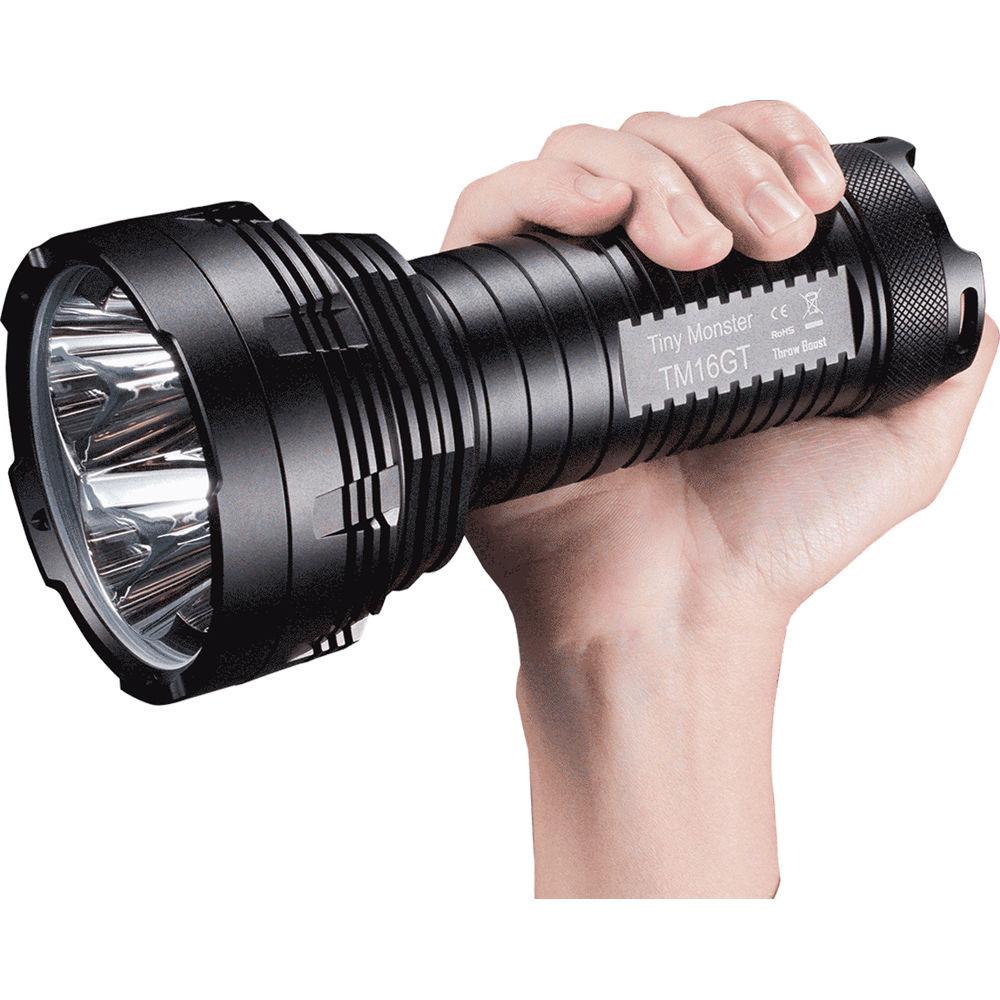

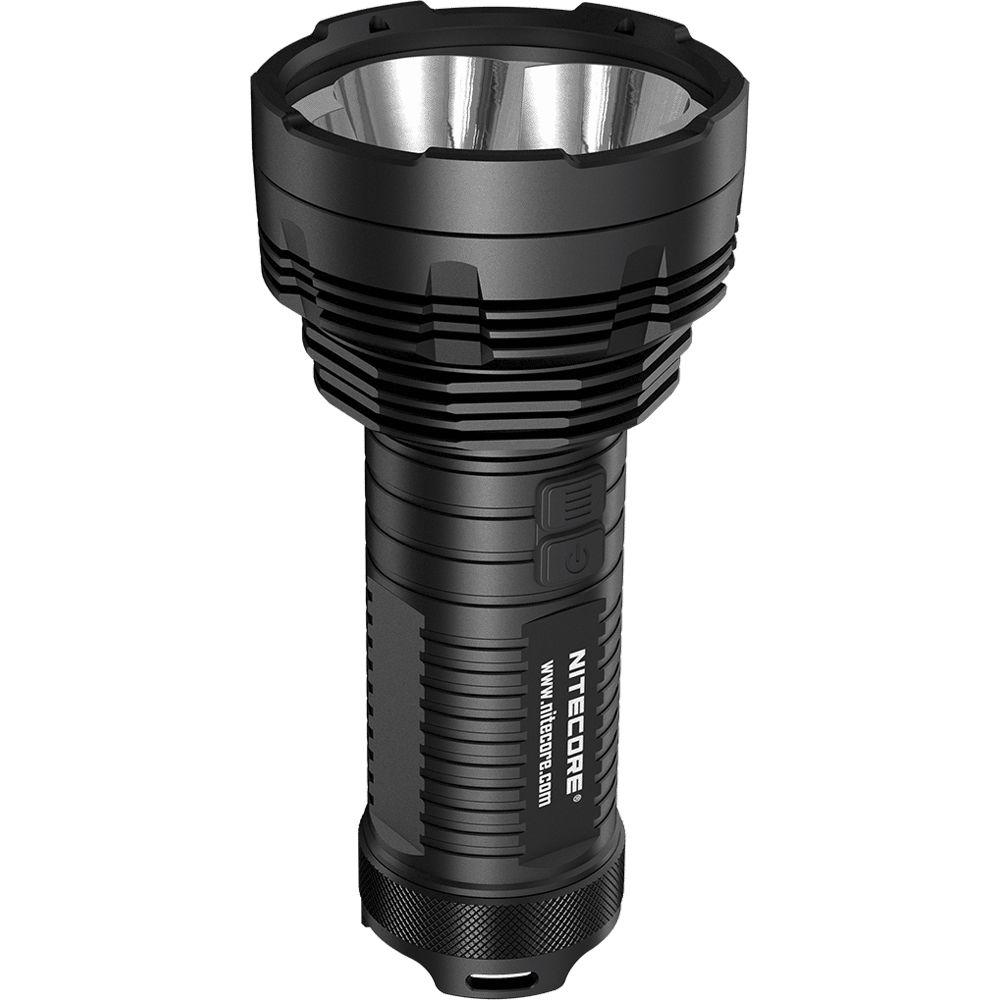

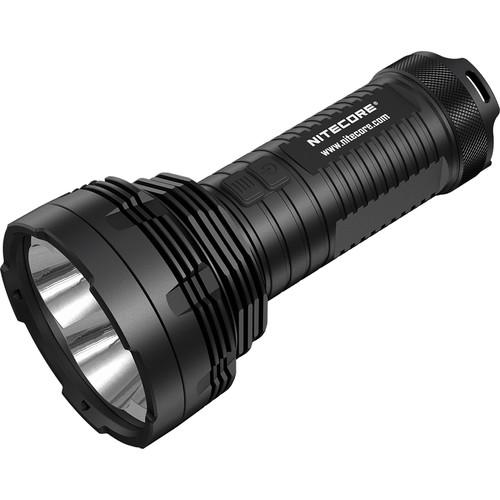

User Manual for Nitecore TM16GT Tiny Monster 3600 Lumen Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore TM16GT Tiny Monster 3600 Lumen
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
 |
User manual for the Nitecore TM16GT Tiny Monster 3600 Lumen contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description With a maximum output of 3,600 lumens and maximum runtime of 610 hours, the TM16GT Tiny Monster Flashlight by Nitecore is a versatile light suited to everything from casual use to search operations. It offers five power settings along with strobe, SOS, and location beacon modes.The TM16GT's four Cree XP-L HI V3 LEDs deliver output levels from 5 lumens on ultralow to 3,600 lumens on turbo, and the side-mounted dual On/Off and Mode switches offer instant access to both settings. The switches also serve as a battery power indicator light, eliminating guesswork about the status of the four rechargeable Lithium Ion 18650 batteries. Runtimes range from 1 hour on Turbo to 610 hours on Ultralow. The toughened emitter lens features anti-reflective coating to maximize light transmission.Advanced Temperature Regulation technology automatically reduces output to prevent overheating, and reverse polarity protection makes sure the light won't be damaged by incorrectly installed batteries. A standard 1/4"-20 tripod mount in the tailcap permits hands-free use as a stationary lamp. Housed in sturdy type III hard-anodized aluminum, the light is submersible to 6.6' and impact-resistant to 5'. - Light Performance
-
- Ultralow: 5 lumens
- Low: 210 lumens
- Med: 500 lumens
- High: 1500 lumens
- Turbo: 3600 lumens
- Strobe, SOS, & Location Beacon modes
- Runtimes: 1 hour on Turbo – 610 hours on Ultralow
- Precision Digital Optics Technology (PDOT) Reflector
- Switching
-
- Dual On/Off and Mode switch on handle
- Hold On/Off switch for 1 second for instant Ultralow setting
- Hold Mode switch for 1 second for instant Turbo setting
- Press Mode switch twice quickly for instant strobe
- Dual switch illuminates as battery power indicator
- Switch blinks every 3 seconds in Location mode
- Lock-out functions prohibit accidental activation
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Impact-resistant to 5'
- IPX8-rated, waterproof and submersible to 6.6'
- Toughened mineral glass with anti-reflective coating
- 1/4"-20 adapter to mount on tripod to use as hands-free area lighting
- Electronics Details
-
- Integrated power indicator on switch
- Over-heat circuitry steps output down to prevent damage
- Reverse polarity protection prevents damage from incorrectly installed batteries
- Runs on four user-supplied 18650 rechargeable batteries
In the Box Nitecore TM16GT Tiny Monster 3600 Lumen Flashlight Spare O-Ring Lanyard Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM16GT Tiny Monster 3600 Lumen Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM16GT Specs | | | Lumen Output | High: 1500 Lumens
Medium: 500 Lumens
Low: 210 Lumens
Turbo: 3600 Lumens
Minimum: 5 Lumens | | Illumination Source | 4 x LED | | | | Estimated Runtime | High: 3.25 Hours
Medium: 7.25 Hours
Low: 21 Hours
Turbo: 1 Hour
Minimum: 610 Hours | | Battery Type | 4 x 18650 Lithium-Ion | | | | Material of Construction | Aluminum, Plastic | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 3.5" / 8.9 cm | | Dimensions |
