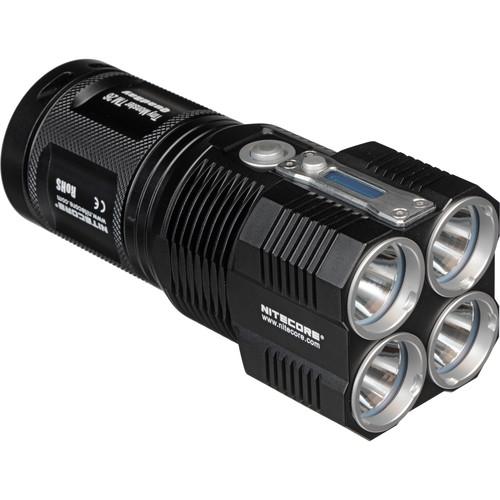

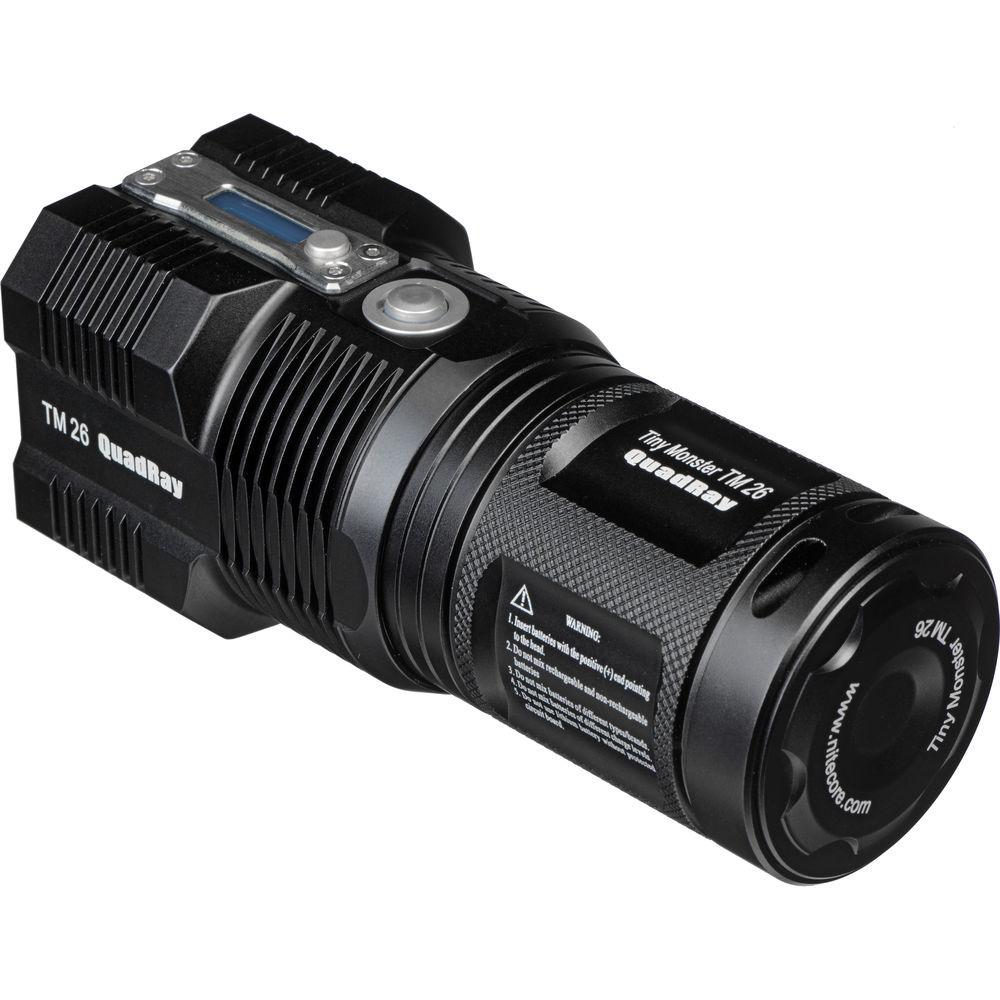

Product description The TM26 v2 Quadray Rechargeable LED Flashlight from Nitecore has the power and features of a full-size light packed into a compact form-factor. Its head has four Cree XM-L2 U3 LED emitters that drive the five output levels from 3 lumens to 4000. The low output is ideal for reading or looking in a pack, while the turbo mode is perfect for search-and-rescue or lighting a campsite. Its three-function strobe mode has a disorientating rapid strobe, a steady flashing beacon and an SOS emergency signal. To keep you apprised of the status of the light, there is an OLED display that shows lumen and output mode, voltage, battery level, remaining runtime and temperature. As you change output, the display updates accordingly. A single, intelligent two-stage pushbutton switch controls all the output and mode functions in an easy-to-use interface.The aluminum alloy housing has a hard-anodized black finish to resist corrosion and scratches. The emitter lens has anti-reflective coatings on both sides and is tempered to be resistant to breaking and scratching. This durable light is impact resistant to 5' and submersible to 6.6'. To help prevent over-heating, hardened heat-dissipating fins are machined into the head.Protection circuitry also prevents heat damage by monitoring the temperature and will automatically step-down the output or shut off the light if it gets too hot. An over-charge system cuts the charging current when the batteries are fully charged. To add to the light's versatility, it can run on disposable CR123A lithium batteries, or 18650 and CR123A li-ion rechargeable. The light will also run on as few as 1 x 18650 or 2 x CR123A batteries, but at reduced performance. Running the light with fewer batteries, is not recommended for long periods, and is only intended for emergency situations. - Light Performance
-
- Min: 3 lumen
- Low: 230 lumen
- Med: 700 lumen
- High: 1900 lumen
- Turbo: 4000 lumens
- 4 x Cree XM-L2 U3 LEDs
- Smooth PDOT aluminum reflector optimizes available light and minimizes light loss
- Bright center cone of light with large, dimmer peripheral ring
- Emergency SOS beacon automatically cycles through Morse-code sequence
- Disorientating strobe-mode
- Flashing signal beacon
- Switching
-
- Location: Handle
- Type: Two-stage pushbutton
- Momentary and constant-on modes
- Click switch to activate Turbo mode
- Press switch half-way to select output level
- Click while on any output to turn off
- At any output, half-press and hold to activate turbo output, half-press again to return to previous output
- Intelligent switch remembers last output selected
- Rapid double-click to activate strobe. While in strobe-mode, press button half-way to activate SOS, press again for signal beacon
- Dual lock-out functions prohibit accidental activation
- OLED Display
-
- Provides constant feedback on state of light
- Displays selected lumen output and intensity level
- Temperature feedback to prevent over-heating
- Provides approximate remaining runtime
- Shows charging state and voltage
- Display function button provides real-time information
- Construction Details
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type III hard-anodized finish
- Impact resistant to 5'
- IPX8 rated, waterproof and submersible to 6.6'
- Dual-sided anti-reflective coated and tempered glass emitter lens
- Stainless steel bezel protects lens against drops and impacts
- 1/4"-20 socket to mount on tripod to use as hands-free area lighting
- Flat tailcap allows light to be stood with head facing up
- Hardened, heat-diffusion fins help prevent over-heating
- Charging port cover maintains IPX8 rating
- Square anti-roll head
- Electronics Details
-
- Gold-plated circuitry contacts
- Integrated power indicator on switch
- Voltage detection system optimizes charge time
- Over-charge protection prevents damage to batteries
- Over-heat circuitry steps output down to prevent damage
- Charging port: Charge batteries without removing from flashlight
- Compatible with li-ion rechargeable and lithium disposable batteries
- Able to run on as little as 1 x 18650 li-ion or 2 x CR123A lithium batteries, but at reduced performance. Recommended only for short periods

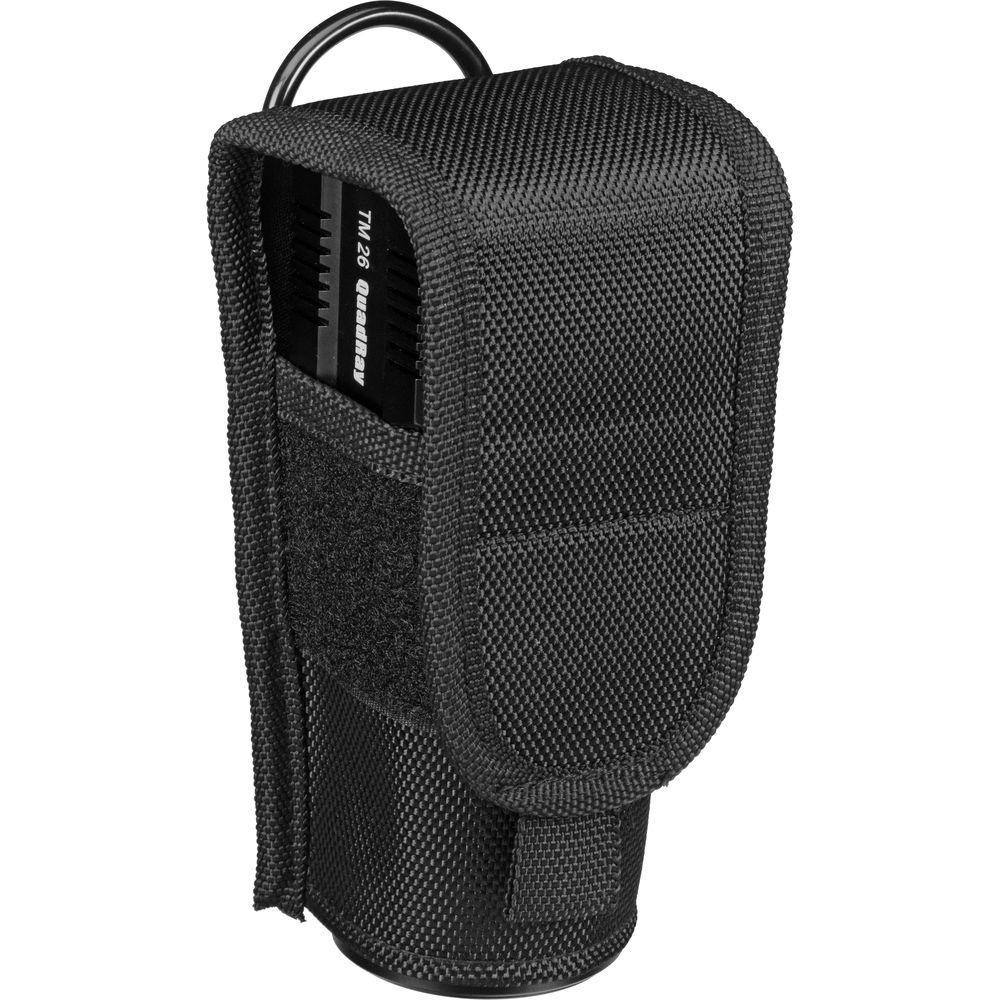

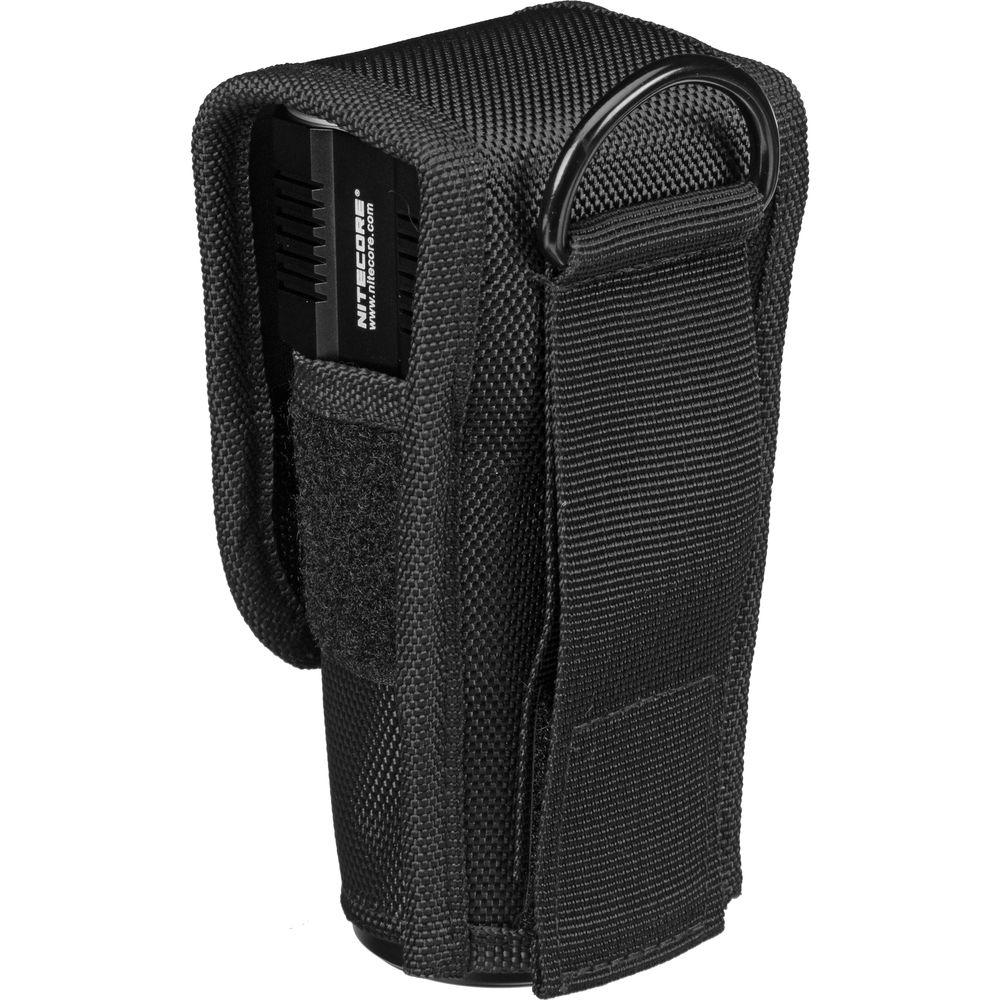

In the Box Nitecore TM26 v2 Quadray Rechargeable LED Flashlight - Holster
- Lanyard
- Spare O-Ring
- Charging Adapter & Cable
- Spare Charging-Port Cover
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM26 v2 Quadray Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM26 Specs | | | Lumen Output | High: 1900 Lumens
Medium: 700 Lumens
Low: 230 Lumens
Turbo: 4000 Lumens
Minimum: 3 Lumens | | Illumination Source | 4 x LED | | | | Estimated Runtime | High: 2.5 Hours
Medium: 8.25 Hours
Low: 48 Hours
Minimum: 1000 Hours
Turbo: 0.75 Hour | | Battery Type | 4 x 18650 Lithium-Ion or
8 x CR123A Lithium | | Charging Time | 7 Hours | | | | Material of Construction | Aluminum, Stainless Steel | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 2.2" / 55.9 mm | | Dimensions |
