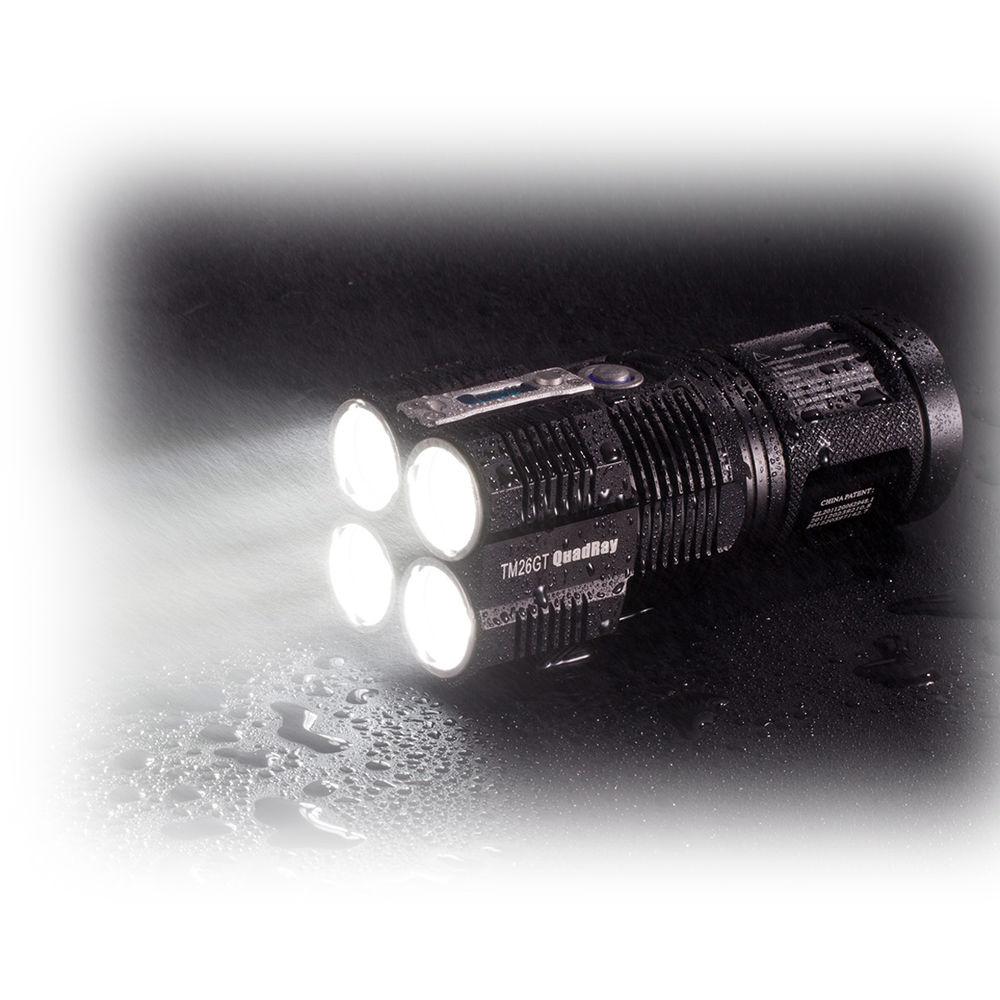

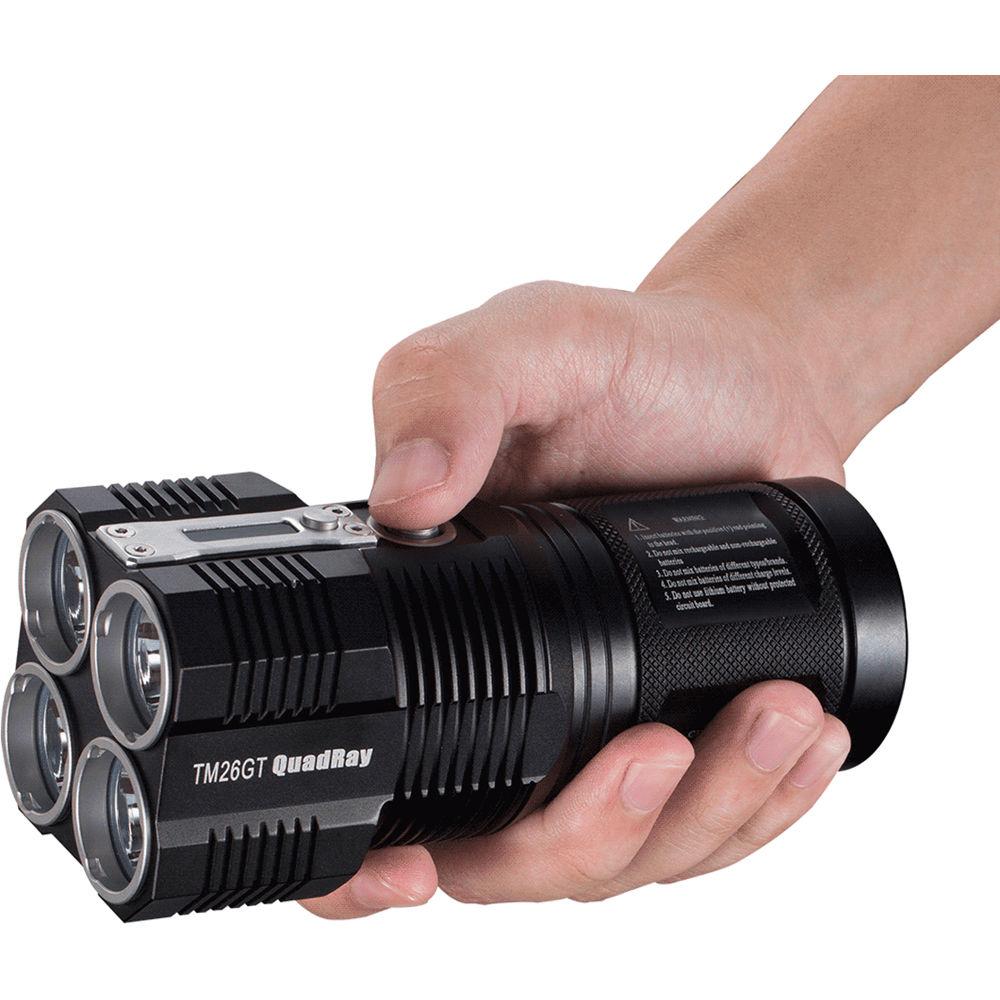

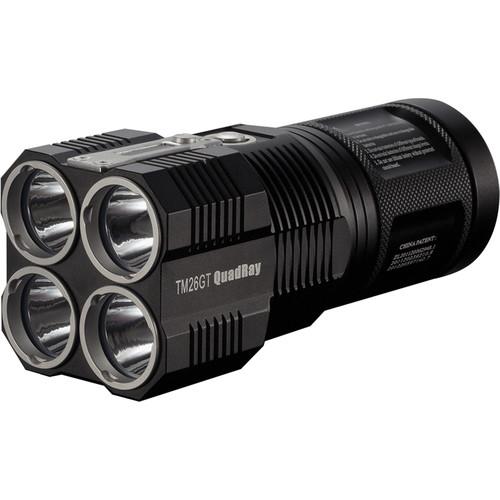

Product description Nitecore's updated "Tiny Monster" TM26GT Quadray Rechargeable LED Flashlight lives up to it's reputation with the power and features of a full-size search light packed into a compact package. This updated version employs more energy efficient LEDs to provide better runtimes over the previous TM26 v2, with slightly different outputs. Its head has four Cree XP-L HI V3 LED emitters that drive the five output levels from 3 lumens to 3500. The low output is ideal for reading or looking in a pack, while the turbo mode is made for search-and-rescue operations or lighting an entire campsite. Its three-function strobe-mode has a disorientating rapid strobe, a steady flashing location beacon and an SOS emergency signal. To keep you apprised of the status of the light, there is an OLED display that shows lumen and output mode, voltage, battery level, remaining runtime and temperature. As you change output, the display updates accordingly. A single, intelligent two-stage pushbutton switch controls all the output and mode functions in an easy-to-use interface.Designed to withstand a life lived outdoors, the aluminum alloy housing has a hard-anodized black finish to resist corrosion and scratches. The emitter lens has anti-reflective coatings on both sides and is tempered to be resistant to breaking and scratching. This durable light is impact-resistant to 5 feet and submersible to 6.6 feet. To help prevent over-heating, hardened heat-dissipating fins are machined into the head. Protection circuitry also prevents heat damage by monitoring the temperature and will automatically step-down the output or shut off the light if it gets too hot, and an over-charge system cuts the charging current when the batteries are fully charged. To add to the light's versatility, it can run on disposable CR123A lithium batteries, or 18650 and CR123A Li-ion rechargeable. The light will also run on as few as 1 x 18650 or 2 x CR123A batteries, but at reduced performance. Running the light with fewer batteries is not recommended for long periods, and is only intended for emergency situations. - Light Performance
-
- Min: 3 lumen
- Low: 95 lumen
- Med: 540 lumen
- High: 1700 lumen
- Turbo: 3500 lumens

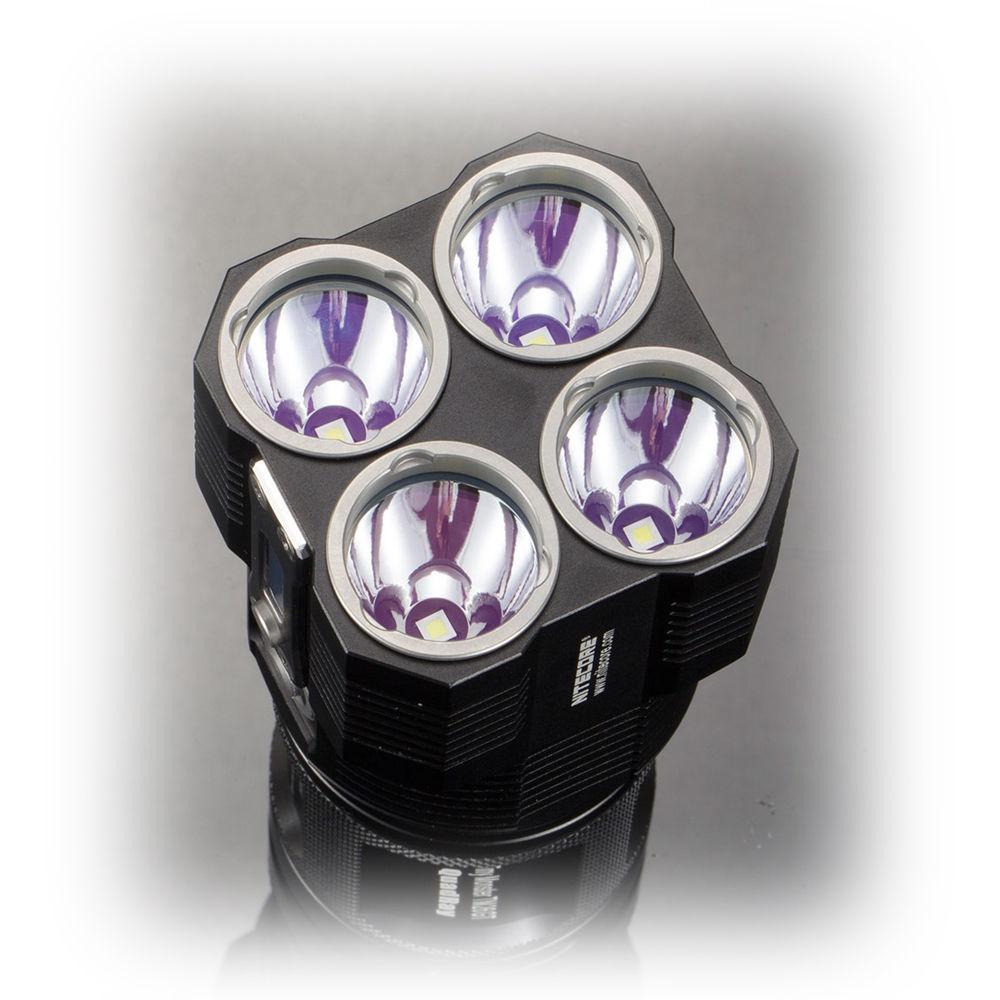

- Four Cree XP-L HI V3 LEDs
- Smooth aluminum reflector produces a bright center cone of light with large, dimmer peripheral ring
- Emergency SOS beacon automatically cycles through Morse code sequence
- Disorientating strobe-mode
- Flashing signal beacon
- Switching
-
- Location: Handle
- Type: Two-stage pushbutton
- Momentary and constant-on modes
- Instant access to Turbo mode
- Intelligent switch remembers last output selected
- Dual lock-out functions prohibit accidental activation
- Standby mode:
- Maintains last-mode-memory for prolonged time periods
- Power button dimly blinks to help find the light in the dark
- Two usage modes with access to different outputs:
- Daily mode: Cycle between Min / Low / Med / High
- Search mode: Cycle between High/Turbo for maximum light output. Last mode memory not available in this mode
- OLED Display
-
- Provides constant feedback on state of light
- Display function button provides real-time information
- Displays selected lumen output and intensity level
- Internal temperature to help prevent over-heating
- Provides approximate remaining runtime
- Shows battery charging state and voltage
- Construction Details
-
- Lightweight and durable aluminum alloy housing
- Corrosion and scratch-resistant type III hard-anodized finish
- Impact-resistant to 5'
- IPX8-rated, waterproof and submersible to 6.6'
- Dual-sided anti-reflective coated and tempered glass emitter lens
- Stainless steel bezel protects lens against drops and impacts
- 1/4"-20 socket to mount on tripod to use as hands-free area lighting
- Flat tailcap allows light to be stood with head facing up
- Hardened, heat-diffusion fins help prevent over-heating
- Charging port cover maintains IPX8 rating
- Simplified battery compartment minimizes handle diameter for more comfortable handling
- Square anti-roll head
- Electronics Details
-
- Four independent driving circuits monitor dedicated battery terminals and optimize performance for each one
- Gold-plated circuitry contacts
- Integrated power indicator on switch
- Automatic voltage detection system optimizes charge time
- Over-charge protection prevents damage to batteries
- Over-heat circuitry steps output down to prevent damage
- Charging port: Charge batteries without removing from flashlight
- Compatible with Li-ion rechargeable and lithium disposable batteries
- Able to run on as little as 1 x 18650 Li-ion or 2 x CR123A lithium batteries, but at reduced performance. Recommended only for short periods
In the Box Nitecore TM26GT Quadray Rechargeable LED Flashlight Holster Lanyard Spare O-Ring Charging Adapter & Cable Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM26GT Quadray Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM26GT Specs | | | Lumen Output | High: 1700 Lumens
Medium: 540 Lumens
Low: 95 Lumens
Turbo: 3500 Lumens
Minimum: 3 Lumens | | Illumination Source | 4 x LED | | | | Estimated Runtime | 18650
High: 3.25 Hours
Medium: 9.75 Hours
Low: 48 Hours
Turbo: 1.25 Hours
Minimum: 1000 Hours | | Battery Type | 4 x 18650 Lithium-Ion or
8 x CR123A Lithium | | Charging Time | 7 Hours | | | | Material of Construction | Aluminum, Stainless Steel | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Impact Resistance | Yes, 4.9' / 1.5 m | | Bezel Diameter | 2.7" / 6.8 cm | | Dimensions |
