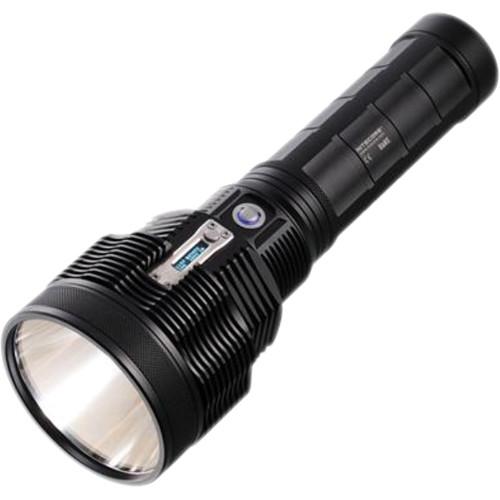

User Manual for Nitecore TM36 Tiny Monster Rechargeable LED Flashlight Click to enlarge the picture
Contents of the user manual for the Nitecore TM36 Tiny Monster Rechargeable LED
- Product category: Handheld Flashlights Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Handheld Flashlights
|
User manual for the Nitecore TM36 Tiny Monster Rechargeable LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description The TM36 Tiny Monster Rechargeable LED Flashlight from Nitecore has the power and features of a full-size light packed into a compact package. Its head features the LUMINUS SBT-70 LED emitter that drives the eight modes and output levels from 50 to 1800 lumens. A single, intelligent two-stage pushbutton switch controls all the output and mode functions in an easy-to-use interface. An illuminated ring around the switch blinks to give you feedback on the status of the light. An integrated multi-function OLED displays output, mode, voltage, temperature, runtime and battery status.The aluminum alloy housing has a hard anodized black finish to resist corrosion and scratches. The emitter lens has anti-reflective coatings on both sides to maximize light transmission, and is tempered to be resistant to breaking and scratching. This durable light is impact resistant to 5' and submersible to 6.6'. On the underside of the handle is a thread to mount the light onto a tripod for hands-free operation. To help prevent over-heating, hardened heat-dissipating fins cover the head.Protection circuitry also prevents over-heat damage by stepping down the output, or shutting the light off, if it gets too hot. An over-charge system cuts the charging current when the battery is fully charged. The included high capacity NBP52 Li-ion rechargeable battery pack serves as the light's handle, prolongs runtime and optimizes cooling performance. It provides two charging ports and offers the equivalent of eight 18650 batteries. - Light Performance
-
- Min: 50 lumens
- Low: 200 lumens
- Med: 400 lumens
- High: 800 lumens
- Turbo: 1800 lumens
- Eight brightness levels and modes
- LUMINUS SBT-70 LED
- Peak beam intensity: 310000 cd
- Maximum beam distance: 3609'
- Precision Digital Optics Technology (PDOT) Reflector
- Switching
-
- Location: On handle
- Type: Single button two-stage
- Momentary and Constant-on modes
- Illuminated LED ring blinks for light and battery status feedback
- Click switch to activate Turbo mode
- Press switch half-way to select Daily mode
- Click while on any output to turn off
- Intelligent switch remembers last output selected
- Lock-out functions prohibit accidental activation
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Impact resistant to 5'
- IPX8 rated, waterproof and submersible to 6.6'
- Dual-sided anti-reflective coated and tempered glass emitter lens
- Tripod mount for use as hands-free area lighting
- Flat tailcap allows light to be stood with head facing up
- Hardened, heat-diffusion fins help prevent over-heating
- Covered charging port maintains IPX8 rating
- Electronics Details
-
- Includes NBP52 rechargeable battery pack that screws into head and doubles as light's handle
- Two charging ports
- Over-charge protection prevents damage to batteries
- Over-heat circuitry steps output down to prevent damage
- Charge battery without removing from flashlight
- NBP52 is equivalent to 8x 18650 batteries
In the Box Nitecore TM36 Tiny Monster Rechargeable LED Flashlight Standard Charger Adapter Shoulder Sling Spare O-Ring Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM36 Tiny Monster Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore TM36 Specs | | | Lumen Output | High: 800 Lumens
Medium: 400 Lumens
Low: 200 Lumens
Turbo: 1800 Lumens
Minimum: 50 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | High: 5.5 Hours
Medium: 11 Hours
Low: 21 Hours
Minimum: 67 Hours
Turbo: 1.75 Hour | | Battery Type | 1 x NBP52 | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 3.5" / 9.0 cm | | Dimensions |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 82 owners. Add your rating and experience with the product.
