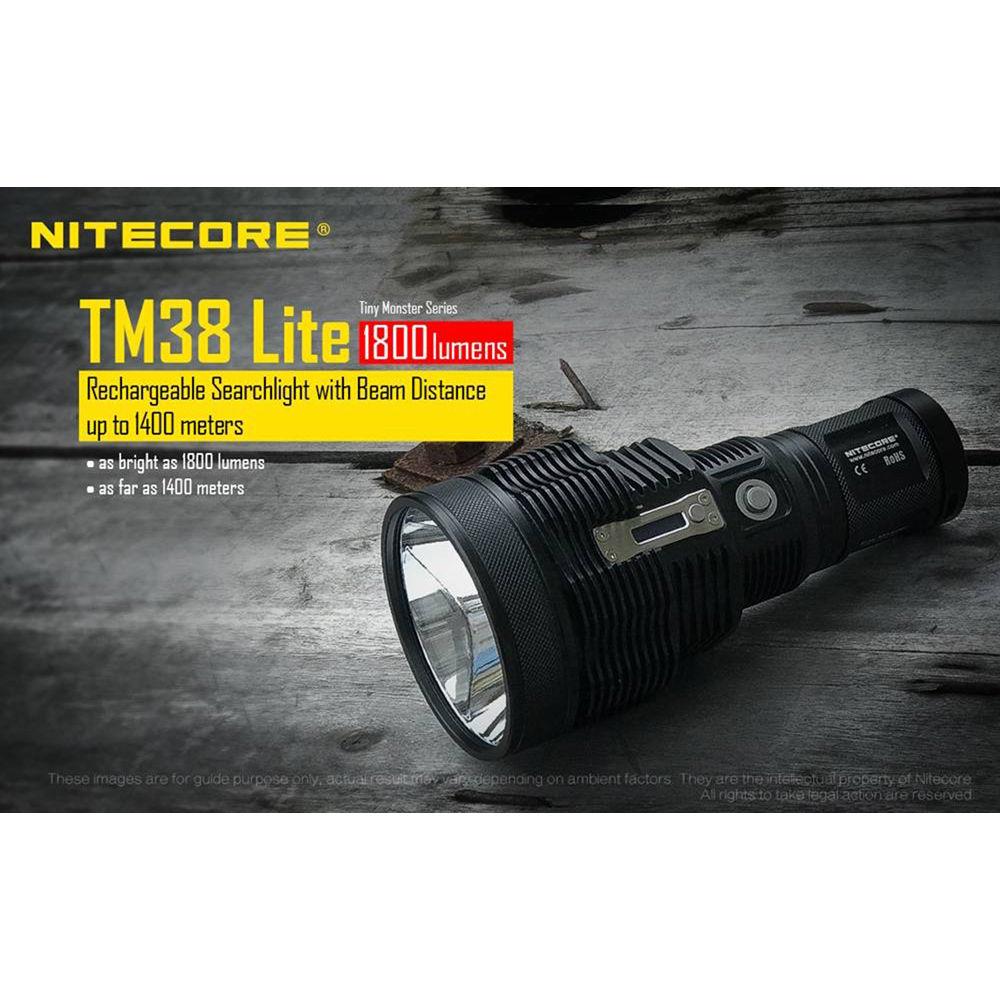

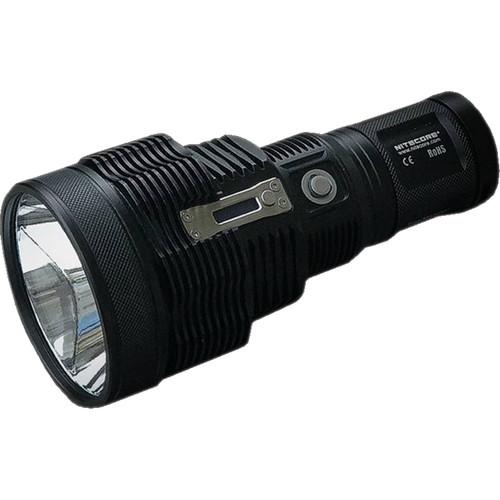

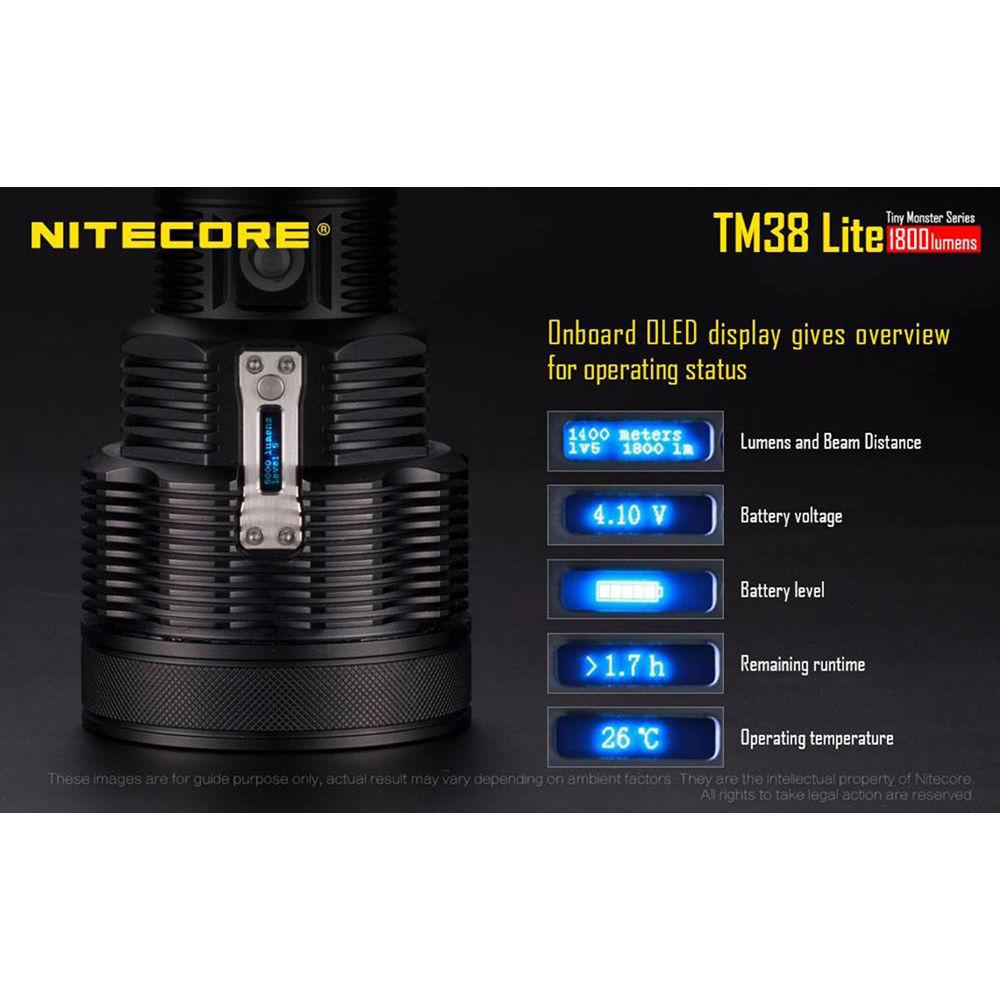

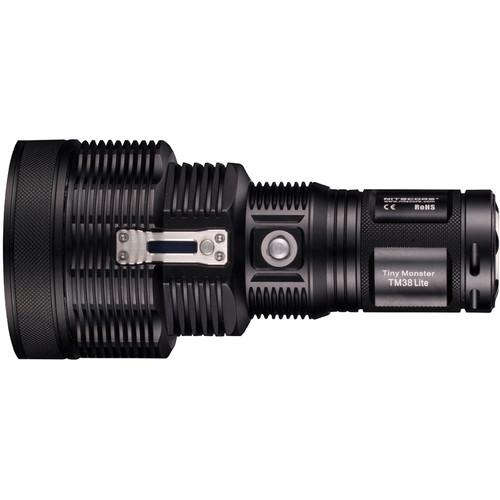

Product description The TM38 Lite Rechargeable LED Searchlight from Nitecore is a powerful torch with five brightness settings and a long throw, suited to public safety, military, industrial, recreational, and home use. Mount it on a tripod, and it becomes an area light for a campsite, barbecue, or after-dark tasks. It is equipped with a Cree XHP35 HI D4 LED, which drives output settings from 50 to 1800 lumens, and is controlled by a single, intelligent two-stage push-button switch in an easy-to-use interface. The light's four 18650 batteries will provide runtimes from 2 to 60 hours, depending on output level. An illuminated ring around the switch blinks to give you feedback on the status of the light. An integrated multi-function OLED displays output, mode, voltage, temperature, runtime, and battery status. The aluminum alloy housing has a hard anodized black finish to resist corrosion and scratches. The emitter lens has anti-reflective coatings to maximize light transmission, and is tempered to be resistant to breaking and scratching. This durable light is impact-resistant to 5' and submersible to 6.6'. A light this powerful can get hot, so its housing incorporates a substantial amount of heat-dissipating fin surface. In turbo mode, the TM38 Lite will automatically reduce output when the light reaches a temperature of 140°F (60°C). An intelligent charging system cuts off the power when the battery is fully charged. - Light Performance
-
- Min: 50 lumens
- Low: 200 lumens
- Med: 400 lumens
- High: 800 lumens
- Turbo: 1800 lumens
- Cree XHP35 HI D4 LED
- Strobe, SOS & beacon modes
- Precision Digital Optics Technology (PDOT) Reflector
- Switching
-
- Location: On handle
- Type: Single two-stage push-button
- Momentary and constant-on modes
- Search mode offers direct access to turbo setting
- Illuminated LED ring blinks for light and battery status feedback
- Intelligent switch remembers last output selected
- Lock-out function prevents accidental activation
- Construction Details
-
- Aluminum alloy housing
- Type III hard-anodized finish
- Impact resistant to 5'

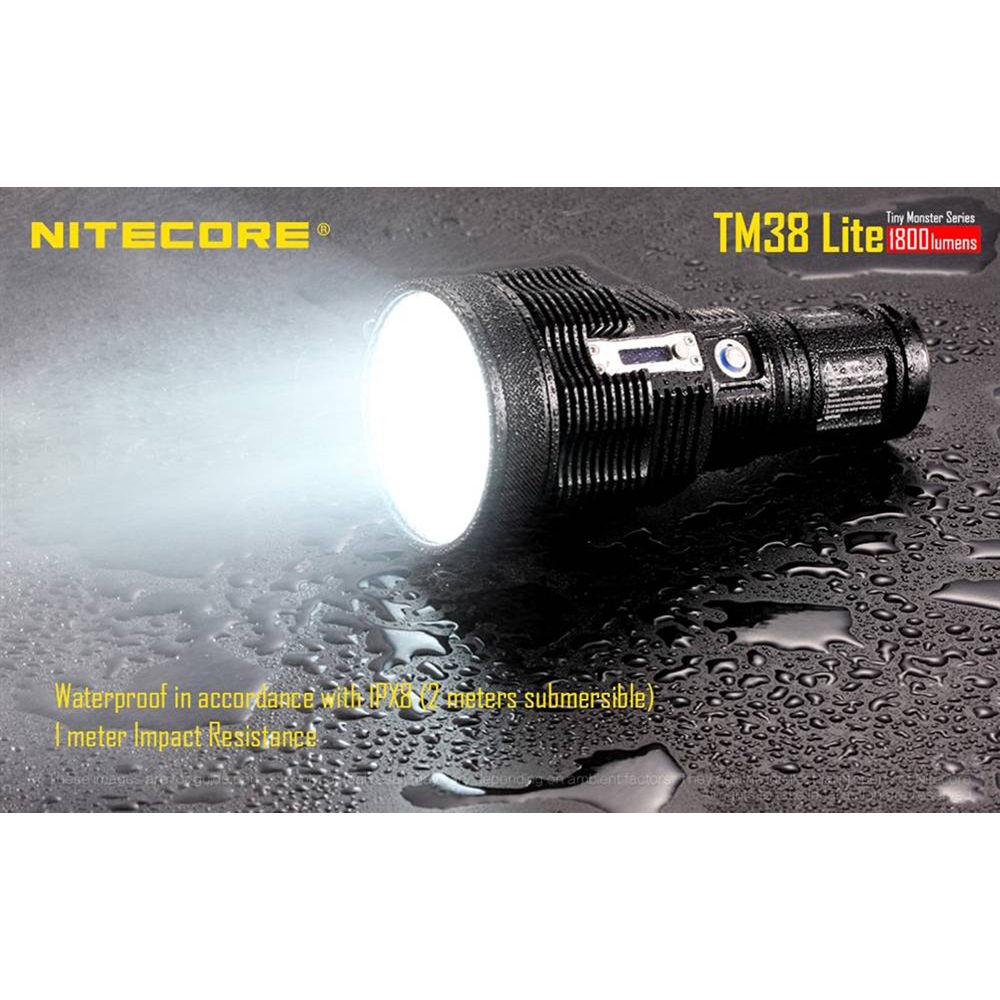

- IPX8-rated, waterproof and submersible to 6.6'
- Dual-sided anti-reflective coated and tempered glass emitter lens
- Tripod mount for use as hands-free area lighting
- Flat tailcap allows light to be stood with head facing up
- Hardened, heat-diffusion fins help prevent overheating
- Covered charging port maintains IPX8 rating
- Electronics Details
-

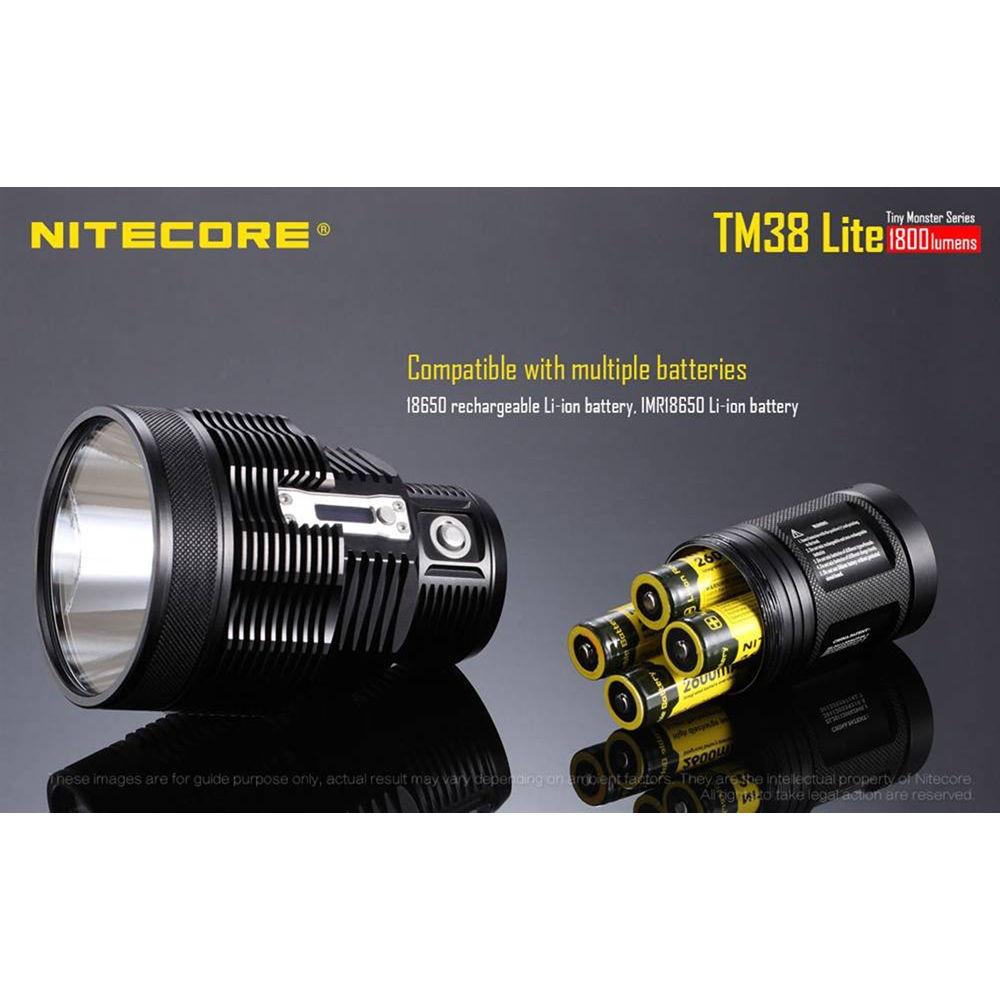

- Runs on four high-performance 18650 rechargeable batteries
- Overcharge protection prevents damage to batteries
- Overheat circuitry steps output down to prevent damage
- Charge battery without removing from flashlight
In the Box Nitecore TM38 Lite Rechargeable LED Searchlight Standard Charger Adapter Shoulder Sling Spare O-Ring Spare Charging Port Cover Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore TM38 Lite Rechargeable LED Searchlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

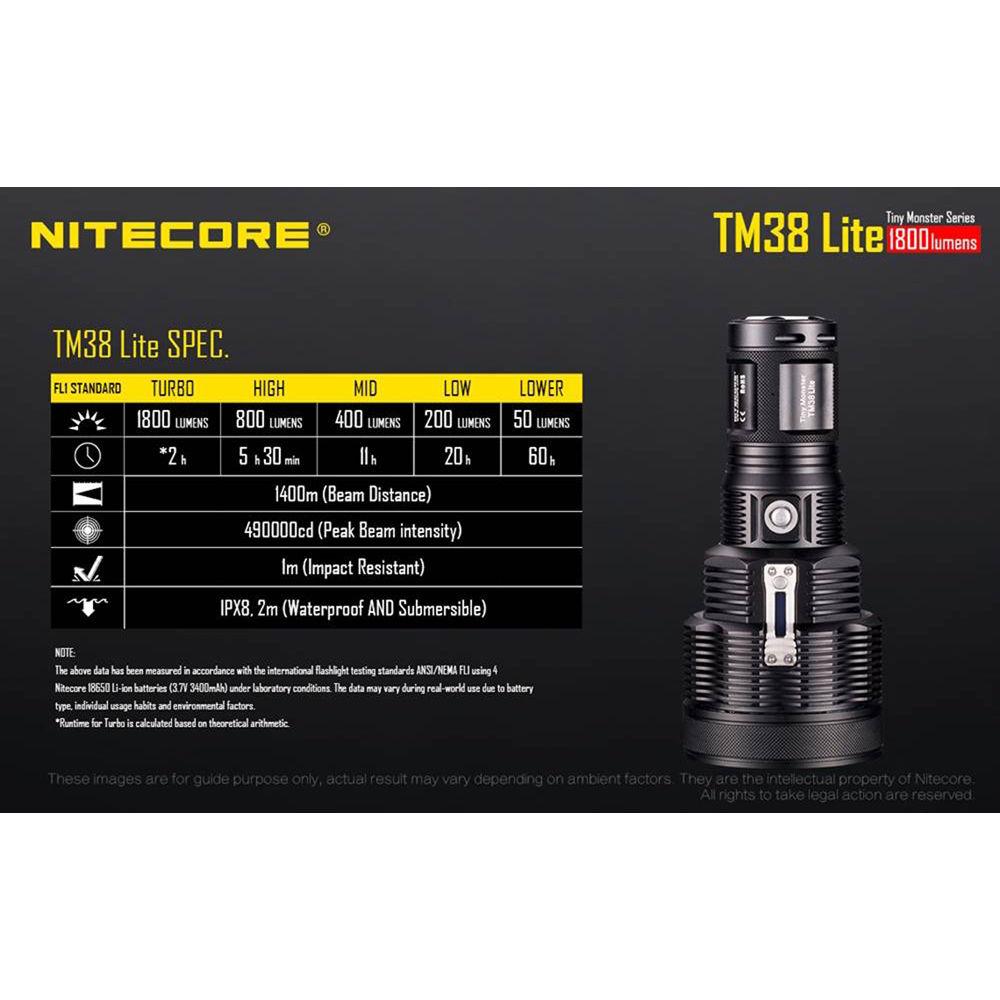

Technical parametersNitecore TM38 LITE Specs | | | Lumen Output | High: 800 Lumens
Medium: 400 Lumens
Low: 200 Lumens
Turbo: 1800 Lumens
Minimum: 50 Lumens | | Illumination Source | 1 x LED | | | | Estimated Runtime | Minimum: 60 Hours
Low: 20 Hours
Medium: 11 Hours
High: 5.5 Hours
Turbo: 2 Hours | | | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 6.6' / 2 m, IPX8 | | Bezel Diameter | 3.5" / 8.9 cm | | Dimensions | L: 7.7" / L: 19.5 cm | | Weight | 27.5 oz / 0.8 kg | | | | Package Weight | 2.75 lb | | Box Dimensions (LxWxH) | 12.7 x 7.1 x 4.6" |
