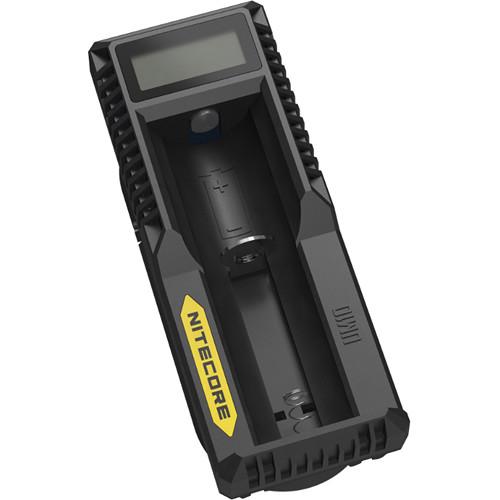

User Manual for Nitecore UM10 Battery Charging System Click to enlarge the picture
Contents of the user manual for the Nitecore UM10 Battery Charging System
- Product category: Universal Batteries & Chargers Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Universal Batteries & Chargers
|
User manual for the Nitecore UM10 Battery Charging System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|
Product description The single-bay UM10 USB Management and Lithium-Ion Battery Charging System from Nitecore is a versatile USB-powered charger for lithium-ion and IMR batteries. An intelligent power management system automatically detects the input power, evenly distributes charging power, and selects the appropriate charging current based on the battery installed in the bay. Besides charging batteries, this charger also provides output power from a standard USB port, enables data transfer throughput via the USB and micro-USB ports, and features an integrated USB cable winder. An integrated LCD screen clearly displays the charging status, battery power level, and output selection. Reverse polarity and over-charge protection prevents damage to the battery if it's installed incorrectly or left in the charger after charging is complete. - Charging
-
- Spring-loaded slider accepts different battery sizes and ensures a secure connection
- When full current is available, it will simultaneously charge battery and USB device
- When full current is not available, user can choose Battery or USB Priority modes
- Battery Priority: Battery is charge completely then switches to charge the device plugged into the USB port
- USB Priority: When device plugged into USB port is fully charged, it will switch and charge the battery second
- Selectable according to user preference
- Charging programs
- Detects battery and current status
- Automatically selects "constant current" or "constant voltage" depending on battery requirements
- Switches to "trickle charge" when battery is full to maintain a full charge
- Over-charge protection cut current to prevent damage to battery
- Functionality
-
- Allows data transfer from external USB device to computer using the standard and micro-USB ports
- Reverse polarity protection: Stops charging process if battery is installed incorrectly
- LED screen displays battery power level and charging status
- Lithium-Ion/IMR Battery Compatibility
-
- 18650
- 18490
- 18350
- 17670
- 17500
- 16340 (RCR123)
- 14500
- 10440
In the Box Nitecore UM10 Battery Charging System - USB Cable
- Limited Lifetime Warranty
User Manual PDF 454.5kbsuwauszff Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore UM10 Battery Charging System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore UM10 Specs | | | Charging Bays | 1 x 17670, 16340, 17335, 26650, 17500, 18650, 18490, 10440, 14500 | | Charging Voltage | 4.2 VDC
5.0 VDC | | Charging Amperage | 500 to 1000 mA | | DC Input Power | 5 VDC | | Charger Dimensions | 3.9 x 1.5 x 1.4" / 100.00 x 38.00 x 35.00 mm | | Charger Weight | 2.0 oz / 57 g | | | | Certifications | CEC, RoHS, as per Manufacturer | | | | Package Weight | 0.215 lb | | Box Dimensions (LxWxH) | 6.75 x 3.6 x 1.4" |
