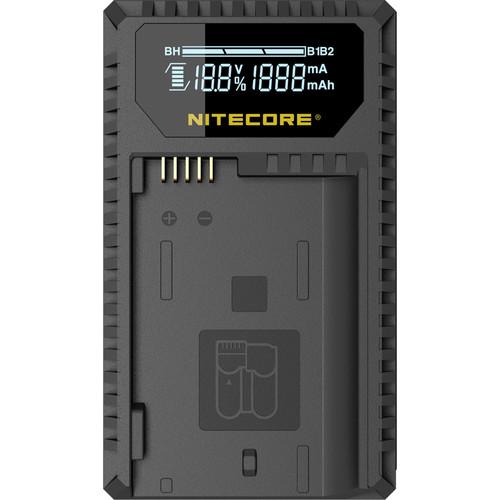

User Manual for Nitecore UNK1 Dual-Slot USB Travel Charger for Nikon EN-EL14, EN-EL14a, and EN-EL15 Lithium-Ion Batteries Click to enlarge the picture
Contents of the user manual for the Nitecore UNK1 Dual-Slot USB Travel Charger
- Product category: Batteries & Power Accessories Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Batteries & Power Accessories
 |
User manual for the Nitecore UNK1 Dual-Slot USB Travel Charger contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

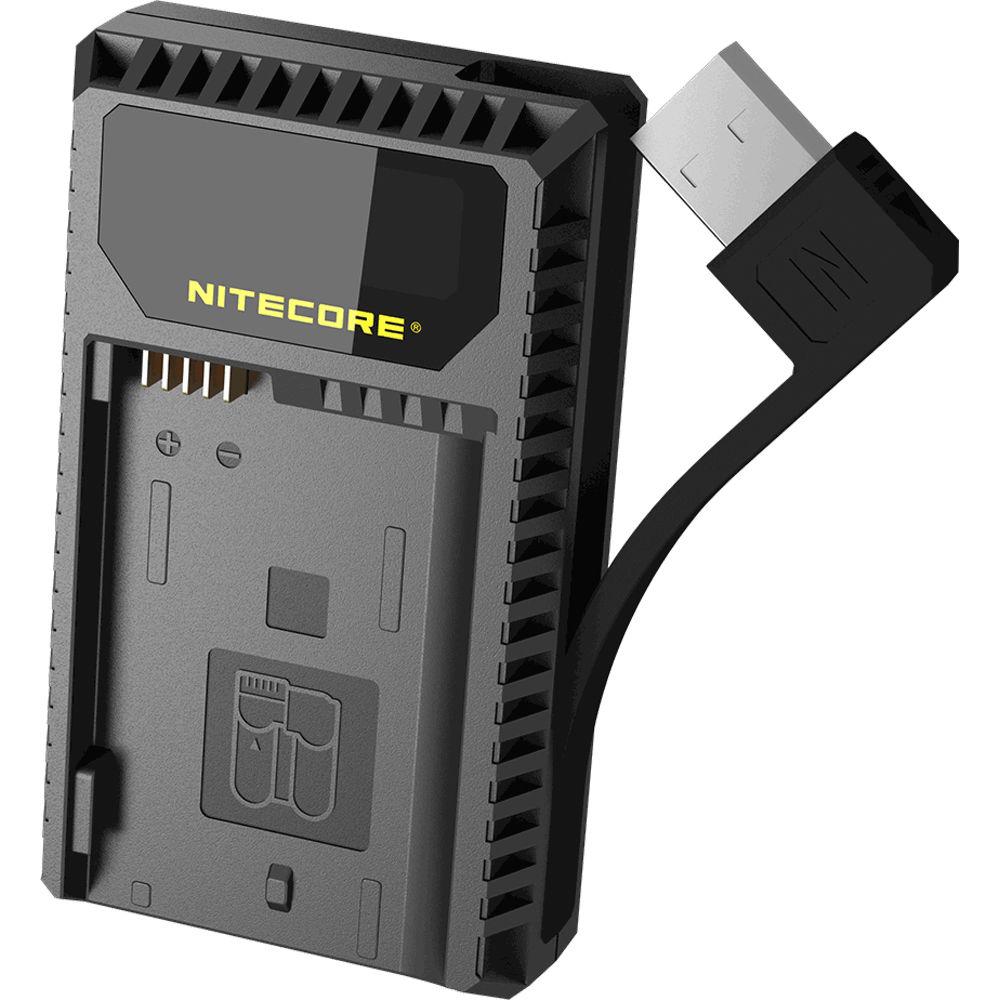

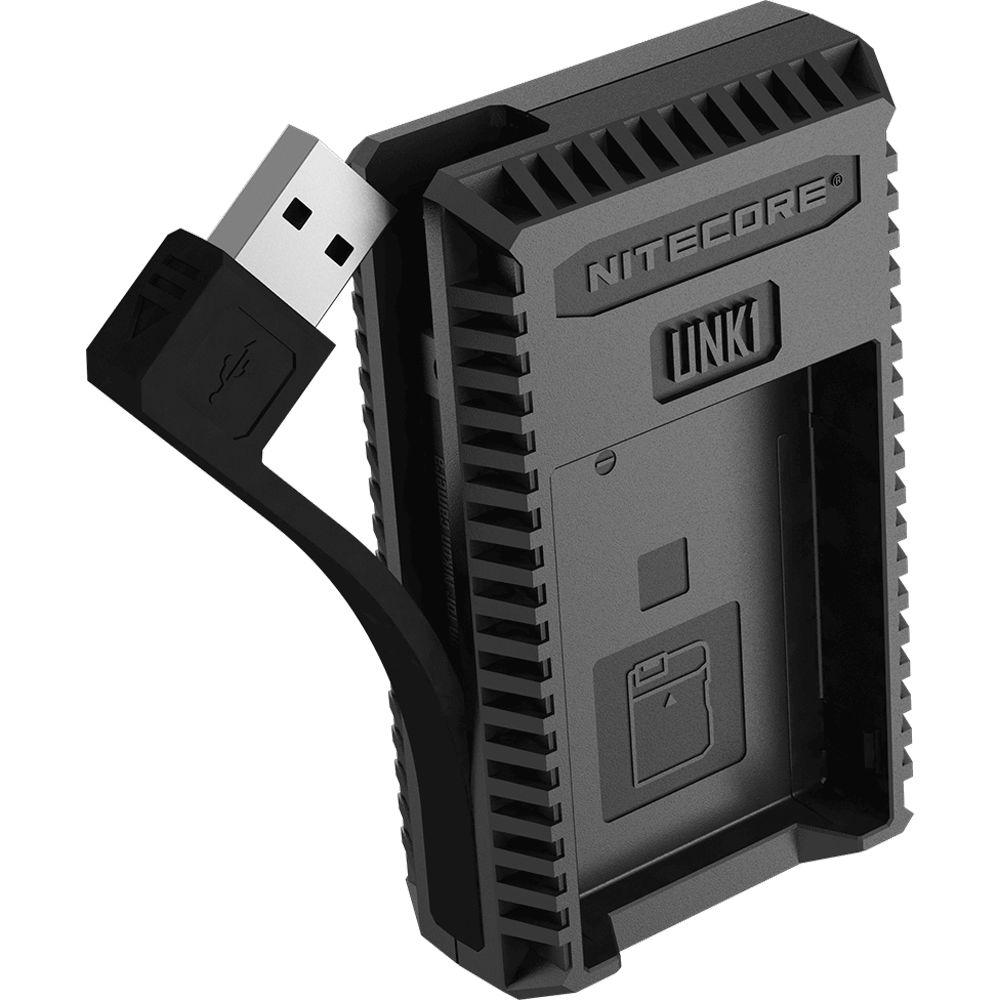

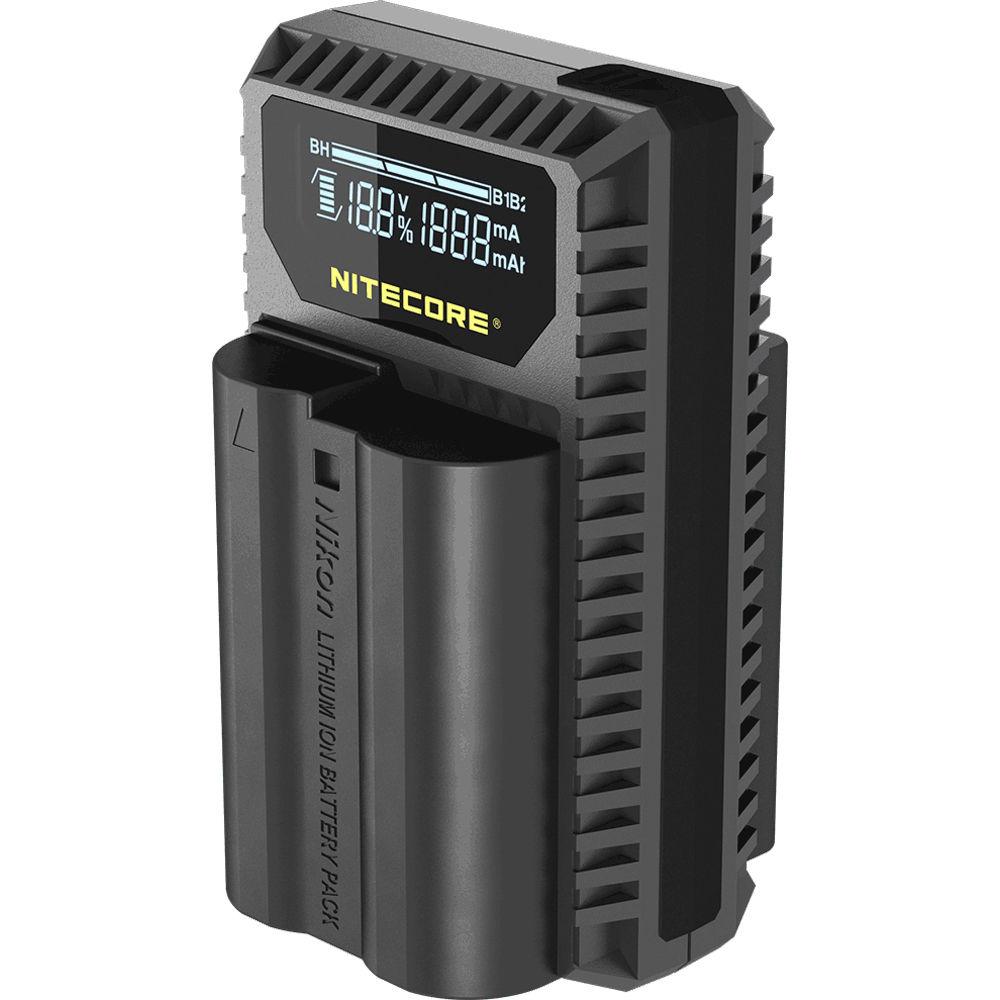

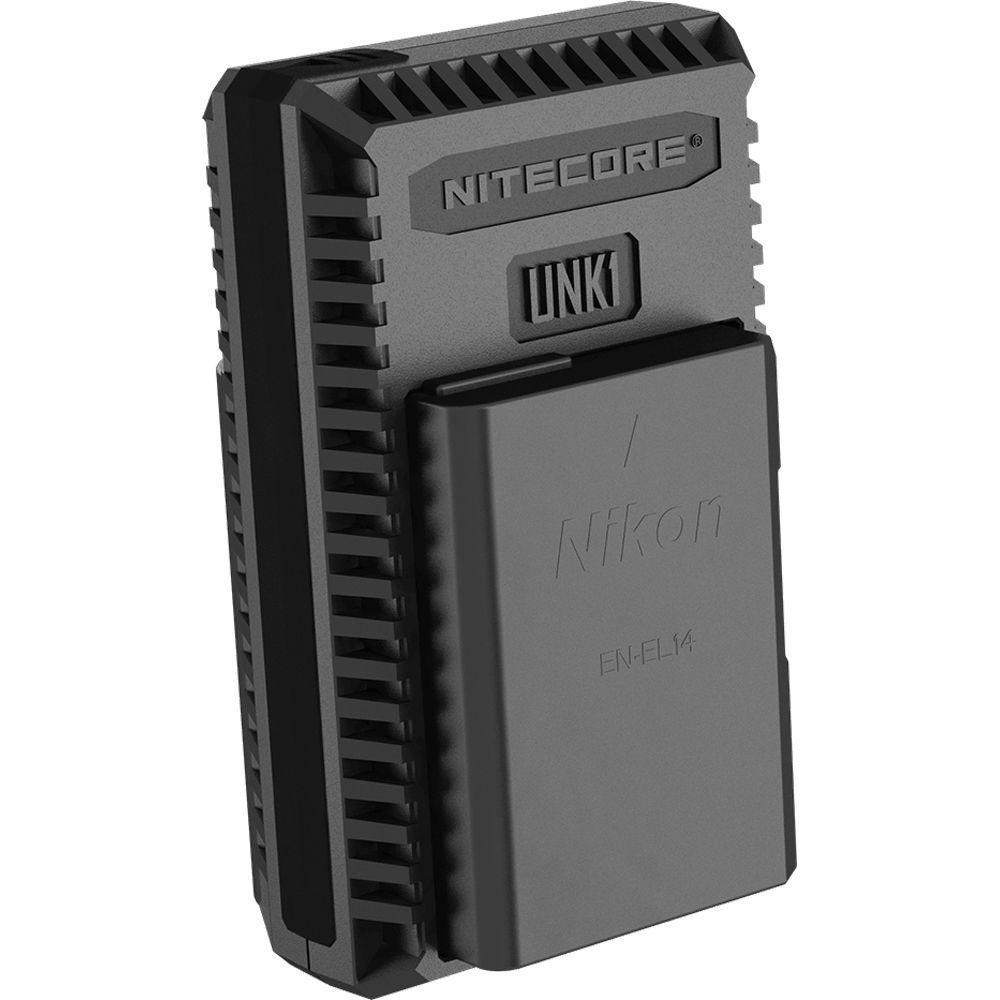

Product description Restore power to your Nikon EN-EL14, EN-EL14a, and EN-EL15 lithium-ion batteries with this compact UNK1 Dual-Slot USB Travel Charger from Nitecore. It operates on 5-VDC input power, and features an attached USB cable stored in a trough to save space and prevent damage. The USB connector allows for connection to one of various user-supplied adapters, portable power banks, and solar panels. The device has a second slot on the rear to accommodate a backup battery.
The sophisticated UNK1 contains a smart charging management system, which monitors battery types, capacities, and initial internal resistance, then automatically applies the most appropriate charging current based on this data. The device also provides battery-condition monitoring, carrying out a health inspection based on resistance at the time of installation. A cell's health bar will appear on the LCD display, which also shows capacity, voltage, and percentage of charge completed. When a battery's health has declined to the lower limit, the bar will start flashing to alert you that it should be replaced.
The UNK1 offers a mechanical reverse polarity protection mechanism that prevents charging from occurring if an incompatible or incorrectly installed battery is present. The error message "EE" will appear on the LCD to notify you in the event that a short-circuited battery is detected. Another helpful feature is the battery recovery mode that restores dormant cells to active duty.
Built for durability, the UNK1 is made from polycarbonate and ABS plastics that are corrosion resistant and fire retardant. When this toughness is coupled with the convenient compactness and considerable versatility of the UNK1, the result is a charger that is useful for travel, camping, and many other adventures. - Compatible Batteries
- Nikon EN-EL14, EN-EL14a, and EN-EL15 Li-ion batteries
- Compatible Cameras
- Nikon D600, D610, D750, D800, D800E, D810, D810A, D7000, D7100, D7200, D3100, D3200, D3300, D5100, D5200, D5300, D5500, Df, D3X
In the Box Nitecore UNK1 Dual-Slot USB Travel Charger for Nikon EN-EL14, EN-EL14a, and EN-EL15 Lithium-Ion Batteries Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore UNK1 Dual-Slot USB Travel Charger for Nikon EN-EL14, EN-EL14a, and EN-EL15 Lithium-Ion Batteries in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore UNK1 Specs | Configuration | 2x Charging Slots | | Input Power | 5 VDC, 2 A | | Output Power | Slot B1 for EN-EL15: 8.4 V, 1 A (Max)
Slot B2 for EN-EL14/ EN-EL14a: 8.4 V, 1 A (Max) | | Connector Type | Input: USB (Cable Attached)
Output: Pins for Batteries | | Display | LCD Showing Capacity, Voltage, Charge % | | Certifications | CE, ROHS, FCC, CEC, REACH, KC, C-TICK | | Dimensions | 3.3 x 2 x 1" / 85 x 50 x 25 mm | | Weight | 2.1 oz / 59 g | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 6.4 x 2.8 x 1.2" |
