User Manual for Nitecore VCL10 Multifunctional All-in-One Vehicle Gadget Click to enlarge the picture
Contents of the user manual for the Nitecore VCL10 Multifunctional All-in-One Vehicle Gadget
- Product category: Emergency Equipment Nitecore
- Brand: Nitecore
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nitecore Emergency Equipment
 |
User manual for the Nitecore VCL10 Multifunctional All-in-One Vehicle Gadget contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nitecore product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nitecore user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nitecore product will considerably shorten its lifespan!
|

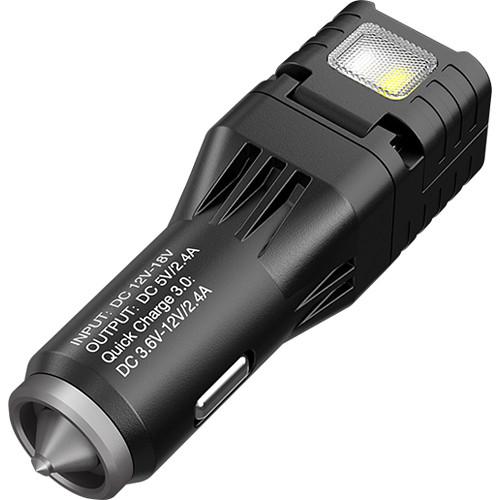

Product description The Nitecore VCL10 Multi-Functional All-in-One Vehicle Gadget is a 25-lumen emergency flashlight, a flashing red safety light, a magnetized trouble light, and a window-breaker for emergencies— and thanks to its Quick Charge 2.0/3.0 circuitry, it can charge your phone or device quickly. Plug it into your car's DC power (cigarette lighter) socket, and take maximum advantage of the vehicle's power with 5/9/12 VDC, 2.4-amp charging in QC 2.0 or 3.6-12 VDC, 2.4-amp charging in QC 3.0. The VCL10 adjusts its output to suit the device being charged, with a suite of protections against short circuit, over-voltage, under-voltage, and overheating.

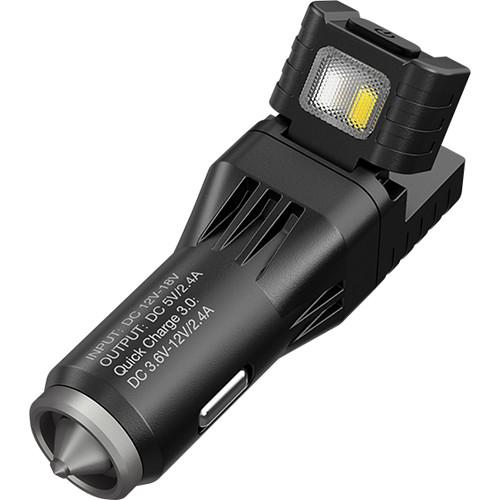

The light head on the flashlight tilts 90°, and the VCL10'as built-in battery will run it for up to three hours on a charge. Click the rubber power button on top of the gadget to switch from steady white red to flashing red. The built-in photodetector will sense oncoming traffic and increase the speed of the flash from once per second to 10 times, alerting motorists to your presence on the side of the road (and alerting you to the approaching car). A magnetized body allows you to place the light almost anywhere, making things like changing a flat tire in the dark easier and safer. And if you've been in an accident and your power windows are disabled, the hard tungsten steel window breaker can be used to escape your vehicle. - Light Performance
-

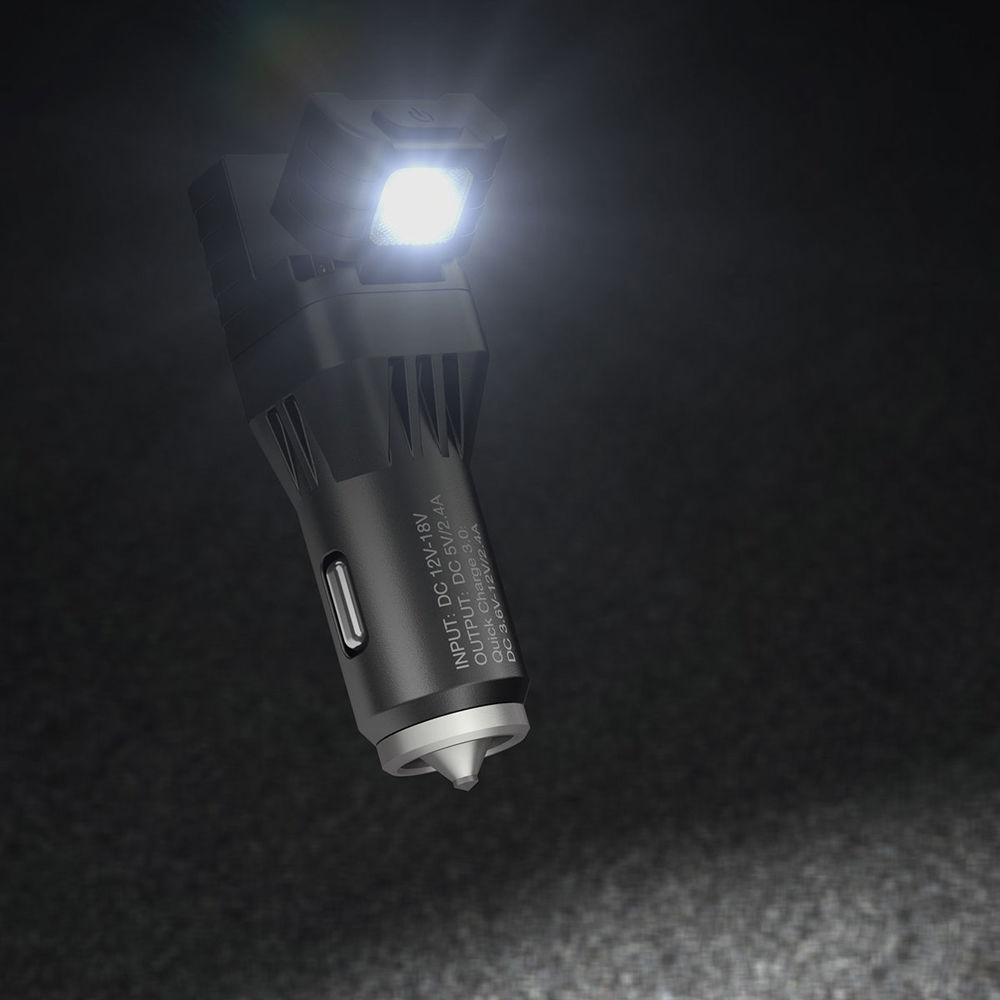

- 25-Lumen flashlight, 3-hour runtime

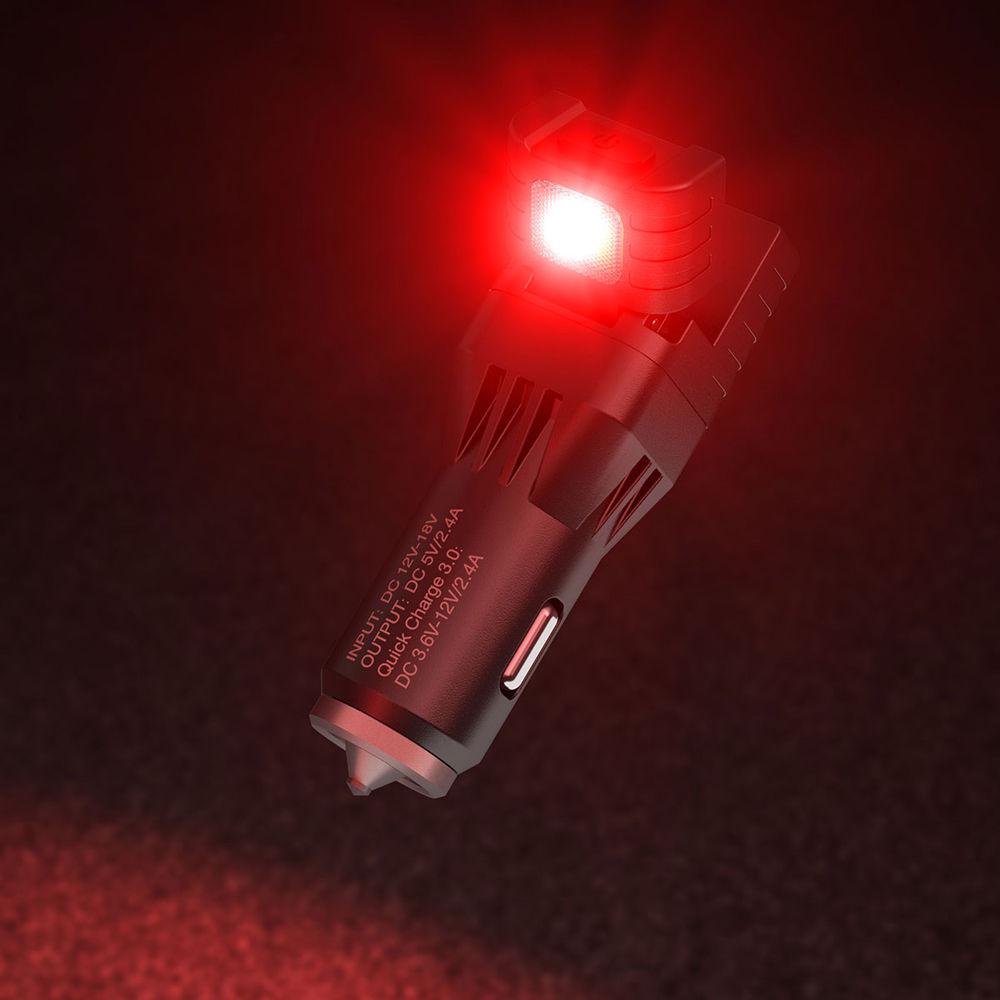

- 350mW flashing red safety light, one flash per second, 20-hour runtime
- Light flashes 10 times per second when it senses oncoming traffic
- Light head tilts 90°
- Single push-button switch
- Internal 3.7 VDC, 240mAh rechargeable Li-ion battery
- Charging
-
- Plugs into vehicle DC power (cigarette lighter) socket
- Type A USB port for charging phones & devices
- Standard output: 5 VDC, 2.4A
- Quick Charge 2.0 output: 5/9/12 VDC, 2.4A
- Quick Charge 3.0 output: 3.6-12 VDC, 2.4A
- VCL10 selects correct output for device being charged
- Transformer Loss Compensation eliminates voltage loss to cable
- Protection against overload, short circuit, over- and under-voltage, overheating
- Construction Details
-
- Magnetic body sticks to any steel surface
- Tungsten steel window breaker
- Flame-retardant plastic housing
- Impact resistant to 3.3
In the Box Nitecore VCL10 Multifunctional All-in-One Vehicle Gadget Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nitecore VCL10 Multifunctional All-in-One Vehicle Gadget in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNitecore VCL10 Specs | Input | 12 VDC, 2.5 A Max | | Charging | Standard: 5 VDC, 2.4 A
QC 2.0: 5/9/12 VDC, 2.4 A
QC 3.0: 3.6-12 VDC, 2.4 A | | Output | White Light: 23 Lumens
Flashing Red Light: 350 mW | | Battery / Runtime | Internal 3.7 VDC, 240 mAh Li-ion Battery
White Light: 3 h
Red Light: 20 h | | Dimensions | 3.1 x 1.0 x 0.9" / 7.9 x 2.4 x 2.3 cm | | Weight | 1.6 oz / 45 g | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 7.0 x 3.7 x 1.1" |
