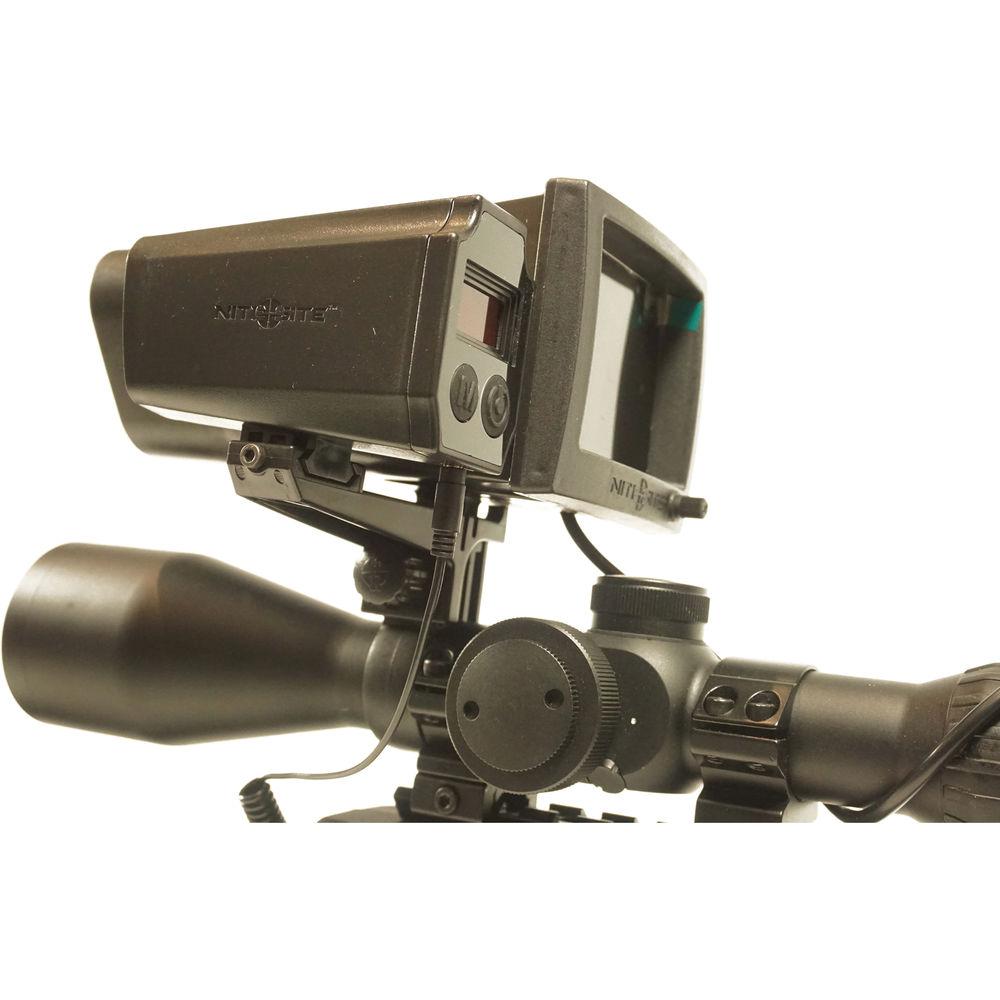

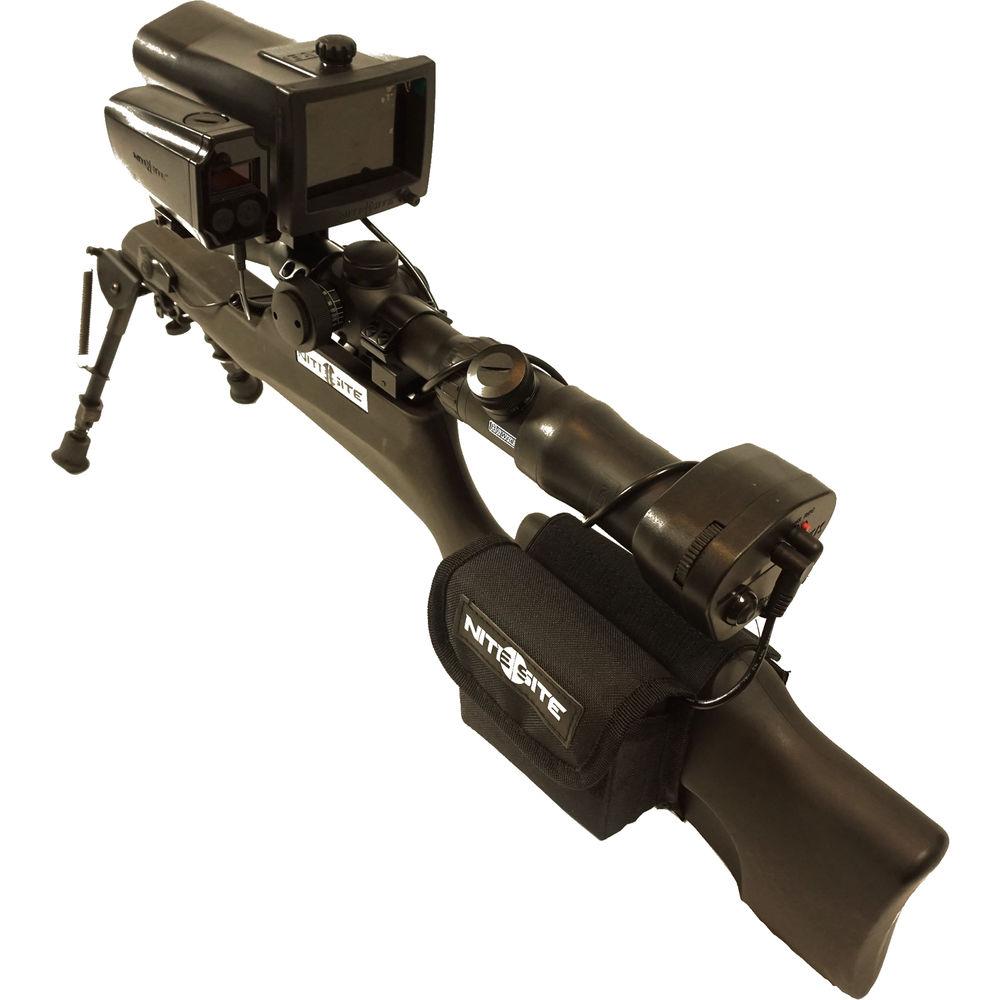

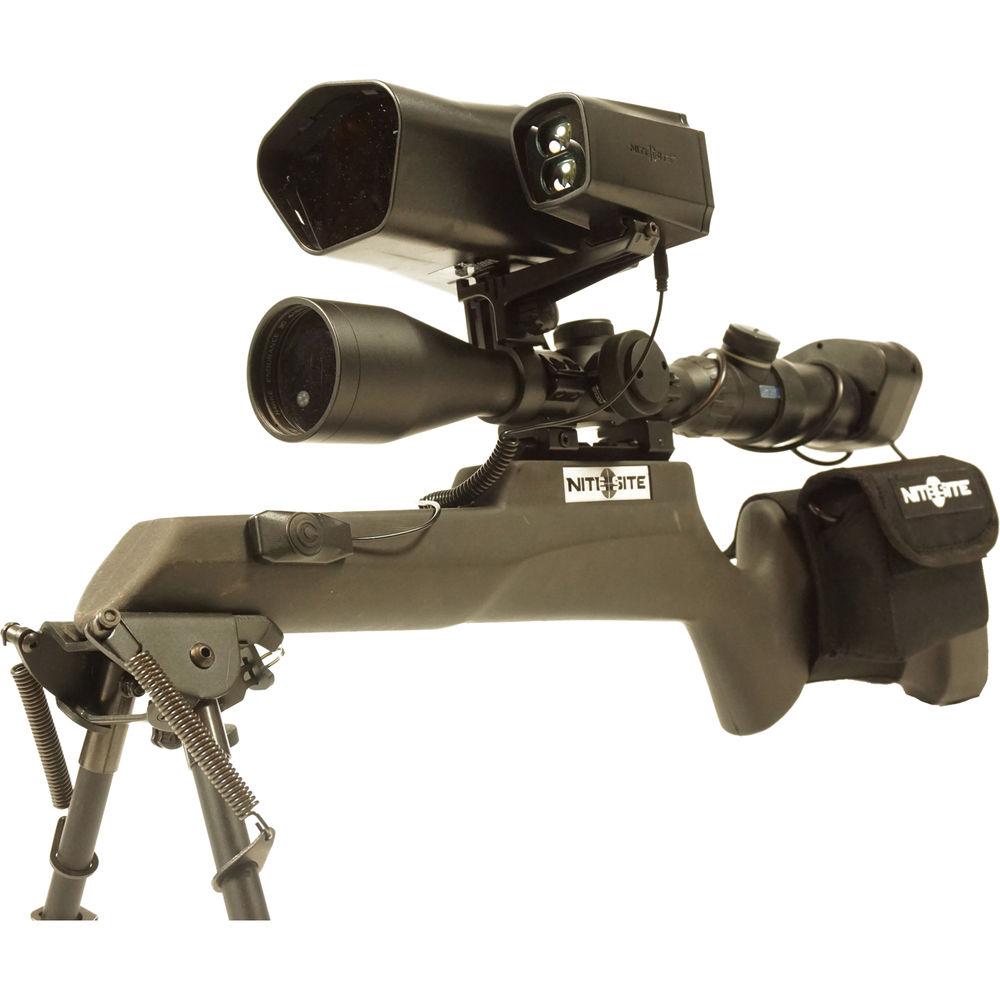

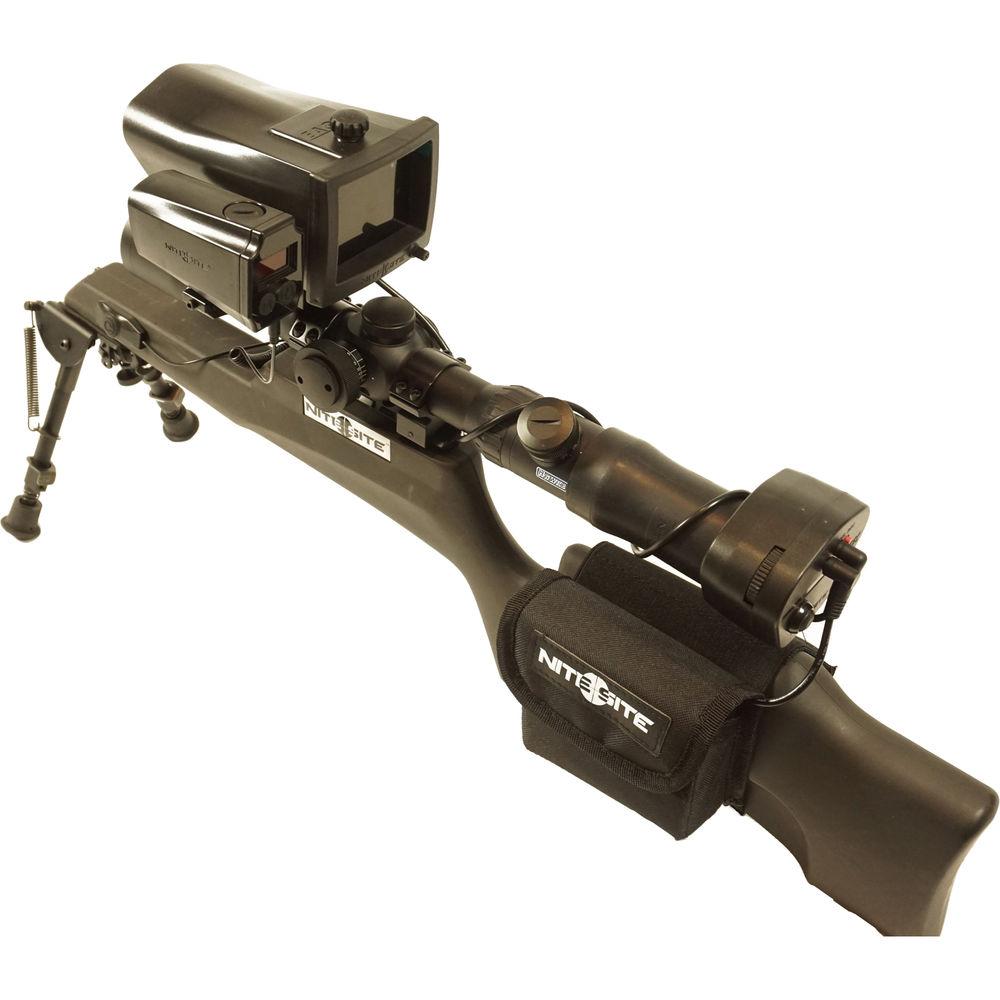

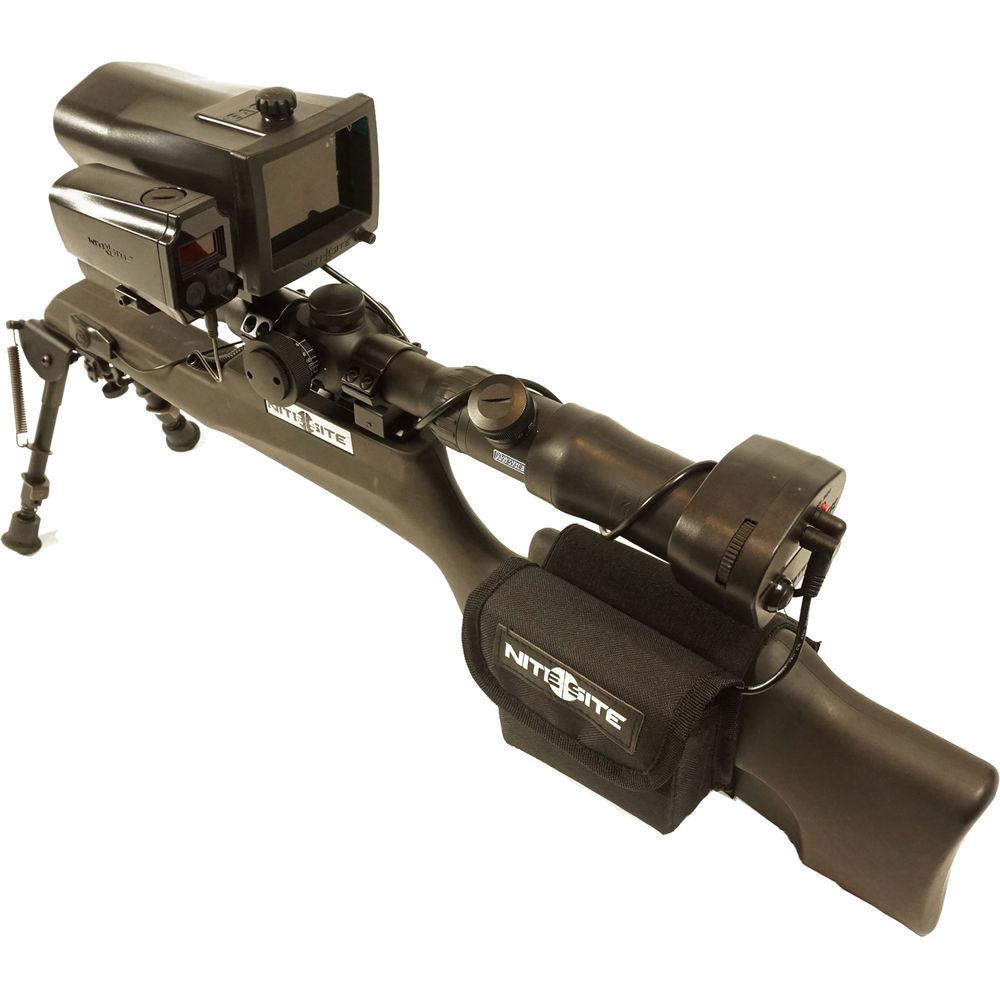

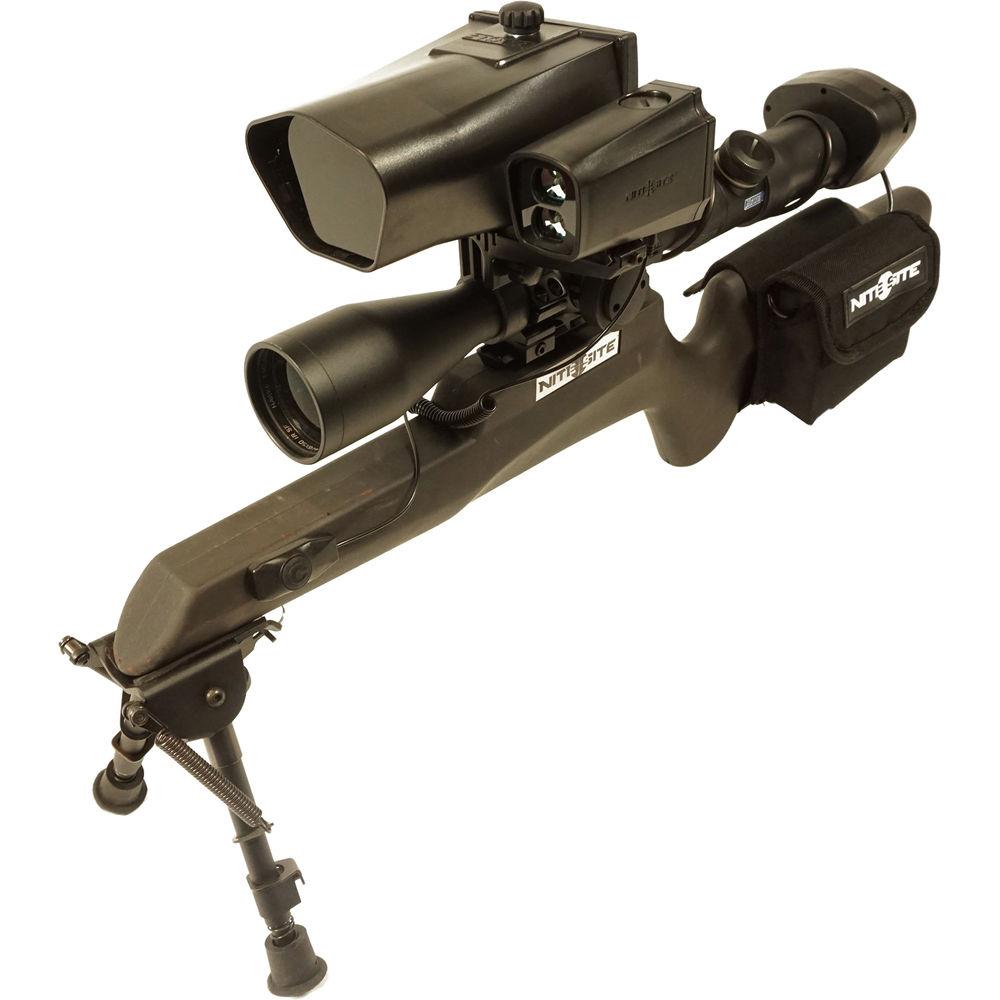

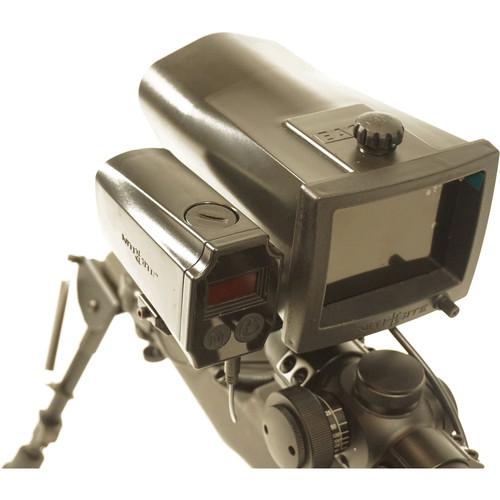

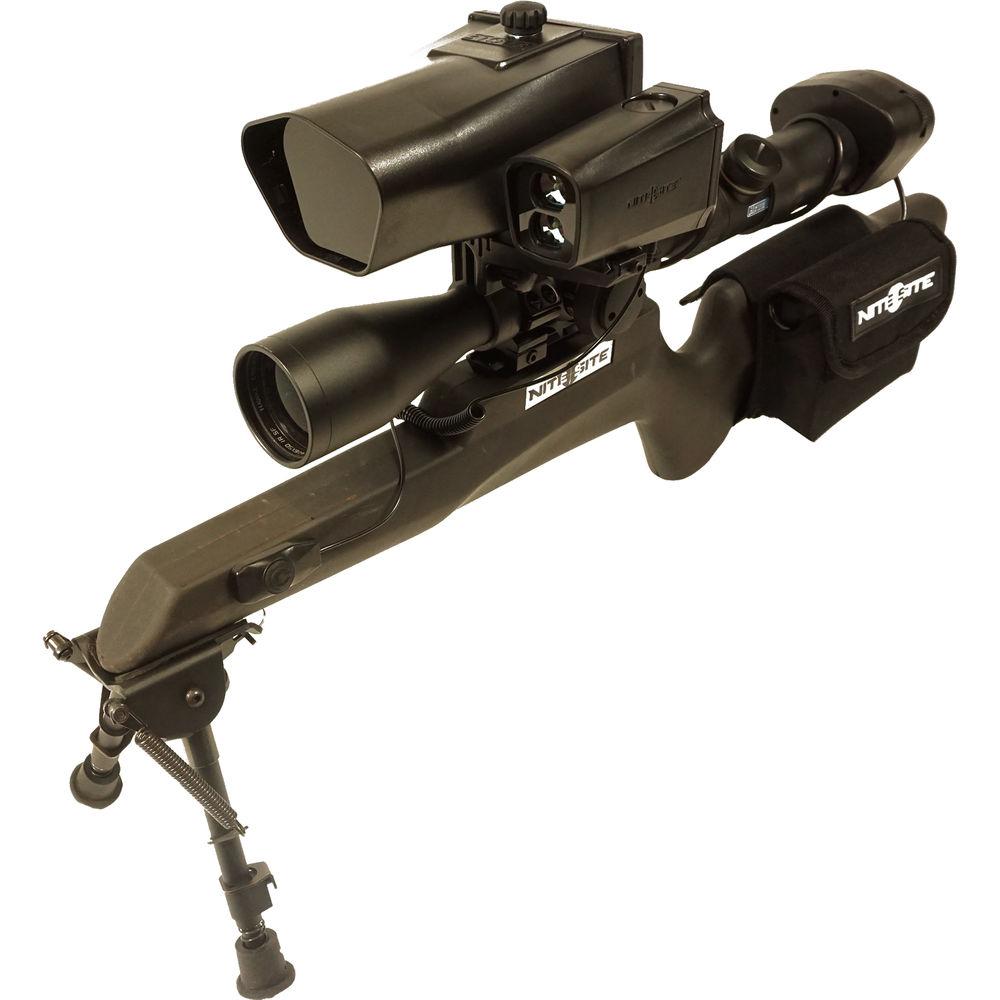

Product description Convert your day hunting gear to night vision using the NiteSite Eagle Dark Ops Elite Kit. The kit includes an RTEK infrared camera module with five light sources, an infrared illuminator/display module, a laser rangefinder, a rechargeable 6000mAh battery pack with a mounting strap, and mounting adapters for your 1" or 30mm riflescope. It even includes a 4GB microSD card with an adapter to allow you to save your videos. While the illuminator/display module goes on top of your day scope using a maintube clamp, the camera module connects to the scope eyepiece and uses your riflescope's optics to deliver images to its sensor. Both modules have attached cables for power and video connections. The included laser rangefinder attaches to the side of your scope and allows you to measure distance to your targets up to 547 yards away with an accuracy of ±1.1 yards. Also included are a car charger and a USA wall charger for the battery pack. - RTEK Infrared Camera Module
-
- 1/3" CMOS video sensor
- Generates 640 x 480 (VGA) PAL or NTSC videos with 4:3 aspect ratio
- Saves AVI videos to an external microSD card
- Mounts on a day scope's eyepiece using included adapter tubes
- Display/Illuminator Module
-
- Integrated 3.5" LCD display with brightness control
- Built-in 940nm infrared LED illuminator with five light sources
- Laser Rangefinder
-
- Horizontal distance only mode
- Range up to 547 yards
- ±1.1 yard accuracy
- Mountable to Weaver rails
- Use and Handling
-
- Red power indicator
- Camera has a focus wheel
- LCD brightness control
- Construction Details
-
- Weather resistant
- Built-in hood on display module
- Clamps for 1" and 30mm maintubes included
- 6000mAh battery pack with a stock pouch
In the Box NITESITE Eagle Dark Ops Elite Night Vision Kit for Riflescopes - Laser Rangefinder
- Storage/Carry Case
- Illuminator/LCD Module
- RTEK Camera for Night Vision Kits
- 6Ah Lithium-Ion Rechargeable Battery
- 1.8A In-Car Charger for Eagle Dark Ops & Dark Ops Elite Battery
- 4GB microSD Card
- 1" Scope Clamp
- 30mm Scope Clamp
- Small Scope Tube
- Large Scope Tube
- 1.8A Mains Charger for 6Ah Li-Po Rechargeable Battery
- Stock Battery Pouch (Black)
- Limited 2-Year Warranty for Night Vision Device
- Limited 1-Year Warranty for Rechargeable Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the NITESITE Eagle Dark Ops Elite Night Vision Kit for Riflescopes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNITESITE Eagle Specs | Camera | 1/3" CMOS sensor | | Sensor Resolution | 640 x 480 | | Output Format | PAL/NTSC | | Aspect Ratio | 4:3 | | Video Resolution | VGA, 640 x 480 | | Recording Format | AVI | | LCD Display | 3.5" | | External Memory | Yes, microSD | | Rangefinder Basis | Type: Laser
Range: 547.0 yd / 500.0 m
Accuracy: ±1.1 yd / ±1.0 m | | Battery | 1 x 6000 mAh LiPo rechargeable battery | | Infrared Illuminator | 5 x infrared light sources, 940 nm output wavelength | | Weatherproofing | Weather resistant | | Dimensions | Not provided by manufacturer | | Weight | 24.6 oz / 698.0 g (without battery) |
