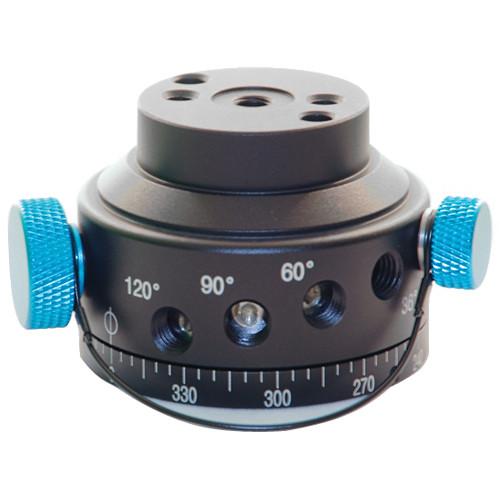

User Manual for Nodal Ninja Fanotec RD5 Rotator Click to enlarge the picture
Contents of the user manual for the Nodal Ninja Fanotec RD5 Rotator
- Product category: Panoramic & Time Lapse Heads Nodal Ninja
- Brand: Nodal Ninja
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nodal Ninja Panoramic & Time Lapse Heads
|
User manual for the Nodal Ninja Fanotec RD5 Rotator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nodal Ninja product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nodal Ninja user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nodal Ninja product will considerably shorten its lifespan!
|
Product description Time-Lapse Tips and Tools Read More The Fanotec RD5 Rotator from Nodal Ninja is a precision crafted rotator for creating precise manually stepped and repeatable pans using still photo cameras. It works with the available Nodal Ninja R1, R10, and RS-1 to create nodal pans. It is ideal for creating high-resolution multi-image mosaics or shooting the same scene using different focal lengths. CNC machined out of aluminum alloy, and anodized for corrosion resistance, it features lubricated bearings that support up to 22 pounds of weight. It also features laser engraved markings in 5° increments for accurate and repeatable rotations.
The RD5 allows you to shoot a full 360° or more of rotation one frame at a time. Five selectable click stop settings provide different increments, and these can be changed on the fly. The included adjustment and locking knobs can be engaged and will not appear in the shot. The RD5 features a 3/8"-16 threaded female mounting hole, and includes a 3/8"-16 to 1/4"-20 bushing for use with supports that have a 1/4"-20 mounting screw. - Laser engraved markings offer precise measurements of the rotator's position.
- The click stops allow you to rotate the RD5 in precise steps. The options are 10, 36, 60, 90, and 120° increments, which create 36, 10, 6, 4, and 3 steps to rotate 360°.
- Supports Nodal Ninja R1, R10, and RS-1, allowing you to create 360° panoramas that cover 180° from horizon to horizon.
UPC: 689466527940 In the Box Nodal Ninja Fanotec RD5 Rotator Blue Anodized Selector Knob Blue Anodized Locking Knob 3/8"-16 to 1/4"-20 Bushing Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nodal Ninja Fanotec RD5 Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNodal Ninja F1162 Specs | Mounting | Tripod Fitting: 3/8"-16 female
Camera/Accessory: M6 | | Load Capacity | Working Load: approx 12 lb (5.4 kg)
Max: 22 lb (10 kg) | | Dimensions (Ø x H) | 2.125 x 1.625" (40 x 53 mm) | | Weight | 8 oz (227 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 3.8 x 3.4 x 3.1" |
