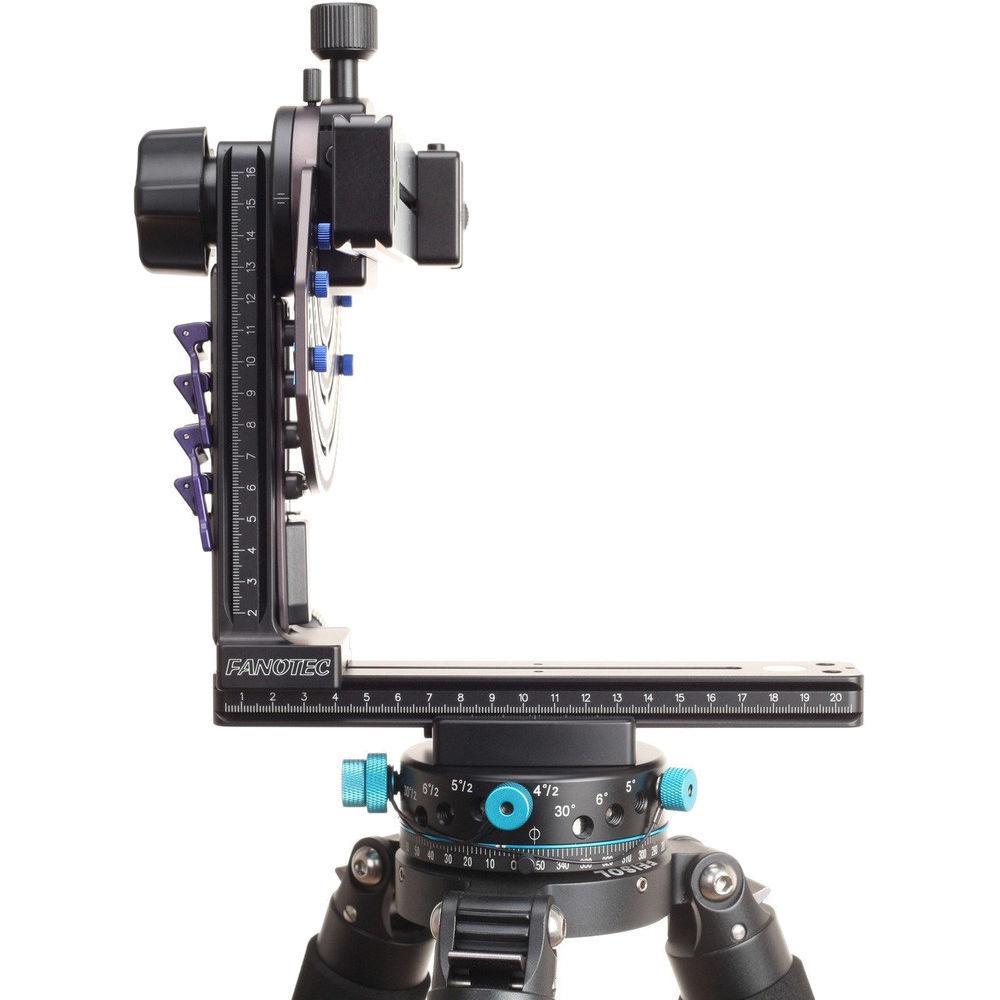

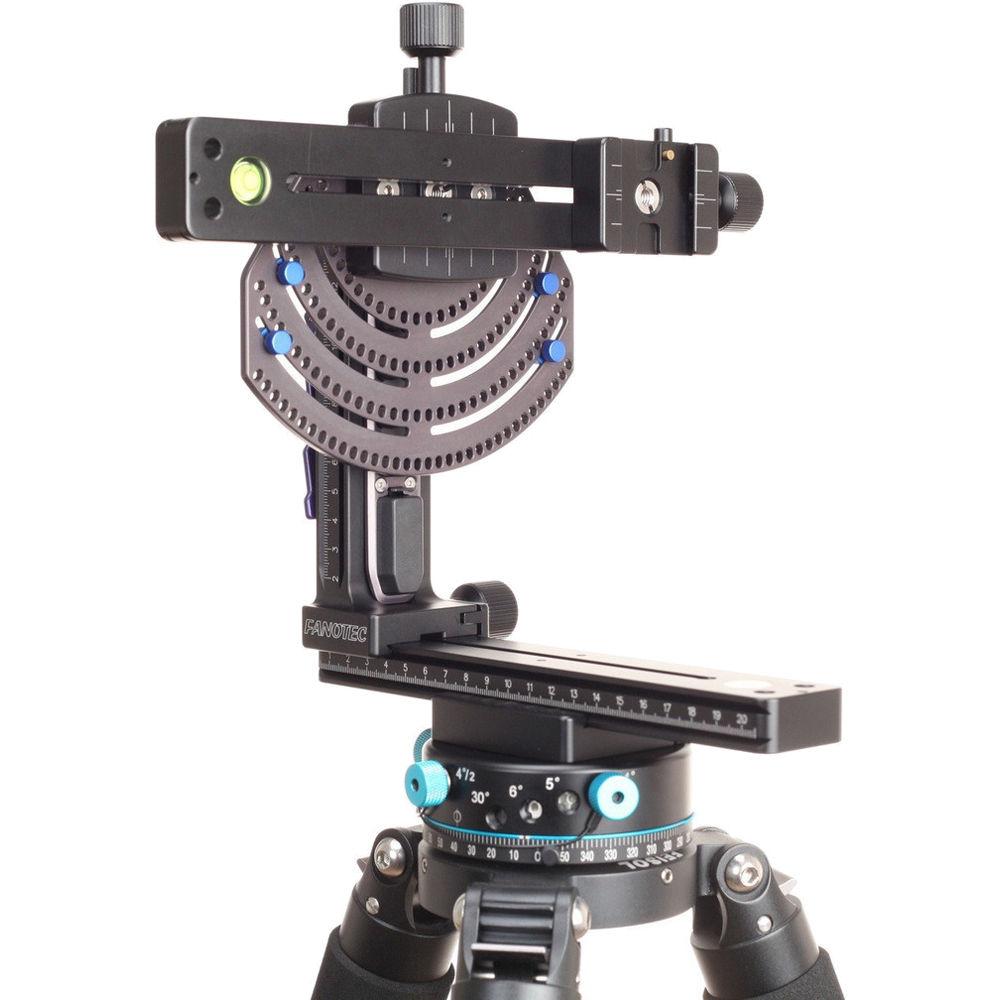

User Manual for Nodal Ninja M2 Giga Plate with RD8-II Rotator Click to enlarge the picture
Contents of the user manual for the Nodal Ninja M2 Giga Plate with
- Product category: Panoramic & Time Lapse Heads Nodal Ninja
- Brand: Nodal Ninja
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nodal Ninja Panoramic & Time Lapse Heads
 |
User manual for the Nodal Ninja M2 Giga Plate with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nodal Ninja product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nodal Ninja user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nodal Ninja product will considerably shorten its lifespan!
|

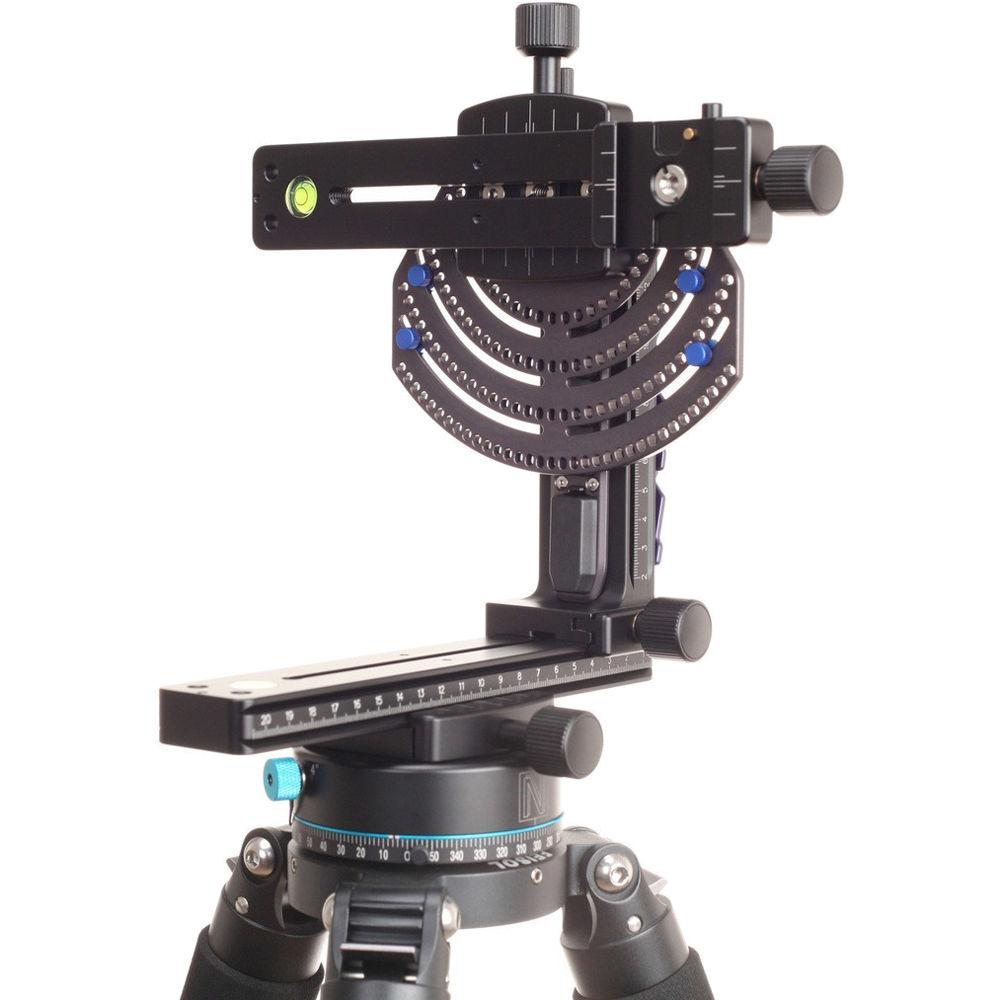

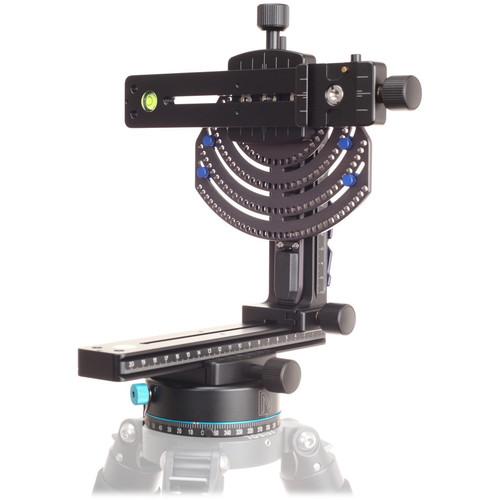

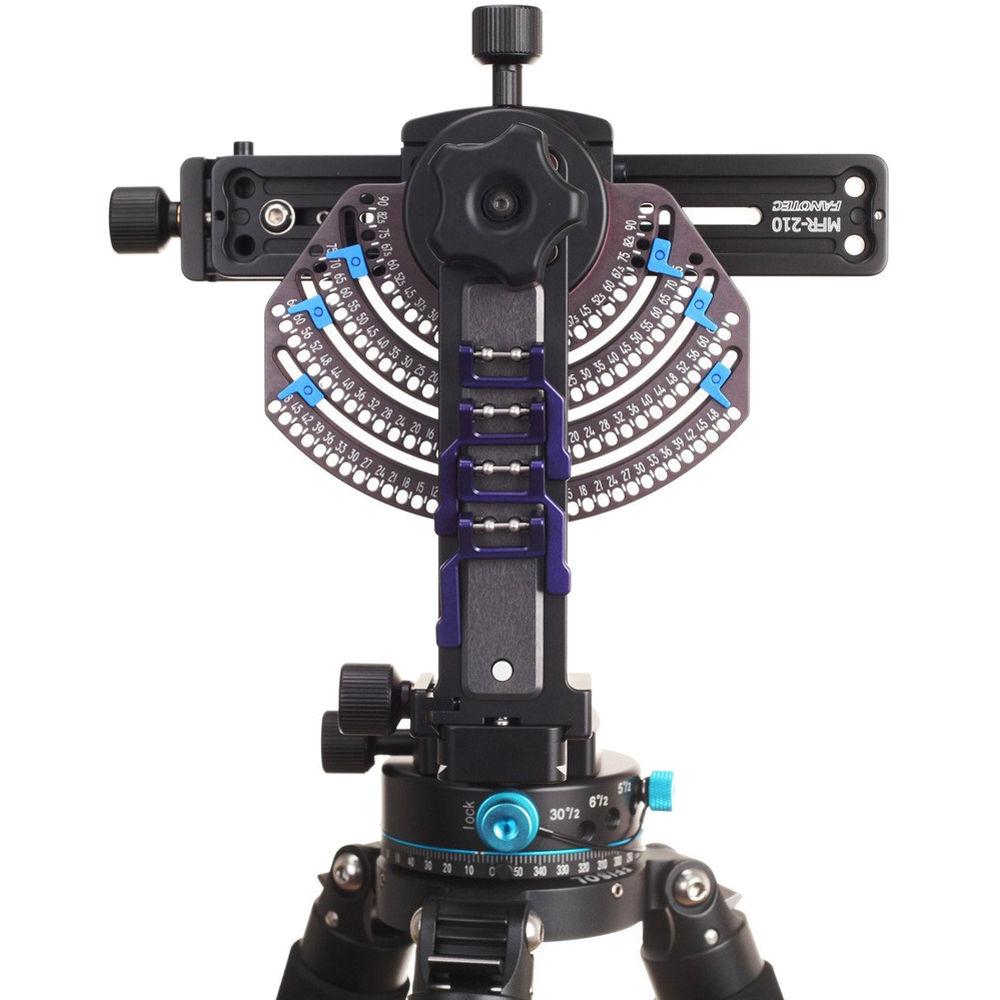

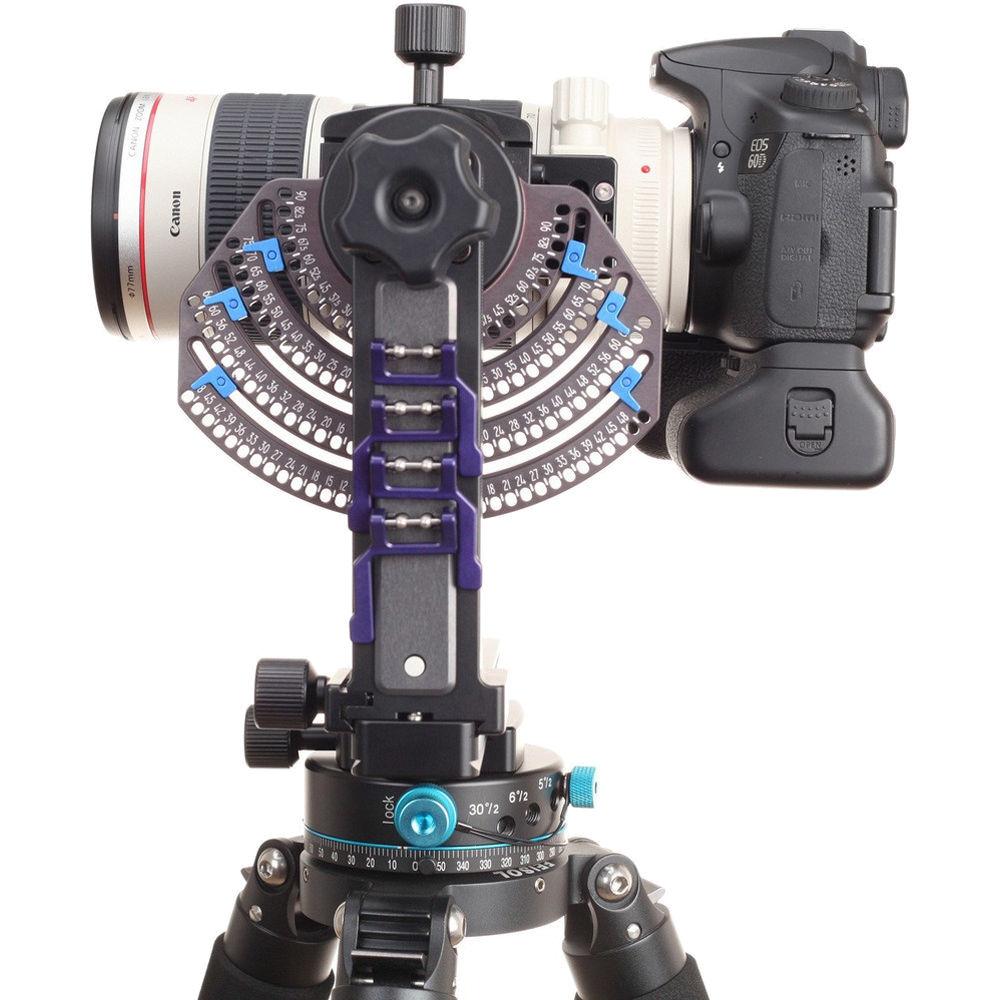

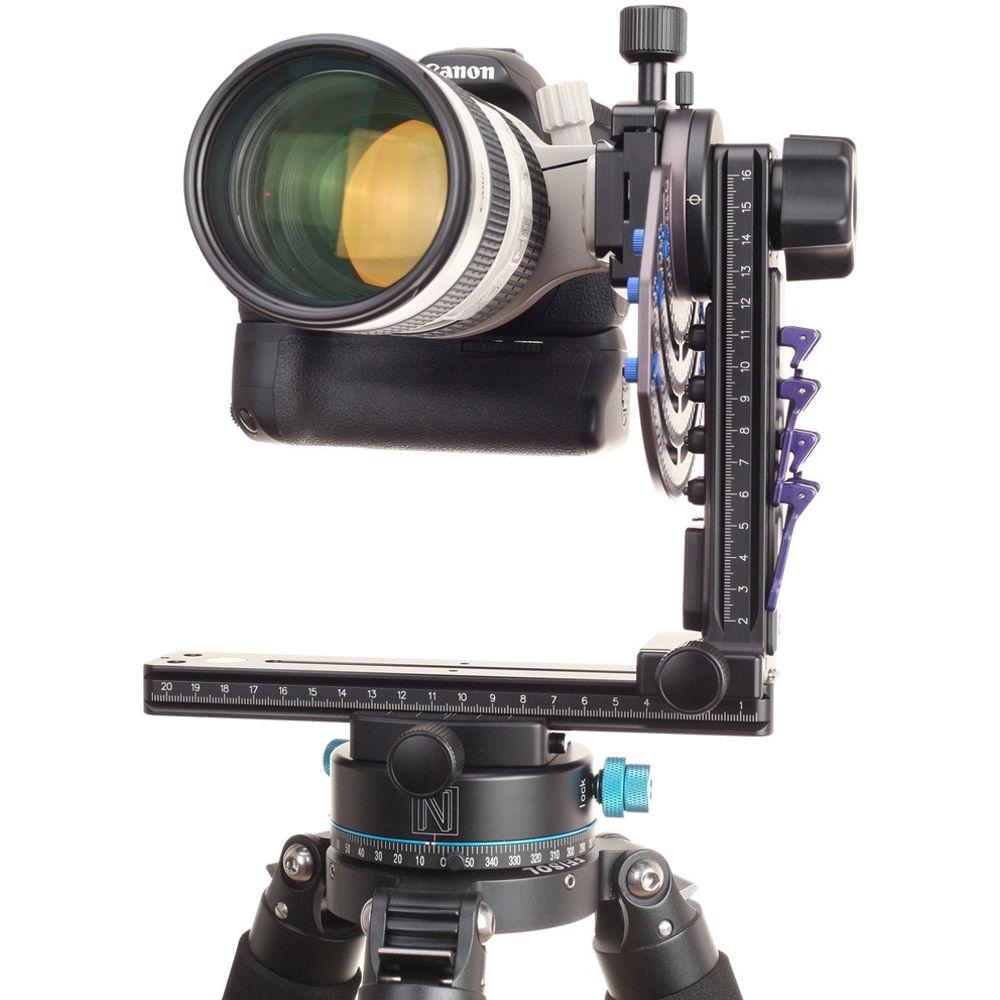

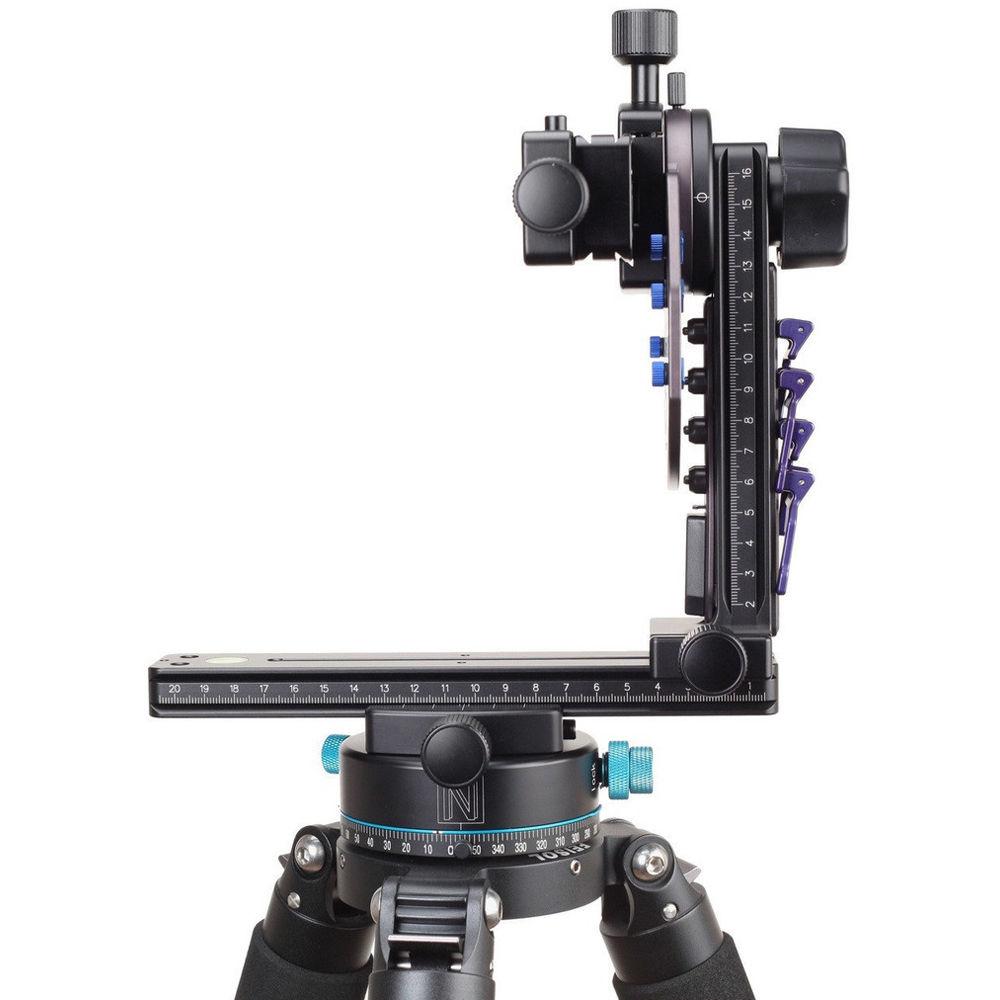

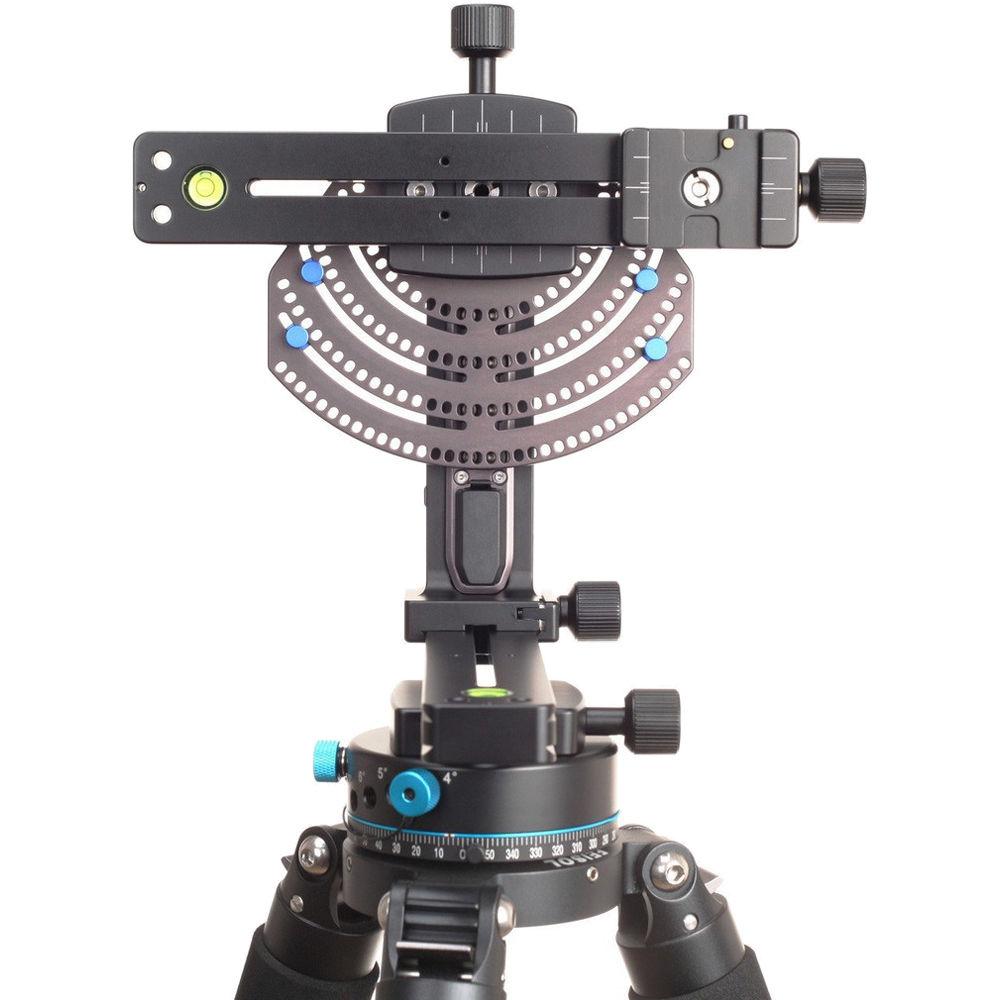

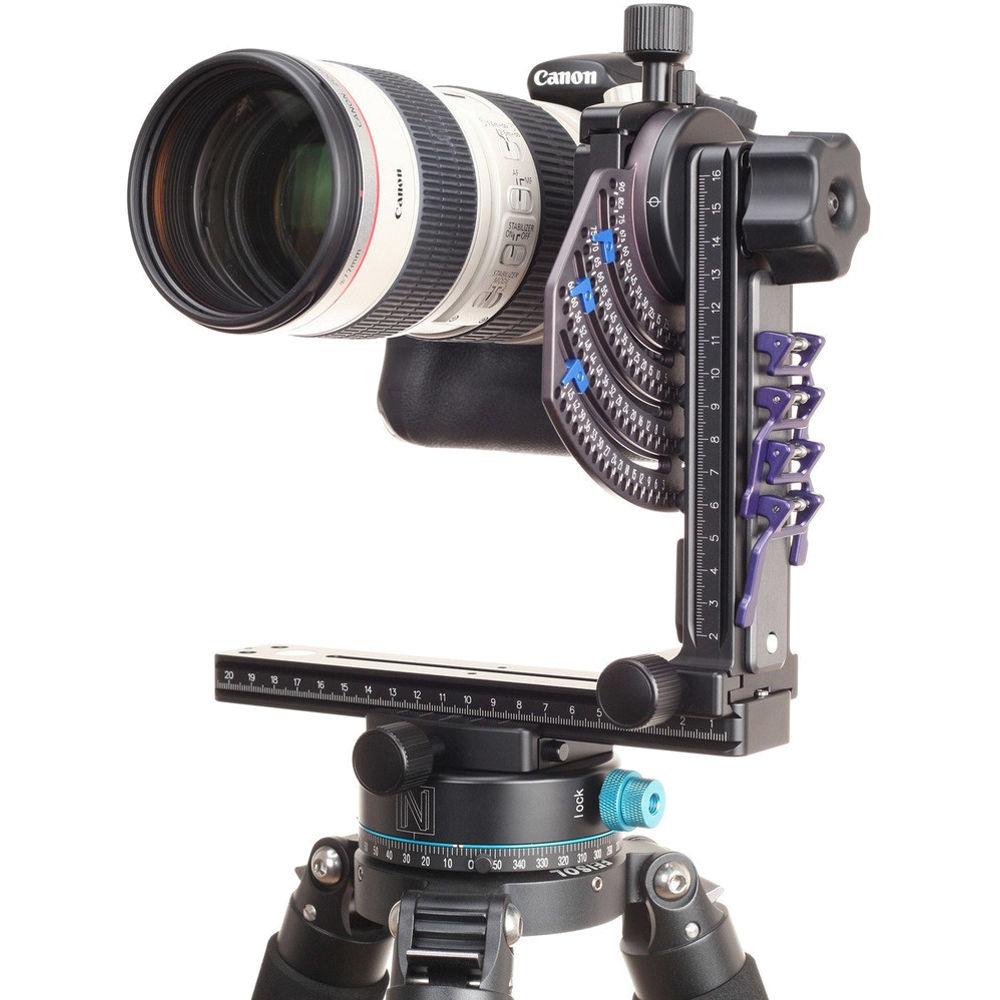

Product description Time-Lapse Tips and Tools Read More The M2 Giga Manual Panoramic Head from Nodal Ninja is designed for gigapixel high-resolution imaging using telephoto and super telephoto lenses. Nodal Ninja's patented design allows precise positive stops of 7.5/5/4/3.75/3/2.5/2/1.5 intervals on the upper rotator, which can be engaged and changed on-the-fly by simply switching 1 or 2 levers. When paired with the Advanced Rotator D8II (included), it supports up to 700mm equivalent focal length with camera in landscape orientation, or 550mm equivalent in portrait orientation. The D8III allows precise click stops at 30, 15, 6, 5, 4, 3, 2.5, 2. Due to the precision of the rotators, each photo can have precise coordinates, which helps to quickly align the photos when stitching. Being a manual panorama tripod head, Nodal Ninja Ultimate M2 Giga is much lighter than a robotic pano head for the same load capacity. There is no battery and charger to carry and no worry of the battery running out during a shooting. The rotator indexing can be turned off for free motion, allowing photographers to capture moving elements such as in a sports, or to capture second shots for an area prone to stitching error by change the overlapping region. -
- Based on Arca-type compatible system
- Can act as a gimbal arm for smooth rotation of heavy telephoto lenses at its center of gravity
- Modular design
- Supports long telephoto lens up to 6.6 lb
- Full bearing loaded rotators for smooth and steady rotation
- Upper rotator with adjustable friction to serve as a gimbal arm
- Upper rotator with laser marked index ring with fine 2.5 intervals
- Upper rotator with precise positive stops of 7.5/5/4/3.75/3/2.5/2/1.5 intervals
- Upper rotator can be engaged and changed on the fly by simply switching 1 or 2 levers
- Upper and lower rotators with indicators for starting and ending positions, ideal for making mosaics with a large number of images
- Allows photographers to compose the mosaic first and then set the starting and ending positions, horizontally and vertically
- Precision CNC machined from aircraft aluminum and hard anodized, meaning high precision, accuracy, durability, and long lifetime
UPC: 641378086809 In the Box Nodal Ninja M2 Giga Plate with RD8-II Rotator RD8-II Rotator QRC-65 (Lower Rotator Quick Release Clamp) with 65mm Jaw Length 210mm Long MFR-210 Double Dovetail (Lower Rail) M2 Upper Compression Lock Rotator MFVR-170C Double Dovetail Vertical Rail with Integral QR Clamp (Vertical Rail) QRC-65 (Upper Rotator Quick Release Clamp) with 65mm Jaw Length 210mm Long MFR-210 Double Dovetail (Upper Rail) QRC-40A (Upper Rail End Clamp) with 40mm Jaw Length Case Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nodal Ninja M2 Giga Plate with RD8-II Rotator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNodal Ninja F9000 Specs | Stops | 7.5/5/4/3.75/3/2.5/2/1.5
With D8 III Rotator (included): 30, 15, 6, 5, 4, 3, 2.5, 2 | | Dimensions | 12.0 x 8.0 x 3.0" / 30.5 x 20.3 x 7.6 cm | | Weight | 5.1 lb / 2.3 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 12.0 x 8.9 x 3.9" |
