User Manual for Nodal Ninja R-D3L 6-8-30 Rotator with Built-In EZ-Leveler-MKII Click to enlarge the picture
Contents of the user manual for the Nodal Ninja R-D3L 6-8-30 Rotator with
- Product category: Panoramic & Time Lapse Heads Nodal Ninja
- Brand: Nodal Ninja
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Nodal Ninja Panoramic & Time Lapse Heads
 |
User manual for the Nodal Ninja R-D3L 6-8-30 Rotator with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Nodal Ninja product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Nodal Ninja user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Nodal Ninja product will considerably shorten its lifespan!
|

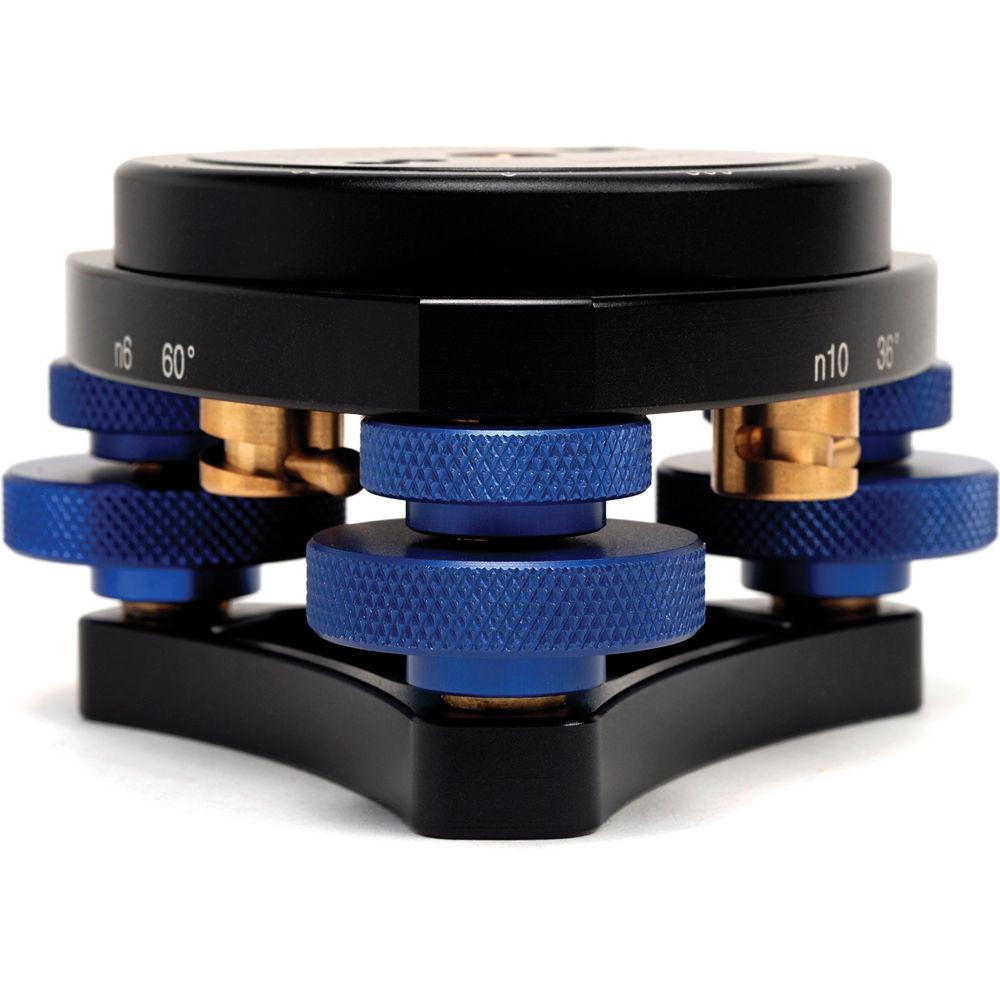

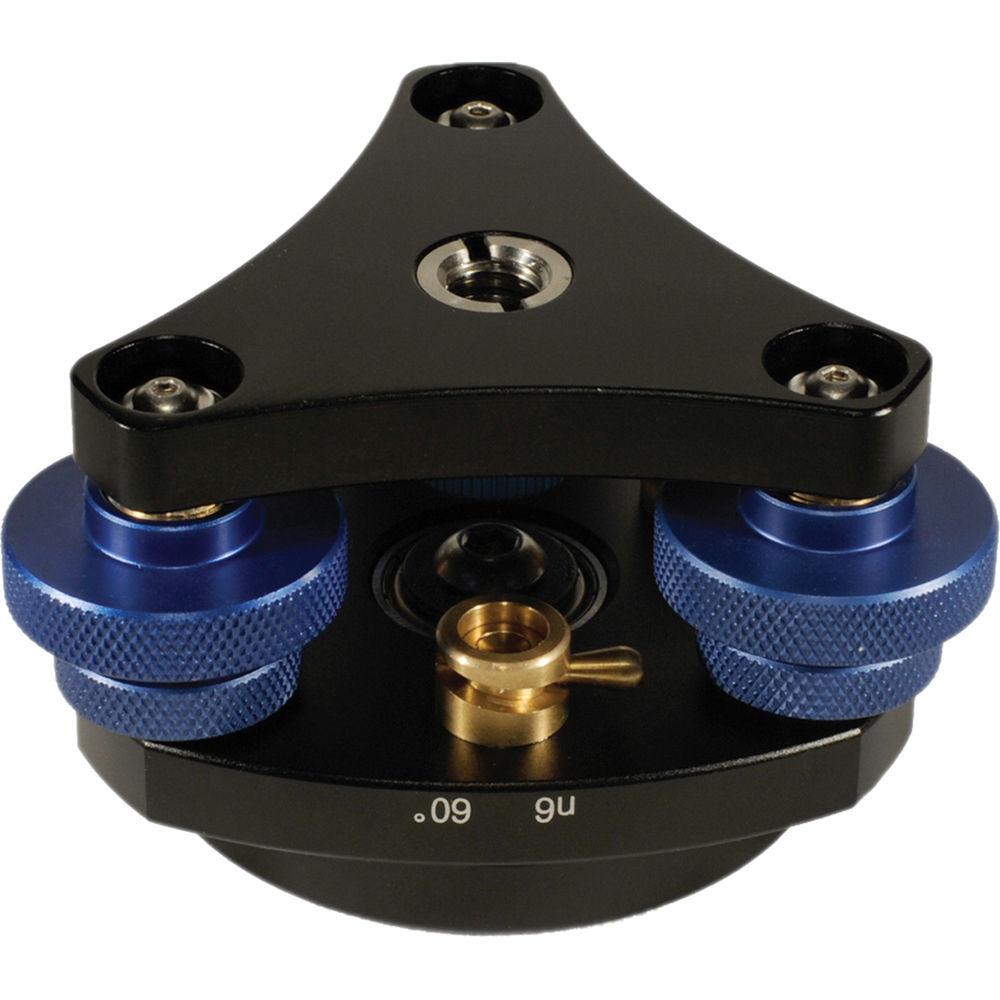

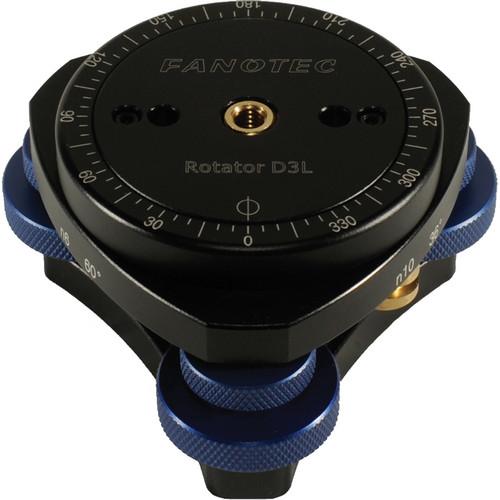

Product description Time-Lapse Tips and Tools Read More The R-D3L 6-8-30 Rotator with Built-In EZ-Leveler-MKII from Nodal Ninja is an advanced solution for those in need of a leveling device. You can now adjust very fine leveling even with heavy gear on top--you don't need to compensate for the effect of loading. Leveling remains stationary after each adjustment, unlike using a ball head or tripod legs. The maximum angle of adjustment is 5 degrees. The design incorporates 3 detent options - 6, 8 or 30 stops (60, 45, 10 degrees). You can also adjust and fine-tune leveling using 3 easy-to-turn adjustment knobs. It is not recommended for use with nadir adapters. - 3 selectable detent interval options. You can select a combination of 6, 8, 30 stops (60, 45, 10 degrees).

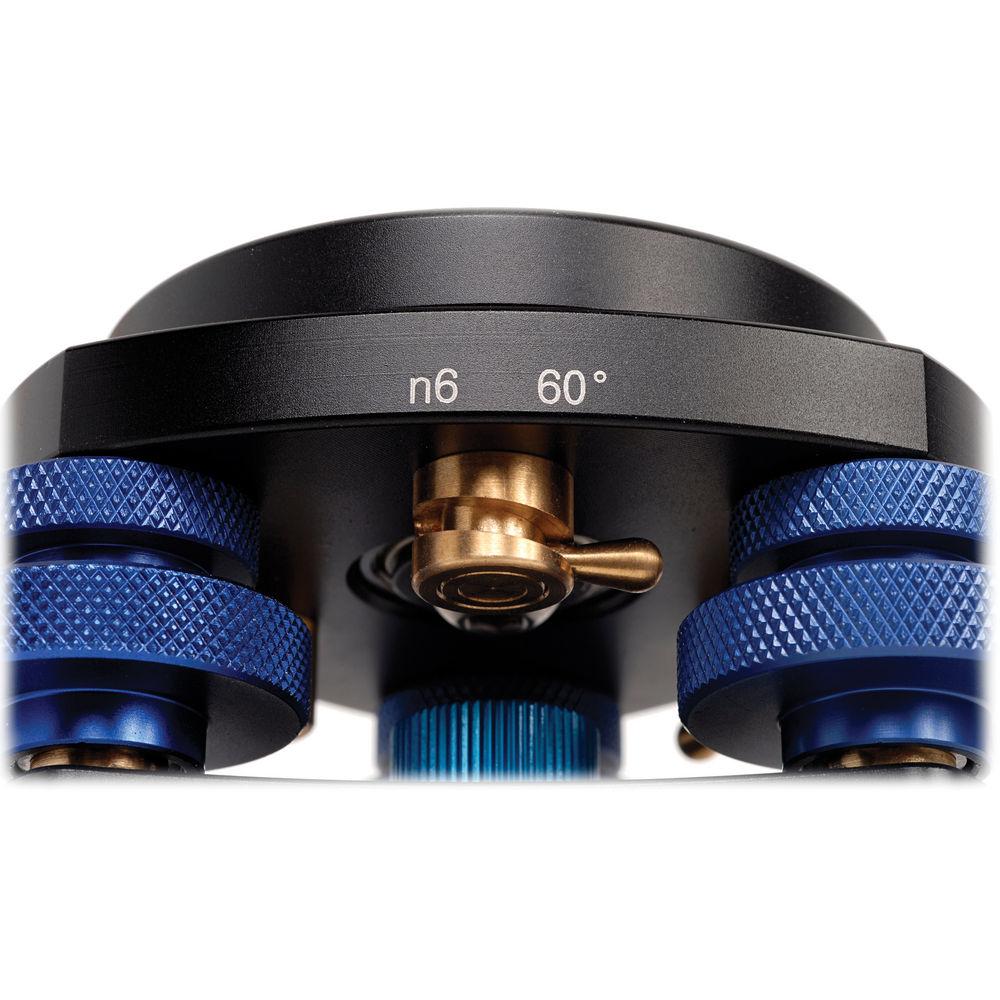

- Detent interval can be changed in seconds by a simple flip of one of three detent levers.
- This rotator allows you to adjust the "zero" angle position (level) quickly and easily by the coordinated turning of three leveling knobs.
- Without moving the tripod, you can point the Nodal Ninja in any direction. Many users like to take their shot pointing North for easier reference or when geotagging your images.
- Compact and lightweight rotator with leveling base built-in, a mere 12.34 oz (350 g) and a minimum height of 1.94" (49.5mm).

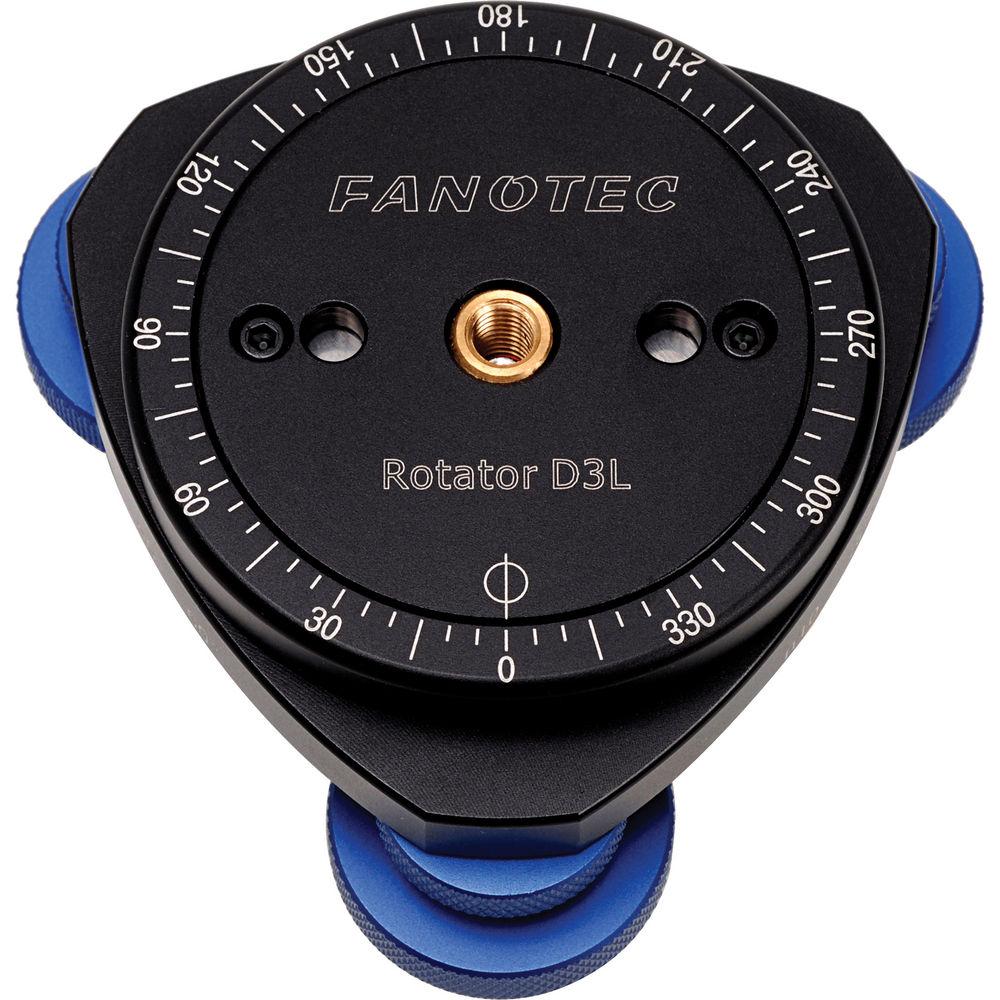

- Demarcations (tic marks) on rotator include:
* 5 degree small tic marks
* 10 degree large tic marks
* 30 degree numerations (0, 30, 60, 90 etc.)
* 20 degree diamond marks between numerations - 3 selectable degree stop increments (with equivalent number of stops around) include:
* 12 (30 stops)
* 45 (8 stops)
* 60 (6 stops) UPC: 689466527827 In the Box Nodal Ninja R-D3L 6-8-30 Rotator with Built-In EZ-Leveler-MKII 2-Year Limited Warranty and Against Hardware Defects Table of Contents
|
Upload User Manual
Have you got an user manual for the Nodal Ninja R-D3L 6-8-30 Rotator with Built-In EZ-Leveler-MKII in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNodal Ninja F1152 Specs | Material | Anodized aluminum with a non-glare black base | | Mounting Threads | 3/8" | | Load Capacity | 7 lb (3.5 kg) | | Diameter | Rotator diameter = 73 mm (2.87")
Leveler max diameter = 93 mm (3.66") | | Height | 49.5 mm (1.94") | | Weight | 12.4 oz (350 g) | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 3.9 x 3.5 x 3.0" |
