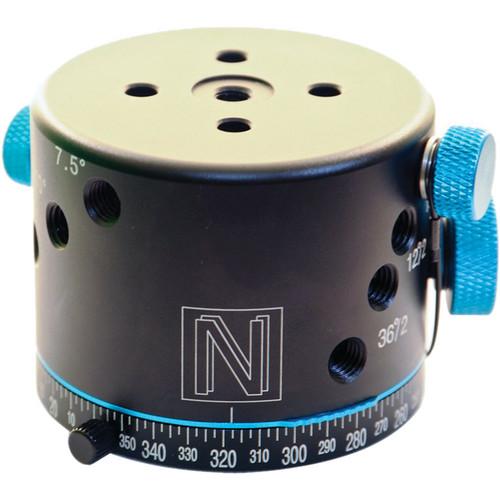

Product description Time-Lapse Tips and Tools Read More ddzercutrfsbfcydtqruzsxfffuurdayasdtsr The RD16 II Advanced Rotator for Panoramas from Nodal Ninja has a total of 16 different selectable detent intervals, including 3.75-120°. This rotator also has a 62mm foot nadir footprint (diameter), and is best suited for ultra wide fisheye lenses when capturing full 360 x 180° spherical panoramas.
Combining anodized aluminum parts with a lubricated inner ball bearing design, the RD16 II also provides the very precise, fluid rotation required of professional photographers. You can change click stops on-the-fly, which is ideal in time-sensitive situations, which includes shooting high resolution multi-image mosaics, or shooting the same scene at different focal lengths. - For 360 x 180° Spherical & HDR Panoramas
- With precisely machined components, laser engraved markings, and lubricated bearings you can capture full spherical panoramas both quickly and accurately
- 62mm Diameter/Nadir Footprint
- Diameter of 62 mm provides sufficient precision and stability while keeping the nadir footprint small
- 16x Selectable Detent Intervals
- This advanced rotator has 16 different degree stop increments which correspond to a 3.75-120° range of detent intervals. While the detent interval (click-stop) option can also be changed in seconds, some of these specifically require both of the two included plungers, and an included knob locks the rotation into place
- Up to 24lb Supported Weight Capacity
- This rotator supports 24 lb (11 kg) of weight, and is designed for ideally half of that, at 12 lb (5.5 kg)
- Change Detent Interval in Seconds
- As quickly as you can pull one of the two plungers out of a detent interval, you can change the number of stops and degrees at which your rotator will stop
- Laser Engraved Indexing Marks
- High precision lasers were used to engrave the indexing marks on this rotator every 2.5°
- Built-In 3/8"-16 Bottom Thread
- Attach the rotator to any compatible 3/8"-16 screw or adapter, allowing you to use tripods, stands or other stabilization methods
- Designed to mount on lower rail systems of current Nodal Ninjas using anti-twist sockets and M6 female thread with supplied 1/4 hex screw
UPC: 689466527841 In the Box Nodal Ninja RD16 II Advanced Rotator for Panoramas 2 x Blue Anodized Detent Plungers Blue Anodized Locking Knob Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Nodal Ninja RD16 II Advanced Rotator for Panoramas in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersNodal Ninja F1161 Specs | Click-Stops | 3, 4, 6, 8, 10, 12, 15, 18, 20, 24, 30, 36, 48, 60, 72 and 96 stops
Both detent plungers are required for 20, 60, 72 and 96 stops | | Degree Stops | 120, 90, 60, 45, 36, 30, 24, 20, 18, 15, 12, 10, 7.5, 6.0, 5.0 and 3.75°
Both detent plungers are required for 18, 6.0, 5.0 and 3.75° | | Mounting Thread | Top: M6 Demarcations (reference tic marks) every 2.5°
Base: 3/8"-16 | | Load Capacity | Maximum: 24 lb (11 kg)
Ideal: 12 lb (5.5 kg) | | Material | Base: Non-glare, black anodized aluminum
2x Detent Plungers: Blue anodized aluminum
Locking Knob: Blue anodized aluminum | | Dimensions (Diam. x H) | 2.4 x 1.9" (6.2 x 4.8 cm) | | Weight | 14 oz (400 g) | | | | Package Weight | 1.5 lb | | Box Dimensions (LxWxH) | 4.1 x 3.9 x 3.1" |
