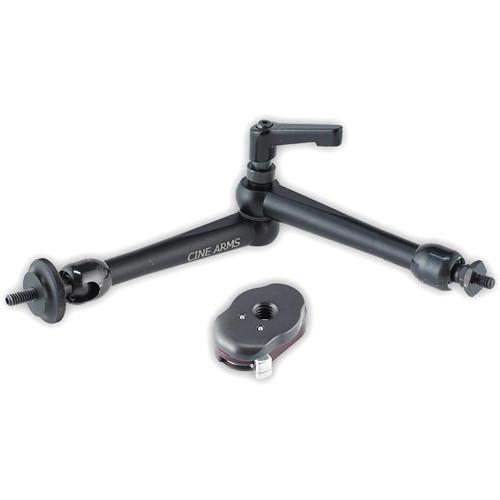

User Manual for Noga 1 4" DG Cine Arm Kit with 1 Cine Lock Click to enlarge the picture
Contents of the user manual for the Noga 1 4" DG Cine Arm
- Product category: Articulating Arms Noga
- Brand: Noga
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Noga Articulating Arms
|
User manual for the Noga 1 4" DG Cine Arm contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Noga product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Noga user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Noga product will considerably shorten its lifespan!
|
Product description Combining an articulating arm with a handy quick-release solution, the Noga 1/4" DG Cine Arm Kit with 1 Cine Lock offers the stability and ease-of-use demanded by professionals. The kit itself is comprised of Noga's well-regarded articulating DG Cine Arm and one of 16x9 Inc's Cine Locks. These components work in conjunction to allow for quick securing, removal, and positioning of your rig equipment. See below for more information on the individual items in this kit. - DG1108CA Cinematic Arm with 1/4"-20 Screw The DG1108CA Cinematic Arm with 1/4"-20 Screw from Noga is an adjustable versatile arm for holding your monitor in virtually any position. This arm Mounts 1/4"-20 to monitor and 1/4"-20 to camera.
- Cine Lock Quick Release Mounting Device The 16x9 Cine Lock Quick Release Mounting Device consists of two parts that each attach to separate pieces of equipment and then lock into one another, and at the slide of a pin they unlock and separate from each other. Thus they provide quick-release functionality between cameras and accessories, and can be used with most any 1/4" or 3/8" gear.
The two parts are a burgundy wedge and a gray plate. They each attach onto a piece of equipment regardless of whether the equipment has a stud or a screw-hole as its mounting option. Both parts have to them two different-sized screw-holes. Via one of the two, each part either screws onto a stud, or -- by means of one of three screws that come included with the Cine Lock -- gets fastened to a screw-hole of a piece of equipment. The screw-holes of the wedge and plate are of 1/4" and 3/8" sizes, and the included screws are of the same sizes. - Provides quick-release functionality with most any 1/4" or 3/8" equipment.
- Screws onto a stud or gets fastened into a screw-hole by means of included screws.
- Consists of two components. One slides and locks into the other, and a slide of a pin unlocks them.
In the Box Bundle Items DG1108CA Cinematic Arm with 1/4"-20 Screw zbbatefystdrybu Cine Lock Quick Release Mounting Device Table of Contents
|
Upload User Manual
Have you got an user manual for the Noga 1 4" DG Cine Arm Kit with 1 Cine Lock in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DG1108CA Cinematic Arm with 1/4"-20 Screw
| Screw | Arm Top: 1/4"-20 Screw Plus Nut
Arm Bottom: 1/4"-20 Screw | | Load Capacity | 10 lbs (4.5kg) Max | | Length | Extended Length: 9.125" (231 mm) | | Weight | 11 oz (311g) | | | | Box Dimensions (LxWxH) | 8.3 x 3.5 x 2.1" | - Cine Lock Quick Release Mounting Device
| Thread Size | 1/4" and 3/8" | | Weight | 1.8 oz (51 g) | | | | Box Dimensions (LxWxH) | 2.3 x 2.3 x 0.3" |
