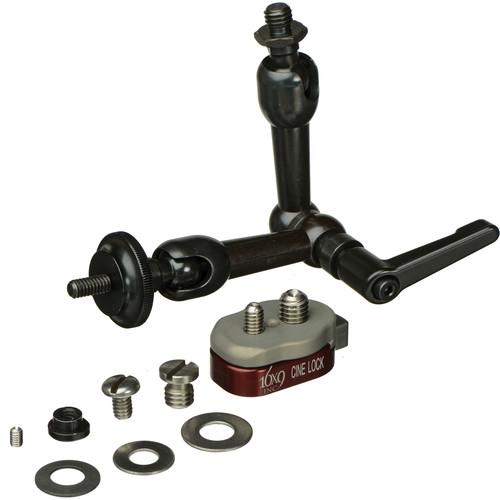

Product description The Noga Cine Arm and Cine Lock Kit 1 combines the "small" Cine Arm NF with a Cine Lock quick release adapter that allows snapping an accessory on/off. The Cine Lock consists of two parts, one for the arm and one for the accessory, that unlock at the slide of a lever. The Cine Arm totals approximately 7" in length end to end and supports up to 7.2 lb. It features a 1/4"-20 mounting screw on one end and 3/8"-16 screw on the other, and the Cine Lock offers both 1/4"-20 and 3/8"-16 screws. - NF9038CA CineArm NF (Small) The Noga NF9038CA CineArm NF (Small) is composed of three-joints that can be quickly and efficiently locked or released using a kip lever-based central mechanism. All three-joints can be simultaneously locked using the single central locking knob. While supporting camera lights and monitors, you can move the arm horizontally or vertically, as well as achieve tilt adjustments to obtain the best possible view. With equal length on both sides, the arm offers increased strength and holding resistance.
- Provides quick and efficient locking or release of arms using a kip lever-based central mechanism
- Offers simultaneous locking of all three joints via single central locking knob
- Provides horizontal, vertical as well as tilt adjustments allowing you to obtain the best possible view
- Equal length on both sides of the arms for increased strength and holding resistance
- Supports camera lights and monitors
- Cine Lock Quick Release Mounting Device The 16x9 Cine Lock Quick Release Mounting Device consists of two parts that each attach to separate pieces of equipment and then lock into one another, and at the slide of a pin they unlock and separate from each other. Thus they provide quick-release functionality between cameras and accessories, and can be used with most any 1/4" or 3/8" gear.
The two parts are a burgundy wedge and a gray plate. They each attach onto a piece of equipment regardless of whether the equipment has a stud or a screw-hole as its mounting option. Both parts have to them two different-sized screw-holes. Via one of the two, each part either screws onto a stud, or -- by means of one of three screws that come included with the Cine Lock -- gets fastened to a screw-hole of a piece of equipment. The screw-holes of the wedge and plate are of 1/4" and 3/8" sizes, and the included screws are of the same sizes. - Provides quick-release functionality with most any 1/4" or 3/8" equipment.
- Screws onto a stud or gets fastened into a screw-hole by means of included screws.
- Consists of two components. One slides and locks into the other, and a slide of a pin unlocks them.
In the Box Bundle Items NF9038CA CineArm NF (Small) xabsweqs Cine Lock Quick Release Mounting Device
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the Noga Cine Arm and Cine Lock Kit 1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - NF9038CA CineArm NF (Small)
| Arm | Top: Male 1/4"-20 plus nut
Bottom: Male 3/8" | | Extended Length | 5.0" (12.7 cm) | | Maximum Load Capacity | 7.2 lb (3.3 kg) | | Weight | 0.6 lb (0.3 kg) | | | | Box Dimensions (LxWxH) | 6.6 x 2.95 x 1.7" | - Cine Lock Quick Release Mounting Device
| Thread Size | 1/4" and 3/8" | | Weight | 1.8 oz (51 g) | | | | Box Dimensions (LxWxH) | 2.3 x 2.3 x 0.3" |
